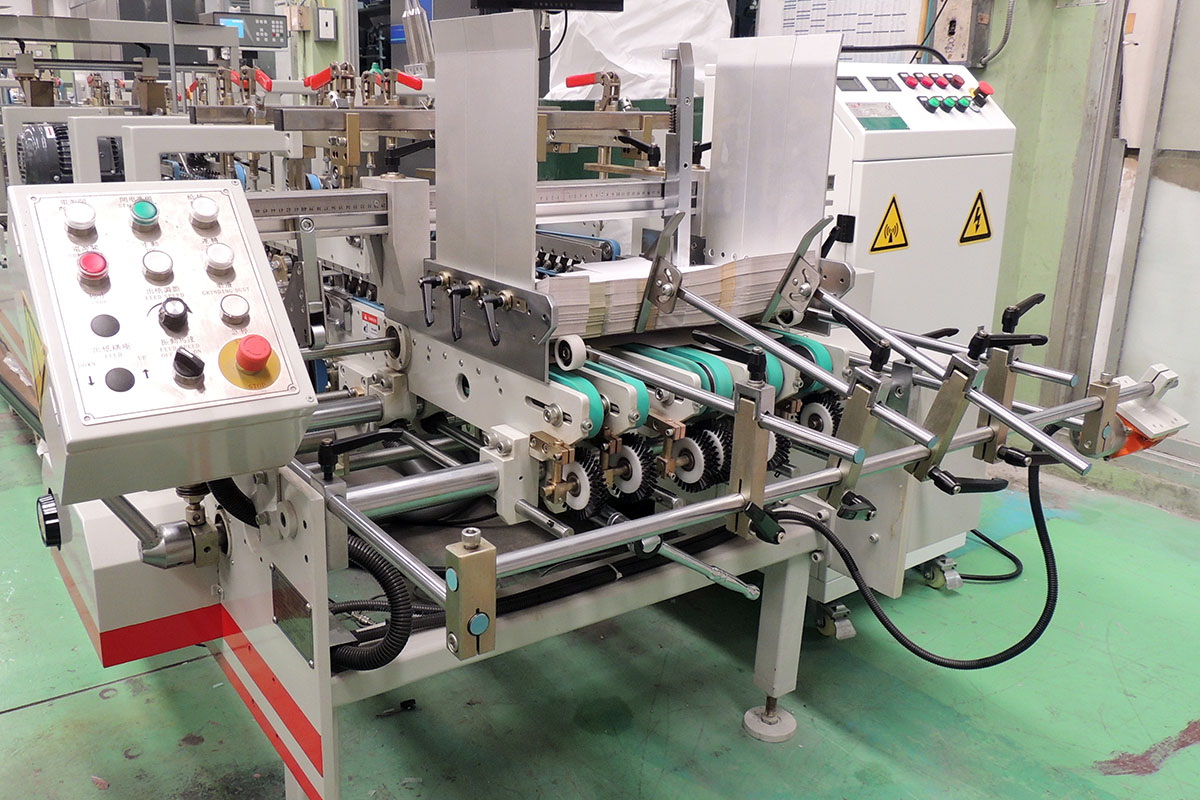

FEEDING SECTION

▪ Step speed changer and magnetic clutch to adjust the belt speed for stable feeding and spacing between blanks.

▪ Motor vibrating feed pile support for separating blanks and eliminating skips and doubles.

▪ Belt cleaning brush with easy angel adjustment for better cleaning of the belt surface to increase the feeding stability.

▪ Feeder start/stop can be controlled by remote controller at any operation area.

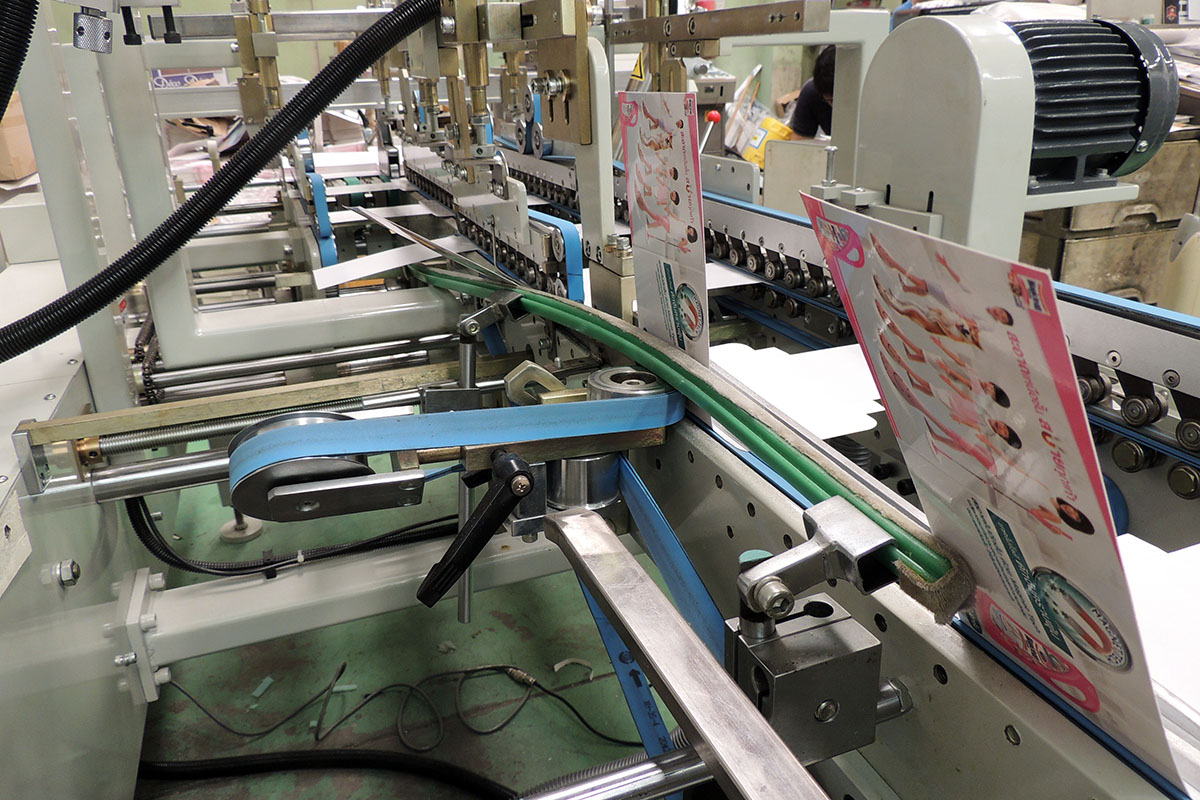

PRE-FOLDING SECTION

▪ The pre-breaking sword for 1st creasing by 180°.

▪ The belt pre-breaking device for 3rd creasing line by 135°.

▪ Perfect pre-breaking ensure accurate and reliable opening of the finished products in the auto-erection package lines.

▪ Sectional upper carrier can be telescopically adjusted; quick to set up and job change over.

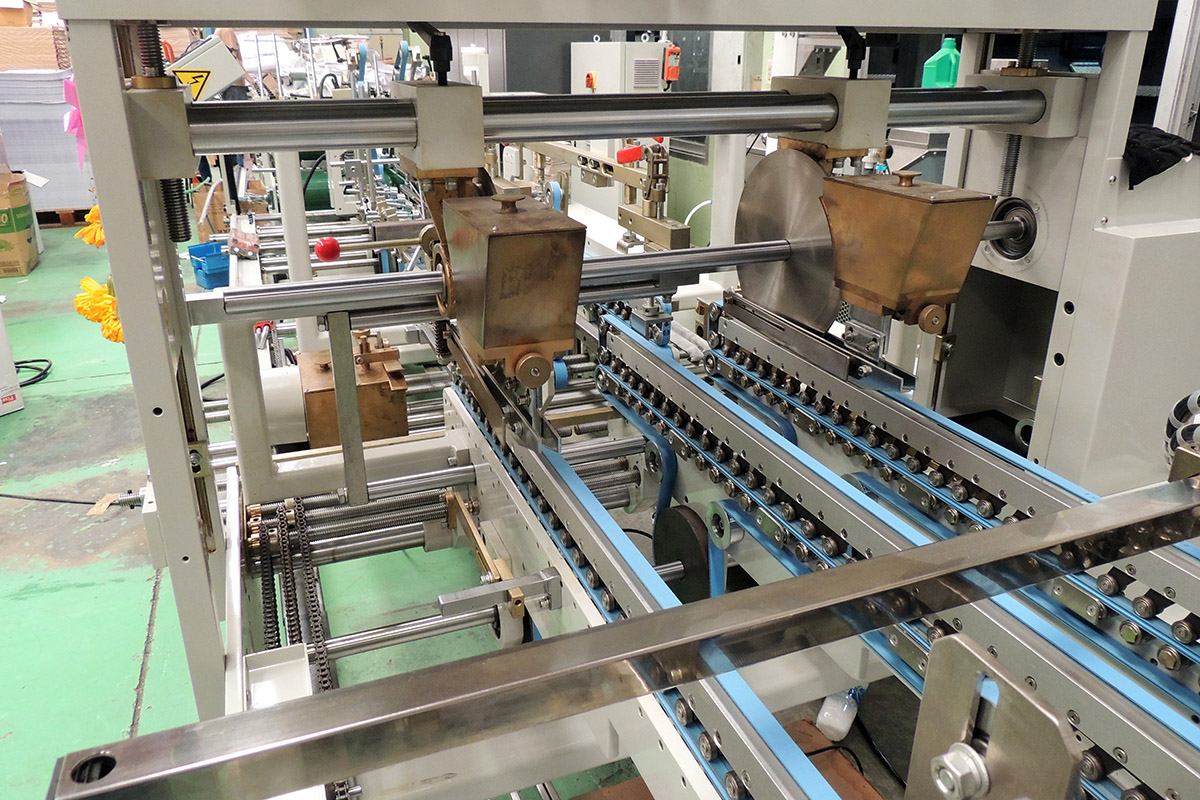

LOCK-BOTTOM SECTION

▪ Three-carrier construction.

▪ Easy for mounting lock bottom accessories, more operator friendly.

▪ Two upper glue wheel system equipped as standard.

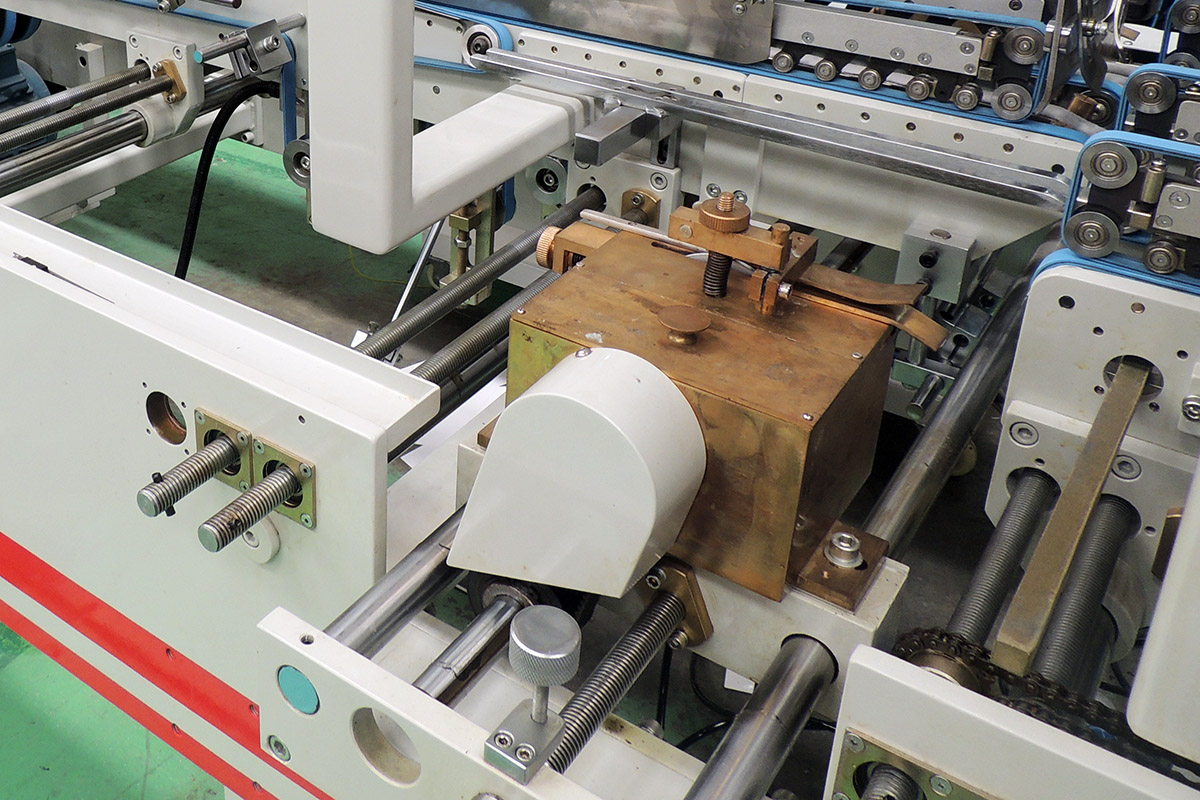

LOWER GLUER

▪ Lower gluing pots on both sides are equipped as standard. Easy to remove, fix and clean.

▪ Gluing wheel by 2 section blade can control the volume well and avoid the glue splash at high speed.

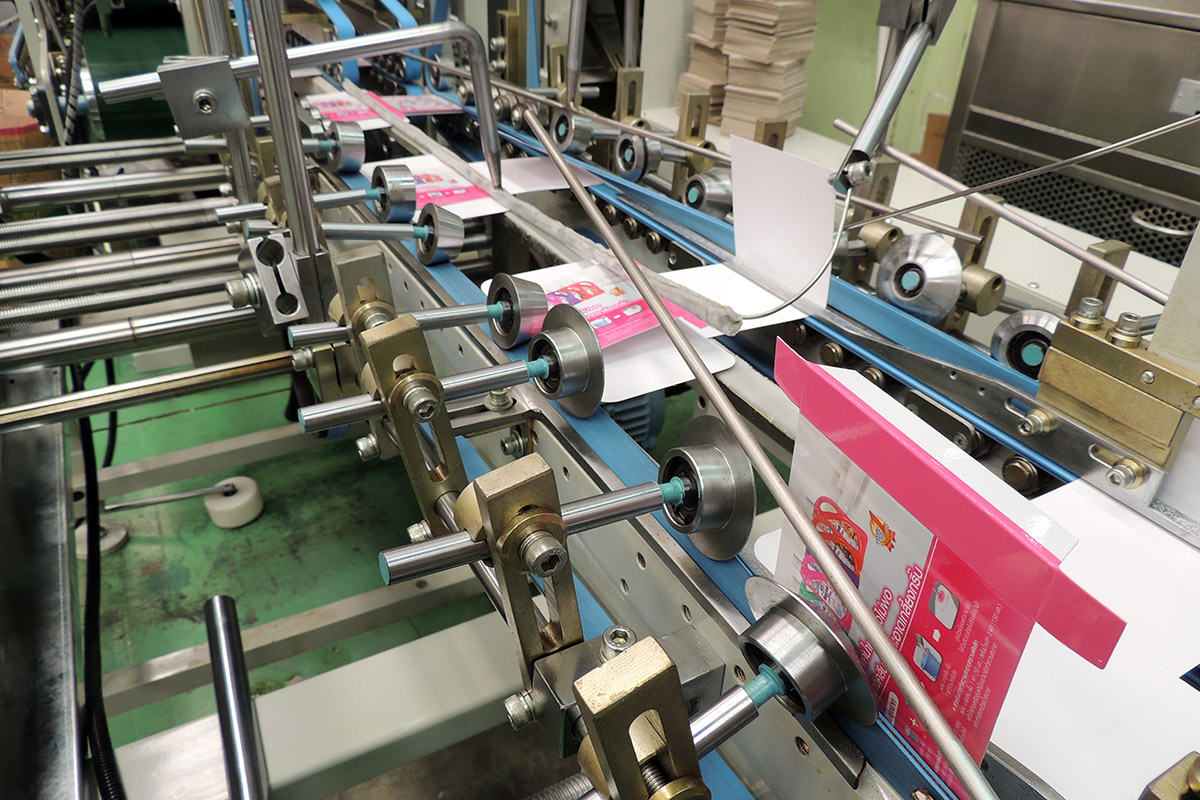

FINAL FOLDING SECTION

▪ It is mainly used for the folding of the 2nd and the 4th creasing lines.

▪ Special designed stabilization device can control the folding belt stable run at high speed, avoid the “fishtail” effect.

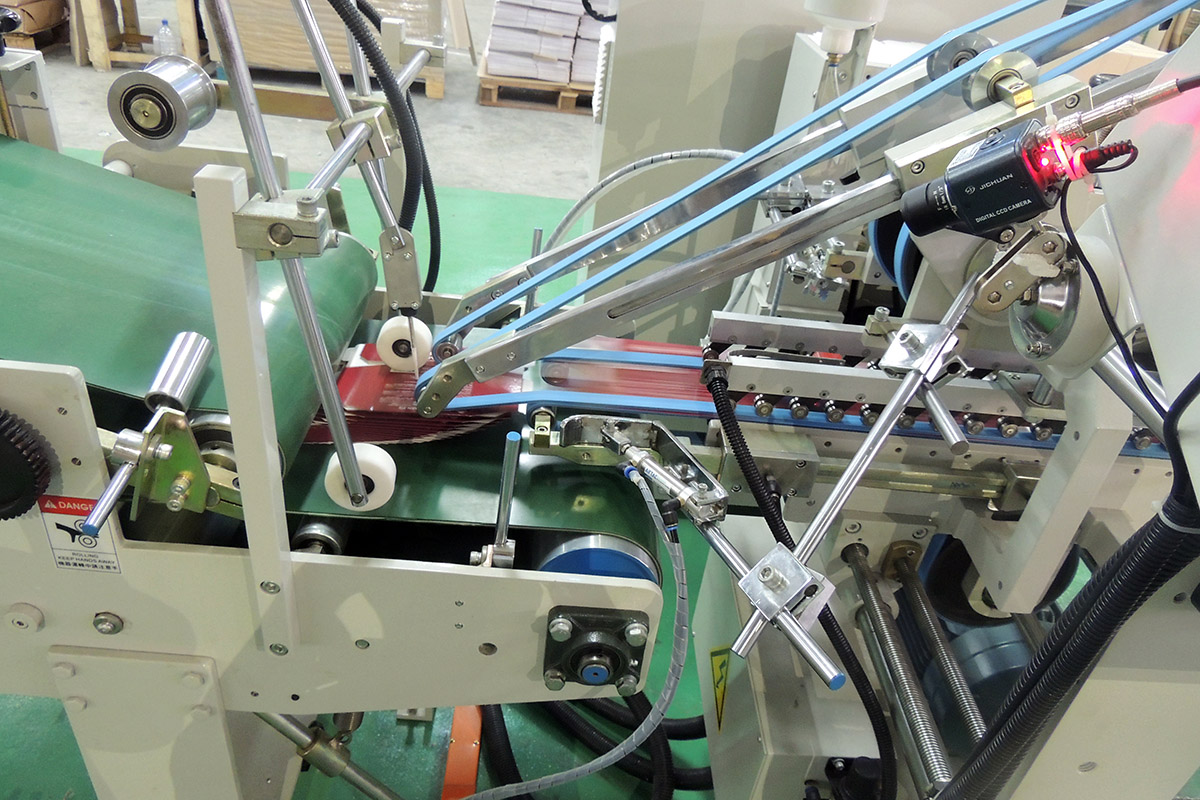

TRANSFER SECTION

▪ Transfer the folded products straightly and stably as a collection pile. Equipped with electronic sensor to coordinate the conveyor speed with the main machine speed for perfect collection.

▪ Equipped with high speed batch counter, kicker and jam detector.

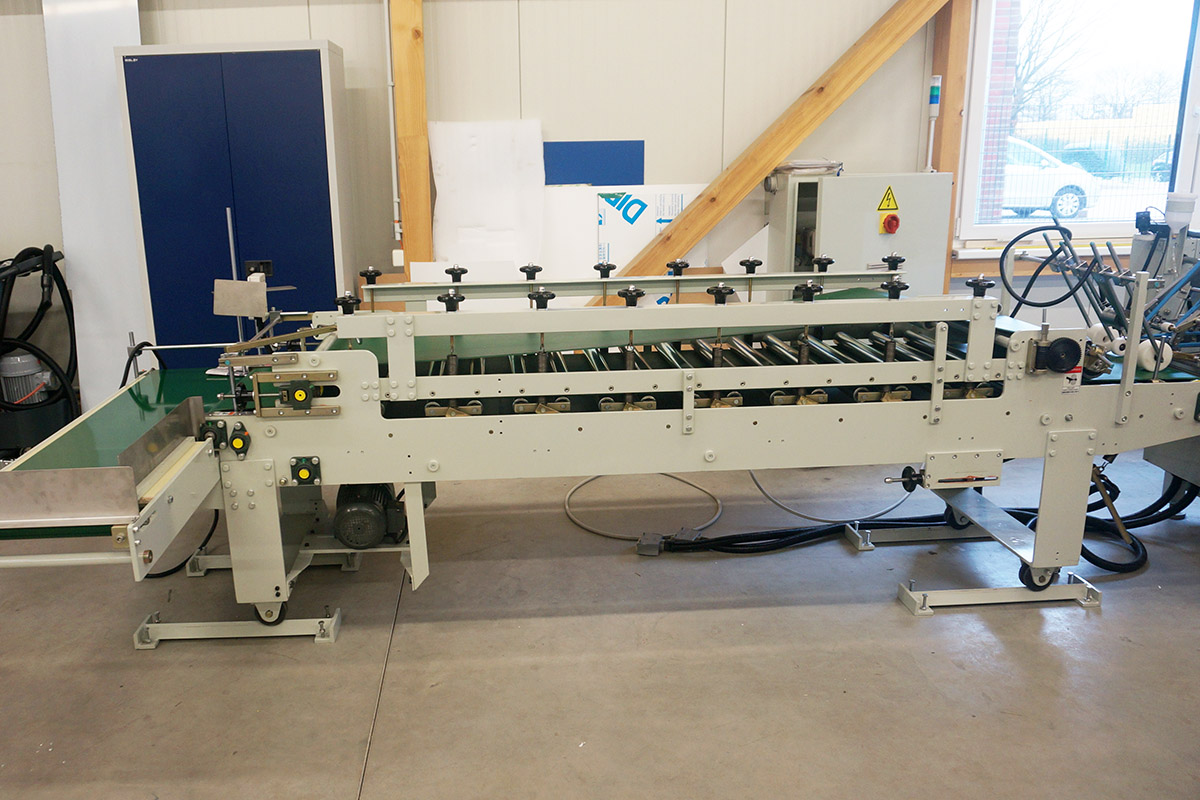

COMPRESSION CONVEYOR SECTION

▪ Unique mechanism provides uniform pressure to facilitate more effective gluing on products..

▪ Collection belt table for easy operation at the end.

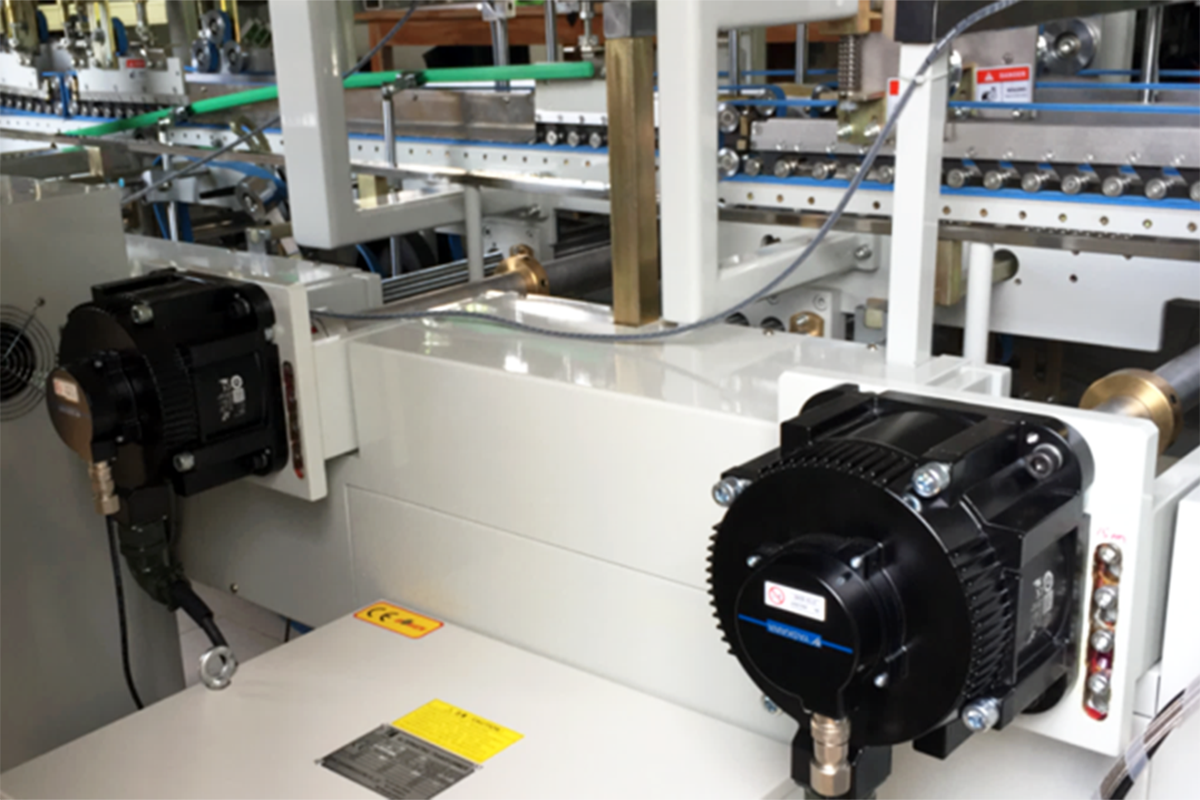

BACK FOLDING SECTION

▪ Two servo shafts controlled individually, easy to mount hooks.

▪ User friendly operation touch screen applied.

▪ Original world brand servo motors and drivers, assure the max. speed at 15,000pcs/hour.
