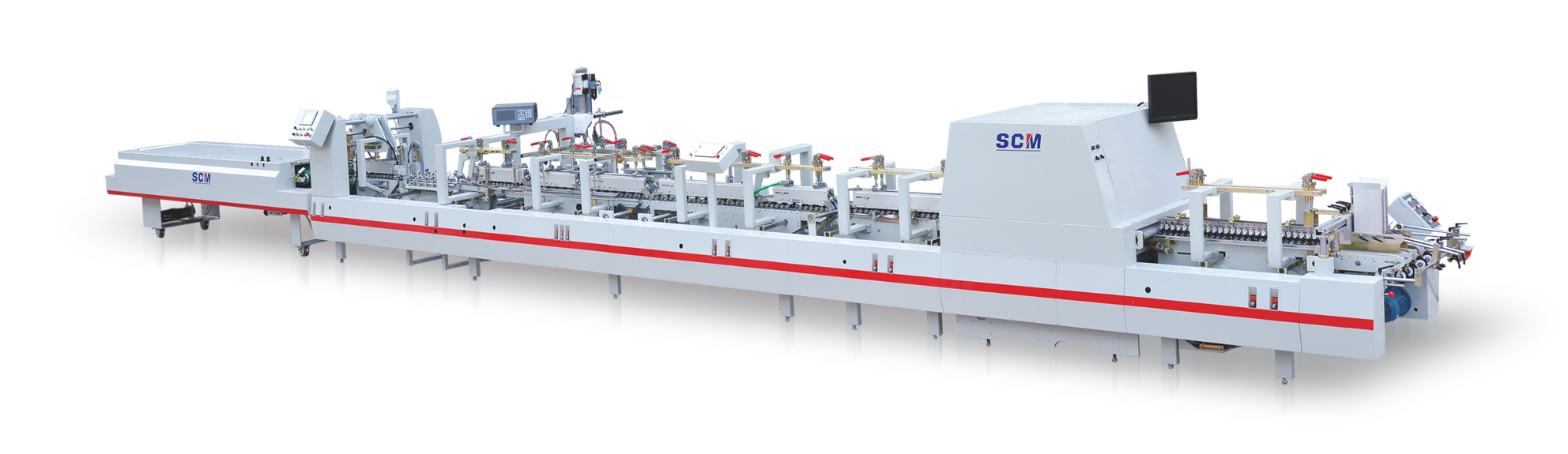

GREAT INSPECTION CAPABILITY

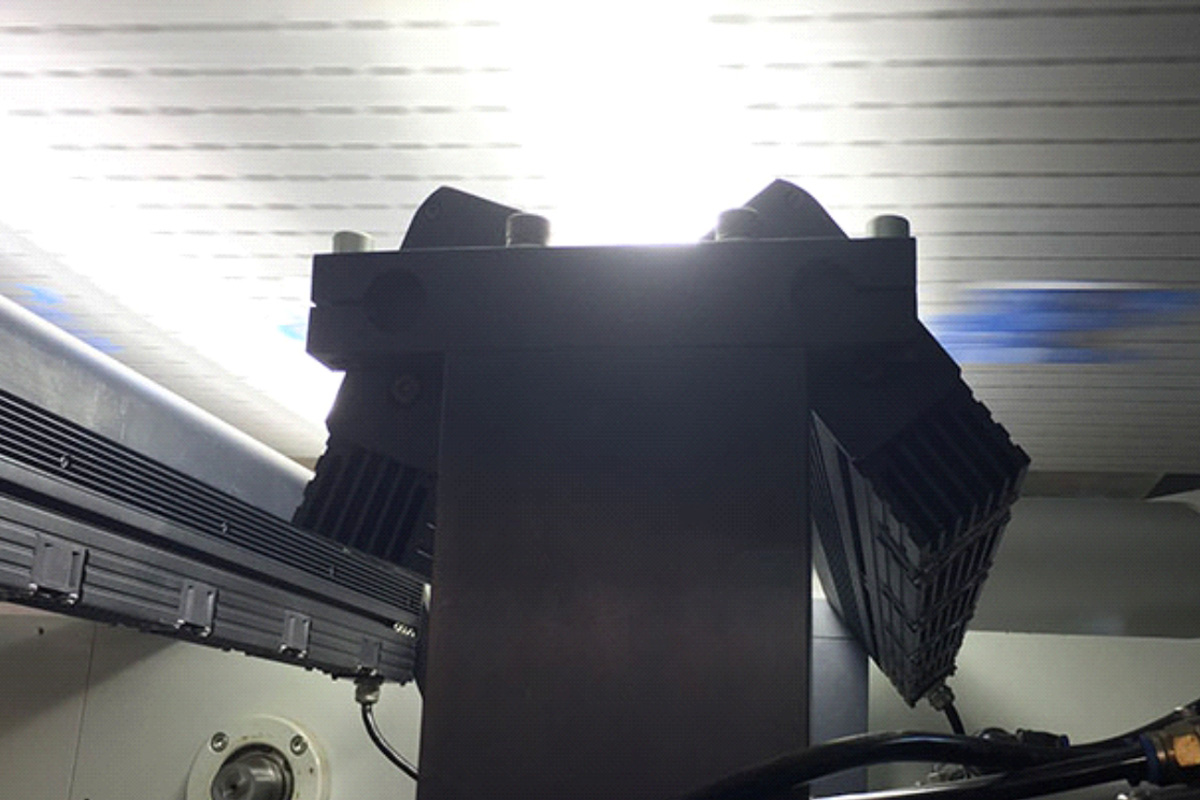

▪ Two line-scan cameras with special light source technologies for different folding carton applications: pharmaceutical, cosmetic, personal care, health care, food, etc.

▪ The inspection abilities include color variation, print missing, text error, bar code, registration of print, die cutting, Braille dots, the imperfection (like splash, spot, scratch, stripe), the integrity (like carton damage, dust, oil, external element), as well as the embellishment (like missing foil, varnish and embossing).

▪ Inspection speed up to 250m/min with high quality control.

▪ Max. inspection width at 800mm.

HIGHLY FLEXIBLE, EASY SET-UP, INLINE EJECTION

▪ Setting up inspection templates takes just a few minutes, and all parameters can be saved and recalled for repeat jobs.

▪ Separate tolerance can be applied to different areas, such as text area, fine text area, stamping area etc. for various quality criteria.

▪ Quality reports and analyses, including defects distribution maps, detailed information, and statistics, will be provided via PDF or Excel files.

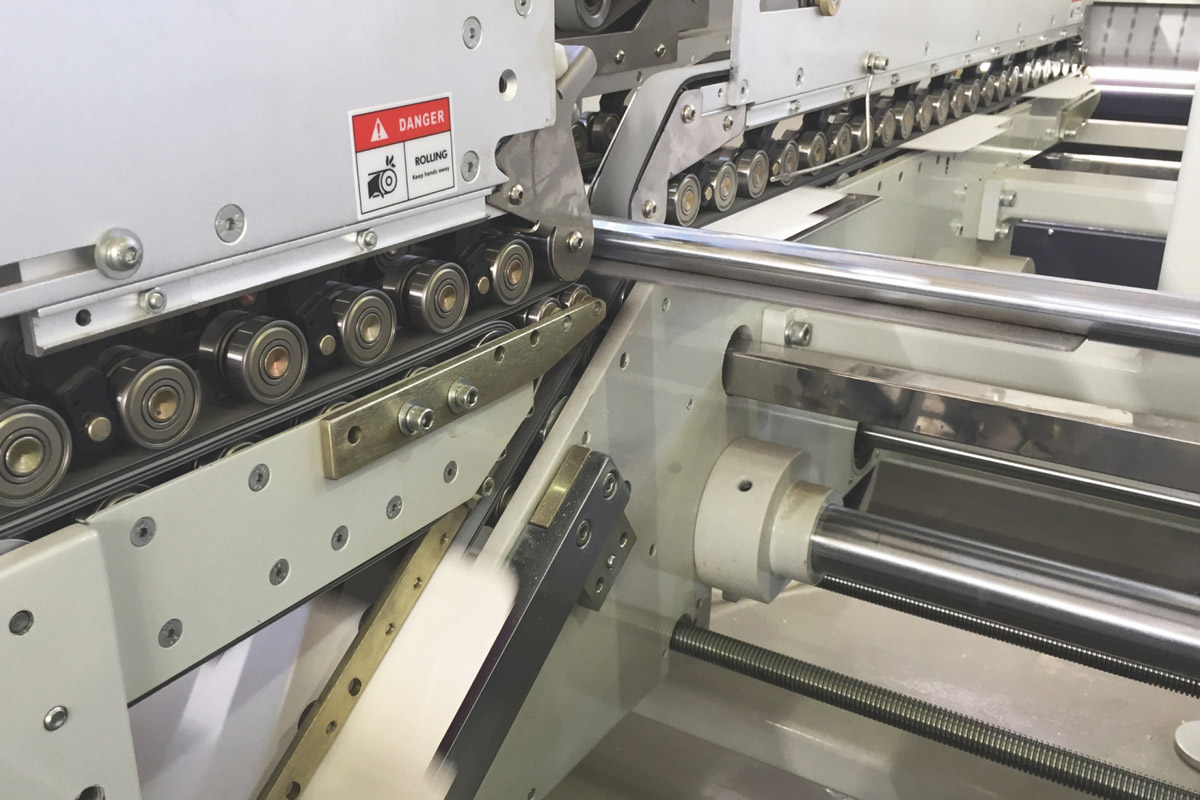

▪ Inline ejection for any defective blanks at high-speed running.

FEEDING SECTION

▪ Independent variable-frequency motor driven belts for stable feeding and accurate blank spacing.

▪ Vacuum-assisted feeding belts in center, resulting in the reliable intake of almost kinds of blanks.

▪ Pile vibrator equipped as standard.

▪ Belt-clean brush for each carrier.

▪ Remote controller for feeder start/stop and speed adjustment.

▪ Manual lift-up side plates and feeding gates.

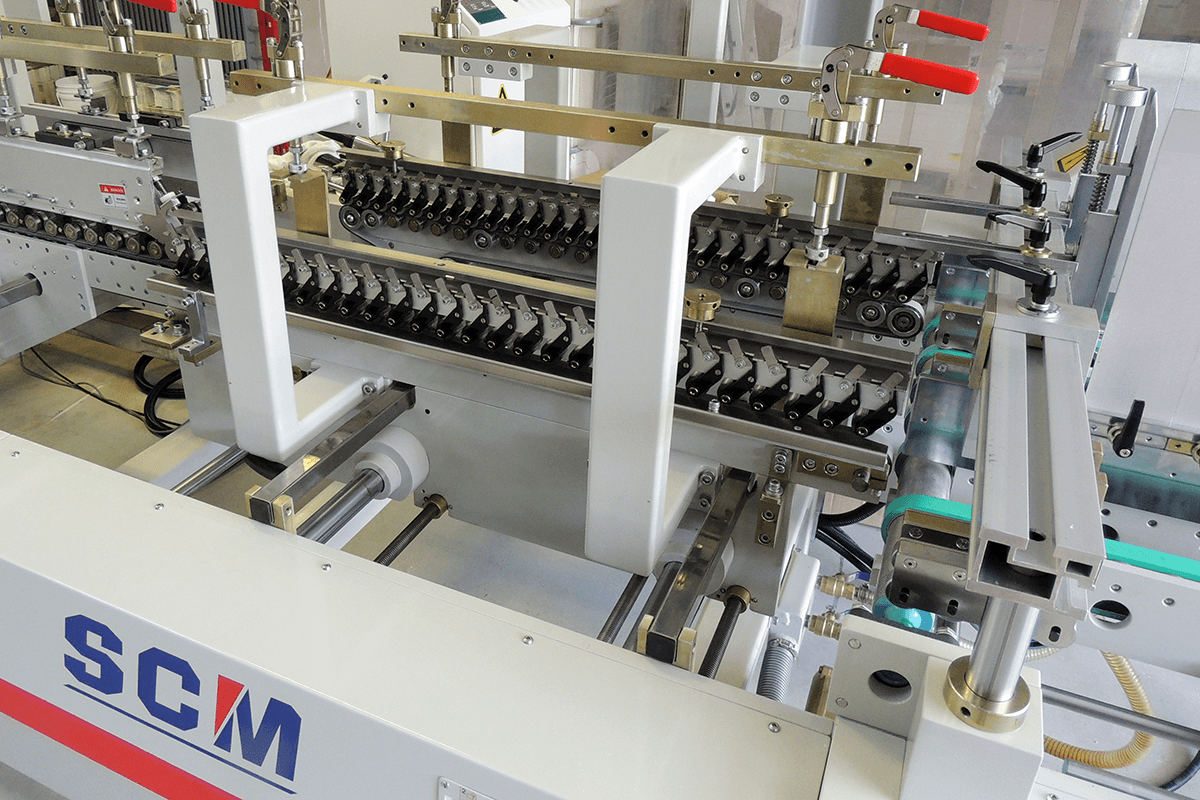

ALIGNMENT SECTION

▪ Two lanes carriers construction. Equipped with 2 upper alignment carriers.

▪ Carrier position adjustable manually with position indicators.

▪ Can be easily converted to left or right side for registration.

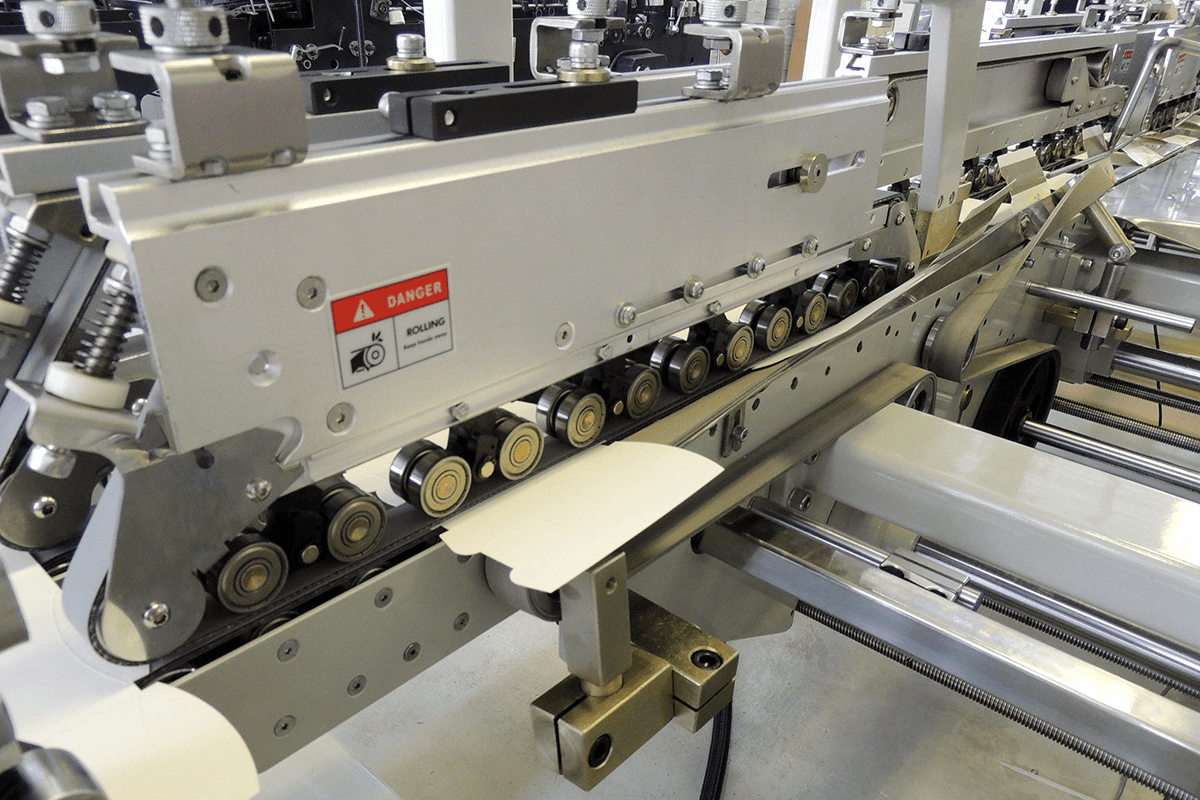

PRE-FOLDING SECTION

▪ Two lanes carriers construction with easy dismantle of split upper carriers for flexible setup.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 23.5mm; lower belt width: 25mm.

▪ The pre-breaking sword for 1st creasing by 180°.

▪ The belt pre-breaking device for 3rd creasing line by 135°.

▪ Perfect pre-breaking ensure accurate and reliable opening of the finished products in the auto-erection package lines.

LOCK-BOTTOM SECTION

▪ Three lanes carriers construction. Two split carriers for left and right lanes; one complete carrier for center lane.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 23.5mm; lower belt width: 25mm.

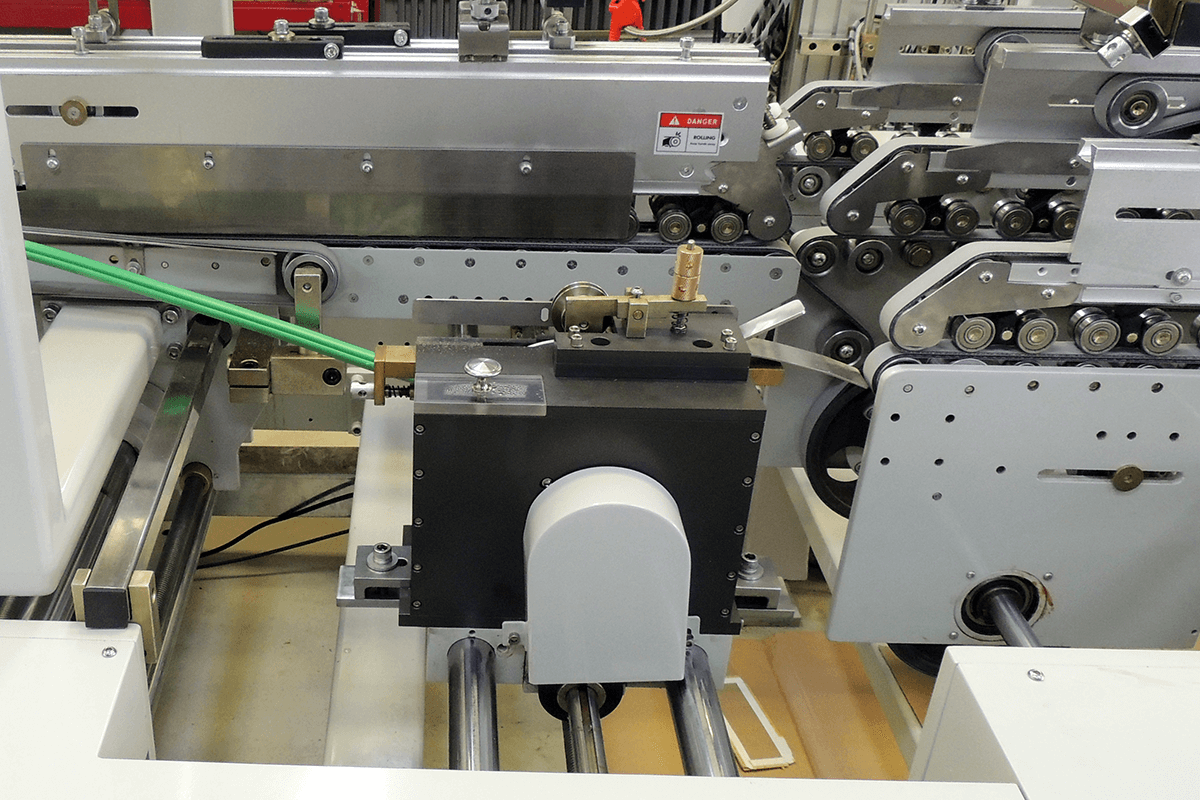

LOWER GLUER

▪ Lower gluer tank in both left and right sides.

▪ Glue disc width: 4.5mm.

▪ Glue tank movement manually.

▪ Accurate volume control avoids the glue splash at high speed.

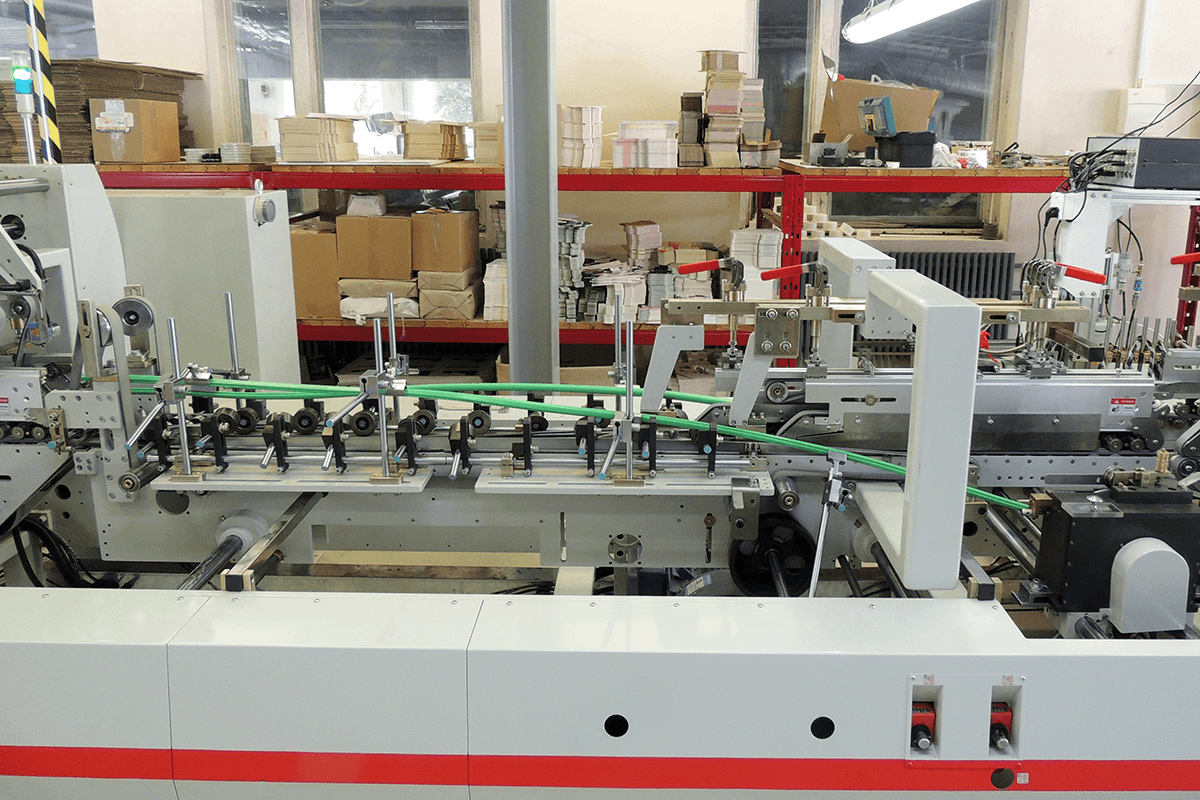

FINAL FOLDING SECTION

▪ Two lanes carriers construction.

▪ Speed of left and right folding belts can be adjusted mechanically.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 23.5mm; lower belt width: 25mm.

▪ Left and right folding belt width: 30mm.

TRANSFER SECTION

▪ Main control panel with touch screen.

▪ Two lanes carriers construction with stable pressure on the folded boxes.

▪ Carrier position adjustable manually with position indicators.

▪ Easy to adjust the pressure holding device according the cartons sizes without change the belt tension.

▪ Kicker counter and spraying counter are equipped as standard.

▪ Camera for live status.

▪ Jam detector.

3.6M COMPRESSION CONVEYOR SECTION

▪ 3.6m long compression conveyor as standard.

▪ Independent driven system regulates the box stream synchronously with machine.

▪ One sponge belt.

▪ Lower belt at transfer section with height adjustable.

▪ Front and rear position movable.

▪ Collection table in the end.

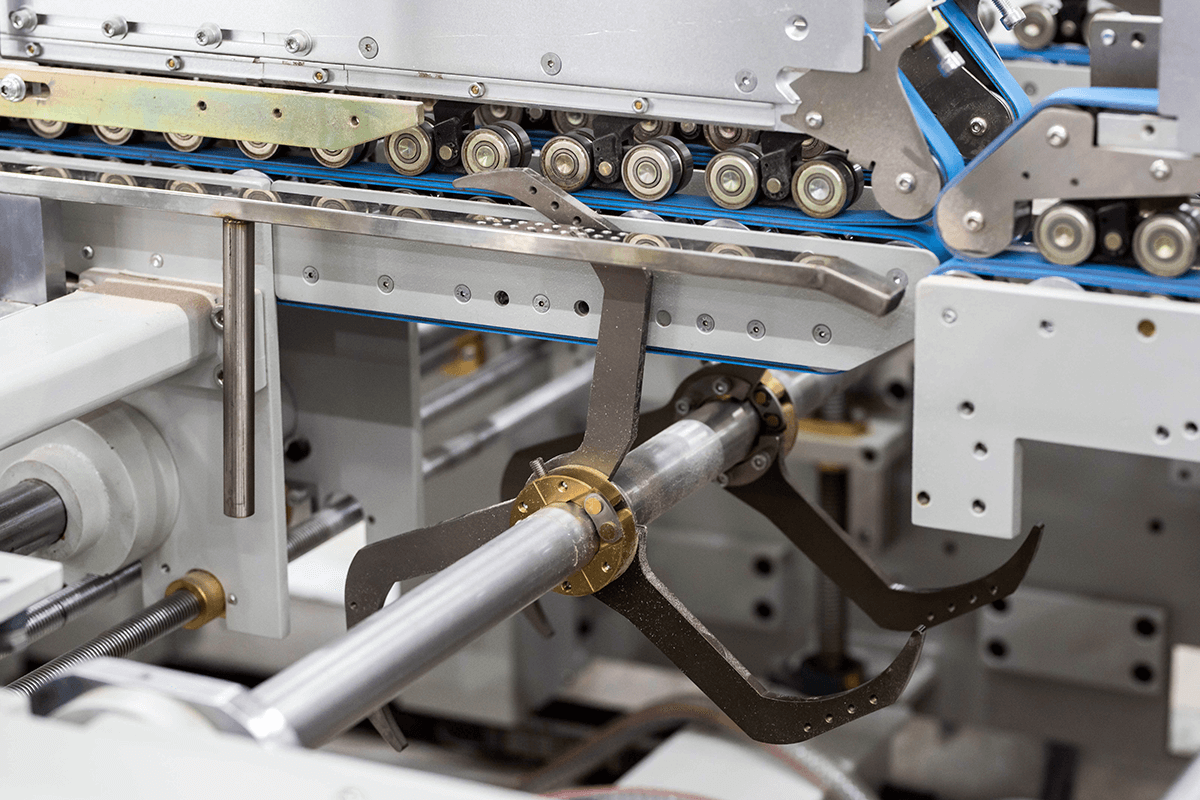

BACK FOLDING SECTION(4/6 CORNER BOX)

▪ Fast set-up of 4/6 corner boxes.

▪ Individually servo-controlled hook shafts with automatic moving up and down.

▪ One hook size adjusting to all flaps sizes, no need to change hooks for various jobs.

▪ No need to remove hooks when back folding system are not used.

▪ Accurate back folding process with max. speed 20,000pcs/h.

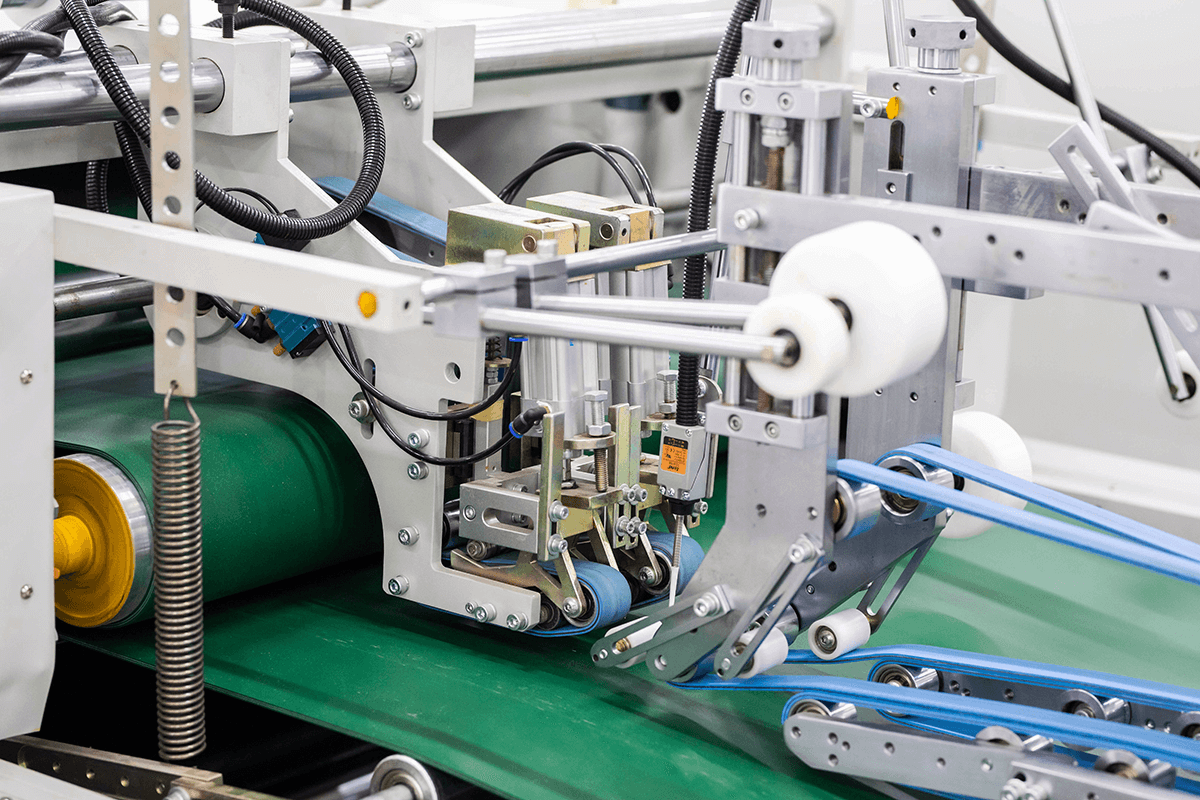

PNEUMATIC SQUARING DEVICE

▪ Pneumatic squaring device at conveyor entry to work out perfect bottom effect, especially for short body and wide lock bottom boxes.

▪ World brand components including:

Cylinder: brand Festo, Germany

Magnetic valve: brand Mac, USA

Pressing belt: brand Nitta, Japan

Linear guide slide: brand THK, Japan
