    Home > Solutions > Folding Carton Gluer > PF-650 / 750 / 1100

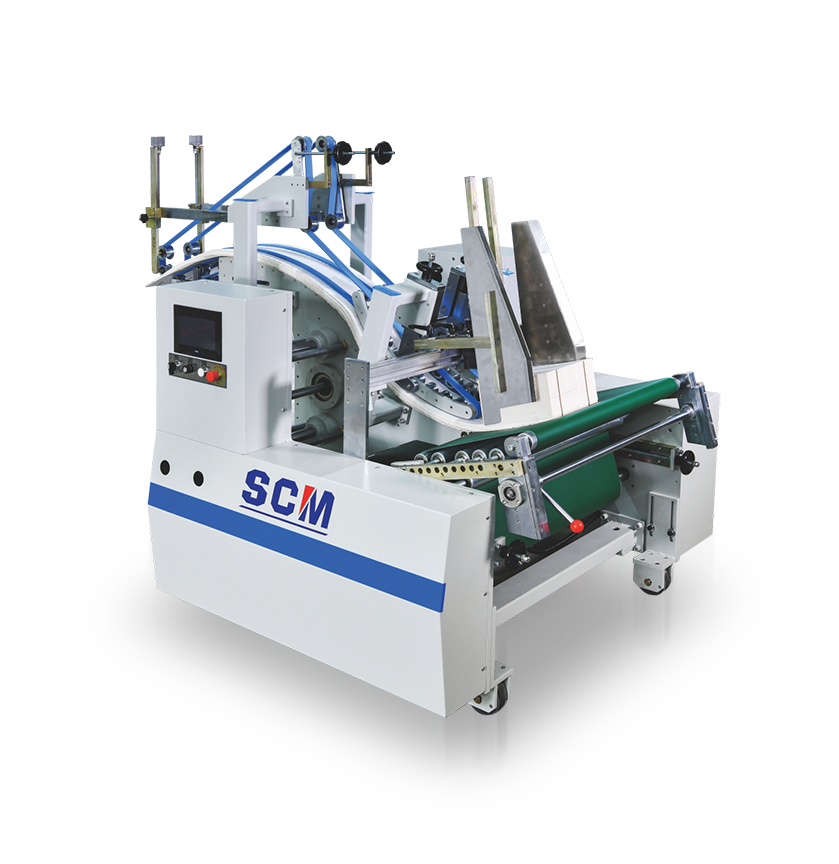

    PF-650 / 750 / 1100
    Pre-feeder
    Get Price Brochure
    Features

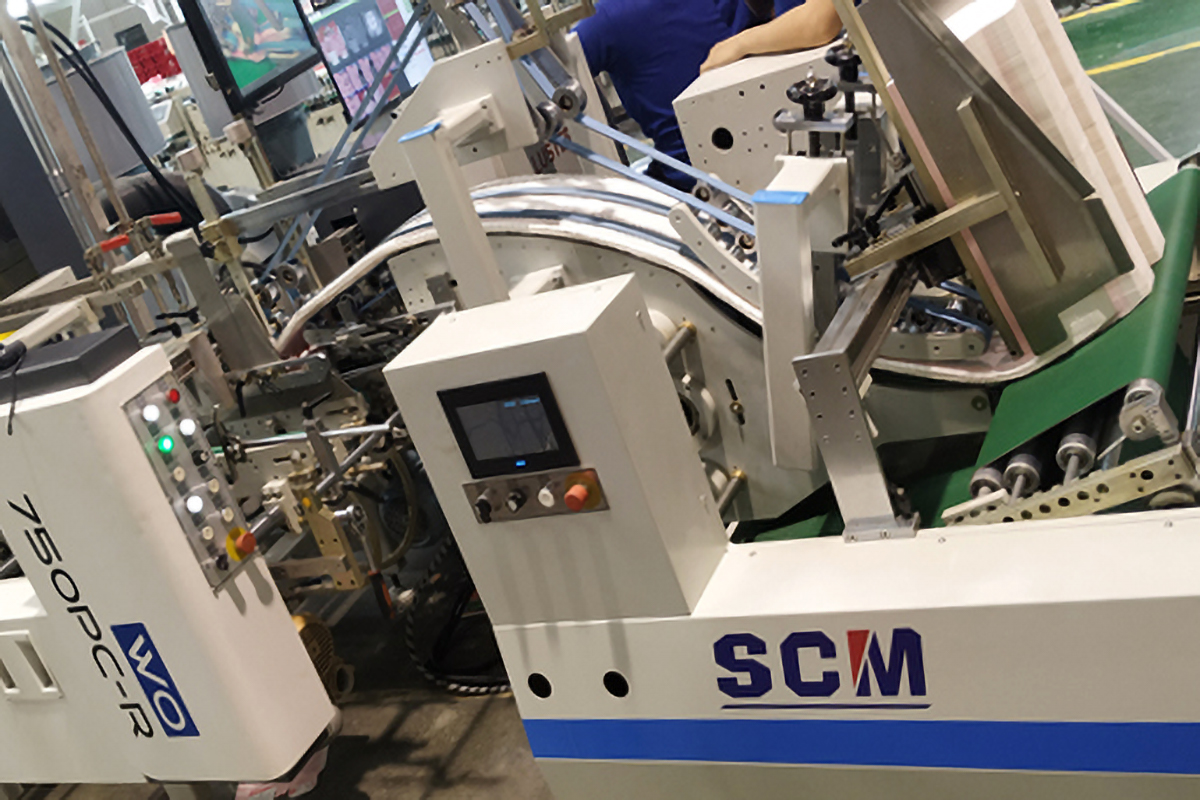

    CONNECT TO WO-750PC-R-I FOLDER GLUER

    ▪ Installed in Samut Prakan, Thailand.

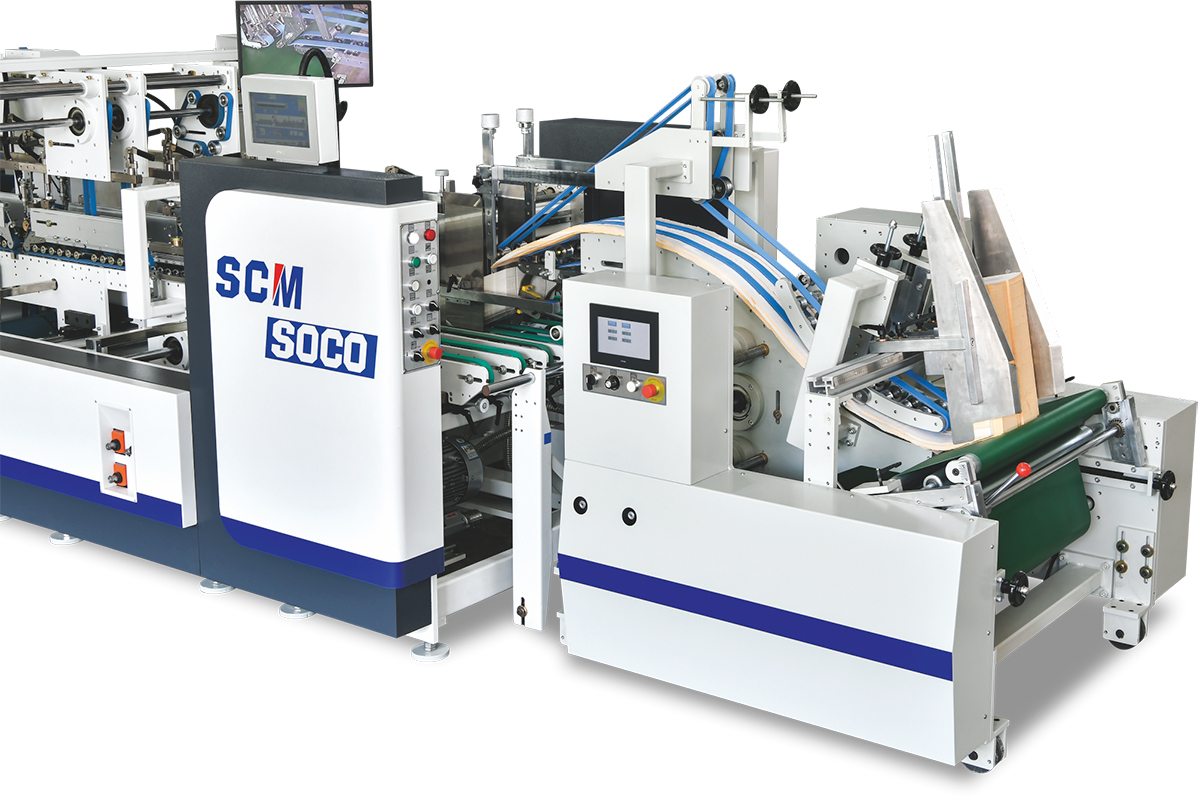

    CONNECT TO SQ-1100PCC-R FOLDER GLUER

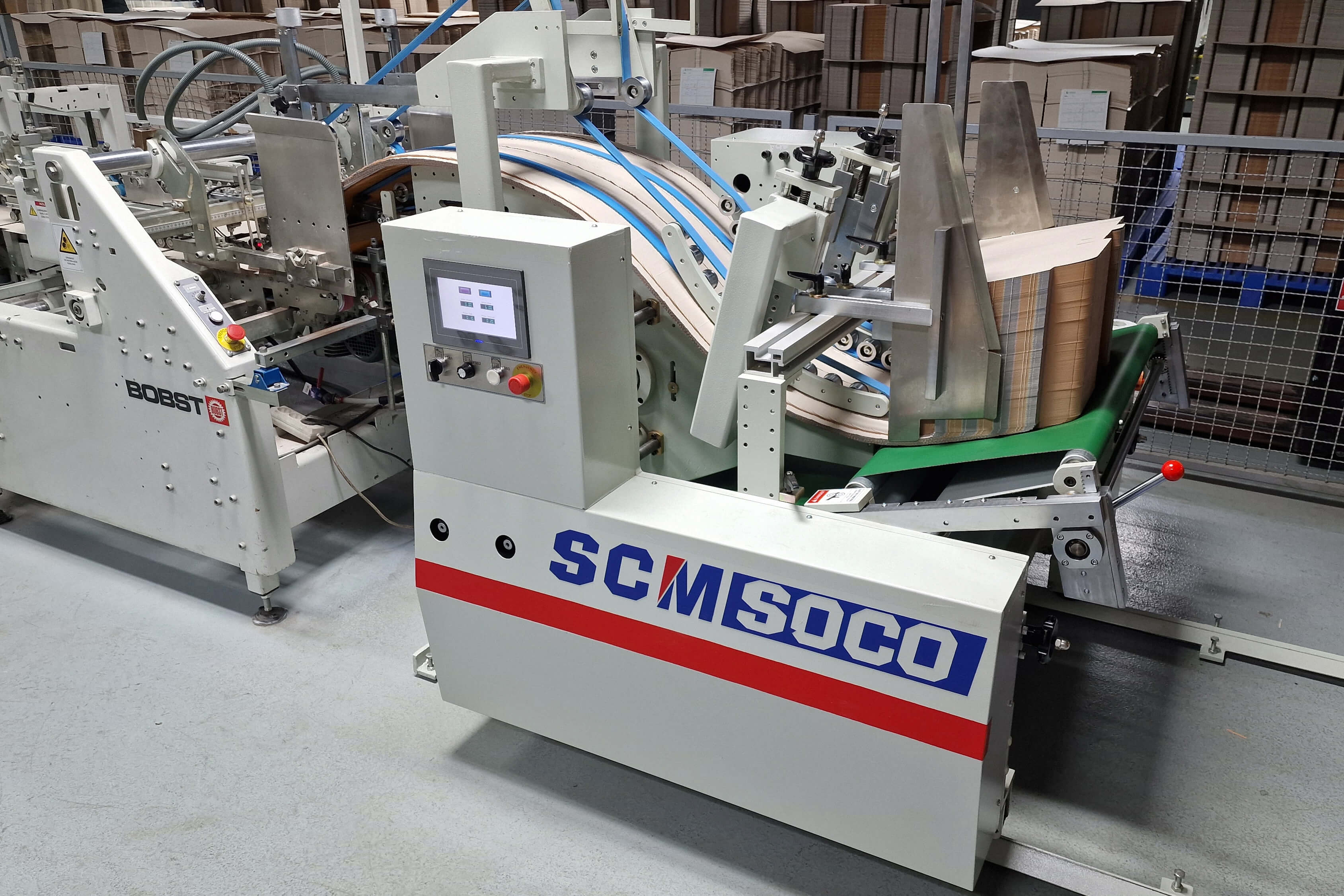

    CONNECT TO BOBST FOLDER GLUER

    ▪ Installed in Zagreb, Croatia.

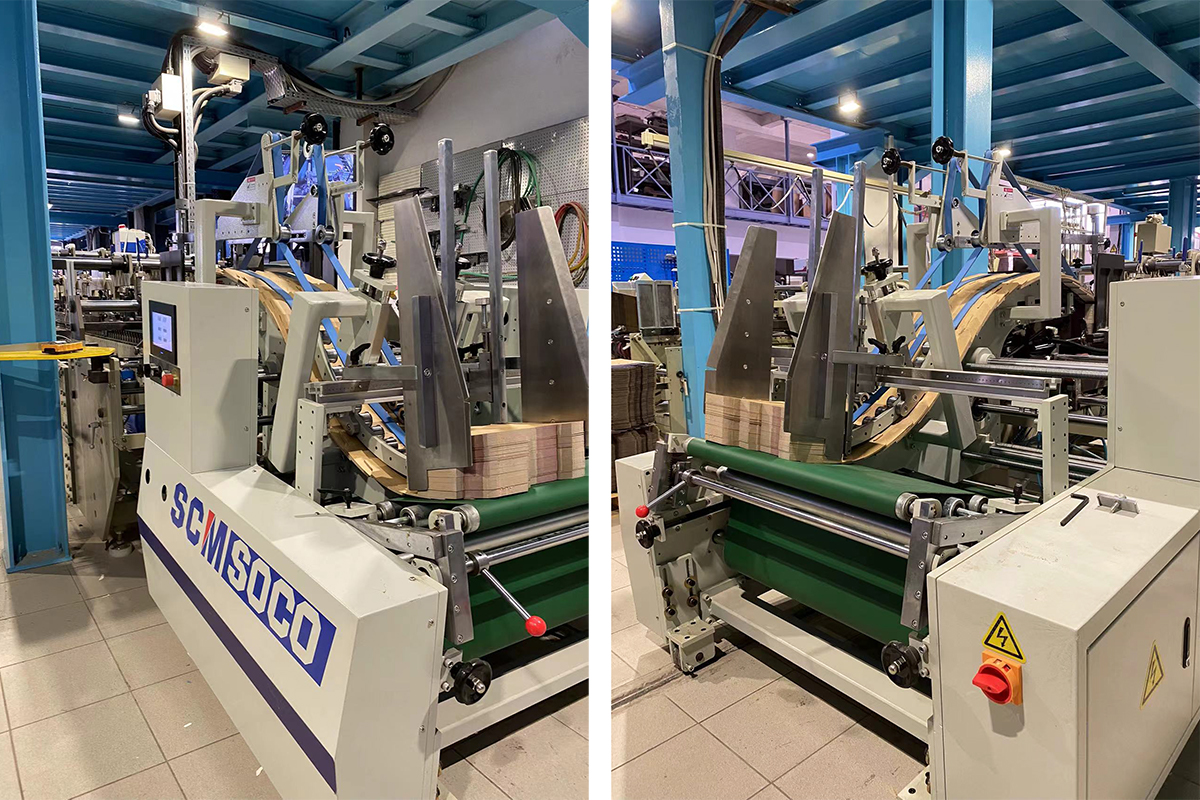

    CONNECT TO SIGNATURE FOLDER GLUER

    ▪ Installed in Athens, Greece.

    01 / 04
    Parameters
    PF-650 PF-750 PF-1100
    Material Thickness
    200-600gsm cardboard
    Max. Sheet Size
    650×460mm
    Min. Sheet Size
    100×90mm
    Max. Sheet Pile
    500mm
    Power
    2.2kw
    Weight
    1000kgs
    Dimension
    2150×1380×1560mm
    Material Thickness
    200-600gsm cardboard
    Max. Sheet Size
    750×480mm
    Min. Sheet Size
    100×90mm
    Max. Sheet Pile
    500mm
    Power
    2.2kw
    Weight
    1100kgs
    Dimension
    2150×1480×1560mm
    Material Thickness
    250-800gsm cardboard
    Max. Sheet Size
    1100×600mm
    Min. Sheet Size
    100×90mm
    Max. Sheet Pile
    500mm
    Power
    3.2kw
    Weight
    1300kgs
    Dimension
    2150×1830×1560mm
    Video
    Mar 03, 2023
    Pre-feeder video
    01 / 01
    Related Products
    SO-2-500
    Semi-automatic Collecting Table
    WO-850PC-R / WO-1050PC-R
    Automatic Folder Gluer
    WO-650PC-R / WO-750PC-R
    Automatic Folder Gluer
