    Home > Solutions > Complementary Machine > LS-F7

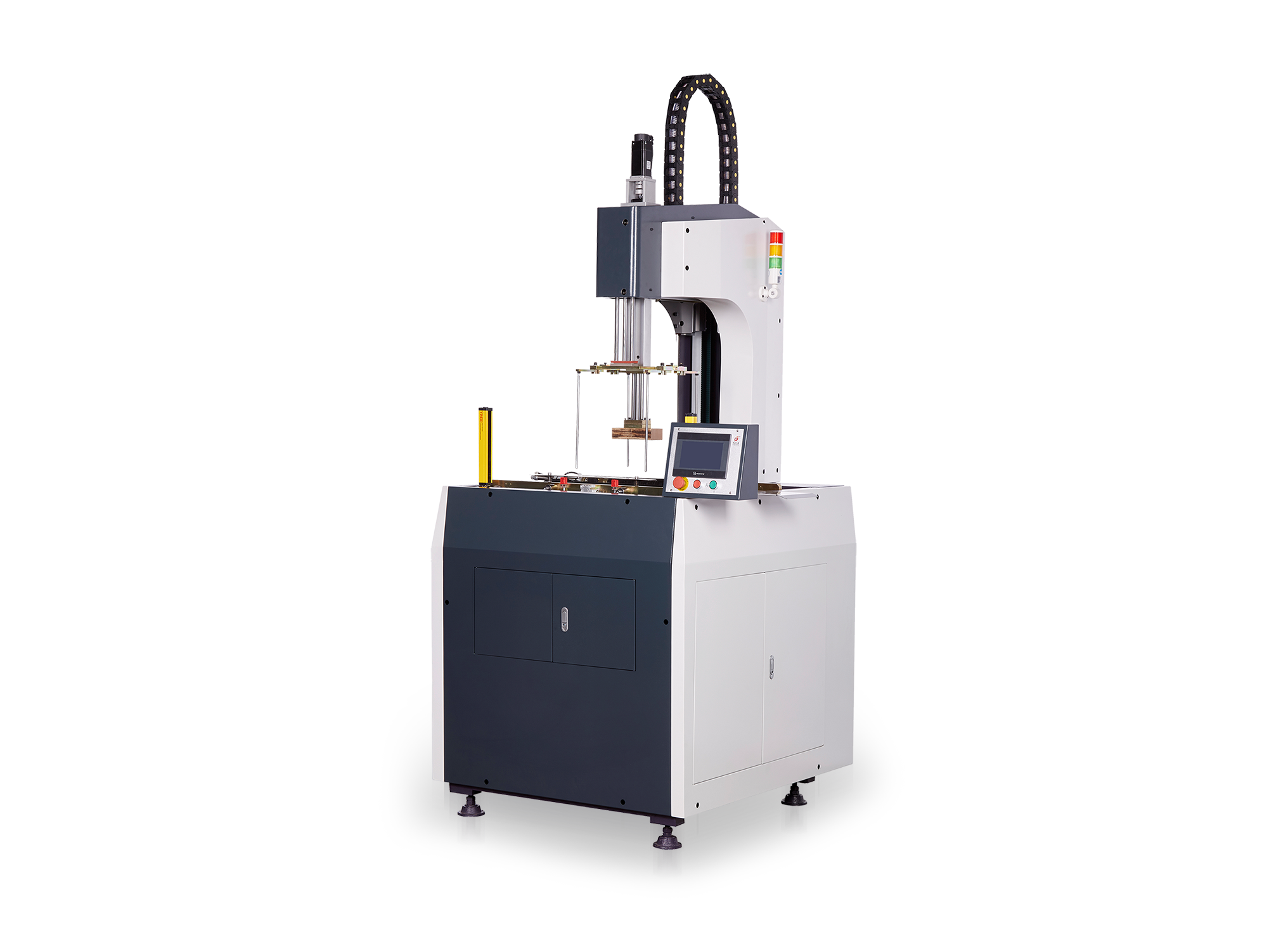

    LS-F7
    Rigid Box Wrapping & Forming Machine
    Get Price Brochure
    Parameters
    LS-F7
    Max. Box Size
    430x350x110mm(L*W*H)
    Min. Box Size
    80x65x10mm(L*W*H)
    Paper Thickness
    80-200gsm
    Greyboard Thickness
    1-5mm
    Speed
    0-20pcs/min
    Max. Folding-in Depth
    65mm(can tuck into bottom)
    Time of Mould Change
    8minutes
    Power
    3.2kw
    Weight
    1150kgs
    Dimension
    1220x1120x3100mm
    Box Air Pressing
    YES
    Twice Air Pressing
    YES
    Video
    Dec 15, 2022
    LS-F7 rigid box forming machine coupled with LS-450 Plus positioning machine
