    Home > Solutions > Case Lining Machine > ZTC-700A / 900A/ 1000A / 1350A

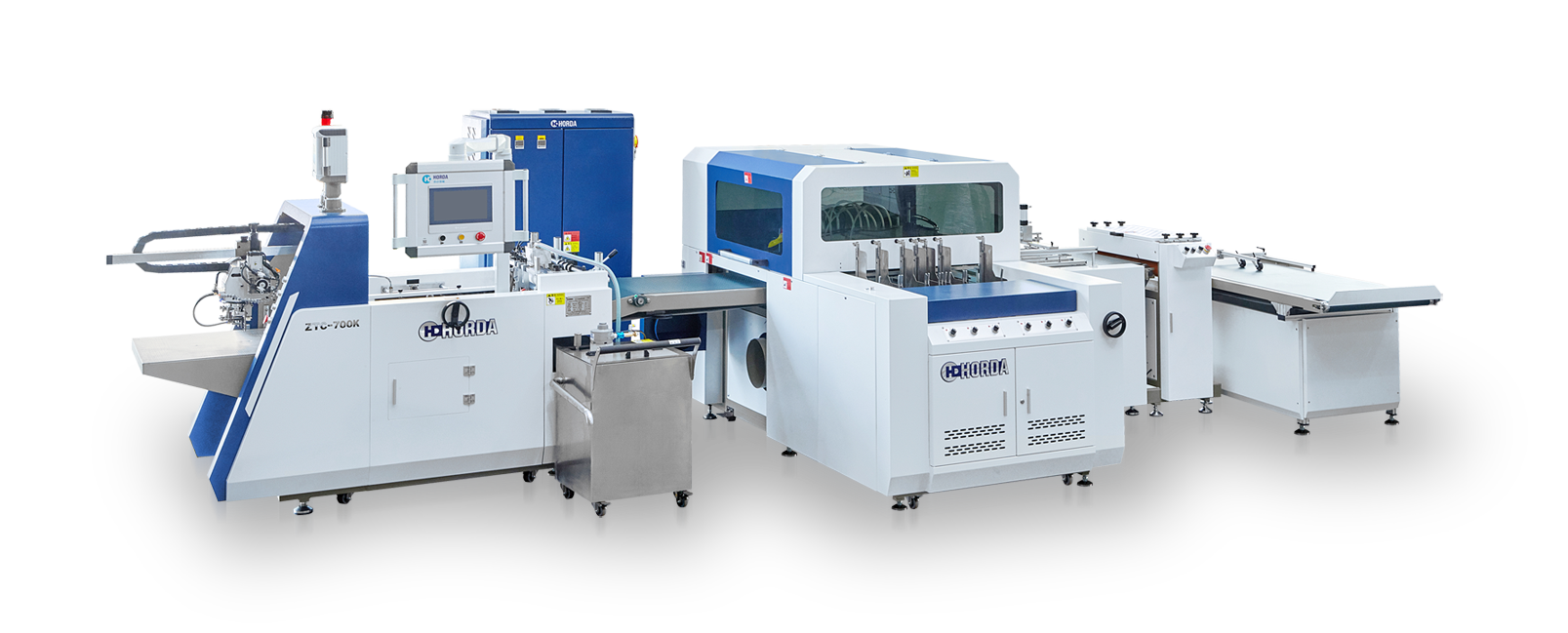

    ZTC-700A / 900A/ 1000A / 1350A
    Case Lining Machine
    Get Price Brochure
    Parameters
    ZTC-700A ZTC-900A ZTC-1000A ZTC-1350A
    Max. Sheet Size
    450×720mm
    Min. Sheet Size
    90x180mm
    Board Thickness
    1-3mm
    Paper Weight
    105-210gsm
    Speed
    20-30pieces/min
    Position Accuracy
    ±0.5mm
    Power
    13.5kw
    Weight
    2300kgs
    Dimension
    6500x2600x1500mm
    Max. Sheet Size
    450×950mm
    Min. Sheet Size
    90x180mm
    Board Thickness
    1-3mm
    Paper Weight
    105-210gsm
    Speed
    20-30pieces/min
    Position Accuracy
    ±0.5mm
    Power
    14kw
    Weight
    2500kgs
    Dimension
    7500x2600x1500mm
    Max. Sheet Size
    600×1050mm
    Min. Sheet Size
    140×190mm
    Board Thickness
    1-3mm
    Paper Weight
    105-210gsm
    Speed
    15-25pieces/min
    Position Accuracy
    ±0.5mm
    Power
    14.5kw
    Weight
    3000kgs
    Dimension
    7800x3000x1500mm
    Max. Sheet Size
    600×1350mm
    Min. Sheet Size
    140×190mm
    Board Thickness
    1-3mm
    Paper Weight
    105-210gsm
    Speed
    10-25pieces/min
    Position Accuracy
    ±0.5mm
    Power
    15kw
    Weight
    3500kgs
    Dimenison
    8500x3000x1500mm
