    Home > Solutions > Cutting System & Guillotines > F+ Series

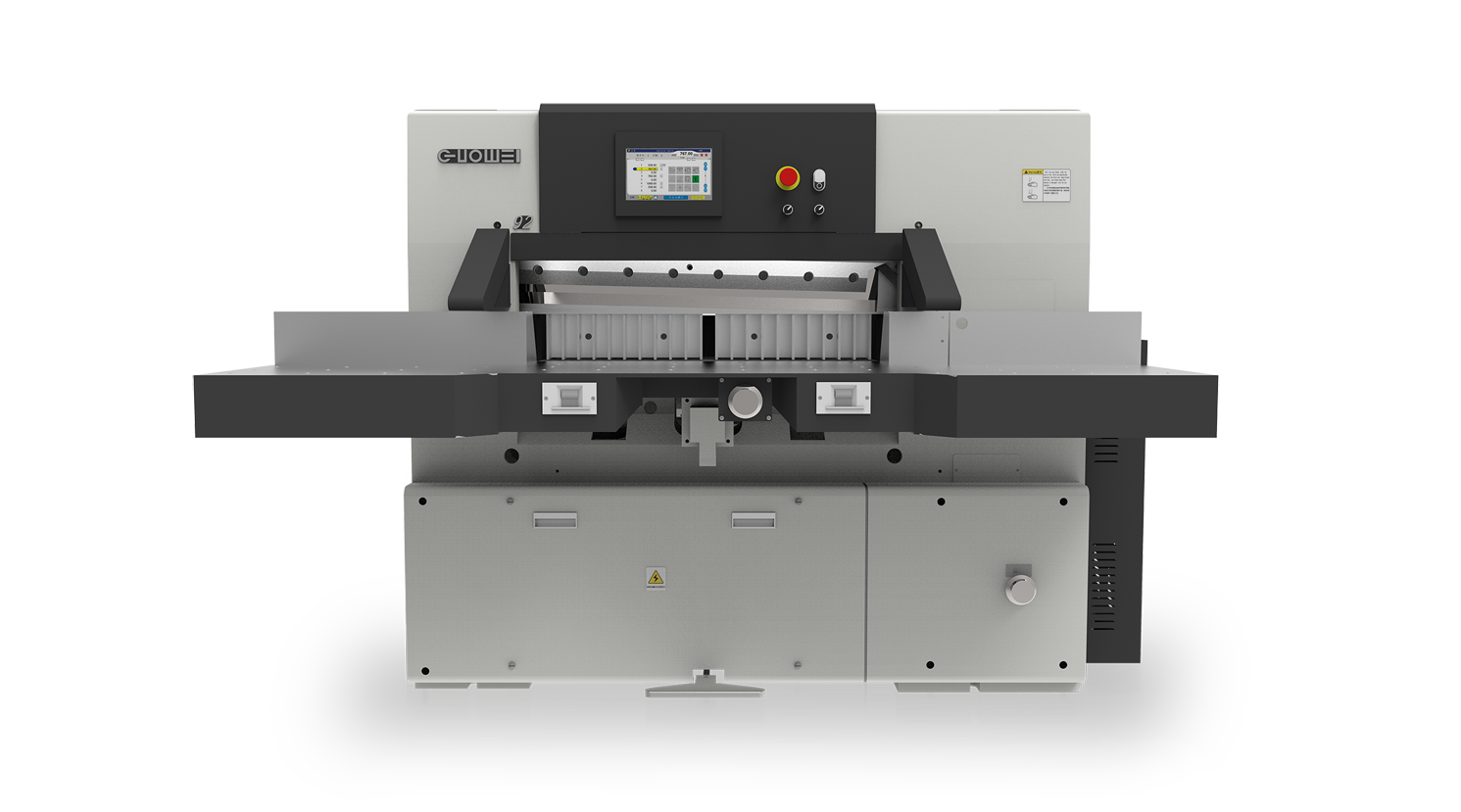

    F+ Series
    Guillotine
    Get Price Brochure
    Parameters
    78F+ 92F+ 115F+ 130F+ 137F+ 166F+ 186F+ 220F+ 260F+
    Cutting Width
    78cm
    Max. Cutting Height without Assistance Pressing Plate
    13cm
    Max. Cutting Depth
    78cm
    Min. Cutting Height without Assistance Pressing Plate
    2.3cm
    Extended Length of Working Table
    64cm
    Height of Working Table
    86-90cm
    Machine Width Including Side Working Table
    215cm
    Total Length of Working Table
    178cm
    Cutting Speed
    45r/min
    Max. Paper Pressure
    30000N
    Power of Main Motor
    3kw
    Motor for Paper Feeding
    0.75kw
    Air Pump
    0.55kw
    Weight
    2500kgs
    Dimension
    2100x1400x1950mm
    Cutting Width
    92cm
    Max. Cutting Height Without Assistance Pressing Plate
    13cm
    Max. Cutting Depth
    93cm
    Min. Cutting Height Without Assistance Pressing Plate
    2.3cm
    Extended Length of Working Table
    65cm
    Height of Working Table
    86-90cm
    Machine Width Including Side Working Table
    233cm
    Total Length of Working Table
    198cm
    Cutting Speed
    45r/min
    Max. Paper Pressure
    35000N
    Power of Main Motor
    3kw
    Motor for Paper Feeding
    0.75kw
    Air Pump
    0.55kw
    Weight
    2700kgs
    Dimension
    2230x1320x1830mm
    Cutting Width
    115cm
    Max. Cutting Height Without Assistance Pressing Plate
    16.5cm
    Max. Cutting Depth
    115cm
    Min. Cutting Height Without Assistance Pressing Plate
    2.5cm
    Extended Length of Working Table
    73cm
    Height of Working Table
    88-92cm
    Machine Width Including Side Working Table
    266cm
    Total Length of Working Table
    226cm
    Cutting Speed
    45r/min
    Max. Paper Pressure
    40000N
    Power of Main Motor
    4kw
    Motor for Paper Feeding
    0.75kw
    Air Pump
    0.75kw
    Weight
    4000kgs
    Dimension
    2520x1430x1980mm
    Cutting Width
    130cm
    Max. Cutting Height Without Assistance Pressing Plate
    13cm
    Max. Cutting Depth
    130cm
    Min. Cutting Height Without Assistance Pressing Plate
    2.5cm
    Extended Length of Working Table
    73cm
    Height of Working Table
    86-91cm
    Machine Width Including Side Working Table
    266cm
    Total Length of Working Table
    241cm
    Cutting speed
    45r/min
    Max. Paper Pressure
    40000N
    Power of Main Motor
    4kw
    Motor for Paper Feeding
    0.75kw
    Air Pump
    0.75kw
    Weight
    3900kgs
    Dimension
    2580x1510x1890mm
    Cutting Width
    137cm
    Max. Cutting Height Without Assistance Pressing Plate
    16.5cm
    Max. Cutting Depth
    145cm
    Min. Cutting Height Without Assistance Pressing Plate
    3cm
    Extended Length of Working Table
    74cm
    Height of Working Table
    89-92cm
    Machine Width Including Side Working Table
    287cm
    Total Length of Working Table
    259cm
    Cutting Speed
    45r/min
    Max. Paper Pressure
    45000N
    Power of Main Motor
    4kw
    Motor for Paper Feeding
    1kw
    Air Pump
    0.75kw×2
    Weight
    4500kgs
    Dimension
    2740x1580x2040mm
    Cutting Width
    166cm
    Max. Cutting Height Without Assistance Pressing Plate
    16.5cm
    Max. Cutting Depth
    166cm
    Min. Cutting Height Without Assistance Pressing Plate
    3cm
    Extended Length of Working Table
    75cm
    Height of Working Table
    89-92cm
    Machine Width Including Side Working Table
    322cm
    Total Length of Working Table
    283cm
    Cutting Speed
    42r/min
    Max. Paper Pressure
    60000N
    Power of Main Motor
    5.5kw
    Motor for Paper Feeding
    1kw
    Air pump
    0.75kw×2
    Weight
    5500kgs
    Dimension
    3100x1650x2130mm
    Cutting Width
    186cm
    Max. Cutting Height Without Assistance Pressing Plate
    16.5cm
    Max. Cutting Depth
    200cm
    Min. Cutting Height Without Assistance Pressing Plate
    3cm
    Extended Length of Working Table
    75cm
    Height of Working Table
    89-92cm
    Machine Width Including Side Working Table
    342cm
    Total Length of Working Table
    327cm
    Cutting Speed
    40r/min
    Max. Paper Pressure
    65000N
    Power of Main Motor
    7.5kw
    Motor for Paper Feeding
    1kw
    Air Pump
    0.75kw×2
    Weight
    6800kgs
    Dimension
    3400x1820x2300mm
    Cutting Width
    220cm
    Max. Cutting Height Without Assistance Pressing Plate
    15cm
    Max. Cutting Depth
    220cm
    Min. Cutting Height Without Assistance Pressing Plate
    5cm
    Extended Length of Working Table
    75cm
    Height of Working Table
    89-92cm
    Machine Width Including Side Working Table
    376cm
    Total Length of Working Table
    355cm
    Cutting Speed
    33r/min
    Max. Paper Pressure
    70000N
    Power of Main Motor
    7.5kw
    Motor for Paper Feeding
    1.1kw
    Air Pump
    0.75kw×2
    Weight
    10200kgs
    Dimension
    3900x1900x2000mm
    Cutting Width
    260cm
    Max. Cutting Height Without Assistance Pressing Plate
    13cm
    Max. Cutting Depth
    260cm
    Min. Cutting Height Without Assistance Pressing Plate
    5cm
    Extended Length of Working Table
    75cm
    Height of Working Table
    90cm
    Machine Width Including Side Working Table
    416cm
    Total Length of Working Table
    400cm
    Cutting Speed
    30r/min
    Max. Paper Pressure
    70000N
    Power of Main Motor
    7.5kw
    Motor for Paper Feeding
    1.1kw
    Air Pump
    0.75kw×4
    Weight
    13000kgs
    Dimension
    4130x1420x2200mm
