    Home > Solutions > Hot-foil Stamping Machine > TYMC-750 / 930 / 1100 / 1200

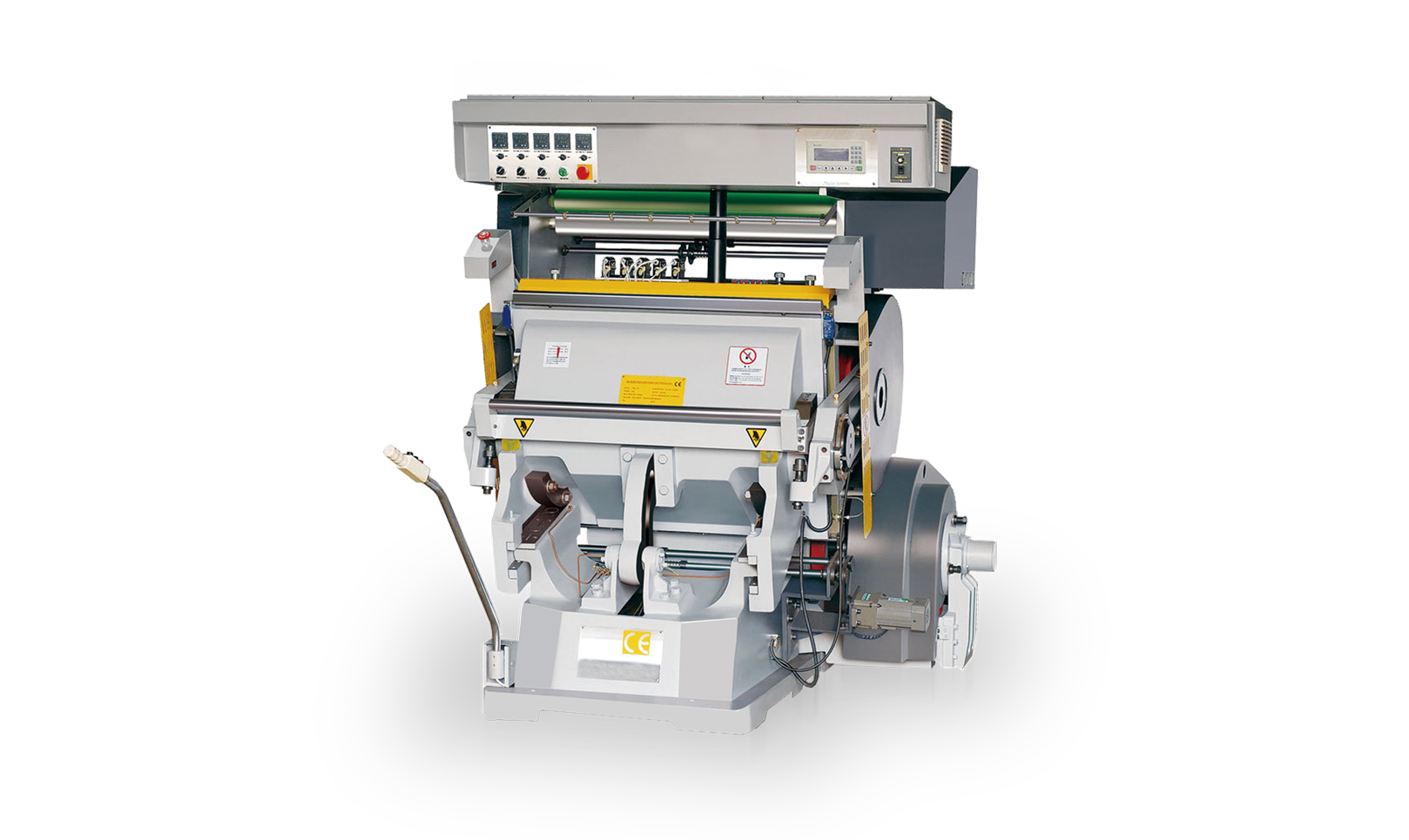

    TYMC-750 / 930 / 1100 / 1200
    Hot-foil Stamping & Die Cutting Machine
    Get Price Brochure
    Parameters
    TYMC-750 TYMC-930 TYMC-1100 TYMC-1200
    Max. Inside Chase Size
    750×520mm
    Max. Stamping Size
    750×520mm
    Max. Working Speed
    1680 sheets/hour
    Skip Range
    0~99
    Foil Delivery Length
    520mm
    Foil Delivery Group
    2groups
    Adjustable Temperature
    10~300℃
    Individual Heating Zones
    4 zones
    Power
    10.2kw
    Weight
    2600kgs
    Dimension
    1660×1540×1970mm
    Max. Inside Chase Size
    930×660mm
    Max. Stamping Size
    930×660mm
    Max. Working Speed
    1500sheets/hour
    Skip Range
    0~99
    Foil Delivery Length
    660mm
    Foil Delivery Group
    3groups
    Adjustable Temperature
    10~300℃
    Individual Heating Zones
    5 zones
    Power
    16.5kw
    Weight
    4500kgs
    Dimension
    1960×1760×2060mm
    Max. Inside Chase Size
    1100×800mm
    Max. Stamping Size
    1100×800mm
    Max. Working Speed
    1380sheets/hour
    Skip Range
    0~99
    Foil Delivery Length
    800mm
    Foil Delivery Group
    3groups
    Adjustable Temperature
    10~300℃
    Individual Heating Zones
    5 zones
    Power
    20.5kw
    Weight
    6000kgs
    Dimension
    2080×1950×2200mm
    Max. Inside Chase Size
    1200×820mm
    Max. Stamping Size
    1200×820mm
    Max. Working Speed
    1380sheets/hour
    Skip Range
    0~99
    Foil Delivery Length
    820mm
    Foil Delivery Group
    3groups
    Adjustable Temperature
    10~300℃
    Individual Heating Zones
    5zones
    Power
    20.5kw
    Weight
    5200kgs
    Dimension
    2080×2050×2200mm
