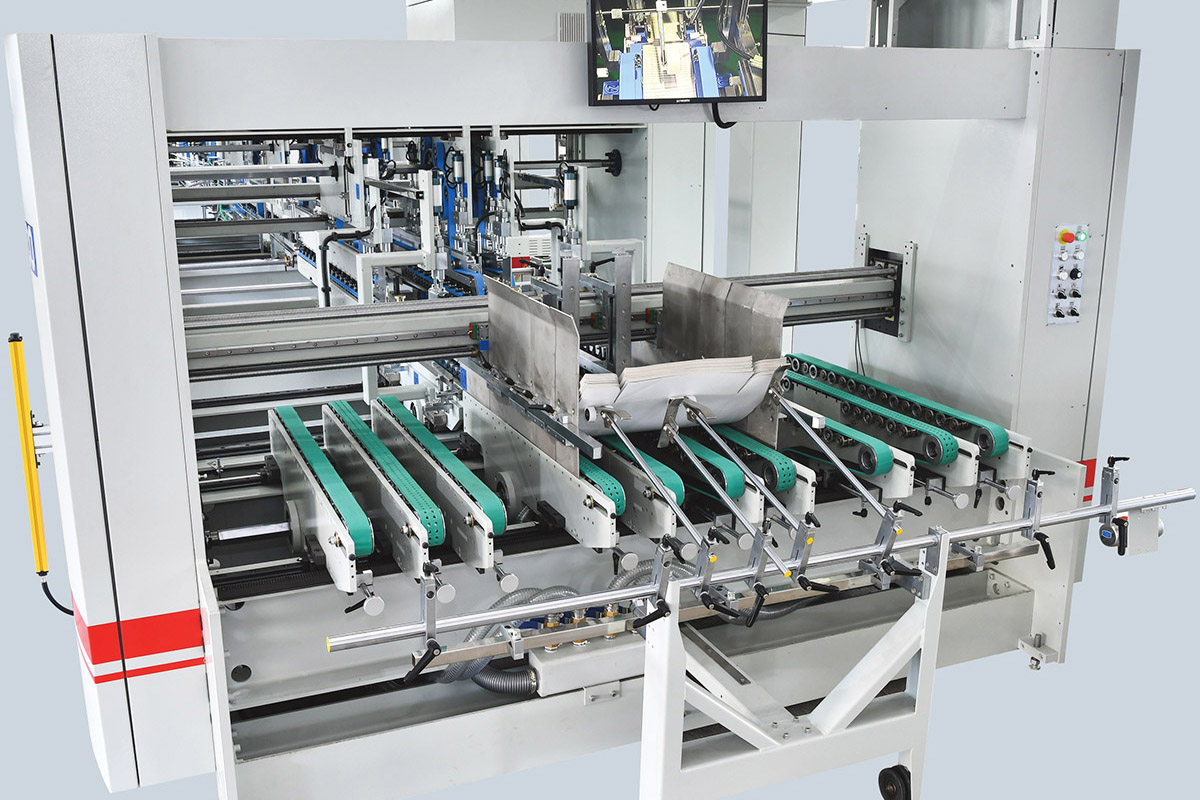

FEEDING SECTION

▪  Independent variable-frequency motor driven belts for stable feeding and accurate blank spacing.

▪  Pile vibrator equipped as standard.

▪  Belt-clean brush for each carrier.

▪  Remote controller for feeder start/stop and speed adjustment.

▪  Vacuum-assisted feeding belts, resulting in the reliable intake of almost kinds of blanks.

▪  Pneumatic lifter of feeding gates and side guides for easy operation.

▪  Rear support bar with movable rack for easier setup.

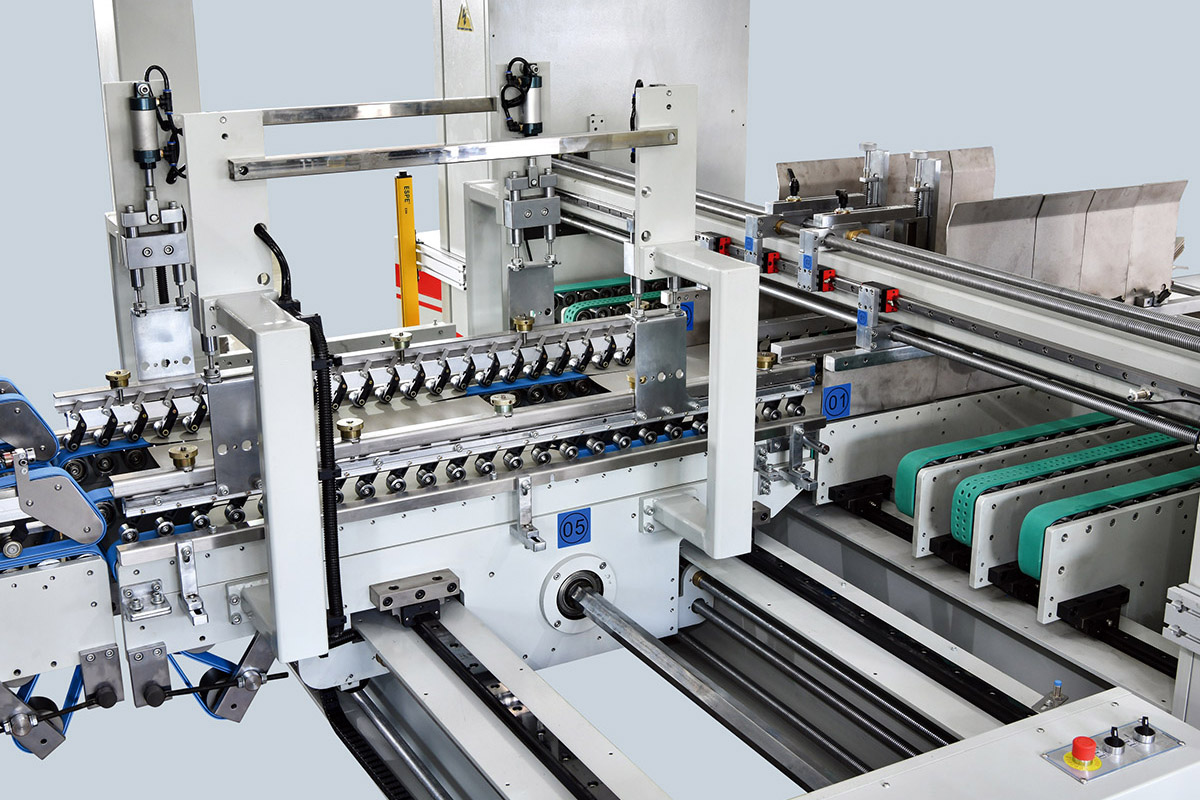

ALIGNMENT SECTION

▪ Two lanes carriers construction. Equipped with 2 upper alignment carriers.

▪ The positions of 2 lanes carries are driven by motors.

▪ Can be easily converted to left or right side for registration.

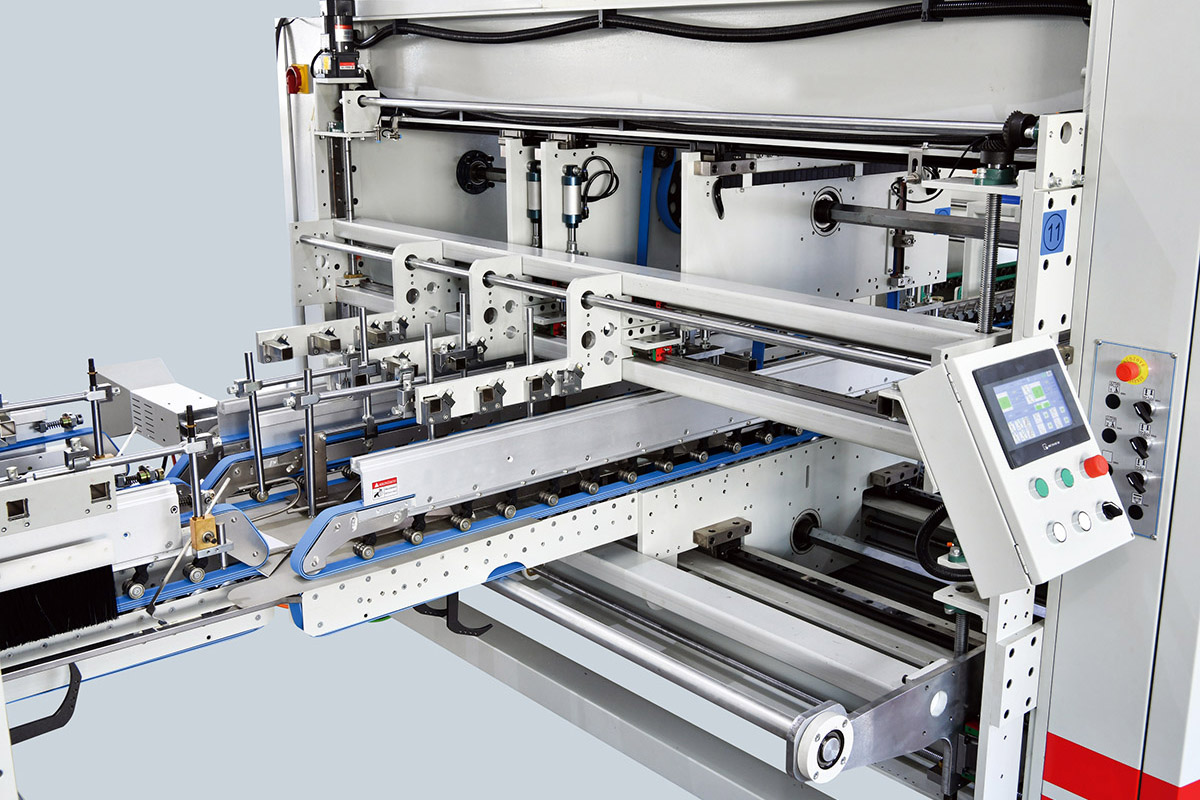

LOCK-BOTTOM SECTION 1

▪ Three lanes carrier construction with upper carrier belts transmission system.

▪ The positions of 3 lanes carries are driven by motors.

▪ Lock accessories are driven by motors with automatic up and down positioning, no need to remove without usage.

▪ Modular design of lock accessories with gluing guns for easy change.

LOCK-BOTTOM SECTION 2

▪ Three lanes carrier construction with upper carrier belts transmission system.

▪ The positions of 3 lanes carries are driven by motors.

▪ Lock accessories are driven by motors with automatic up and down positioning, no need to remove without usage.

▪ Modular design of lock accessories with gluing guns for easy change.

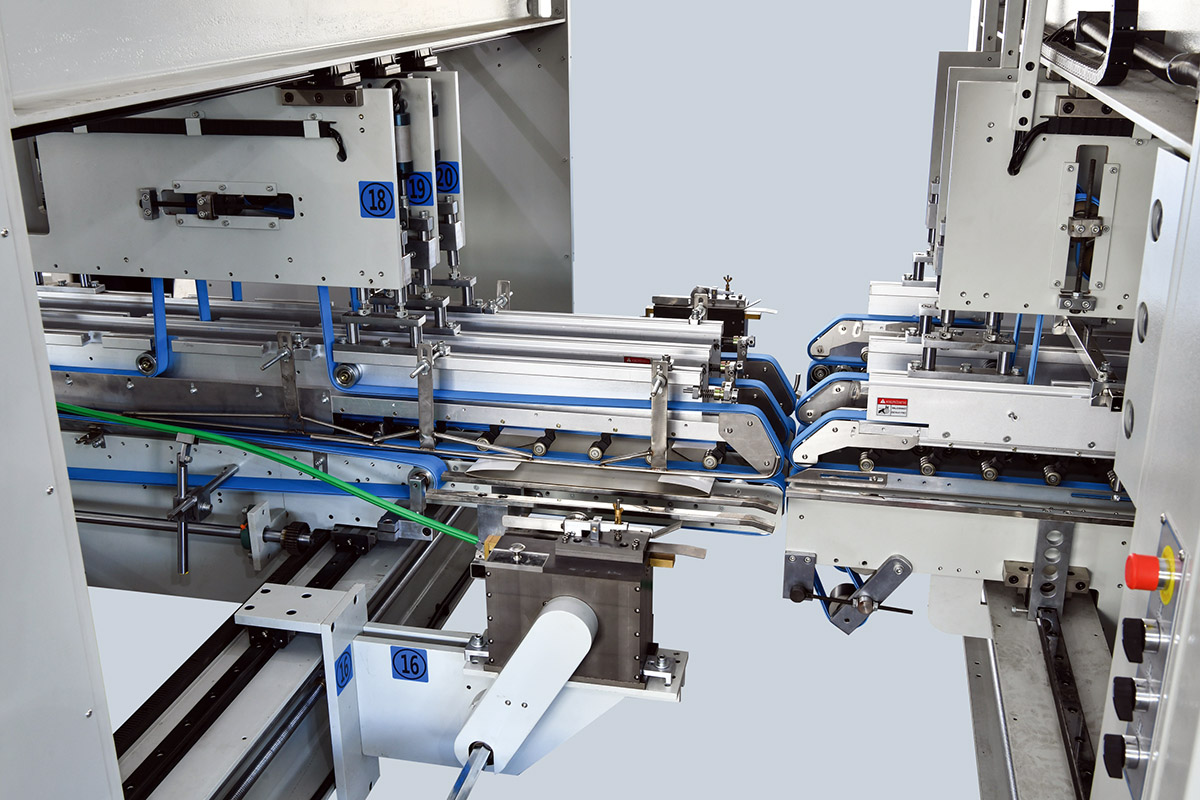

LOWER GLUING SECTION

▪ Independent servo driven lower gluing tank in both left and right side.

▪ Gluing disc width: 4.5mm

▪ Accurate volume control avoids the glue splash at high speed.

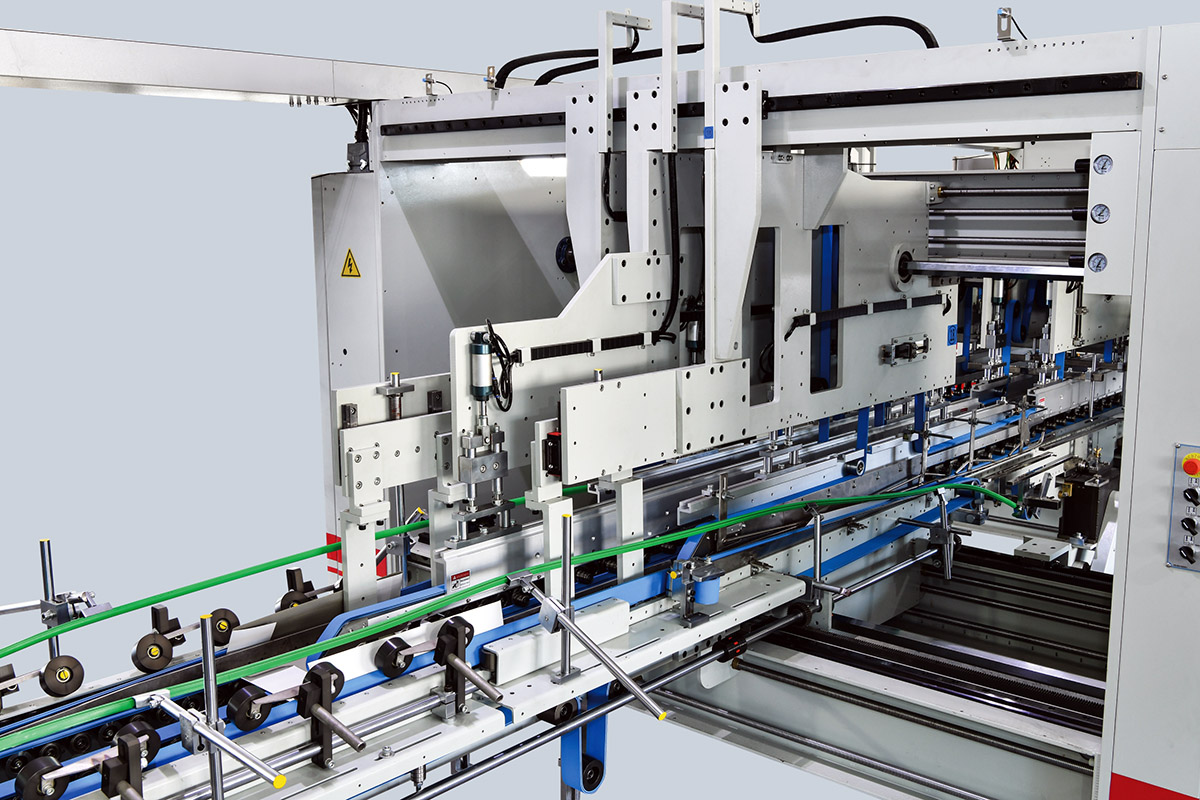

FINAL FOLDING SECTION

▪ Three lanes carrier construction with upper carrier belts transmission system, assure much stable running of thick board or corrugated board.

▪ The positions of 3 lanes carries are driven by motors.

▪ With front and rear movable upper pressing bar, special design of boxes can be made with optional device.

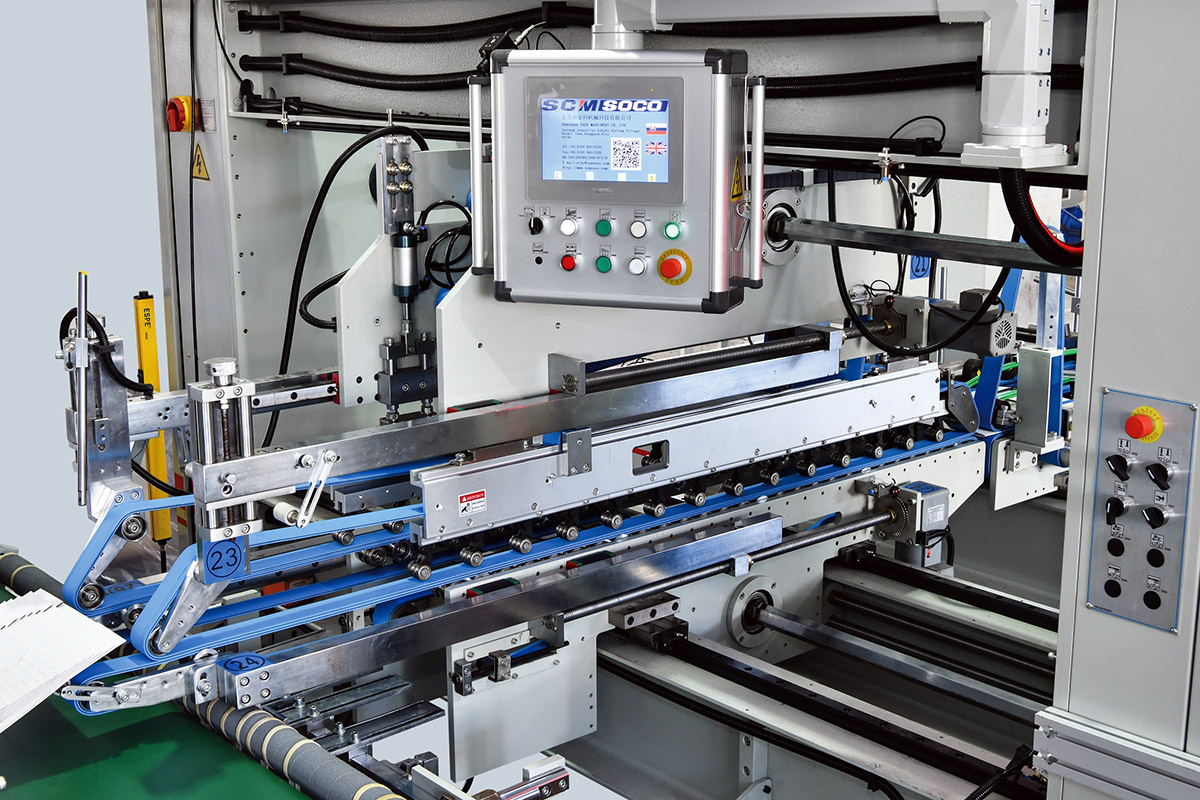

TRANSFER SECTION

▪ Main control panel with touch screen.

▪ Two lanes carriers construction with upper carrier belts transmission system, assure much stable running of thick board or corrugated board.

▪ The positions of 2 lanes carries are driven by motors.

▪ Telescopic upper and lower carriers easily adapt to most box formats.

▪ Kicker counter and spraying counter are equipped as standard.

▪ Camera for live status.

▪ Jam detector.

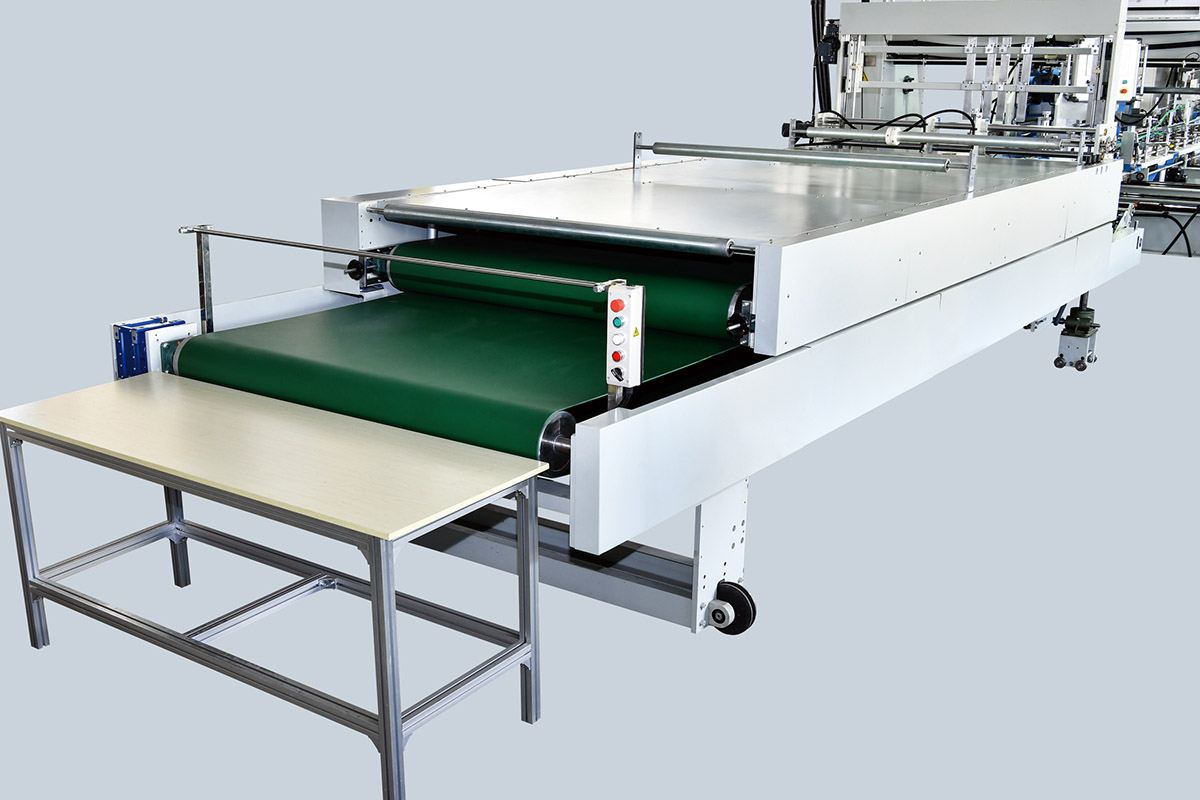

DELIVERY SECTION

▪ 6 meter advanced compression conveyor.

▪ Independent servo motor driven ensures the regular box stream.

▪ Motorized forward and backward moving for the upper section.

▪ Left and right position movable.

▪ Two split pressing, one sponge belt.

▪ Height adjustable lower belt at conveyor entry for pressure control.

▪ Pneumatic squaring device at conveyor entry to work out perfect bottom effect, especially for short body and wide lock bottom boxes.
