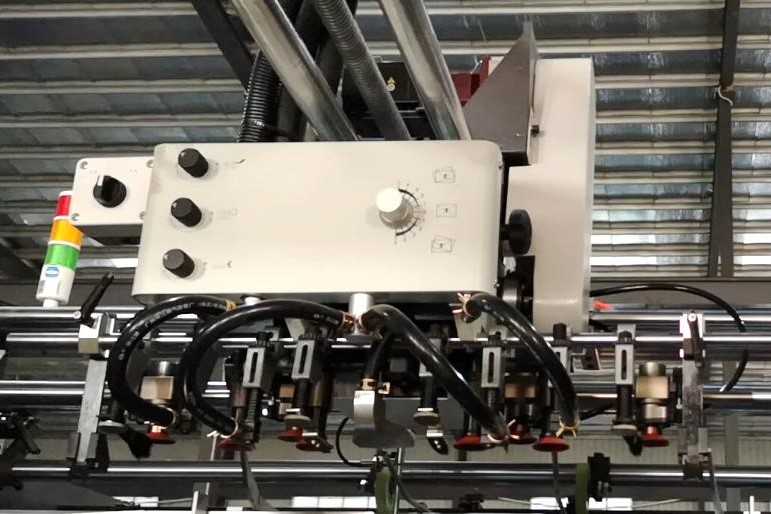

Top Sheet Feeder

▪ High-pile top sheet feeder choose traditional offset feeder design for high-speed, efficient production

▪ Independent servo-driven for the feeder with easy maintenance.

▪ Automated format set-up.

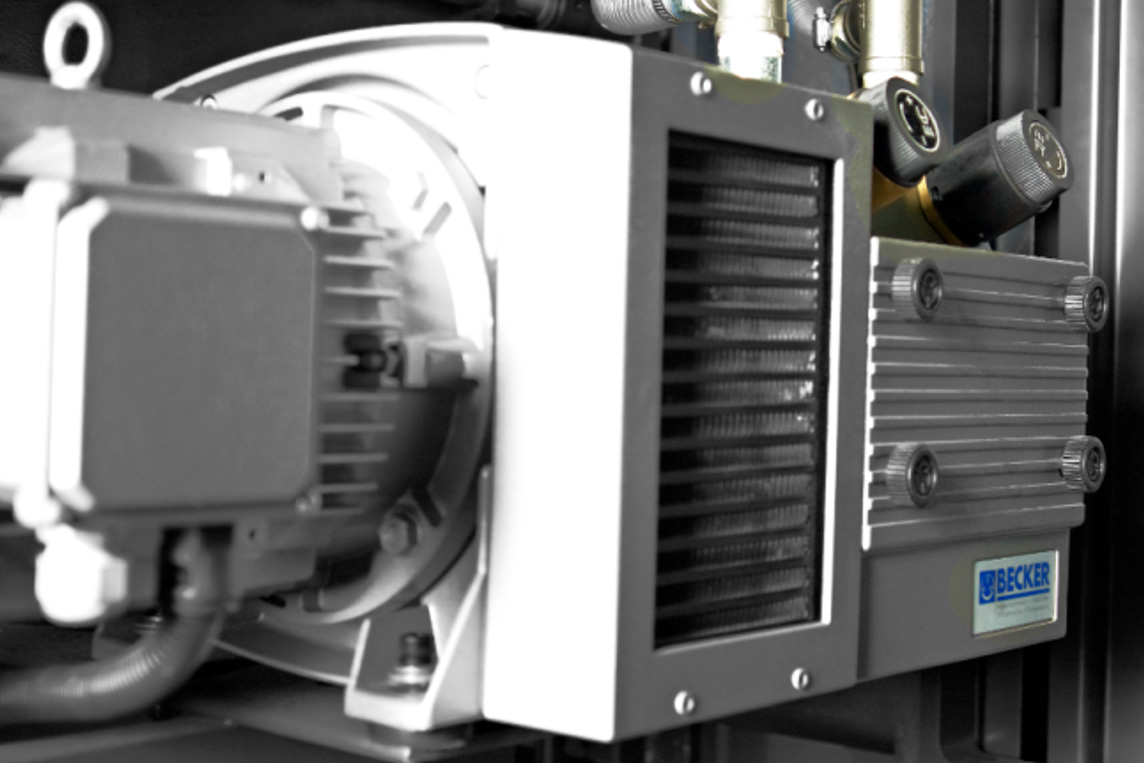

Becker Vacuum Pump

▪ German brand BECKER oil-less vacuum pump delivers quiet, cool operation and long vane life

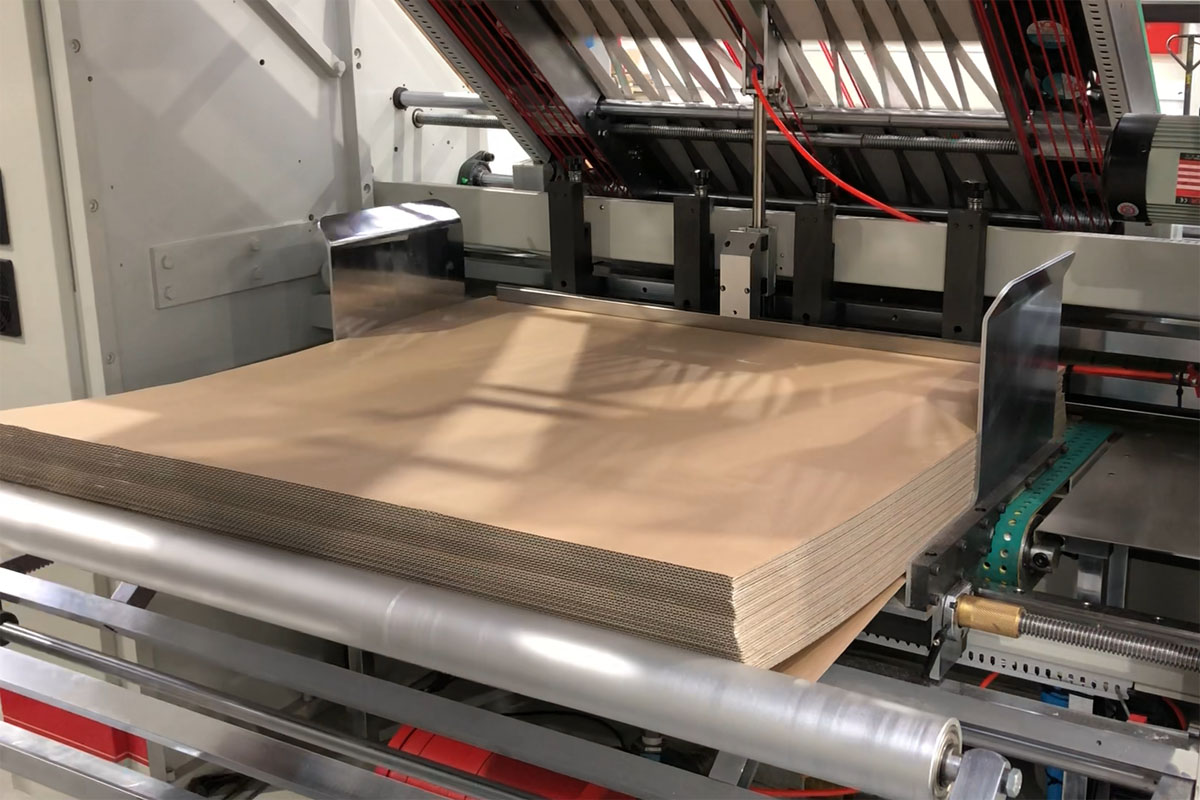

Bottom Sheet Feeding Section

▪ The lower suction belts are driven by a servo motor assures accurate sheet feeding.

▪ The pneumatic bar can press the board's front edge for smooth feeding when meeting the curved board.

▪ The powerful suction can work with various substrates from 300gsm cardboard to thick 5-ply corrugated board.

▪ Automated format set-up.

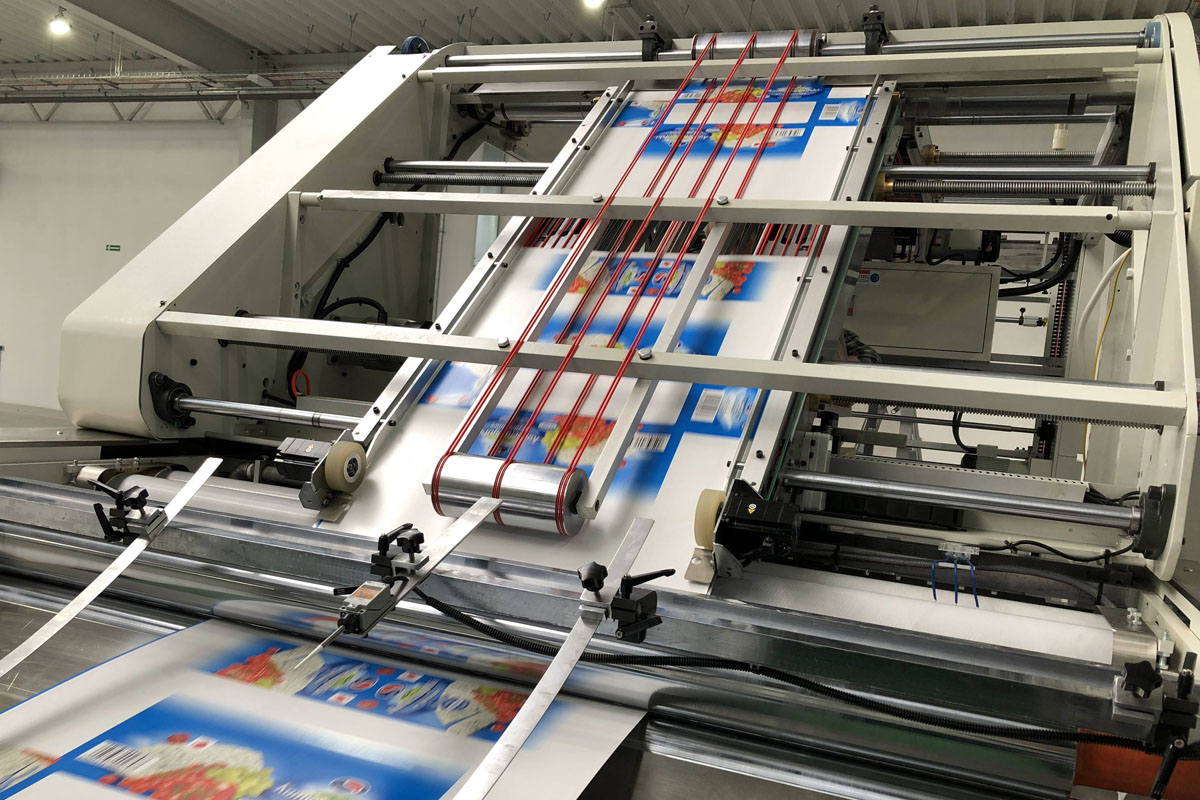

Laminating Section

▪ Multi sensors to monitor the feeding position of the bottom sheets, and the upper two servo motors adjust the top sheets accordingly to make an accurate register during lamination.

▪ Automated format set-up.

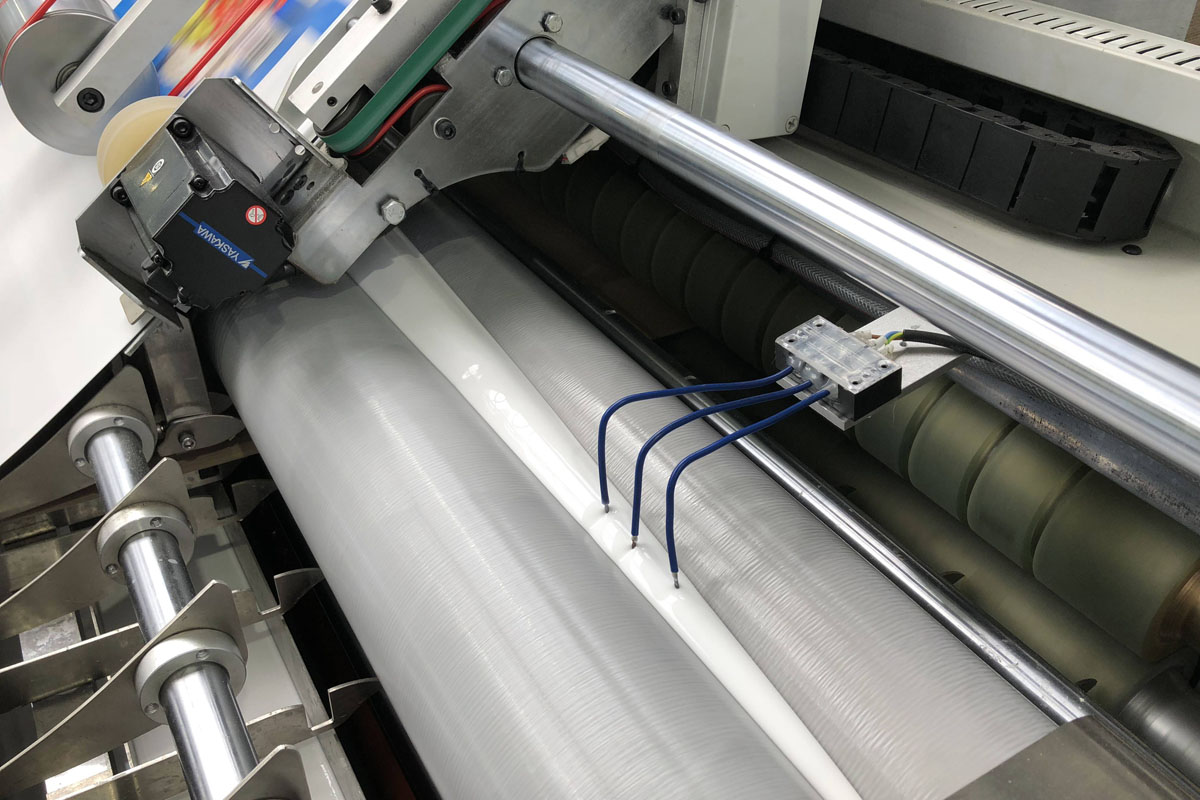

Gluing Section

▪ High precise coating roller and metering roller mechanism ensures the even adhesive is applied.

▪ Three sensors to control the glue volume level automatically.

▪ No overflow at high speed with glue re-circulation system.

▪ Water-based PVA cold glue or starch glue can be used with a volume of around 30-40g/sqm, depending on different substrates.

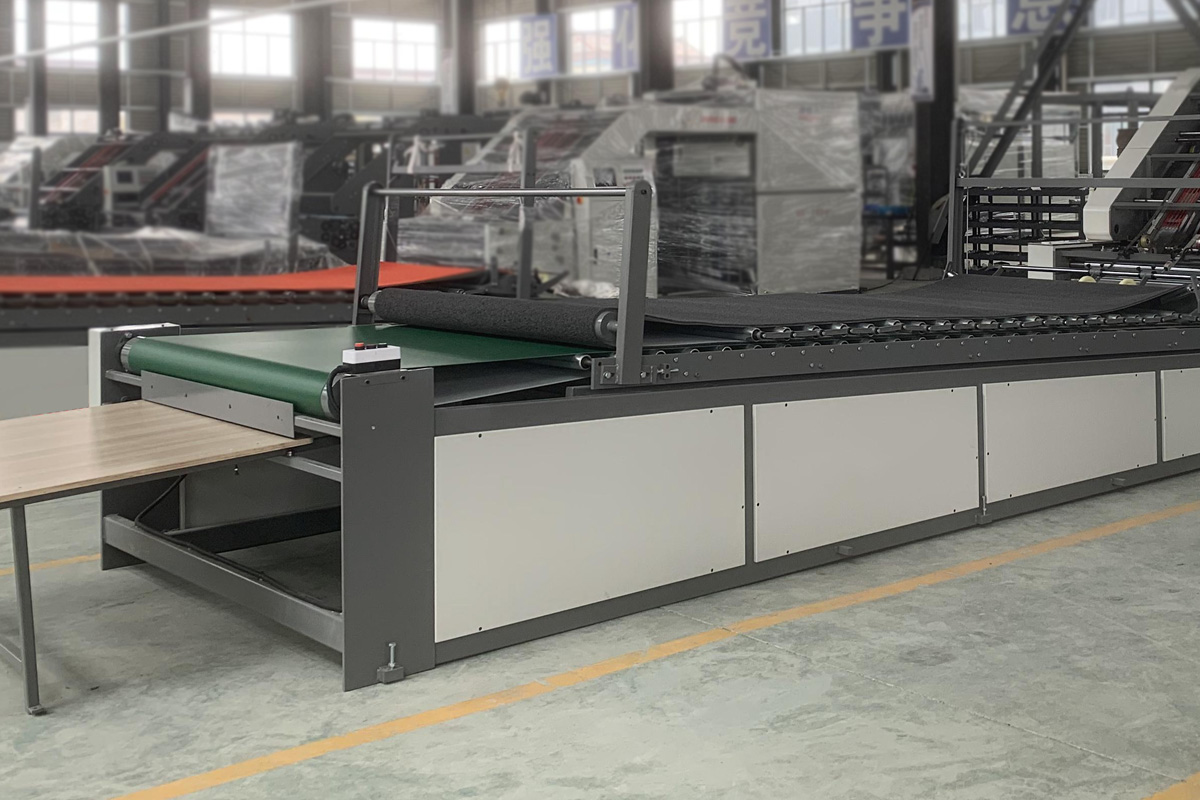

Compression Delivery Section

▪ The laminated sheets collected by compress conveyor as standard for perfect bonding.

▪ The conveyor speed is adjustable.

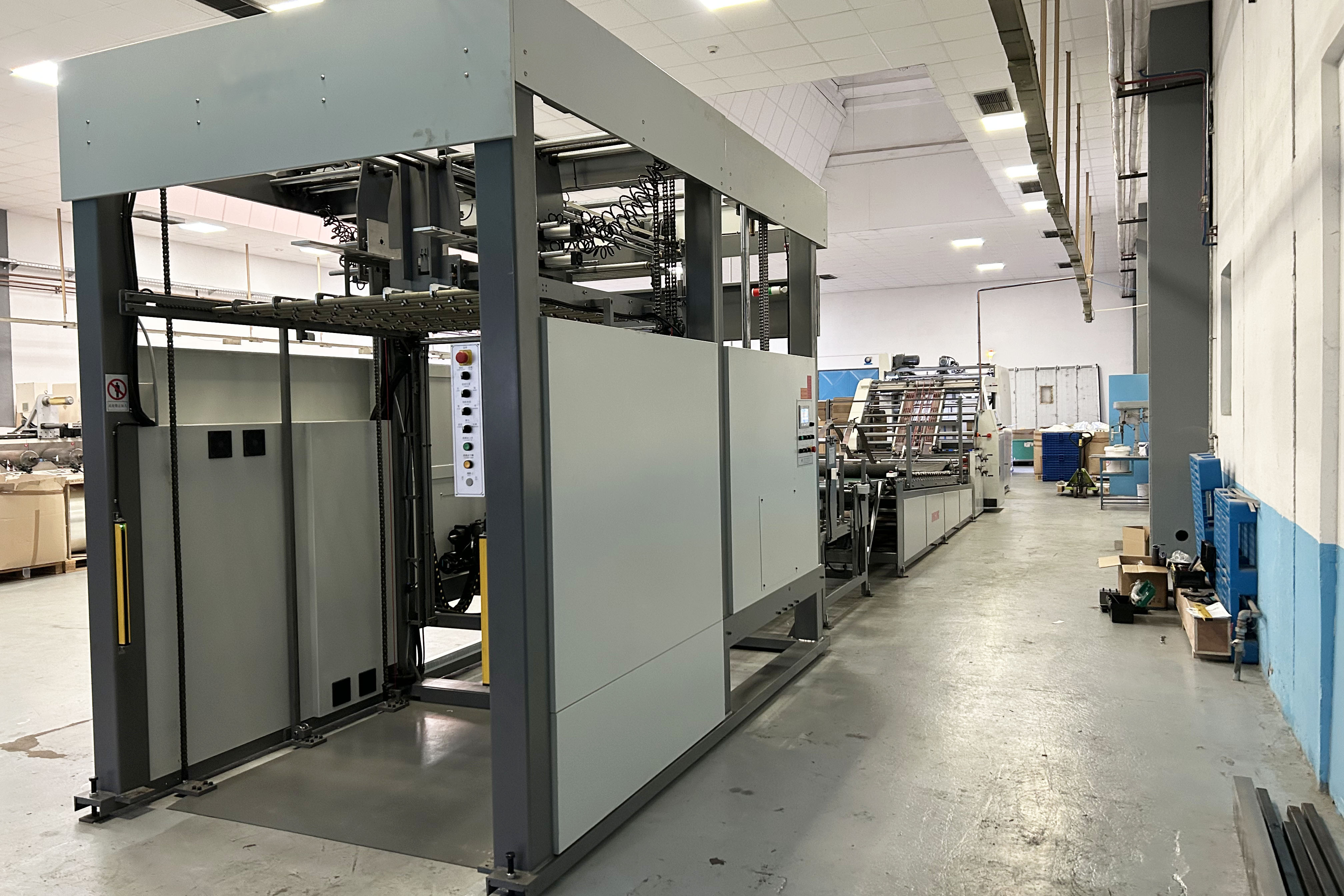

Flip Flop Section

▪ Automatically flip flop stacking laminated sheets in order with easy setup to mitigate warpage problems in finished laminated sheets.

▪ Avoiding the expensive work of operators and ensuring a steady high quality pallet for the following process.
