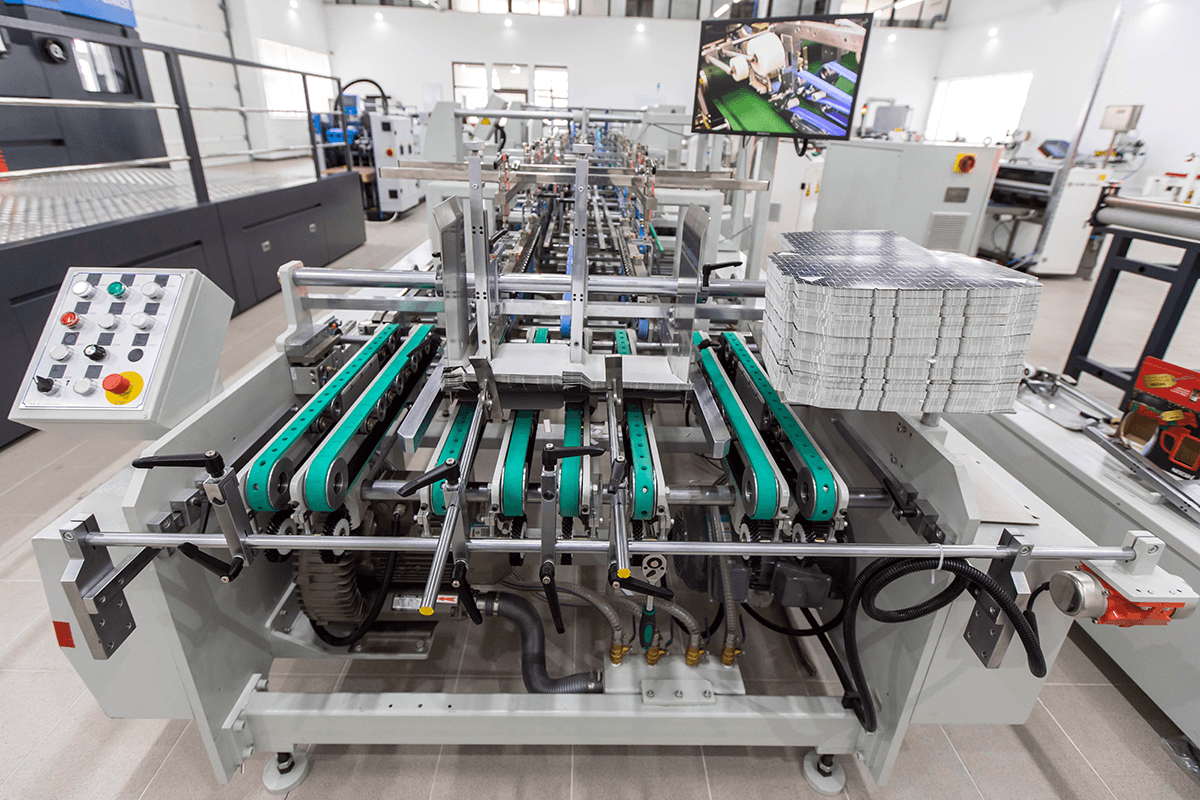

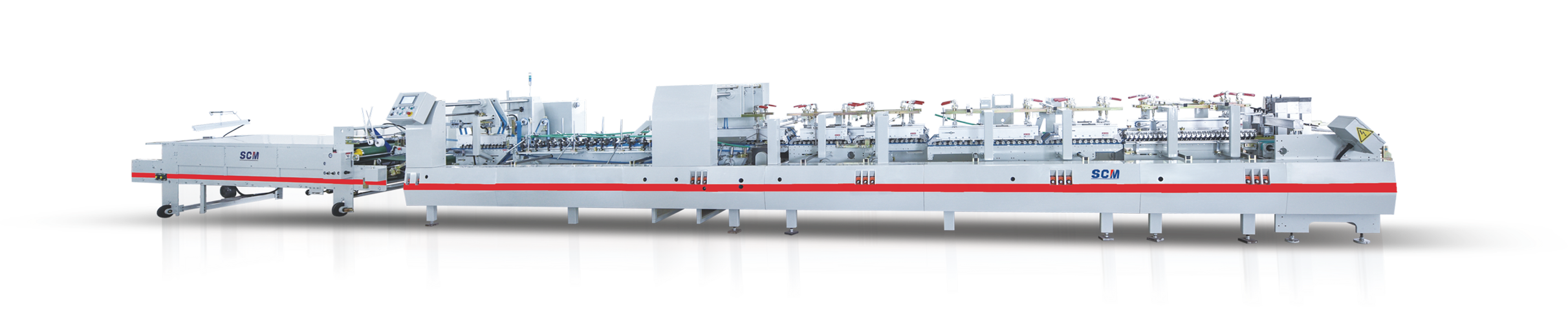

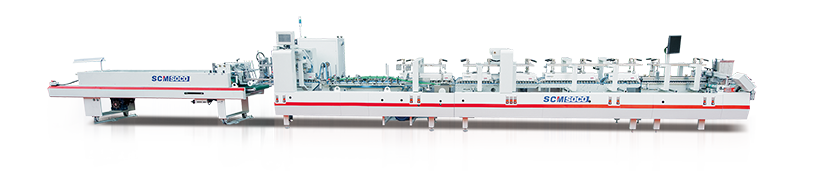

FEEDING SECTION

▪ Independent variable-frequency motor driven belts for stable feeding and accurate blank spacing.

▪ Vacuum-assisted feeding belts in center, resulting in the reliable intake of almost kinds of blanks.

▪ Pile vibrator equipped as standard.

▪ Belt-clean brush for each carrier.

▪ Remote controller for feeder start/stop and speed adjustment.

▪ Pneumatic lift-up side plates and feeding gates.

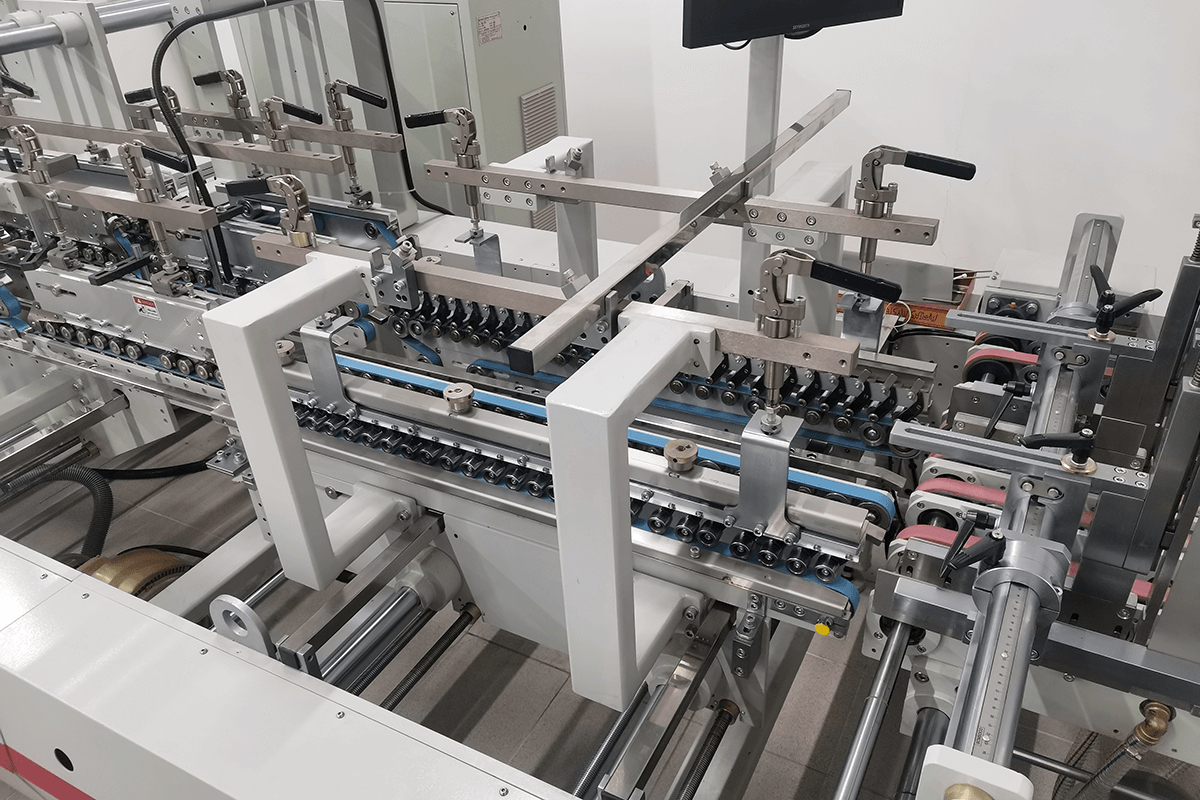

ALIGNMENT SECTION

▪ Three lanes carriers construction. Equipped with 2 upper alignment carriers and 1 center upper belt carrier.

▪ Carrier position adjustable manually with position indicators.

▪ Can be easily converted to left or right side for registration.

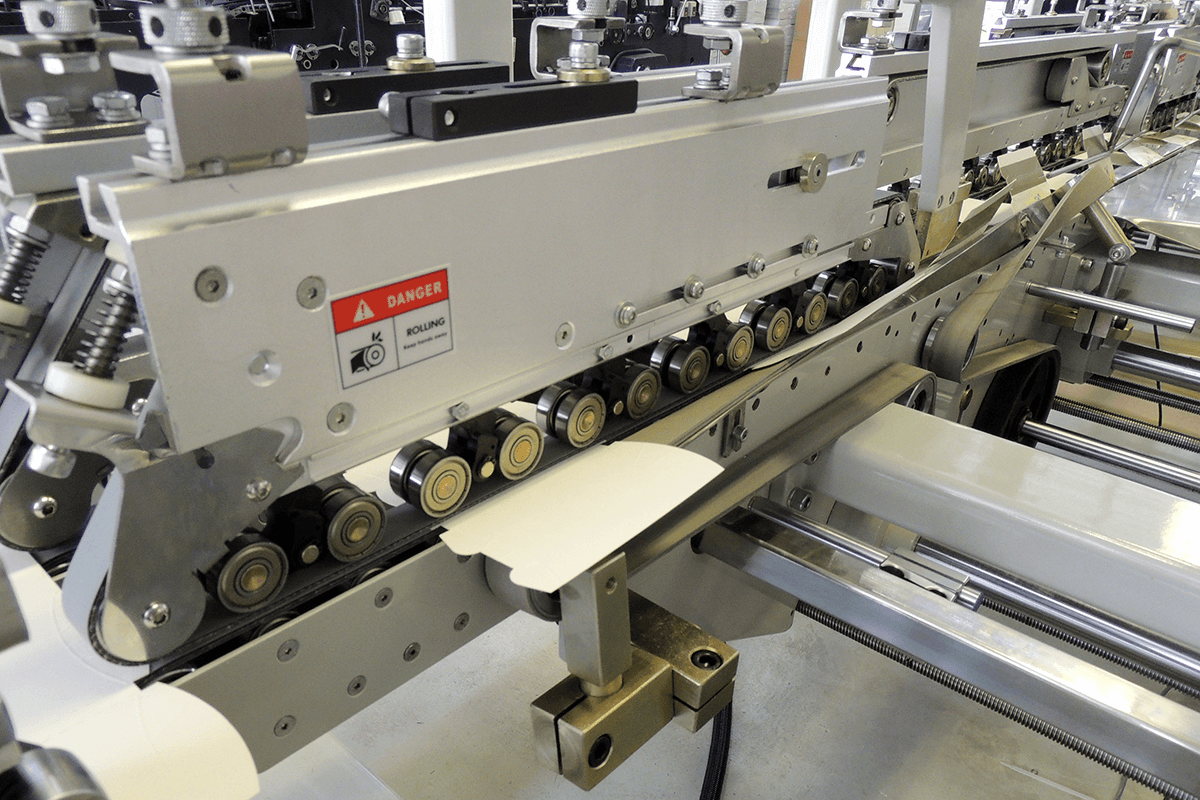

PRE-FOLDING SECTION

▪ Three lanes carriers construction with easy dismantle of split upper carriers for flexible setup.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 23.5mm; lower belt width: 25mm.

▪ The pre-breaking sword for 1st creasing by 180°.

▪ The belt pre-breaking device for 3rd creasing line by 135°.

▪ Perfect pre-breaking ensure accurate and reliable opening of the finished products in the auto-erection package lines.

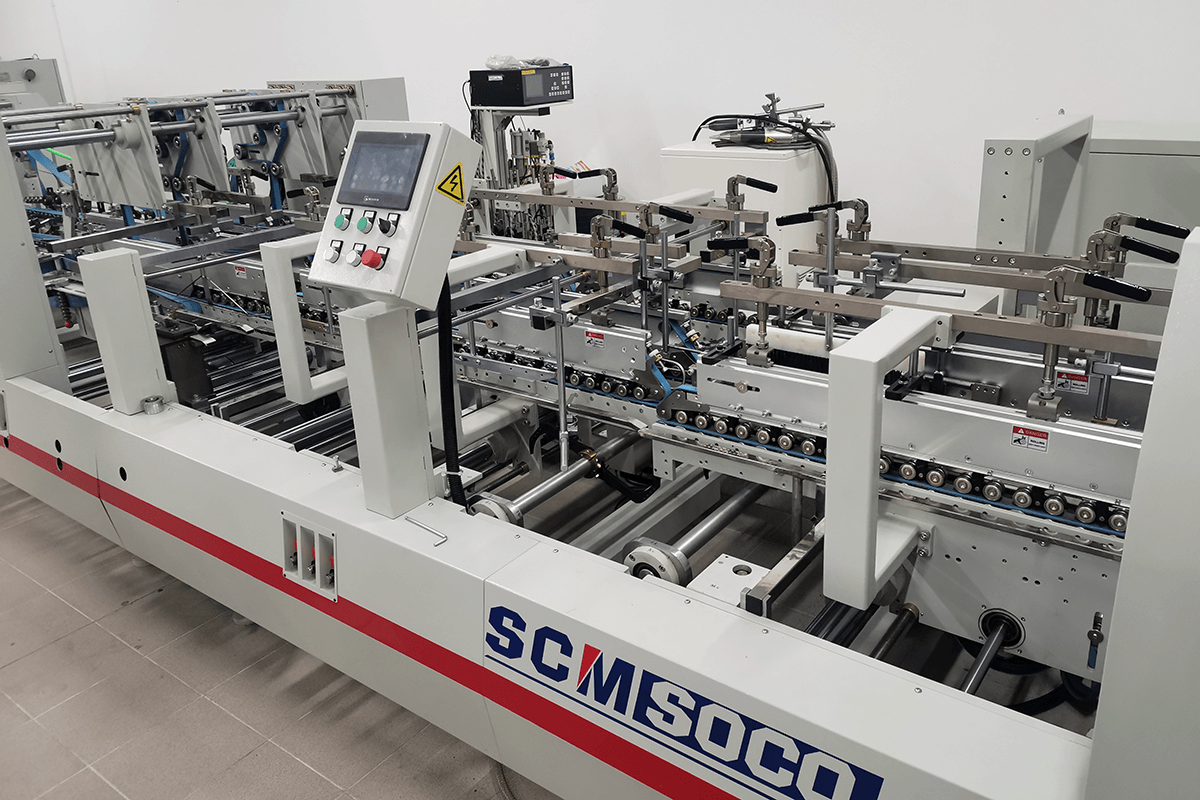

LOCK-BOTTOM SECTION

▪ Three lanes carriers construction. Two split carriers for left and right lanes; one complete carrier for center lane.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 23.5mm; lower belt width: 25mm.

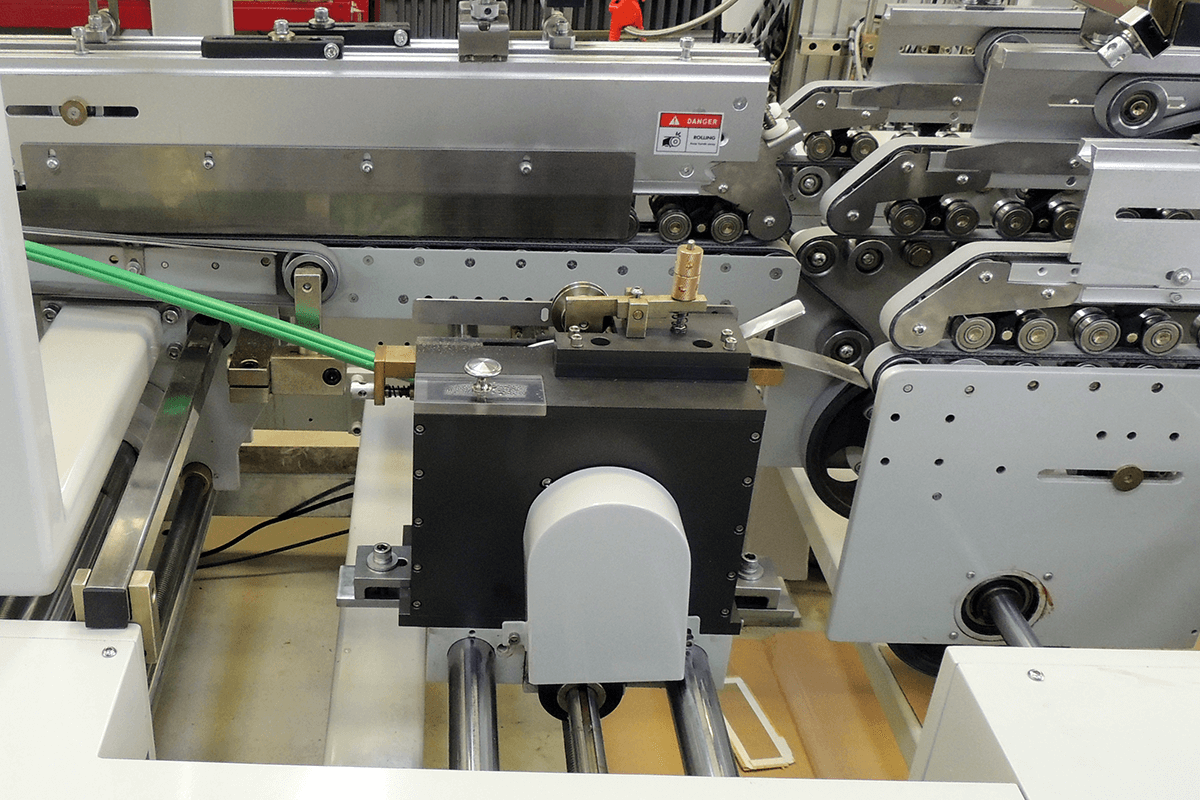

LOWER GLUER

▪ Lower gluer tank in both left and right sides.

▪ Glue disc width: 4.5mm.

▪ Glue tank movement manually.

▪ Accurate volume control avoids the glue splash at high speed.

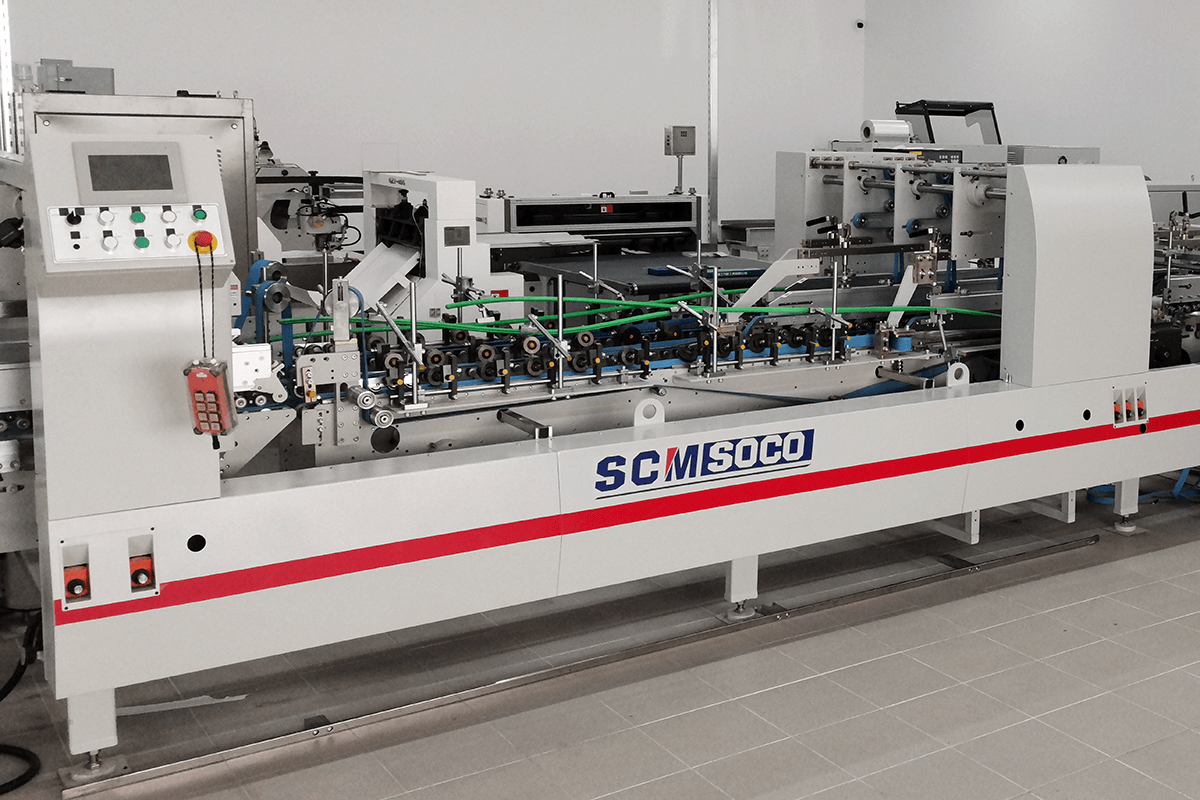

FINAL FOLDING SECTION

▪ Three lanes carriers construction with upper carrier belts transmission system, assure much stable running of thick board or corrugated board.

▪ Speed of left and right folding belts can be adjusted mechanically.

▪ Carrier position adjustable manually with position indicators.

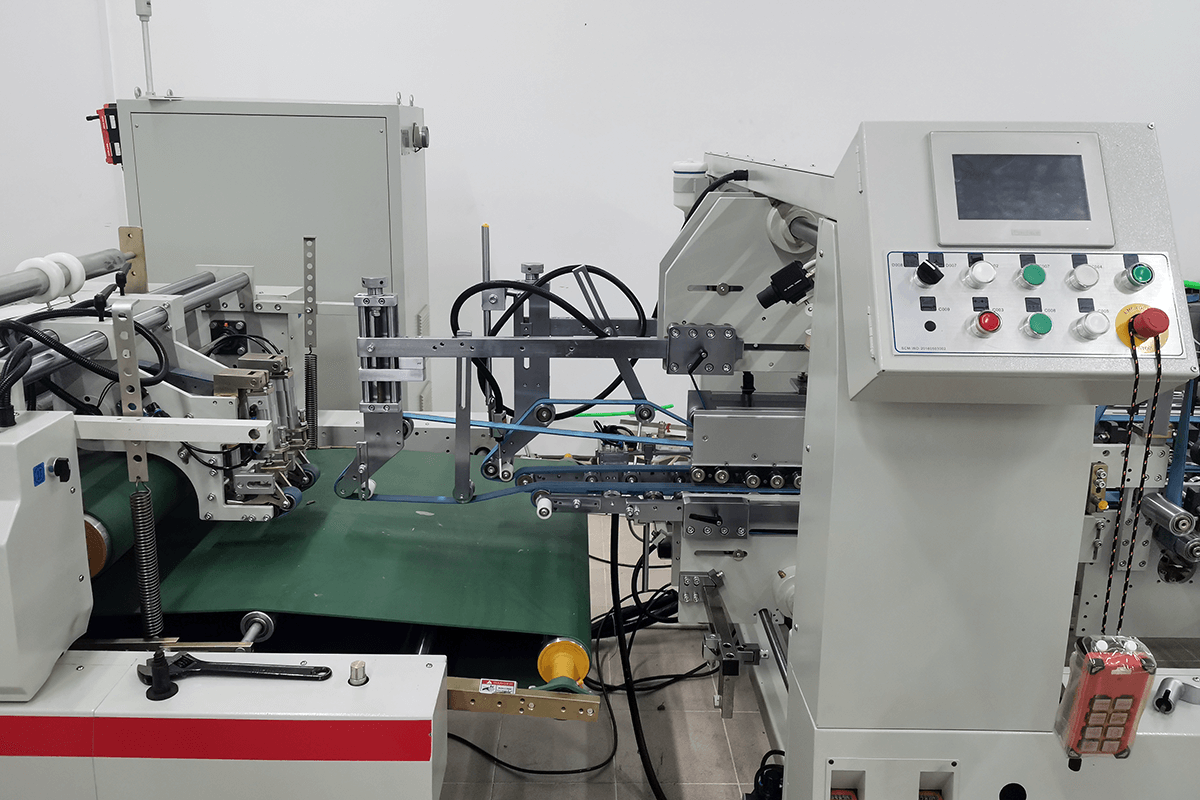

TRANSFER SECTION

▪ Main control panel with touch screen.

▪ Two lanes carriers construction with stable pressure on the folded boxes.

▪ Carrier position adjustable manually with position indicators.

▪ Easy to adjust the pressure holding device according the cartons sizes without change the belt tension.

▪ Kicker counter and spraying counter are equipped as standard.

▪ Camera for live status.

▪ Jam detector.

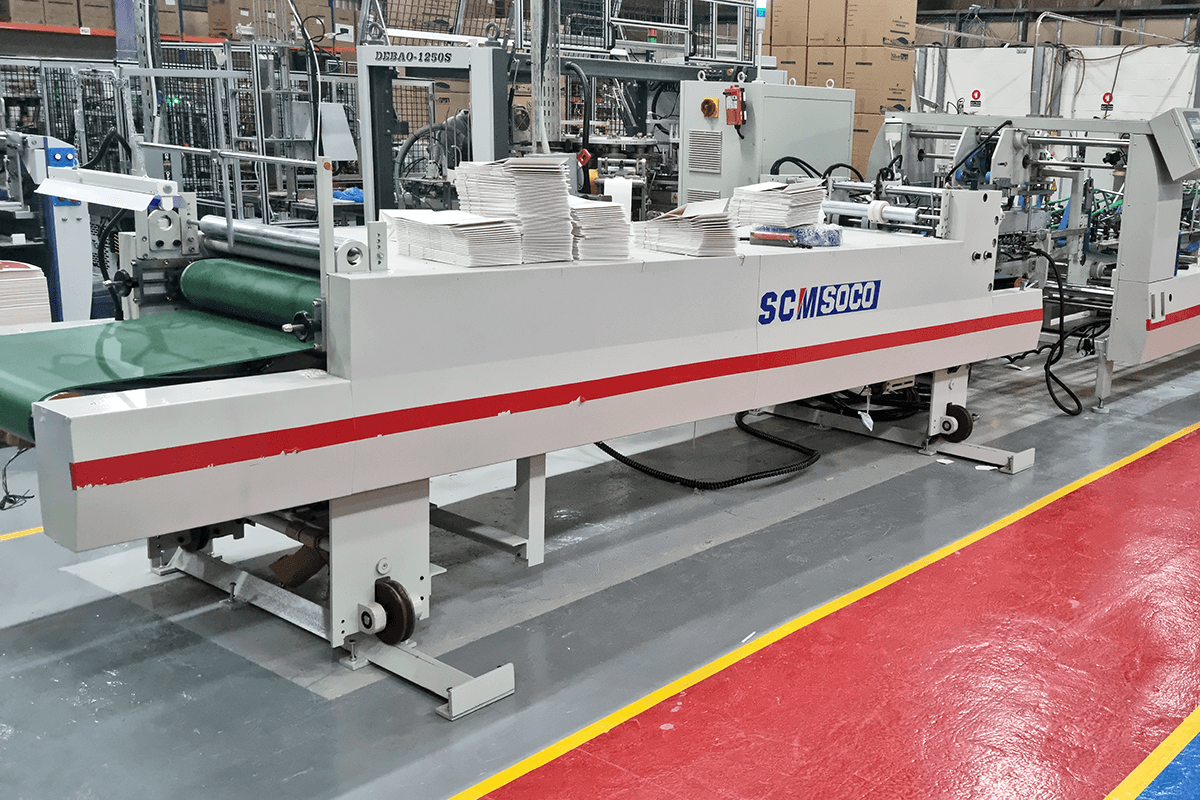

4.4M COMPRESSION CONVEYOR SECTION

▪ 4.4m long compression conveyor as standard.

▪ Independent driven system regulates the box stream synchronously with machine.

▪ One sponge belt.

▪ Lower belt at transfer section with height adjustable.

▪ Left and right position movable.

▪ Collection table in the end.

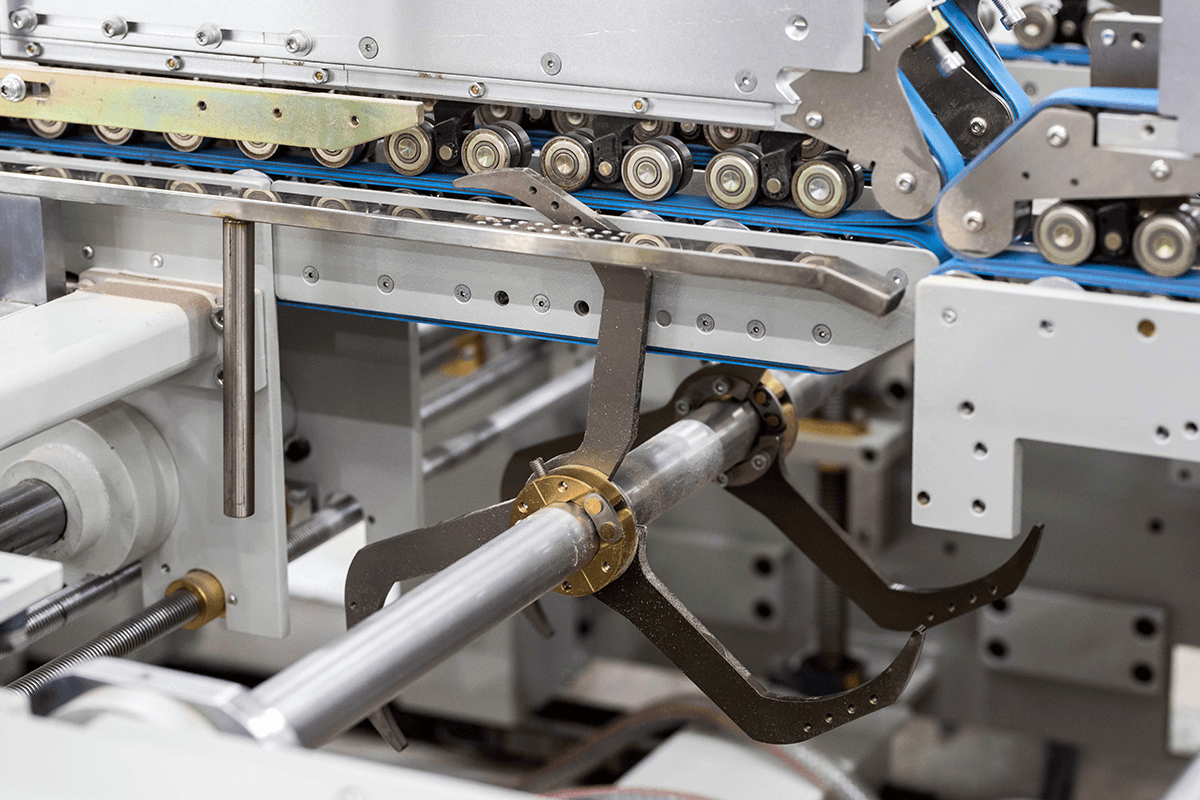

BACK FOLDING SECTION(4/6 CORNER BOX)

▪ Fast set-up of 4/6 corner boxes.

▪ Individually servo-controlled hook shafts with automatic moving up and down.

▪ One hook size adjusting to all flaps sizes, no need to change hooks for various jobs.

▪ No need to remove hooks when back folding system are not used.

▪ Accurate back folding process with max. speed 20,000pcs/h.

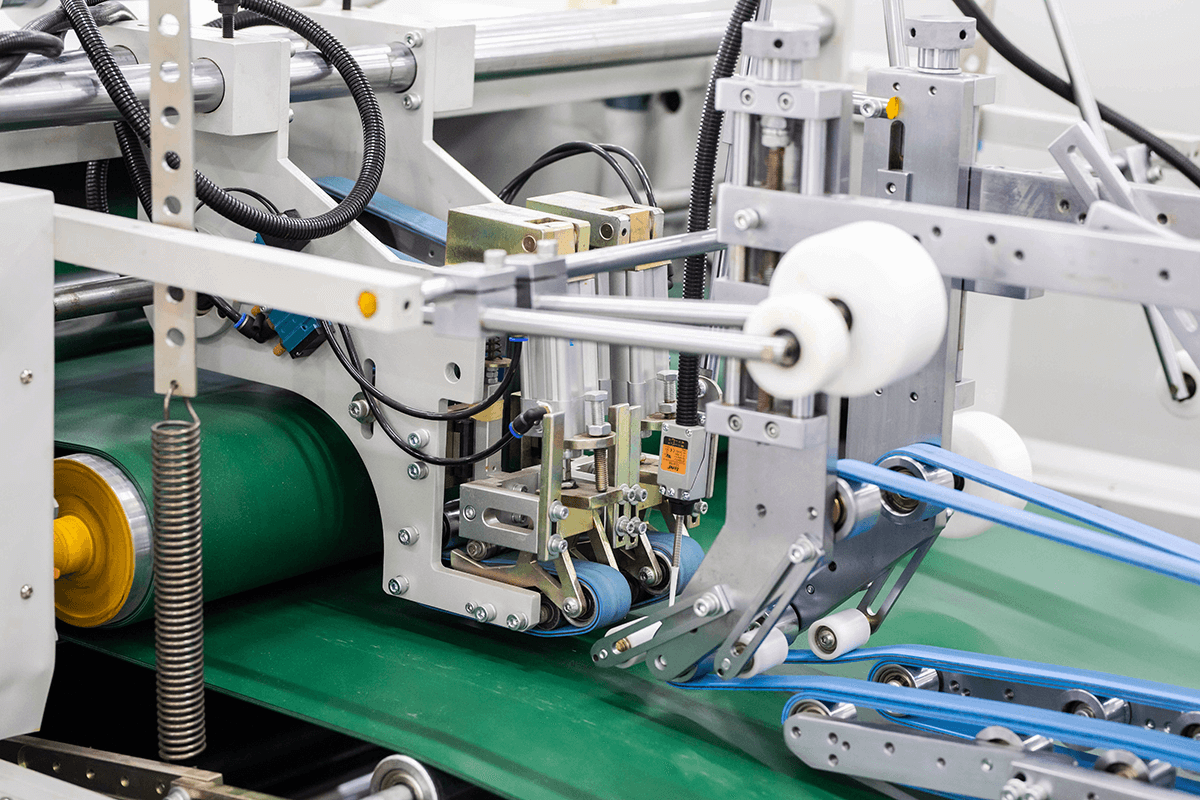

PNEUMATIC SQUARING DEVICE

▪ Pneumatic squaring device at conveyor entry to work out perfect bottom effect, especially for short body and wide lock bottom boxes.

▪ World brand components including:

Cylinder: brand Festo, Germany

Magnetic valve: brand Mac, USA

Pressing belt: brand Nitta, Japan

Linear guide slide: brand THK, Japan
