General Features
▪ Max. 6pcs boards can be applied for the hardcover production.
▪ Automatic paper feeding, gluing, board feeding, positioning and folding.
▪ Optical sensors detect and servo-controlled board positioning ensures high accuracy up to ±0.25 mm.

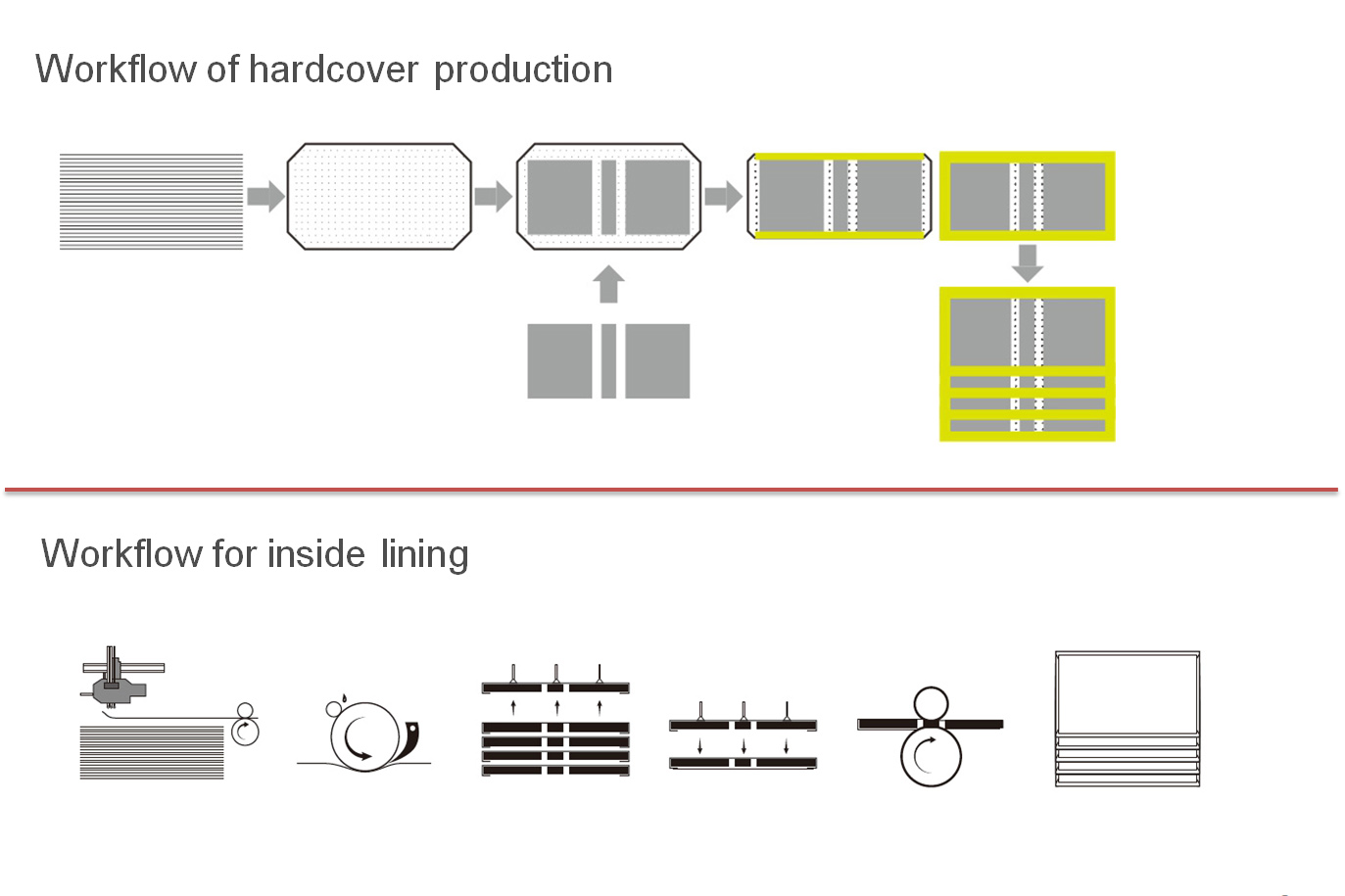

▪ Inside lining can be achieved in second pass.

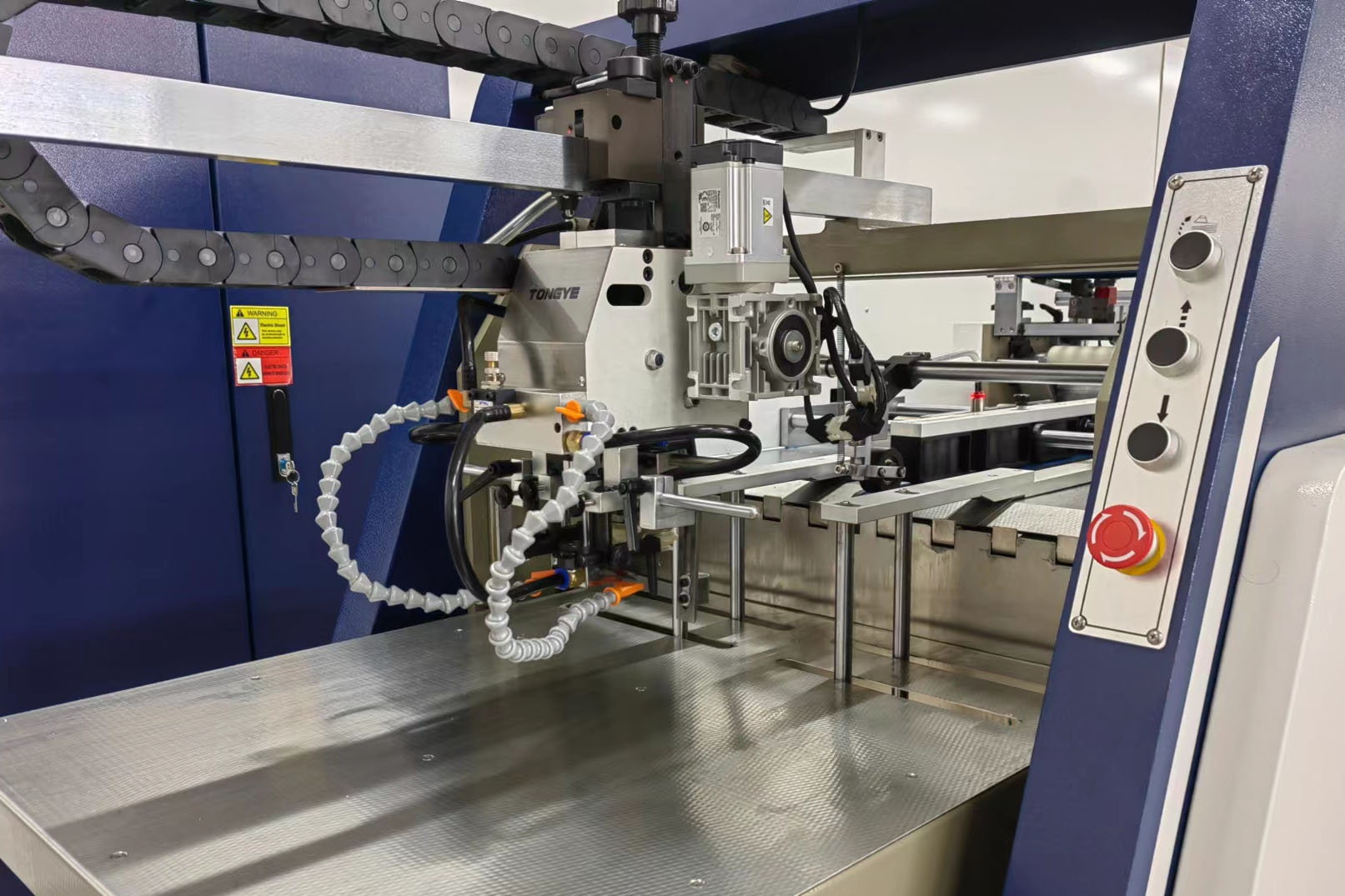

Feeding Section
▪ Servo-driven automatic cover paper feeding
▪ Double-sheet detector

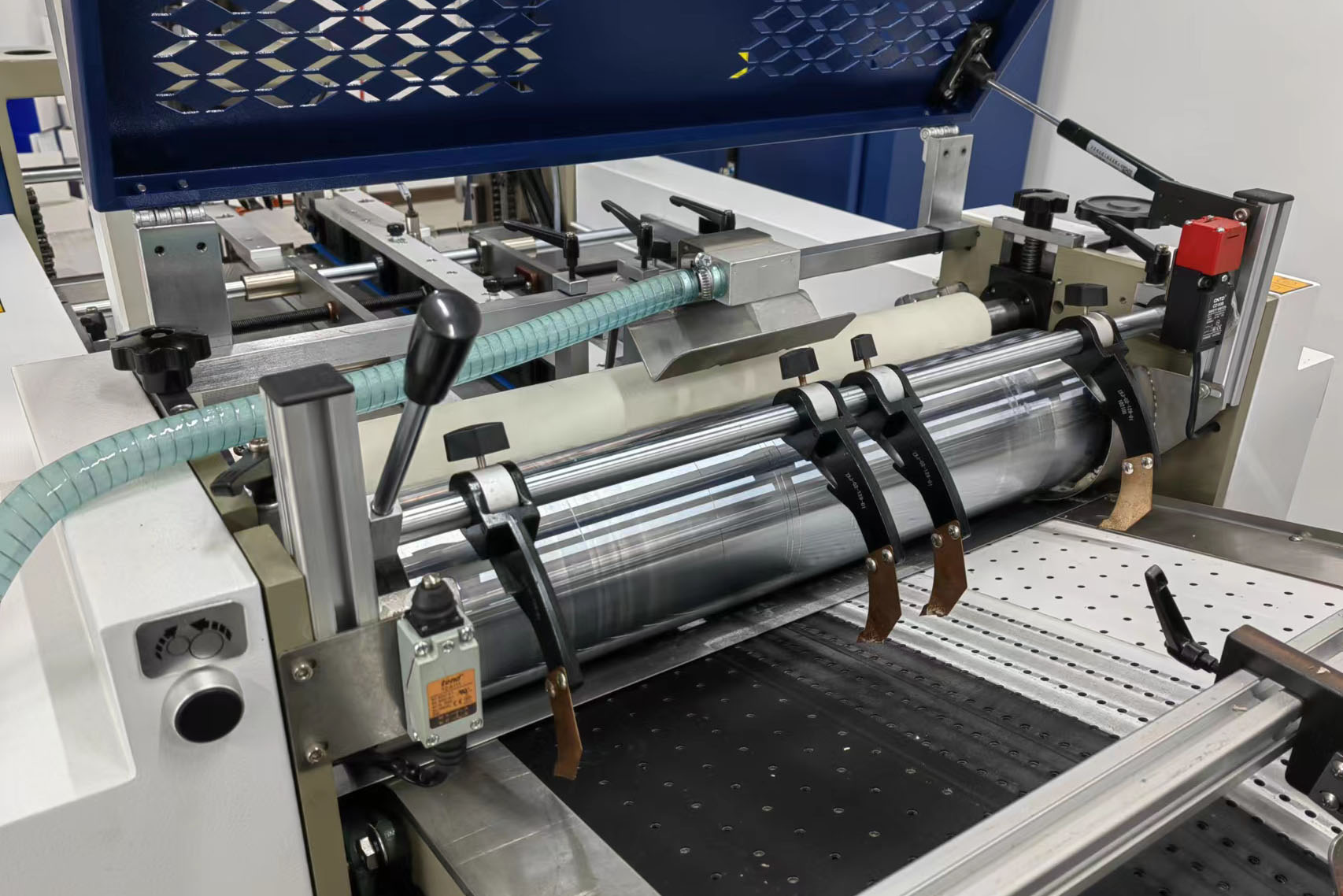

Gluing Section
▪ Chromed roller gluing with circulating glue pump and premelter, animal glue is used on this machine.
▪ Quick and easy cleaning on the gluing roller.
▪ Automatic glue viscosity detection and control system is optional.

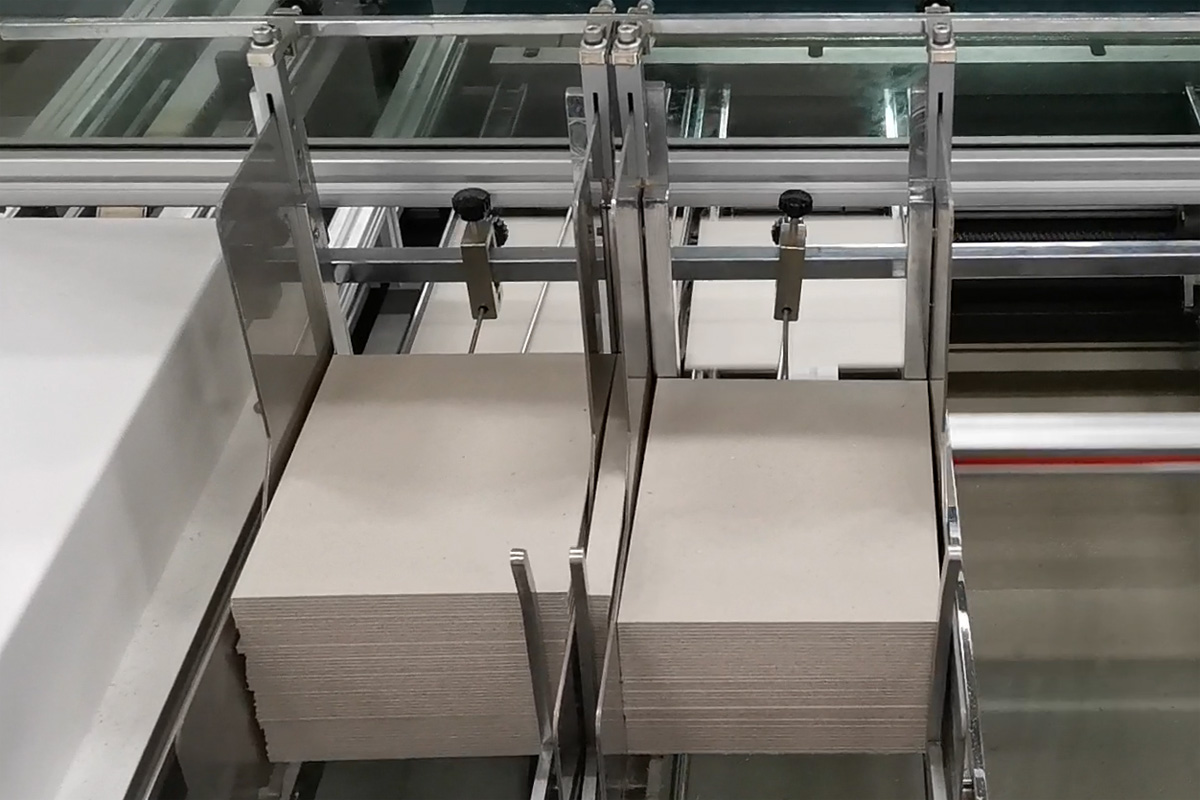

Automatic Board Feeding Section
▪ Boards are fed from the bottom by means of pushers
▪ Non-stop loading from the top.
▪ Max. 6 pieces of board can be performed.

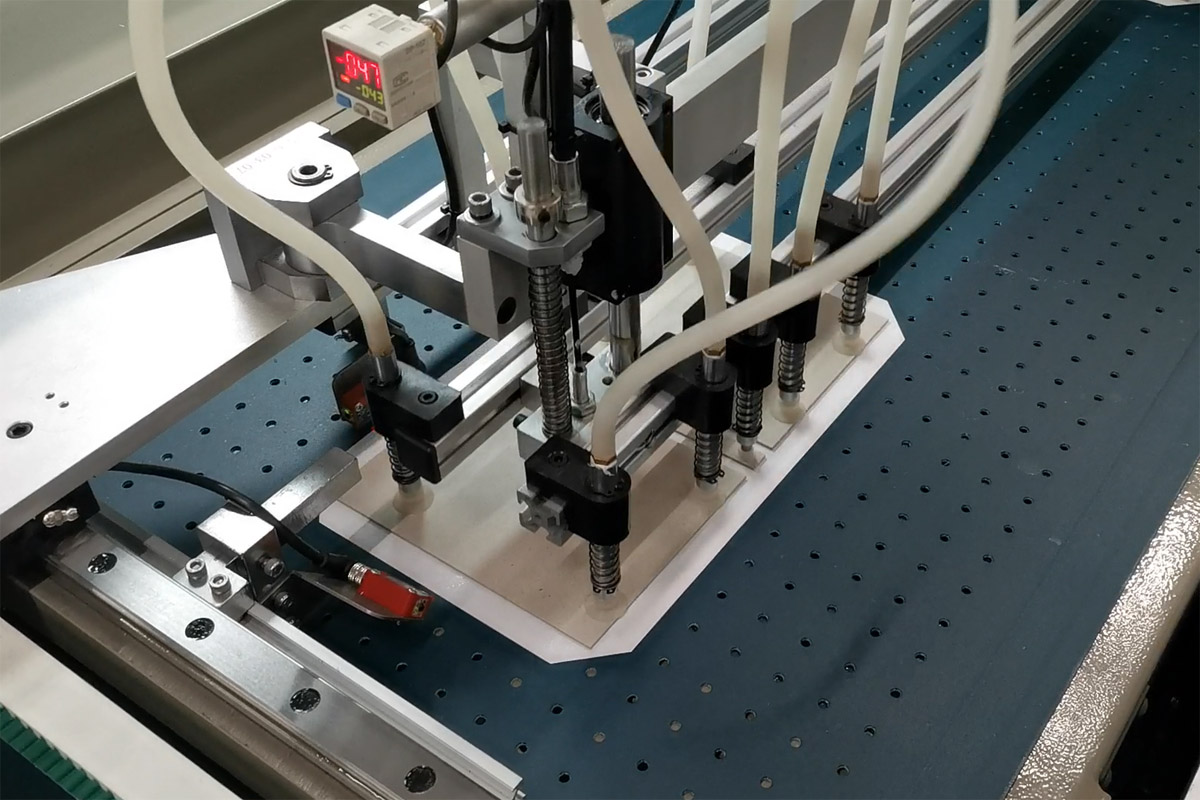

Automatic Positioning Section
▪ Three point sensors reading for precise alignment of board.
▪ Fine correction for board registration by servo-controlled mechanical arms.
▪ Servo-driven suction belt ensures stable transport of paper.

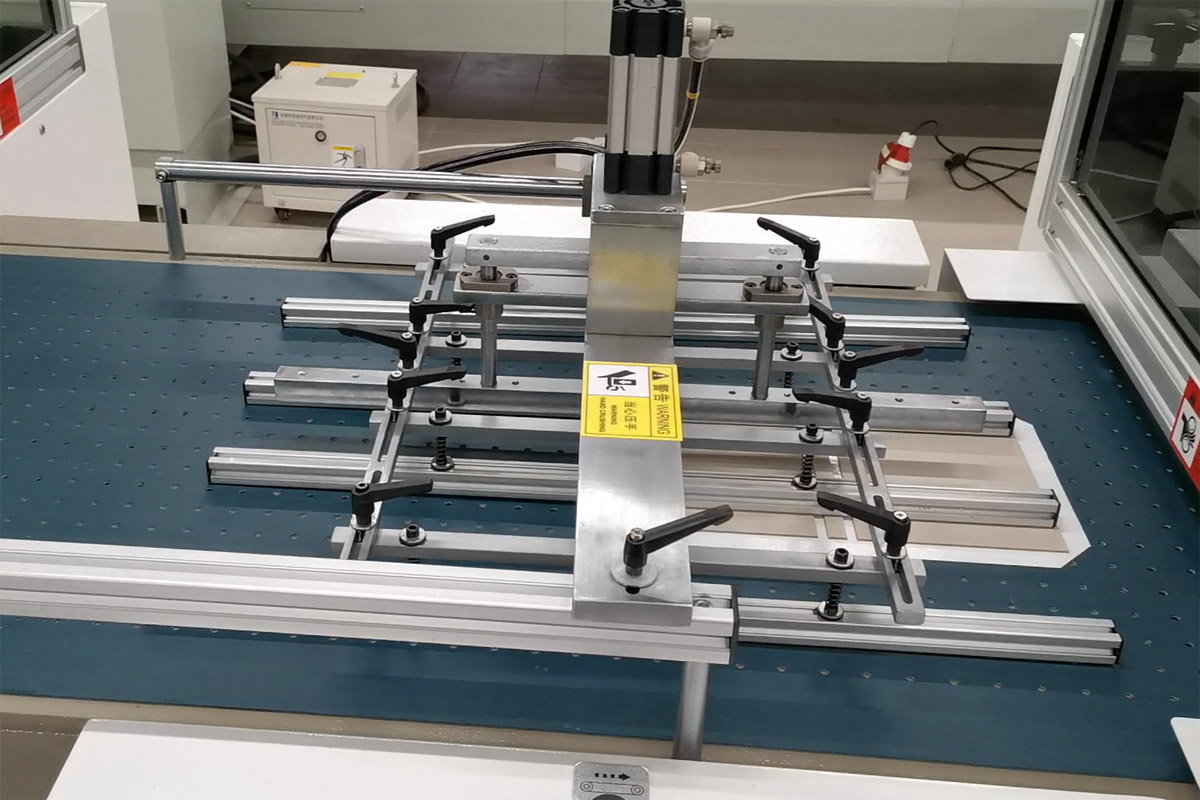

Pneumatic Pressing Section
▪ The case is pressed gently by pressing structure before entering into folding section.

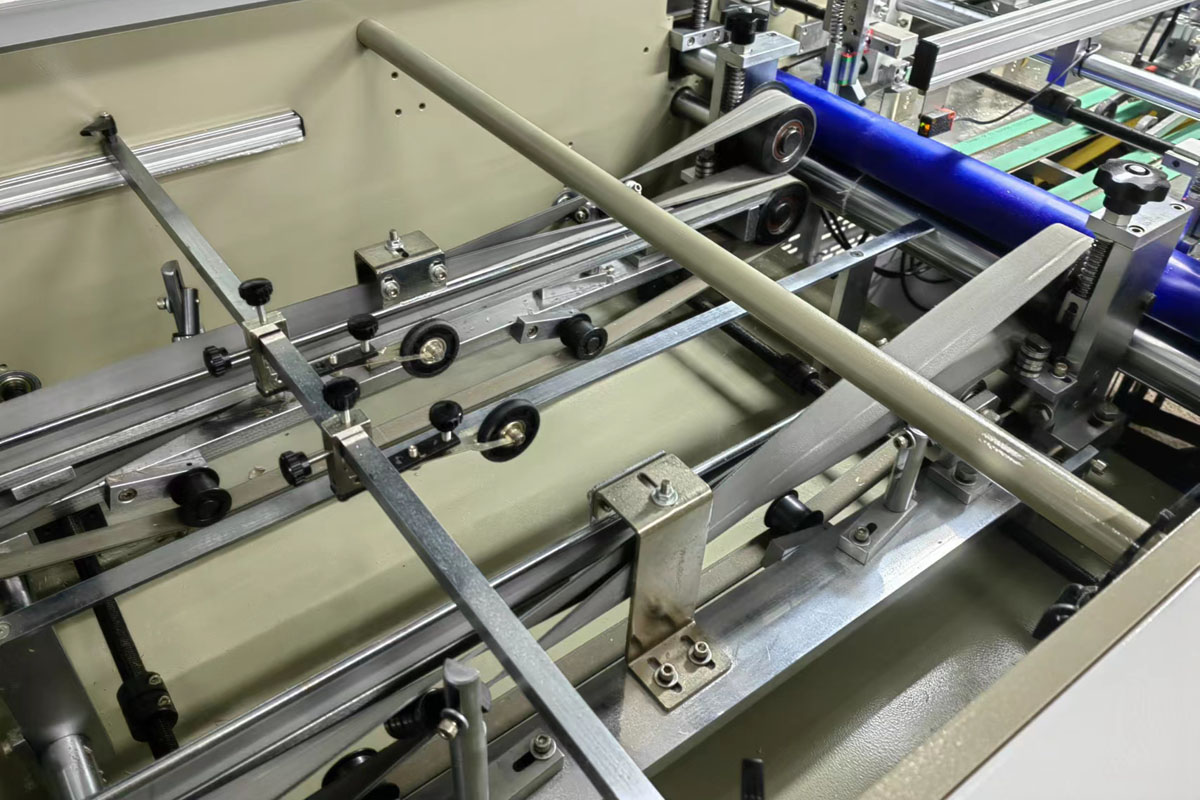

Side Folding Section
▪ Automatic two side folding by means of folding belts.

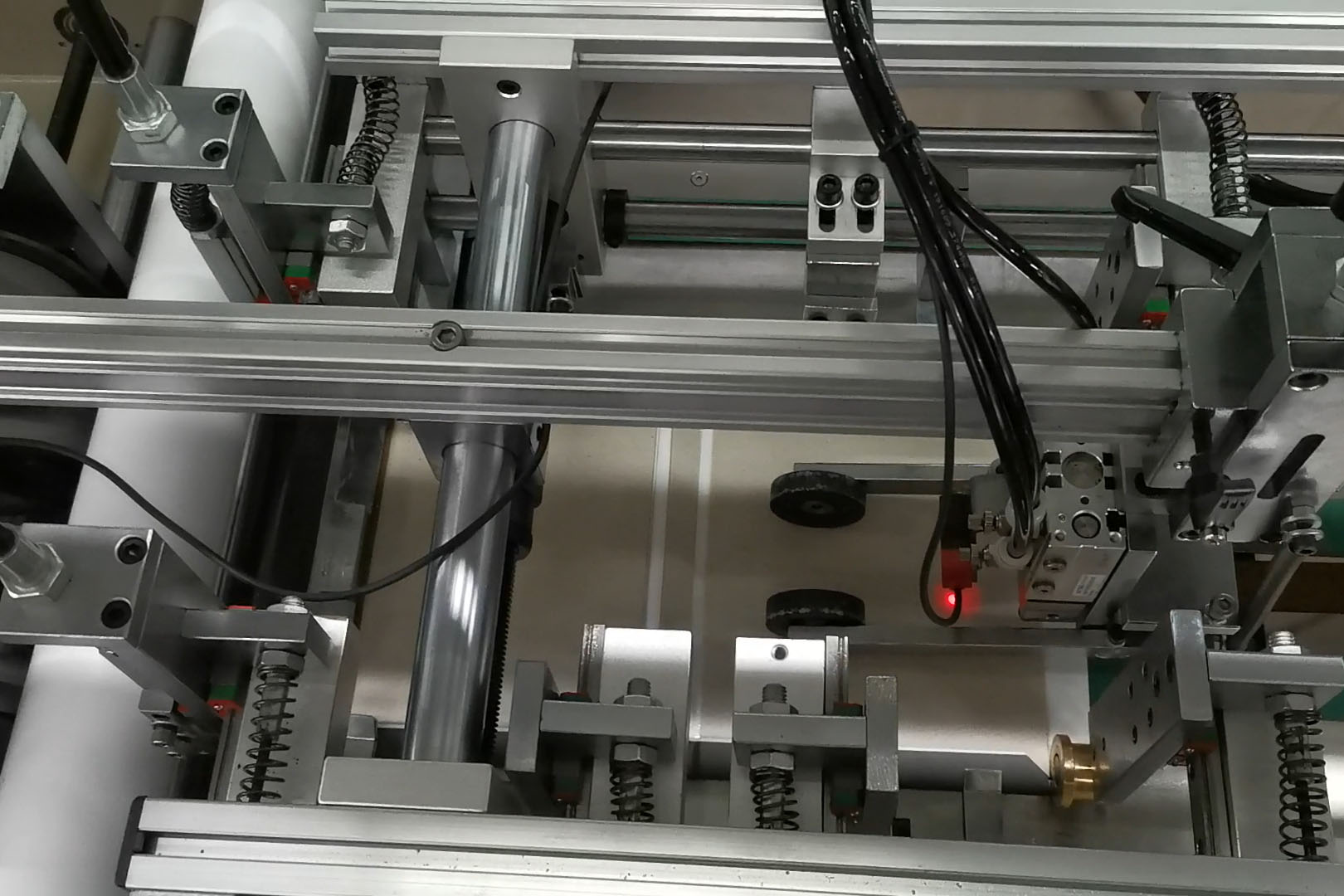

Front & Rear Edge Folding Section
▪ Front and rear edge folding by mechanical flaps.
▪ Corner closing wheels with adjustable pressure and duration for perfect folding results.

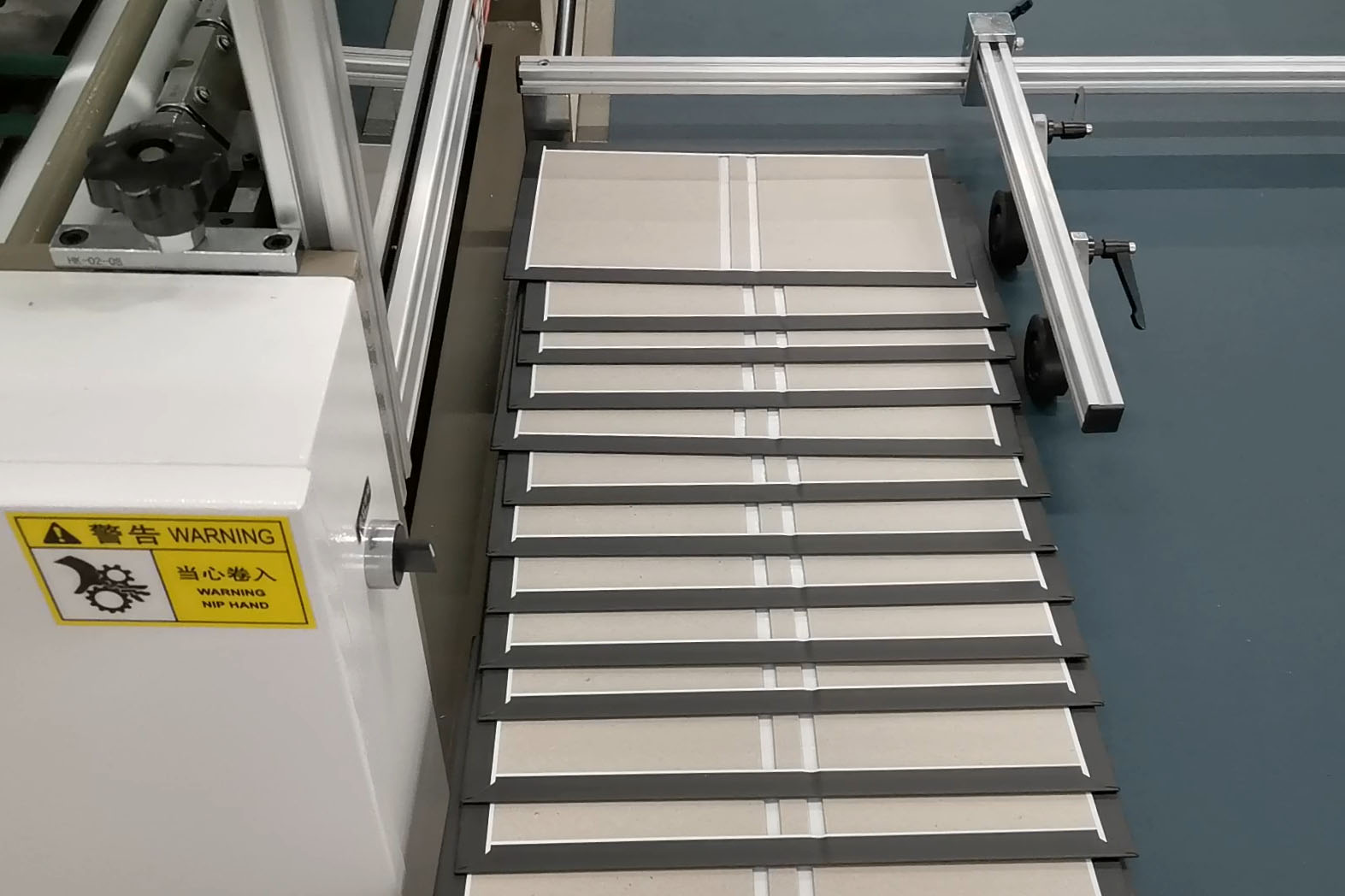

Delivery Section
▪ Automatic sheet delivery table with belt conveyor.
