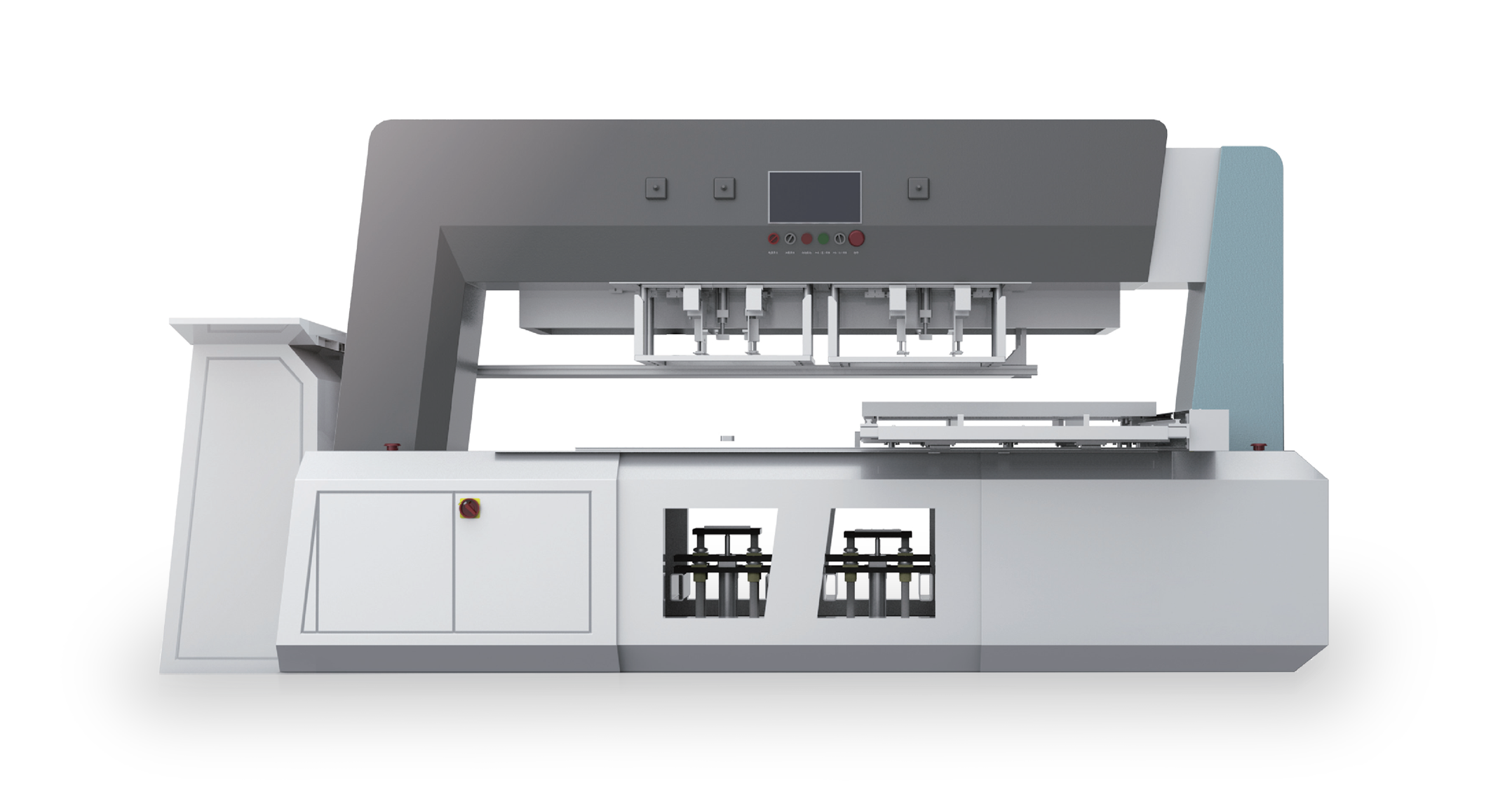

Blanking Machine LF-1020SJN

Features

SHEET PILE MOVEMENT

▪ Servo-driven rails for sheet pile movement with high accuracy and easy operation.

▪ Max. sheet size 1060x960mm.

▪ Max. sheet pile height 50-85mm.

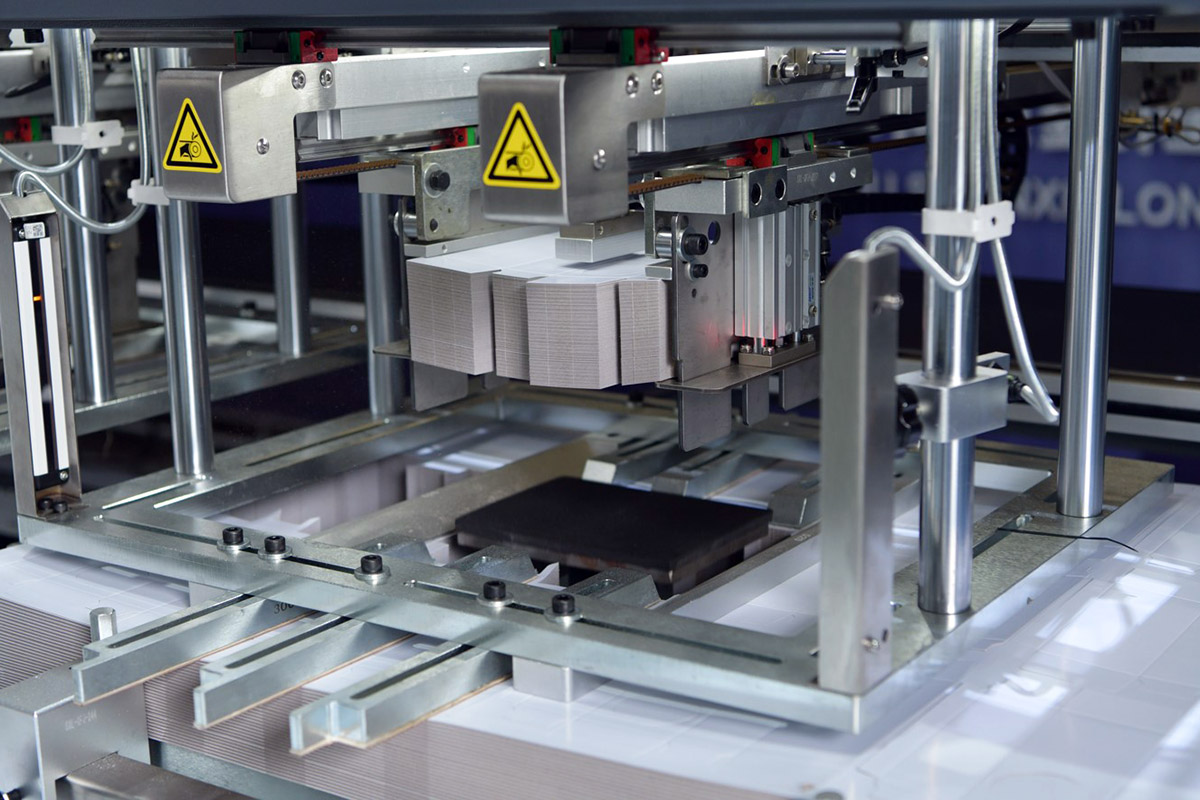

STRIPPING HEAD

▪ Double head stripping heads are suitable for different layout.

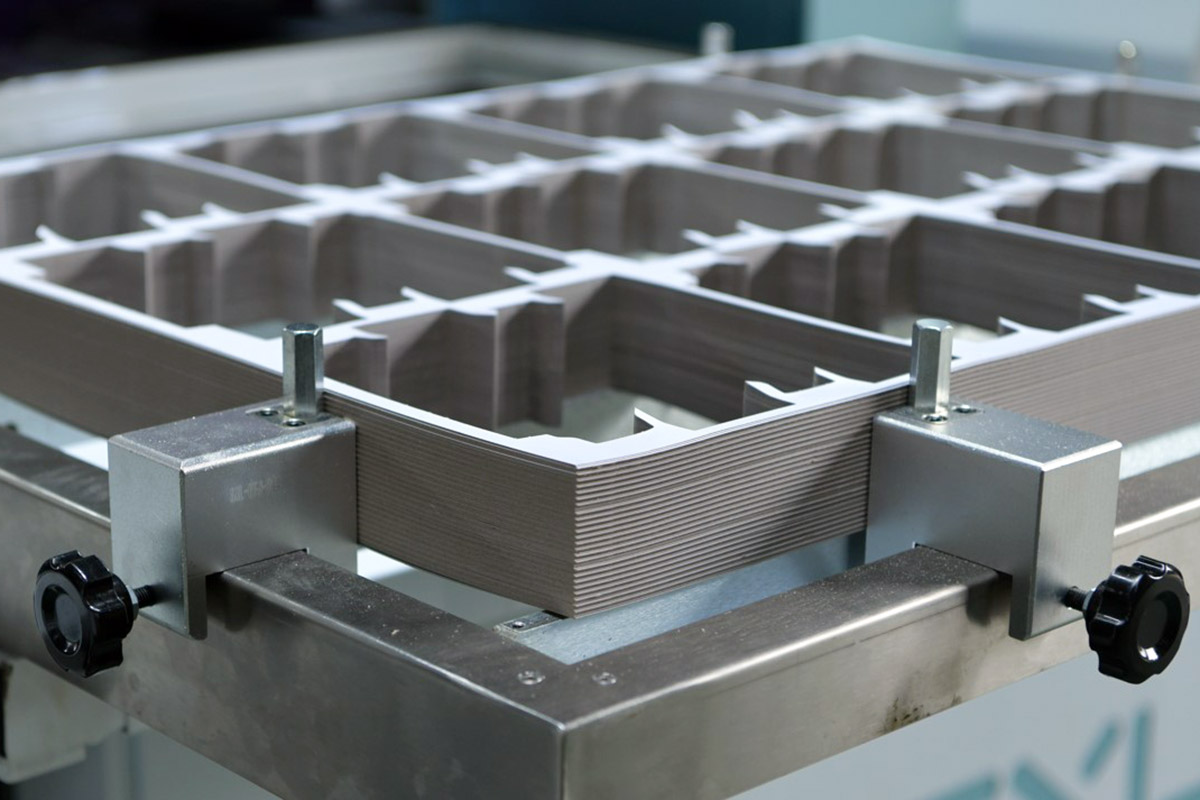

▪ 5 different size bottom molds available for stripping various size blanks.

▪ Automatic pick up by manipulator without operator involved by hand for most jobs.

▪ Only very small size and big size jobs choose hand collection. Easy to switch to auto or manual mode.

▪ Setup within 10-20min for most jobs.

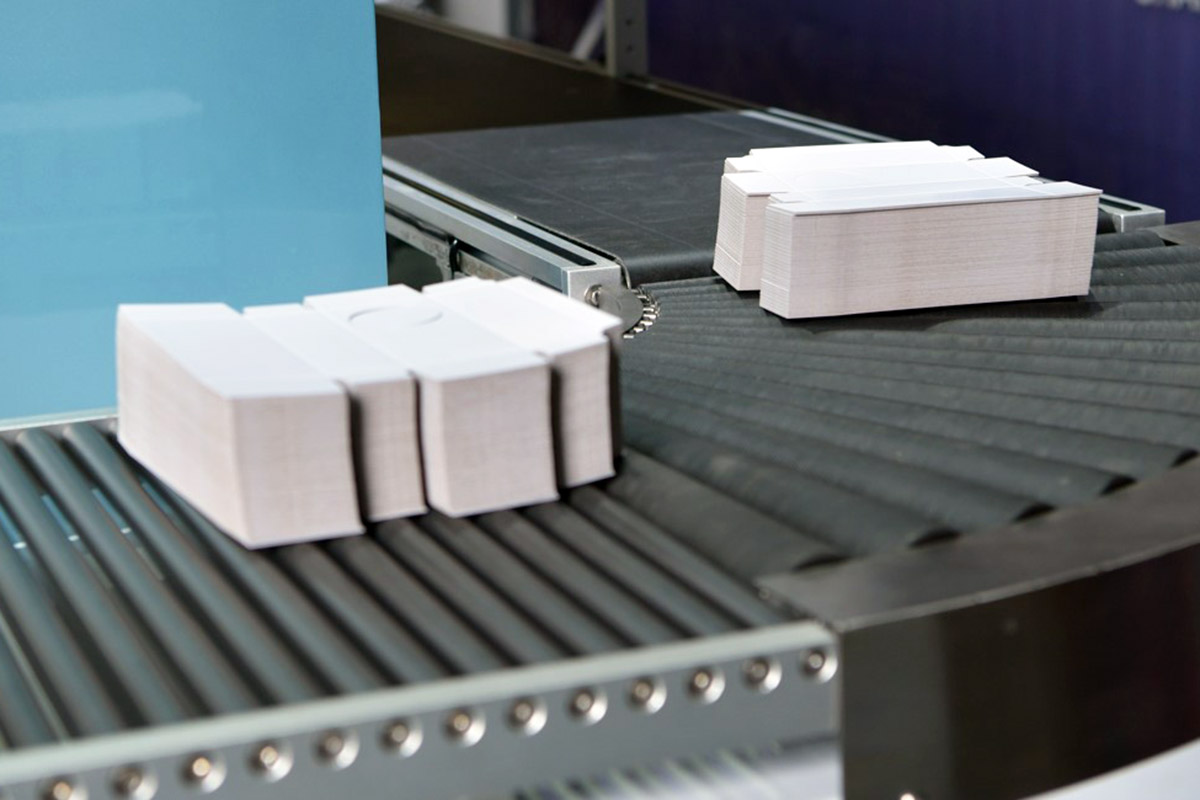

CONVEYOR

▪ Conveyor for finished blanks transport to operation side for each collection and stacking.

▪ One or two operators for one machine lower the labor cost.

01 / 03

Parameters

LF-1020SJN

Max. Sheet Size

1060x960mm

Min. Sheet Size

300x300mm

Max. Stripping Size

450x350mm

Min. Stripping Size

30x30mm

Manipulator Size

50x50mm ~ 350x350mm

Substrate

Cardboard range 170~600gsm

Sheet Pile Height

50-85mm

Max. Stripping Speed

20times/min

Max. Working Pressure

2.5tons

Power

7kw

Compressed Air

0.6-0.8mpa

Weight

2240kgs

Dimension

4500x2500x2000mm
