SO-2-500

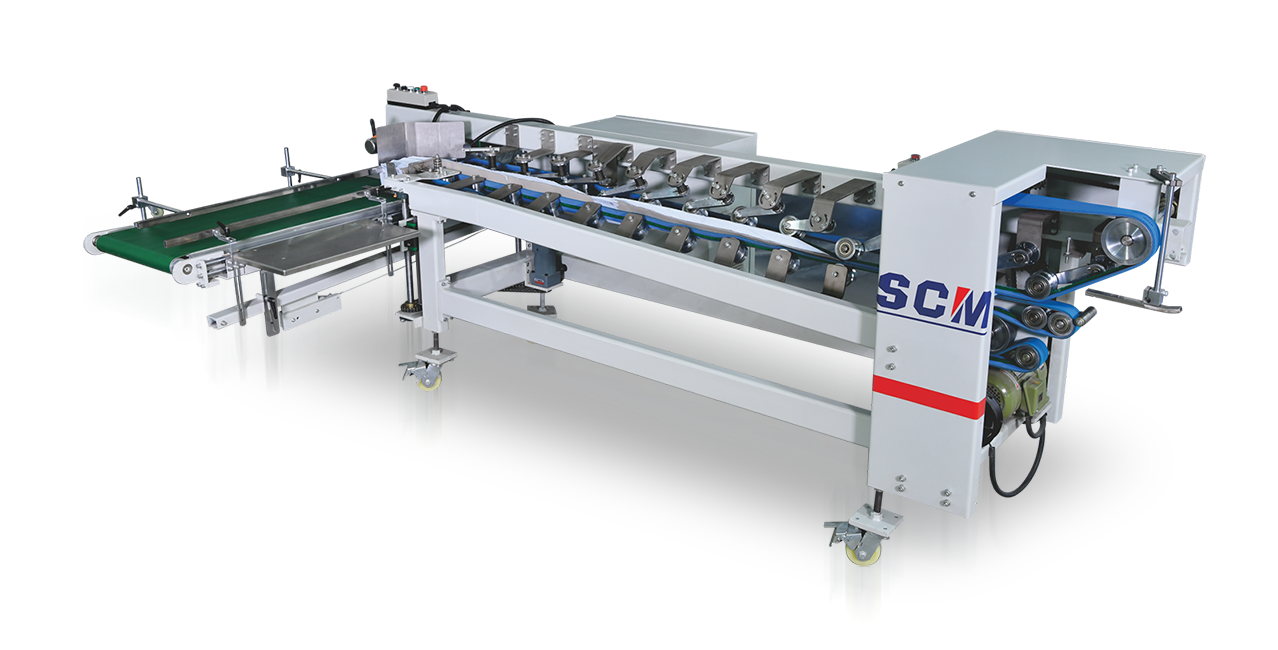

Semi-automatic Collecting Table

Features

CONNECT TO WO-750PC-R-I FOLDER GLUER

▪ Installed in Krsko, Slovenia.

▪ Box flow delivery at operation side.

CONNECT TO WO-1050PC-R FOLDER GLUER

▪ Installed in Beograd, Serbia.

▪ Box flow delivery at operation side.

CONNECT TO WO-1050PC-R FOLDER GLUER

▪ Installed in Leon, Mexico.

▪ Box flow delivery at transmission side.

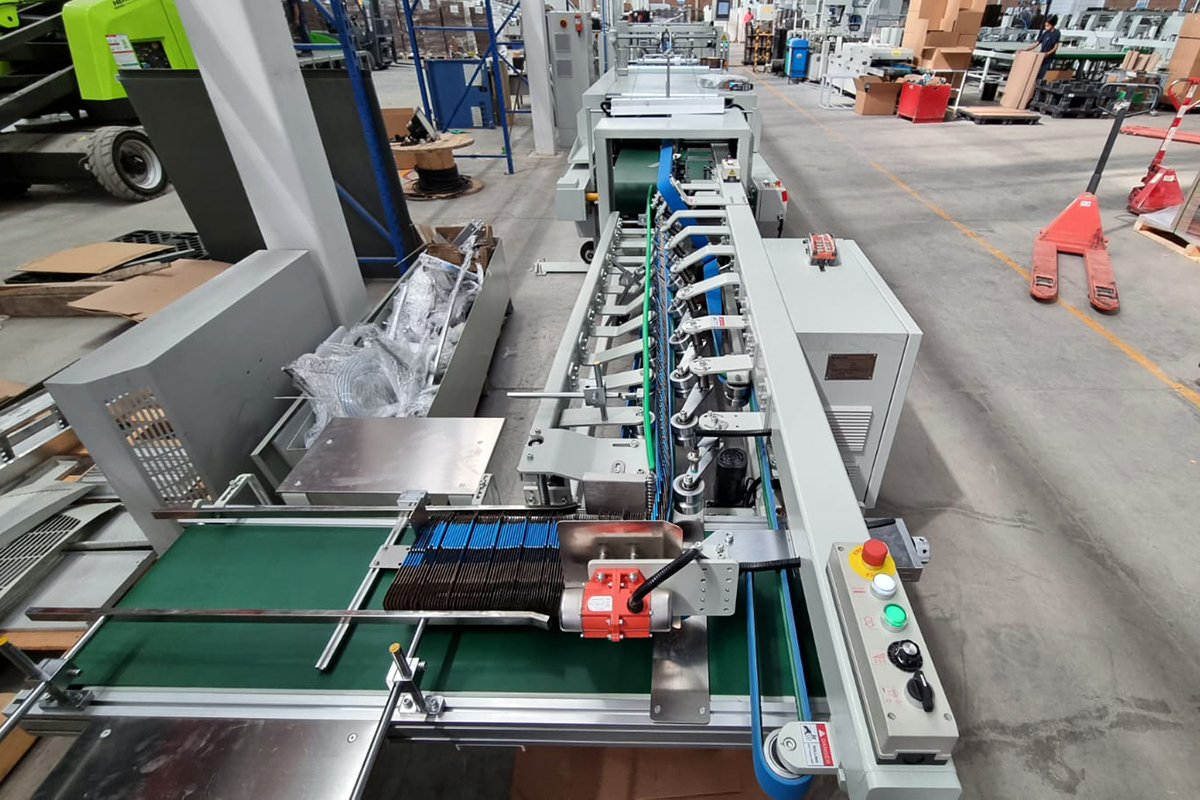

CONNECT TO SIGNATURE FOLDER GLUER

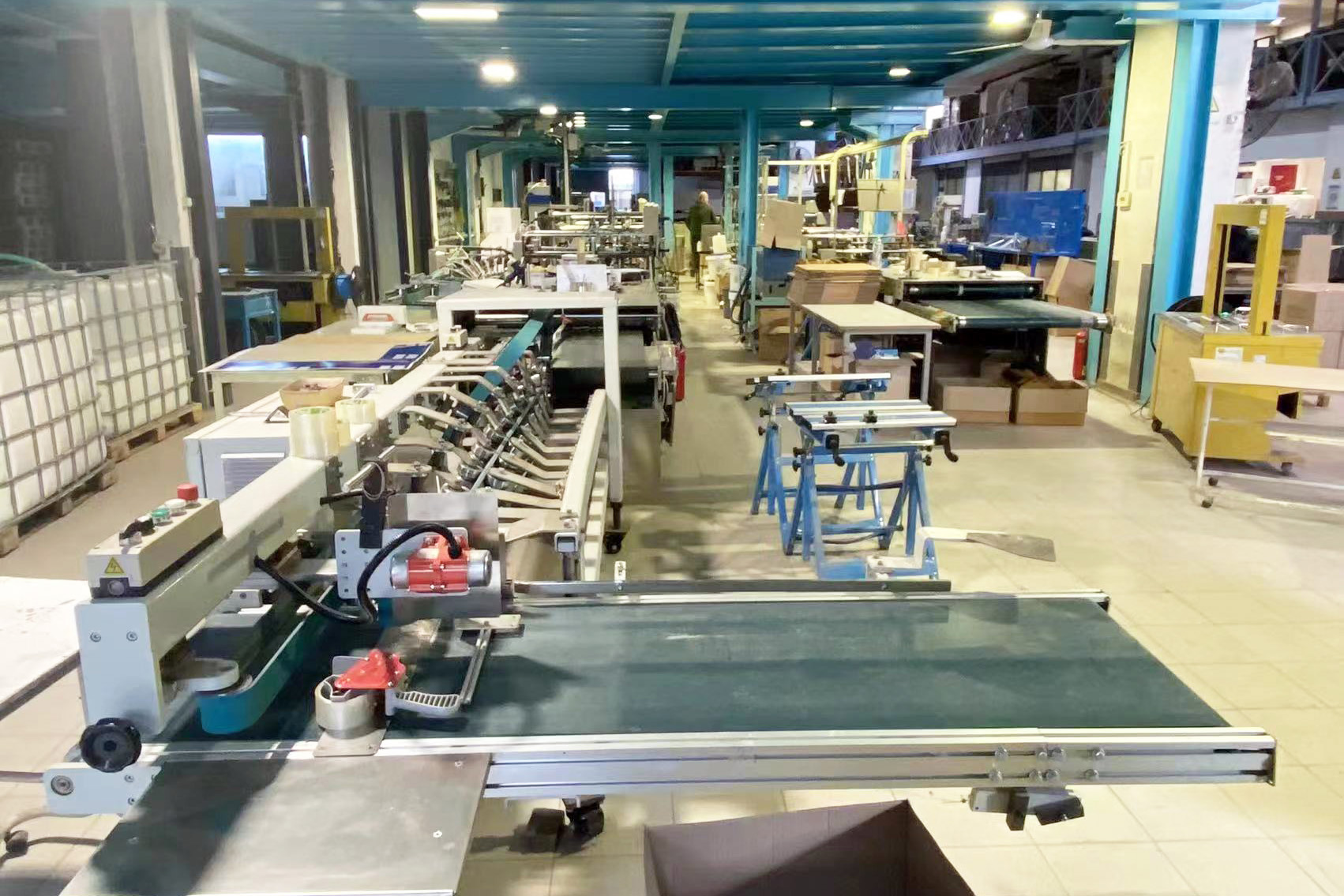

▪ Installed in Athens, Greece.

▪ Box flow delivery at operation side.

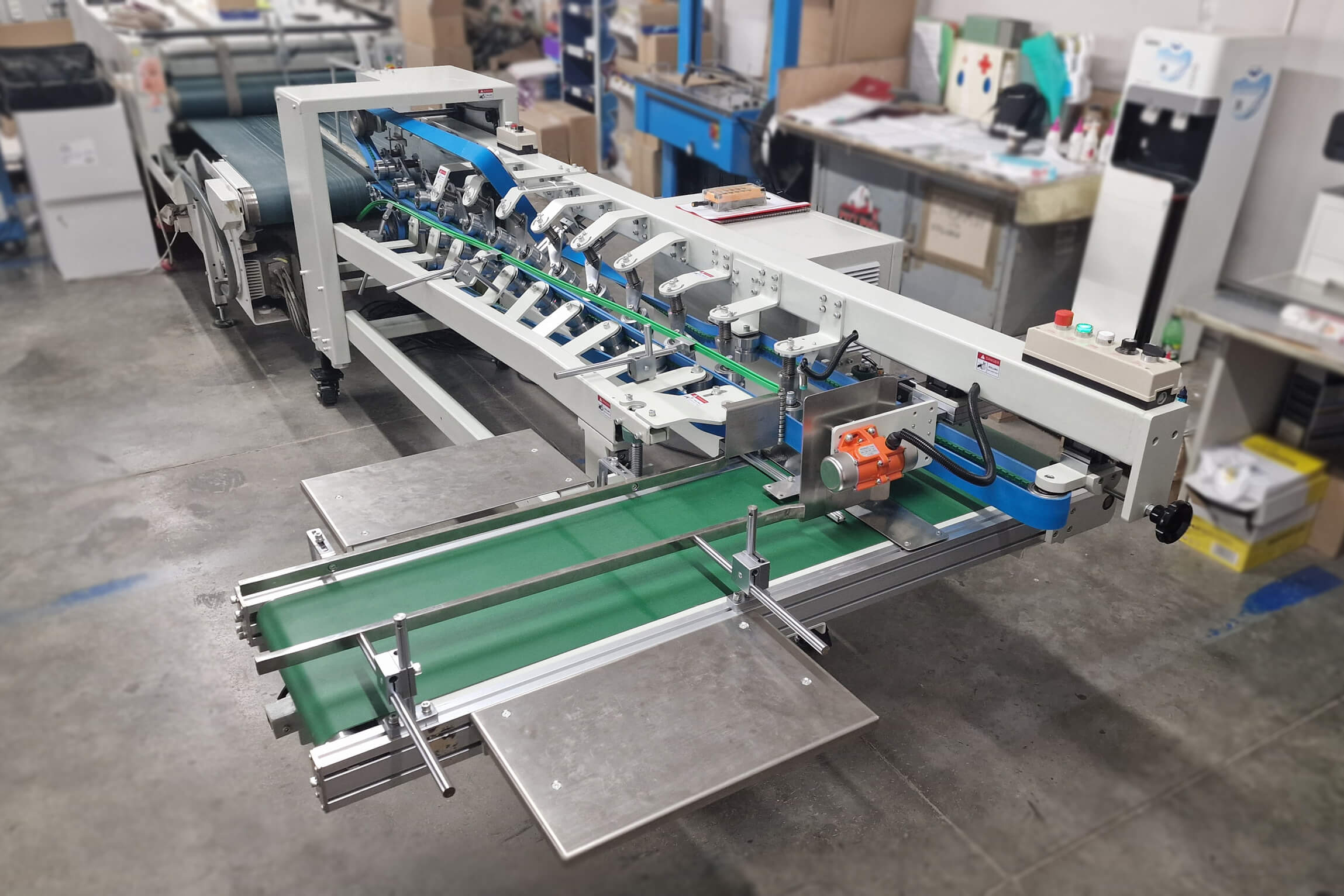

CONNECT TO BOBST FOLDER GLUER

▪ Installed in Plovdiv, Bulgaria.

▪ Box flow delivery at transmission side.

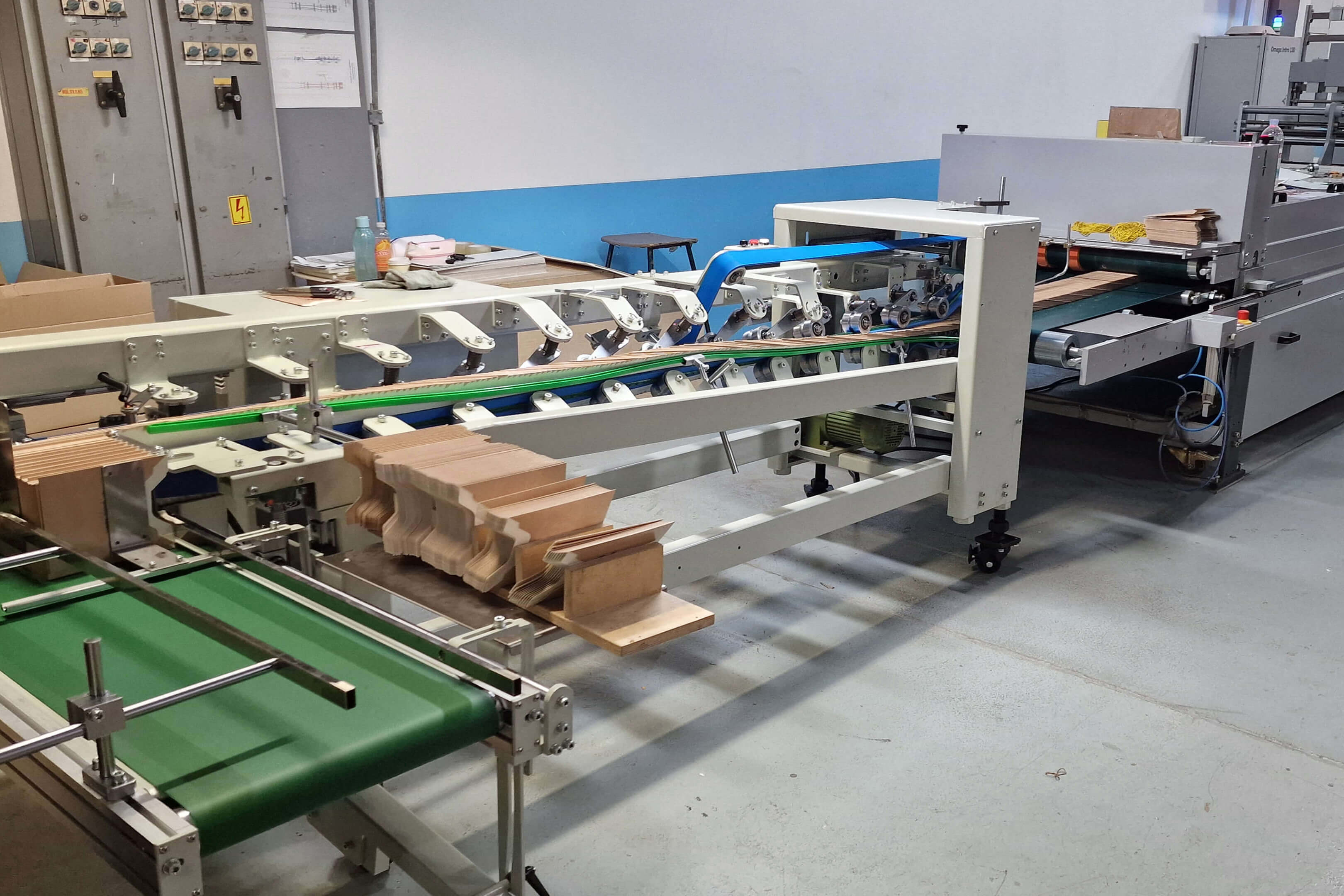

CONNECT TO KBA FOLDER GLUER

▪ Installed in Zagreb, Croatia.

▪ Box flow delivery at operation side.

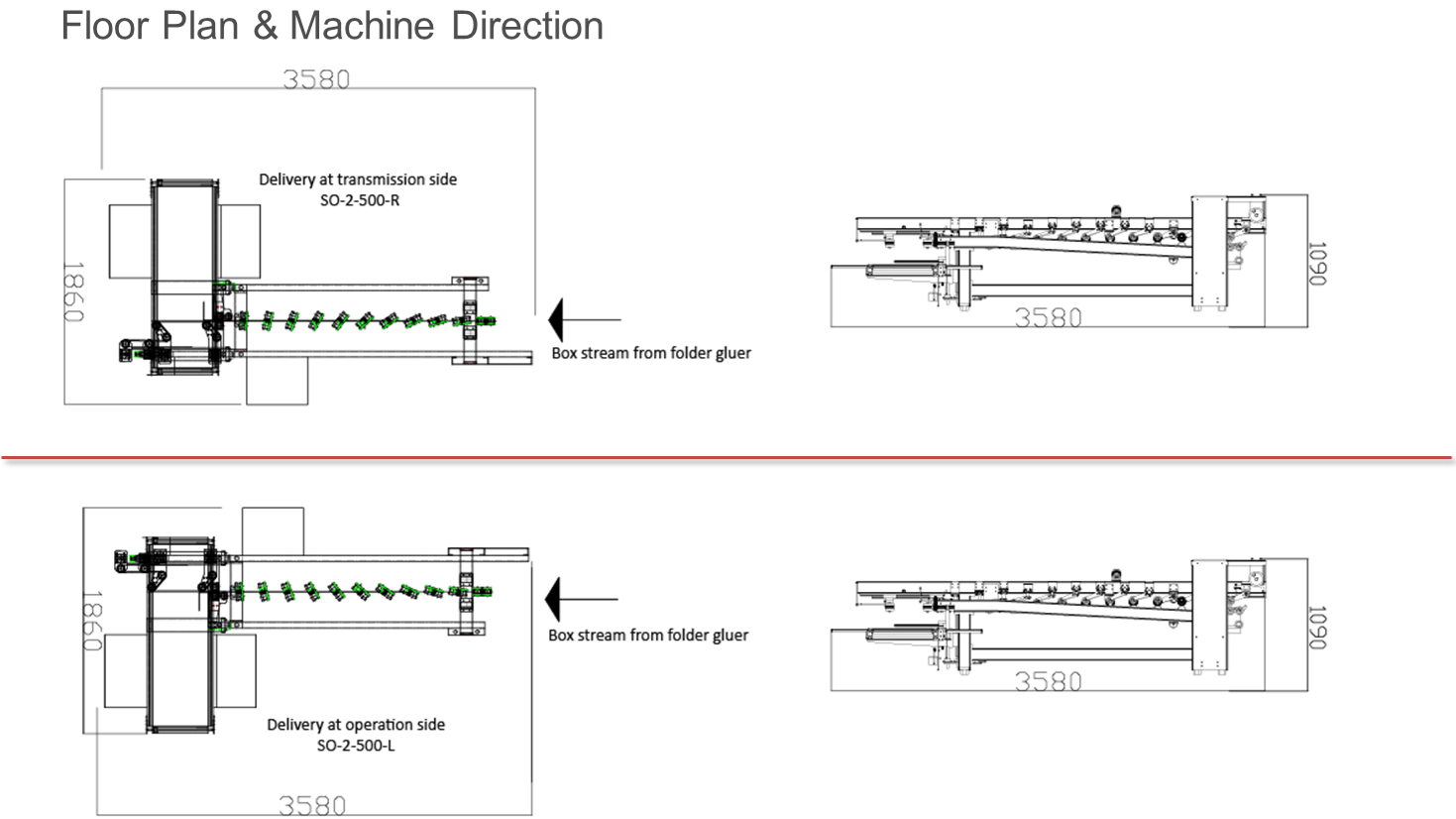

Floor Plan & Machine Direction

01 / 07

Parameters

SO-2-500

Material

200-800gsm cardboard; N, F, E flute board

Box Type

Straight line, double wall, crash lock bottom, 4/6corner box

Flat Folded Box Width

50-450mm

Flat Folded Box Length

80-500mm

Layer Thickness

70mm

Gross Power

2.8kw

Weight

850kgs

Dimension(LxWxH)

3580×1860×1090mm

Video

Jan 29, 2023

Semi-automatic Collector for folder gluer (Handypack)
