    Home > Solutions > Folding Carton Gluer > CSM-C1 / C2 / C3 / C4
    CSM-C1 / C2 / C3 / C4

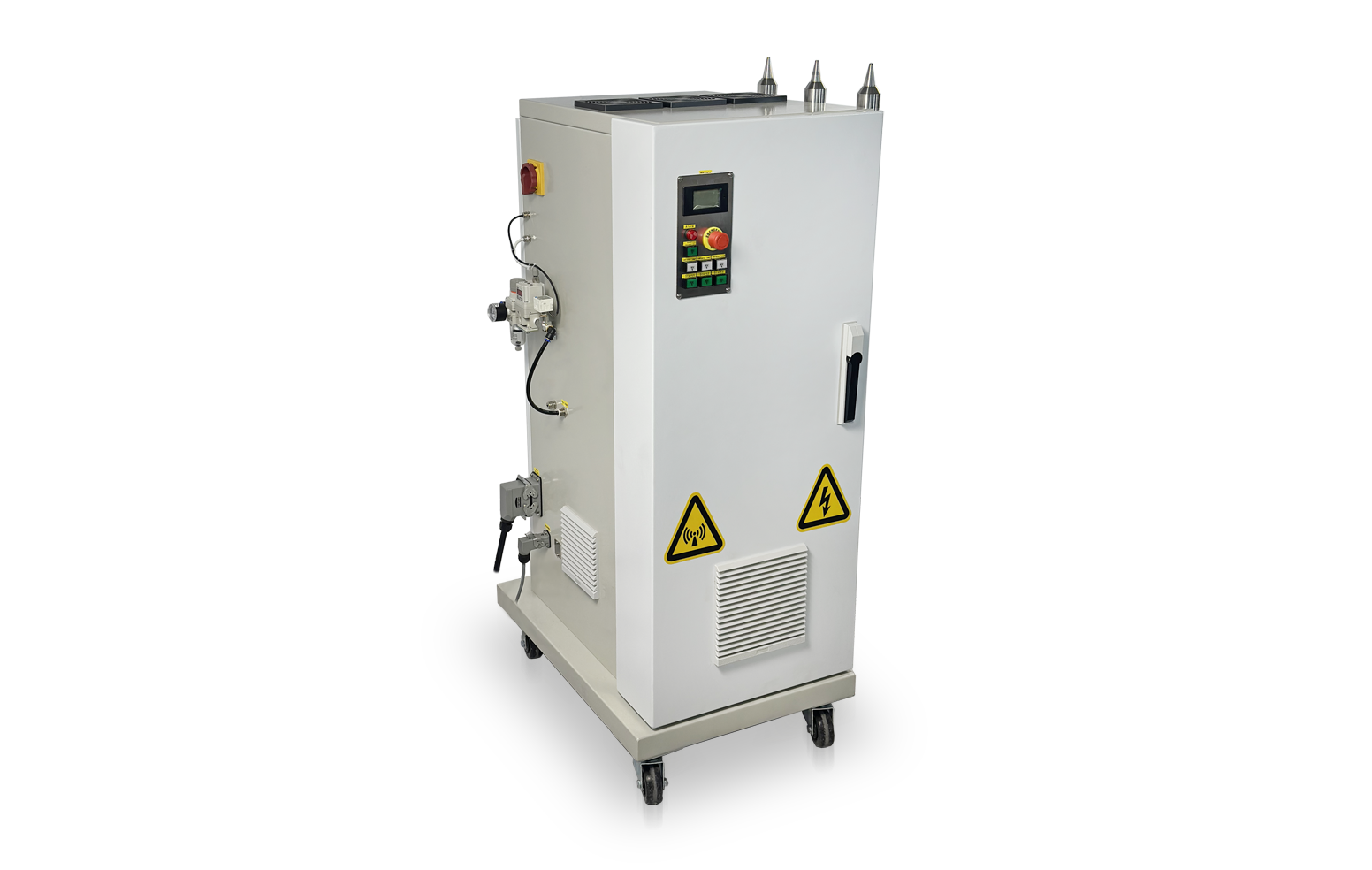

    Plasma Surface Treatment System
    Get Price Brochure
    Features

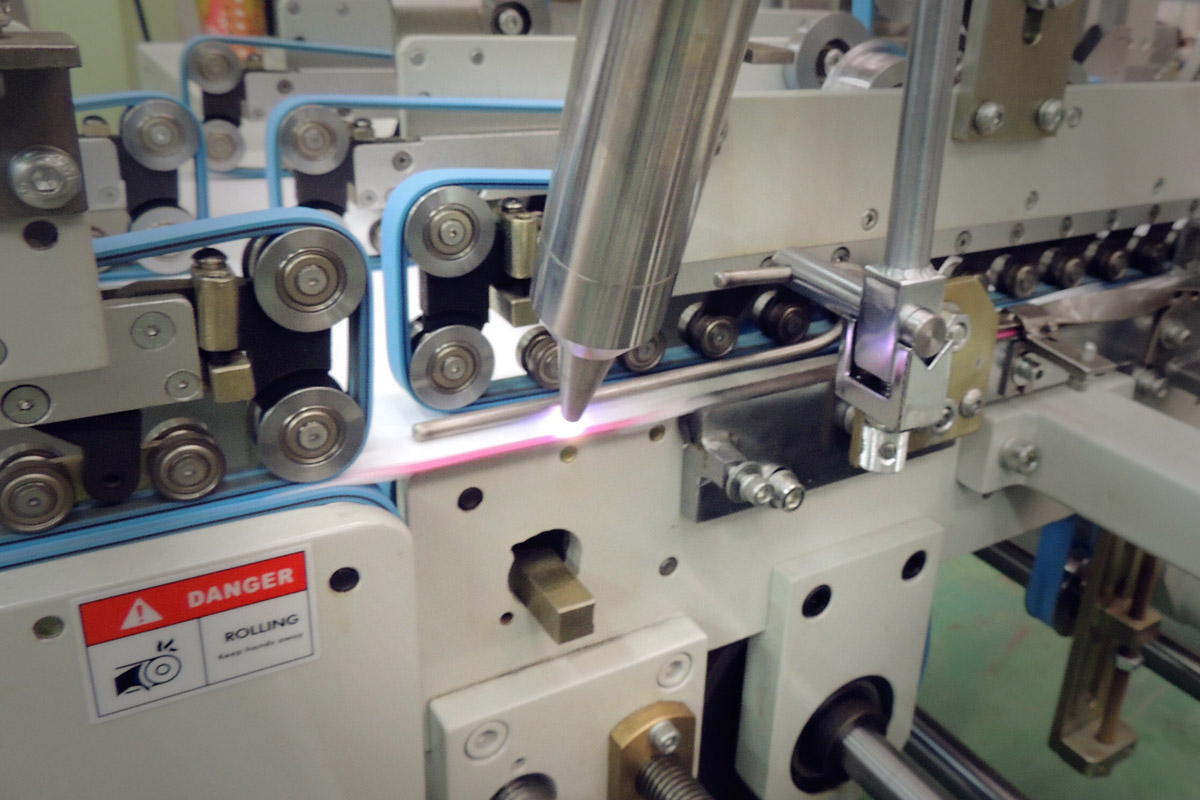

    Plasma installed in folder gluer
    Plasma installed in folder gluer
    01 / 02
    Parameters
    CSM-C1 CSM-C2 CSM-C3 CSM-C4
    Nozzle Number
    1 nozzle
    Output Power
    1000VA x 1
    Output Frequency
    20~23 KHZ
    Air Pressure
    2-3bar
    Treatment Width
    10mm each nozzle
    Input Power
    220V/50HZ/1P
    Weight
    90kgs
    Dimension
    530x450x1050mm
    Nozzle Number
    2 nozzle
    Output Power
    1000VA x 2
    Output Frequency
    20~23 KHZ
    Air Pressure
    2-3bar
    Treatment Width
    10mm each nozzle
    Input Power
    220V/50HZ/1P
    Weight
    120kgs
    Dimension
    530x450x1050mm
    Nozzle Number
    3 nozzles
    Output Power
    1000VA x 3
    Output Frequency
    20~23 KHZ
    Air Pressure
    2~3 bar
    Treatment Width
    10mm each nozzle
    Input Power
    220V/50HZ/1P
    Weight
    165kgs
    Dimension
    680x530x1450mm
    Nozzle Number
    4 nozzle
    Output Power
    1000VA x 4
    Output Frequency
    20~23 KHZ
    Air Pressure
    2-3bar
    Treatment Width
    10mm each nozzle
    Input Power
    220V/50HZ/1P
    Weight
    180kgs
    Dimension
    680x530x1450mm
    Video
    Jan 29, 2023
    Plasma treatment system for folder gluer
    01 / 01
