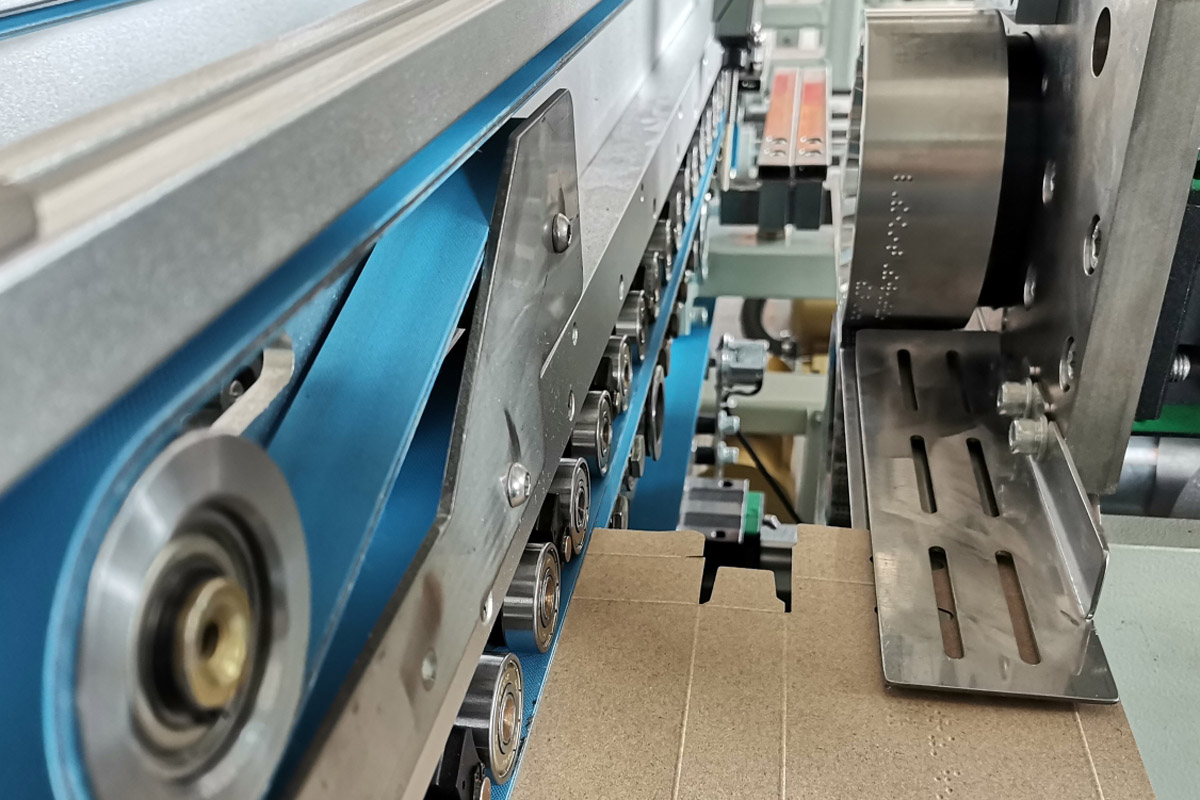

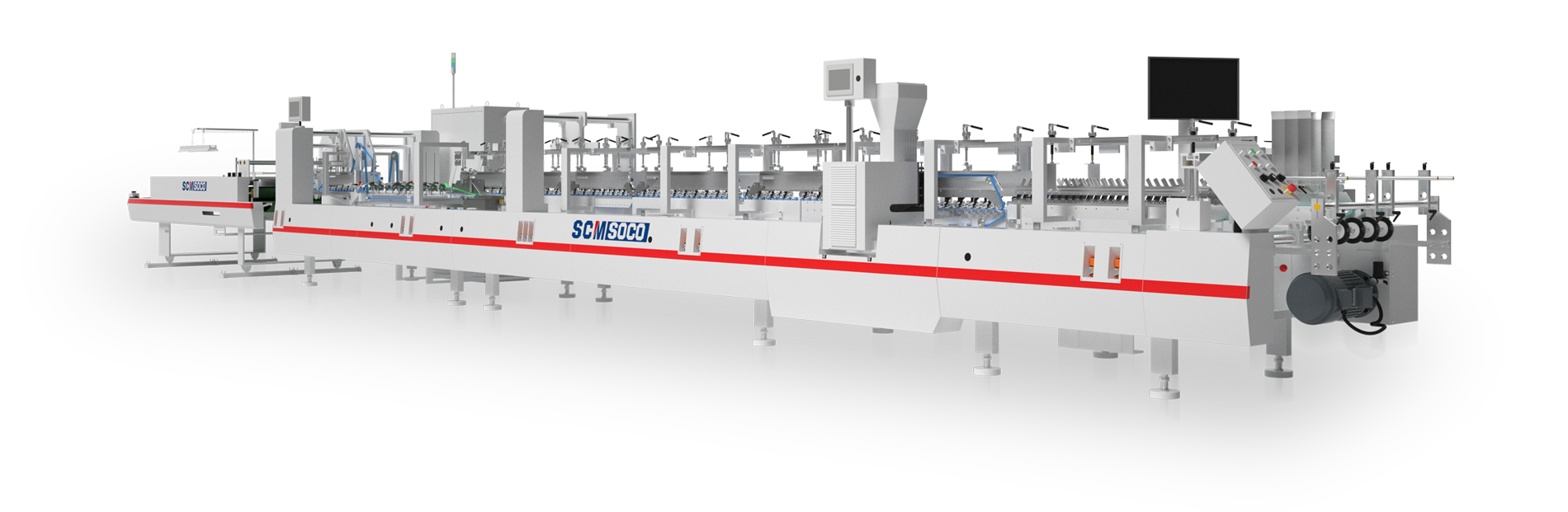

Great Braille Embossing Capability

▪ Max. speed: 250m/min, up to 60,000 pcs/hour.

▪ Braille dot matrix up to 5lines.

▪ Two repeats of dot content available in direction of running.

▪ Dot height adjustable with ±0.01mm precision.

▪ Braille dot matrix positioning accuracy ±1mm on carton at high speed.

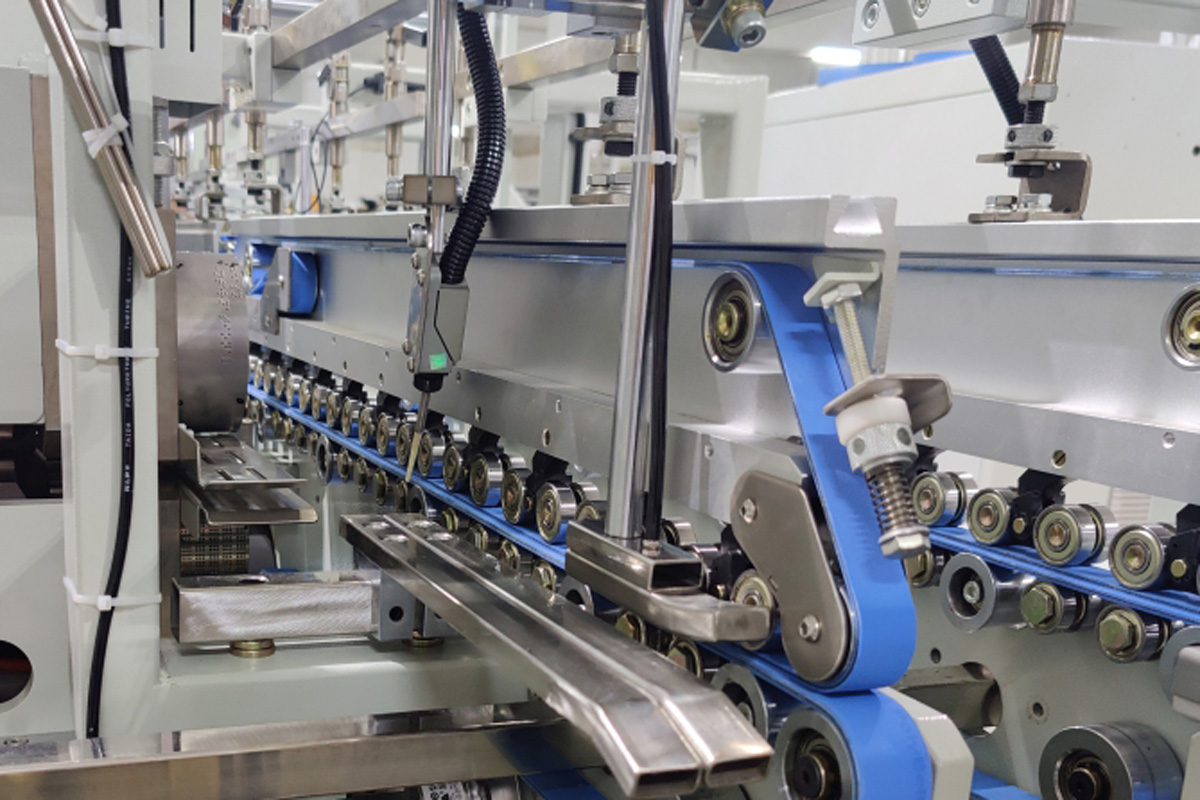

Safety Design with Easy Set-up

▪ Alignment section after feeding ensures high precision of blank feeding before Braille embossing.

▪ High-sensitive fiber sensor to detect each blank before Braille embossing.

▪ Paper jam detector to prevent both drums from crash.

▪ Independent touch screen for easy set-up and parameters input.

▪ Easy to fix the Braille plate on the top drum by two screws.

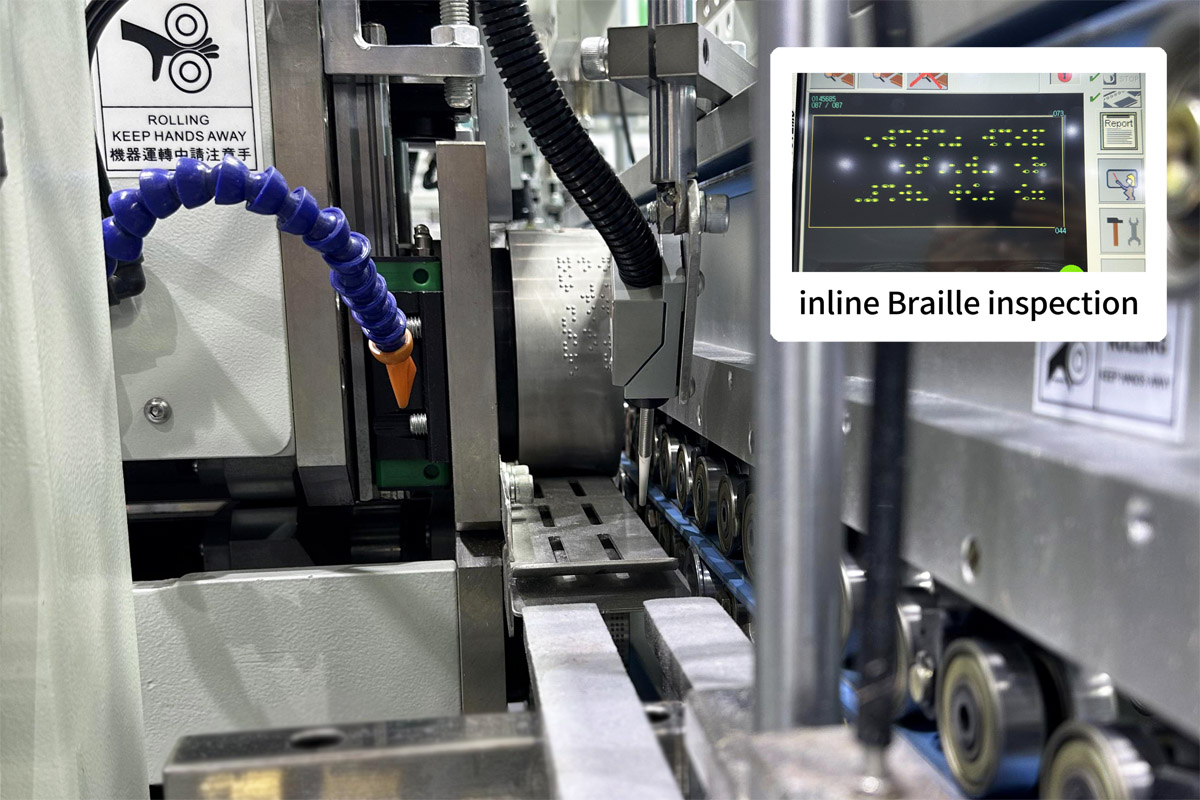

Zero Defects with Inline Quality Control

▪ By integrating a camera inspection system after the Braille embossing process, companies can ensure that every product meets high-quality standards.

▪ This real-time inspection minimizes the risk of defective products reaching consumers, protecting brands from potential commercial risks.

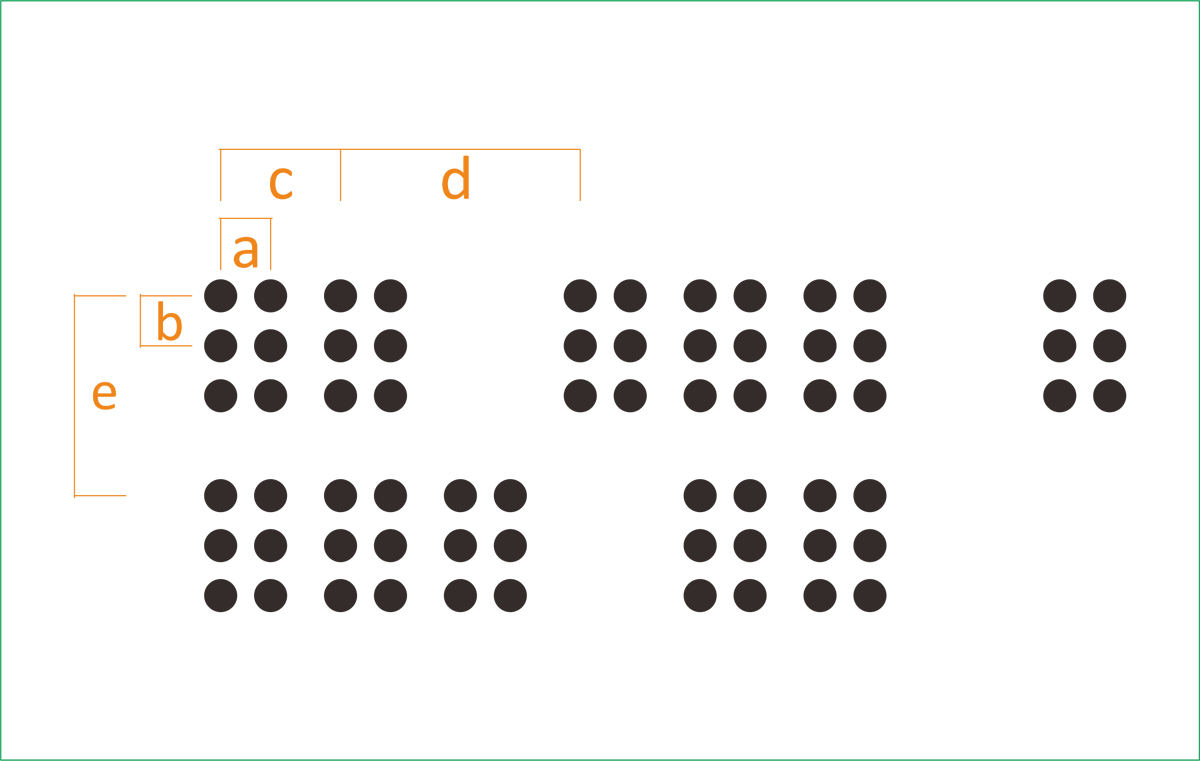

Braille Dot Matrix: ECMA Euro Braille / Marburg Medium

▪ The diameter at the base of the dot is 1.6mm.

▪ a = 2.5mm; b = 2.5mm dot center distance.

▪ c = 6.0mm between two letters of one word.

▪ d = 12mm word spacing.

▪ e = 10.0mm line spacing.

Tolerances: ±0.1mm

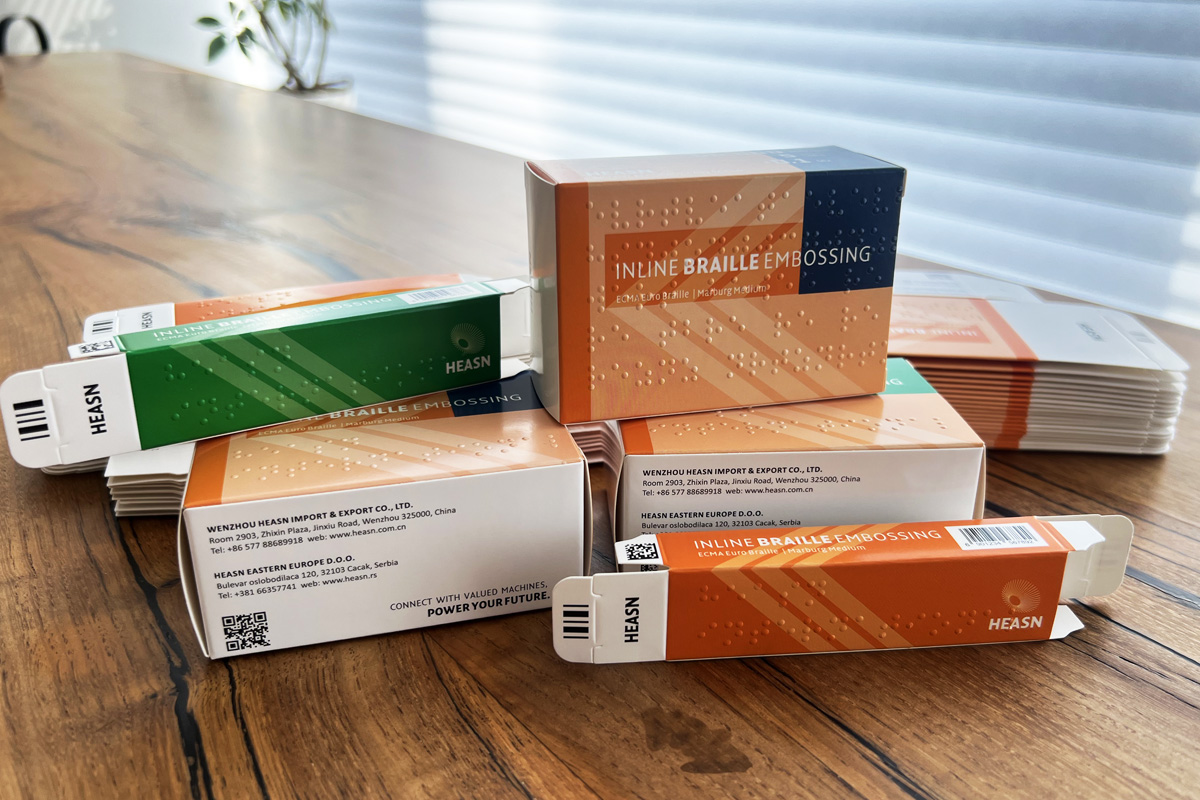

Braille Box Sample

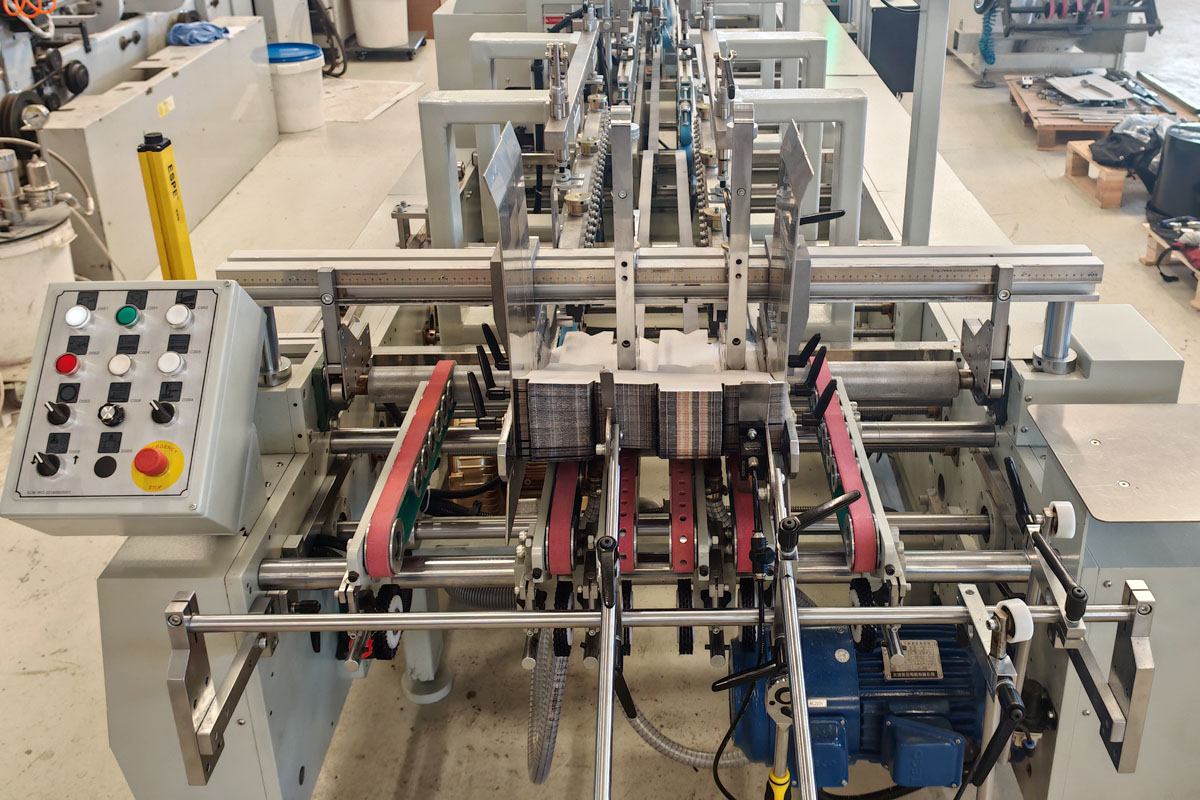

FEEDING SECTION

▪ Independent variable-frequency motor driven belts for stable feeding and accurate blank spacing.

▪ Vacuum-assisted feeding belts in center, resulting in the reliable intake of almost kinds of blanks.

▪ Pneumatic vibrating feed pile support.

▪ Belt-clean brush for each carrier.

▪ Remote controller for feeder start/stop and speed adjustment.

▪ Manual lift-up side plates and feeding gates.

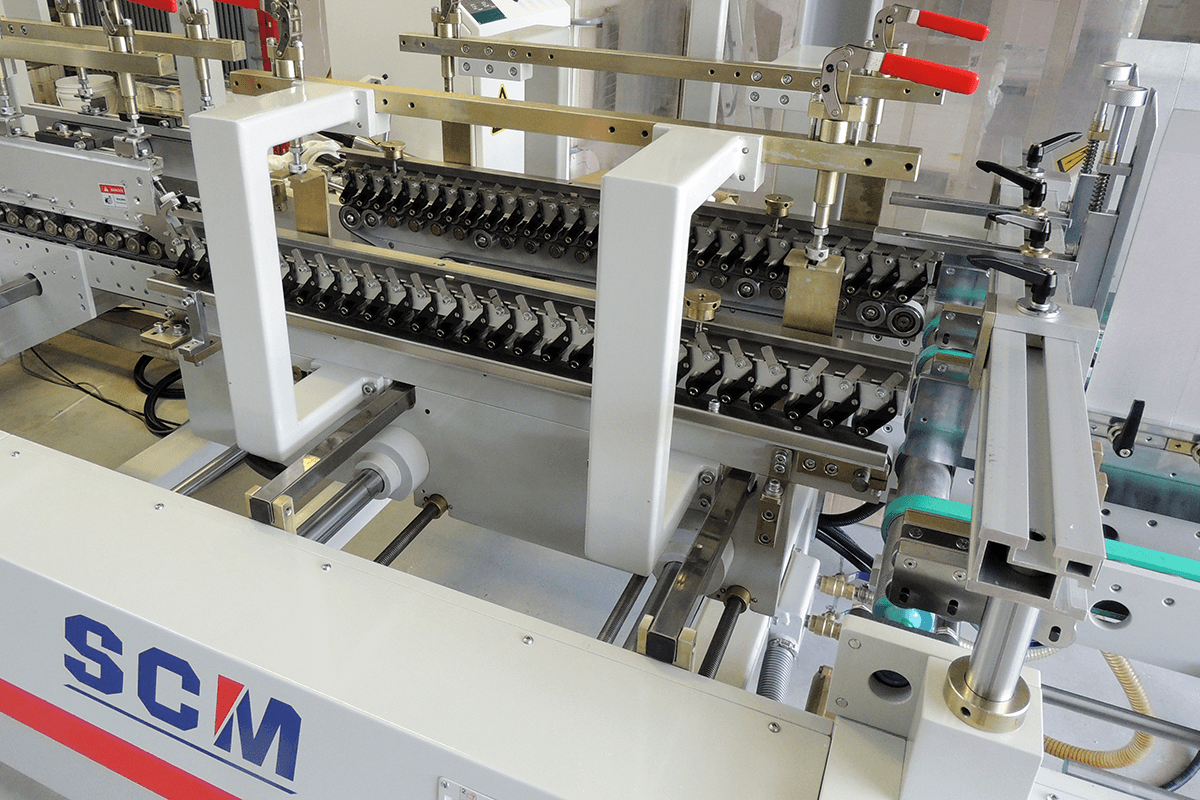

ALIGNMENT SECTION

▪ Two lanes carriers construction. Equipped with 2 upper alignment carriers.

▪ Carrier position adjustable manually with position indicators.

▪ Can be easily converted to left or right side for registration.

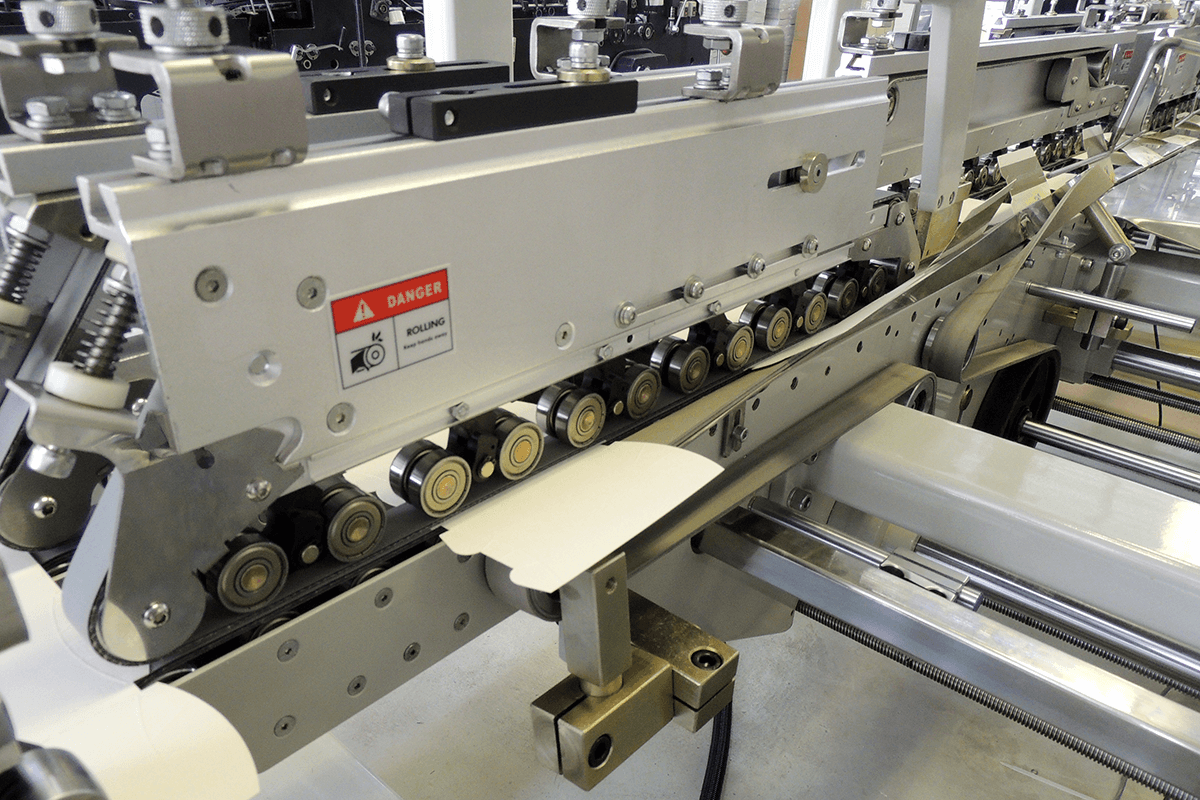

PRE-FOLDING SECTION

▪ Two lanes carriers construction with easy dismantle of split upper carriers for flexible setup.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 23.5mm; lower belt width: 25mm.

▪ The pre-breaking sword for 1st creasing by 180°.

▪ The belt pre-breaking device for 3rd creasing line by 135°.

▪ Perfect pre-breaking ensure accurate and reliable opening of the finished products in the auto-erection package lines.

LOCK-BOTTOM SECTION

▪ Three lanes carriers construction. Two split carriers for left and right lanes; one complete carrier for center lane.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 23.5mm; lower belt width: 25mm.

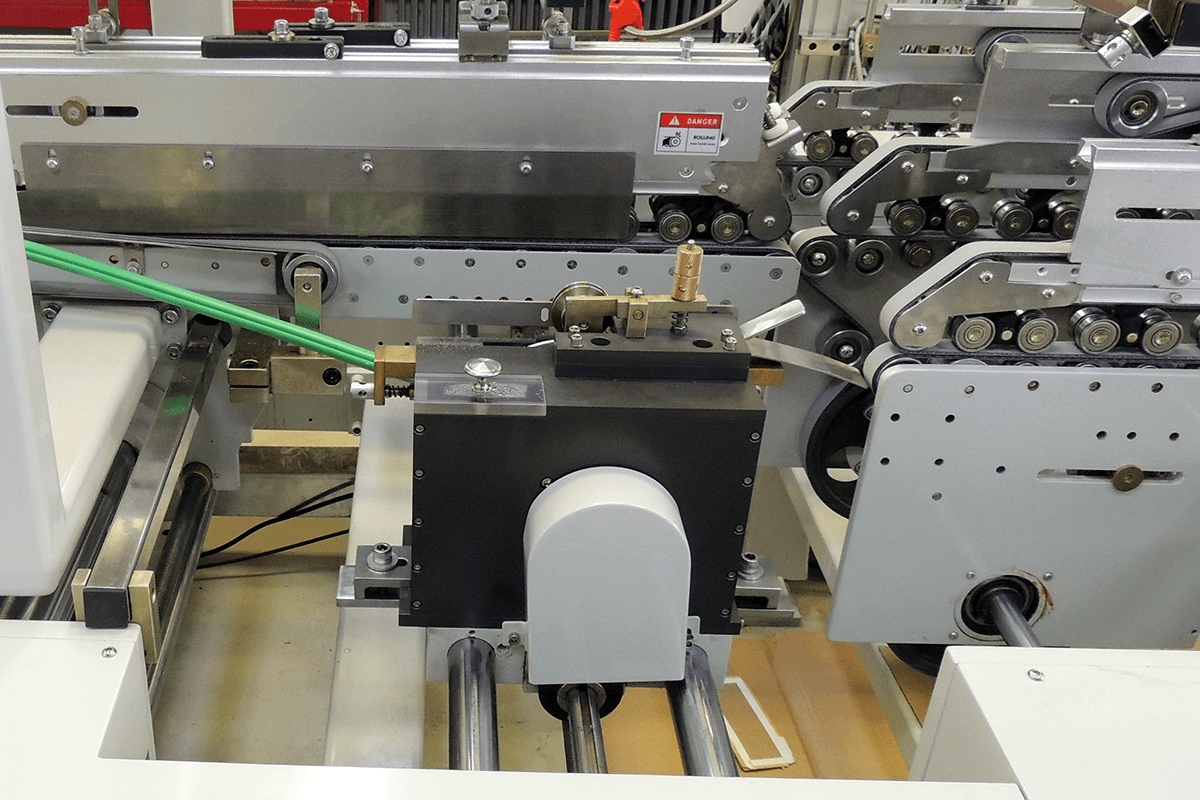

LOWER GLUER

▪ Lower gluer tank in both left and right sides.

▪ Glue disc width: 4.5mm.

▪ Glue tank movement manually.

▪ Accurate volume control avoids the glue splash at high speed.

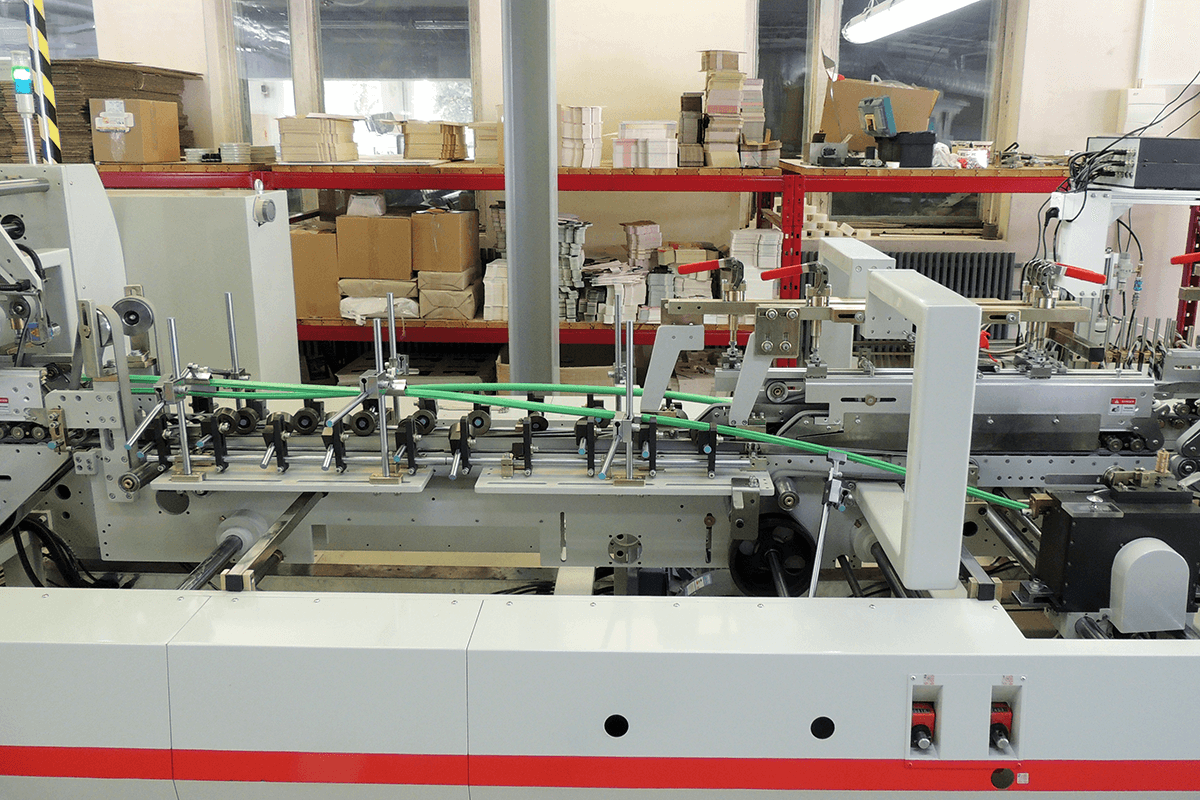

FINAL FOLDING SECTION

▪ Two lanes carriers construction.

▪ Speed of left and right folding belts can be adjusted mechanically.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 23.5mm; lower belt width: 25mm.

▪ Left and right folding belt width: 30mm.

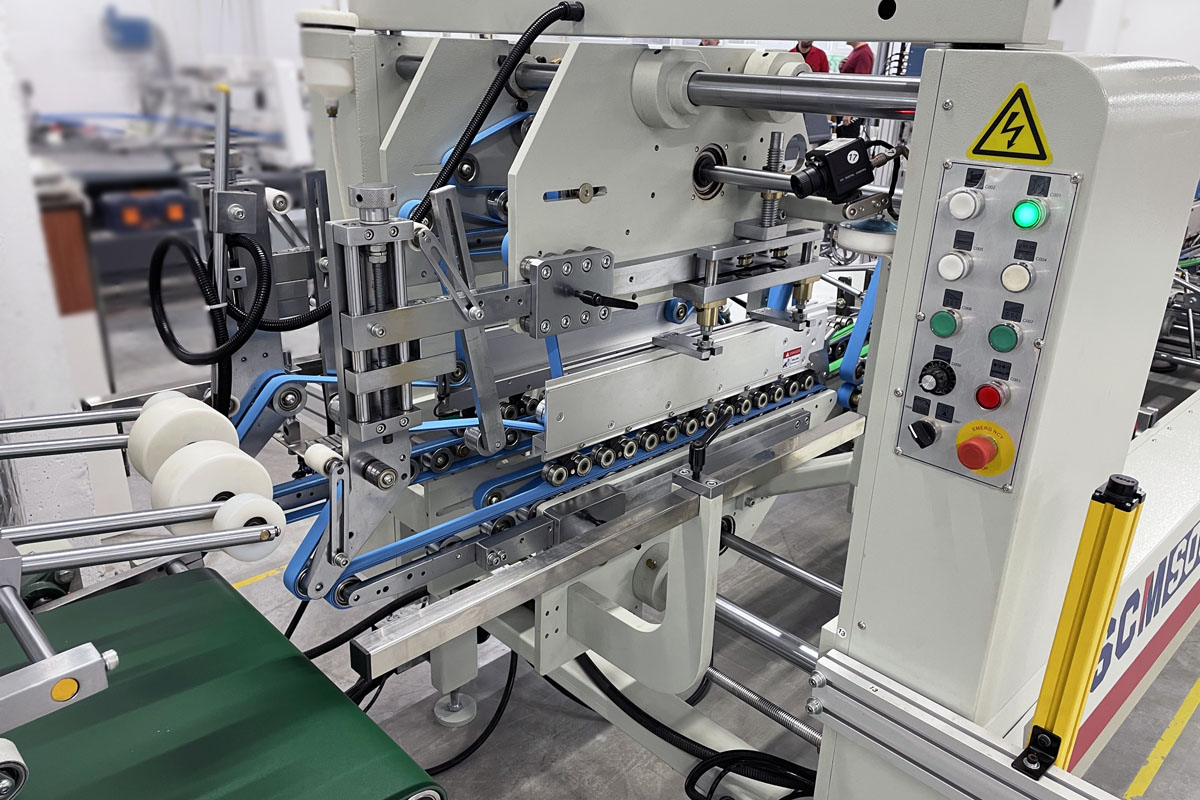

TRANSFER SECTION

▪ Main control panel with touch screen.

▪ Two lanes carriers construction with stable pressure on the folded boxes.

▪ Carrier position adjustable manually with position indicators.

▪ Easy to adjust the pressure holding device according the cartons sizes without change the belt tension.

▪ Kicker counter and spraying counter are equipped as standard.

▪ Camera for live status.

▪ Jam detector.

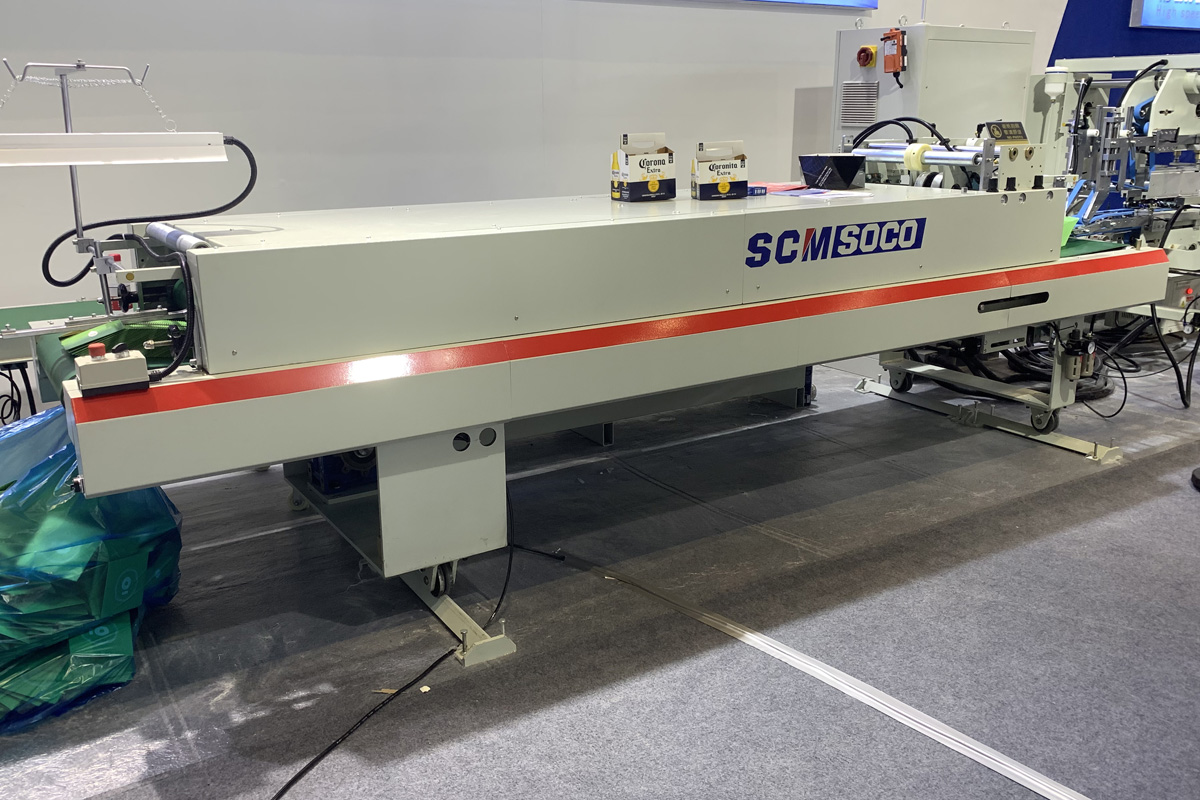

4M COMPRESSION CONVEYOR SECTION

▪ 4m long compression conveyor as standard.

▪ Height adjustable lower belt at conveyor entry for pressure control.

▪ Motorized forward & backward movement for upper section.

▪ Left and right position movable.

▪ One sponge belt.

▪ Collection table in the end.

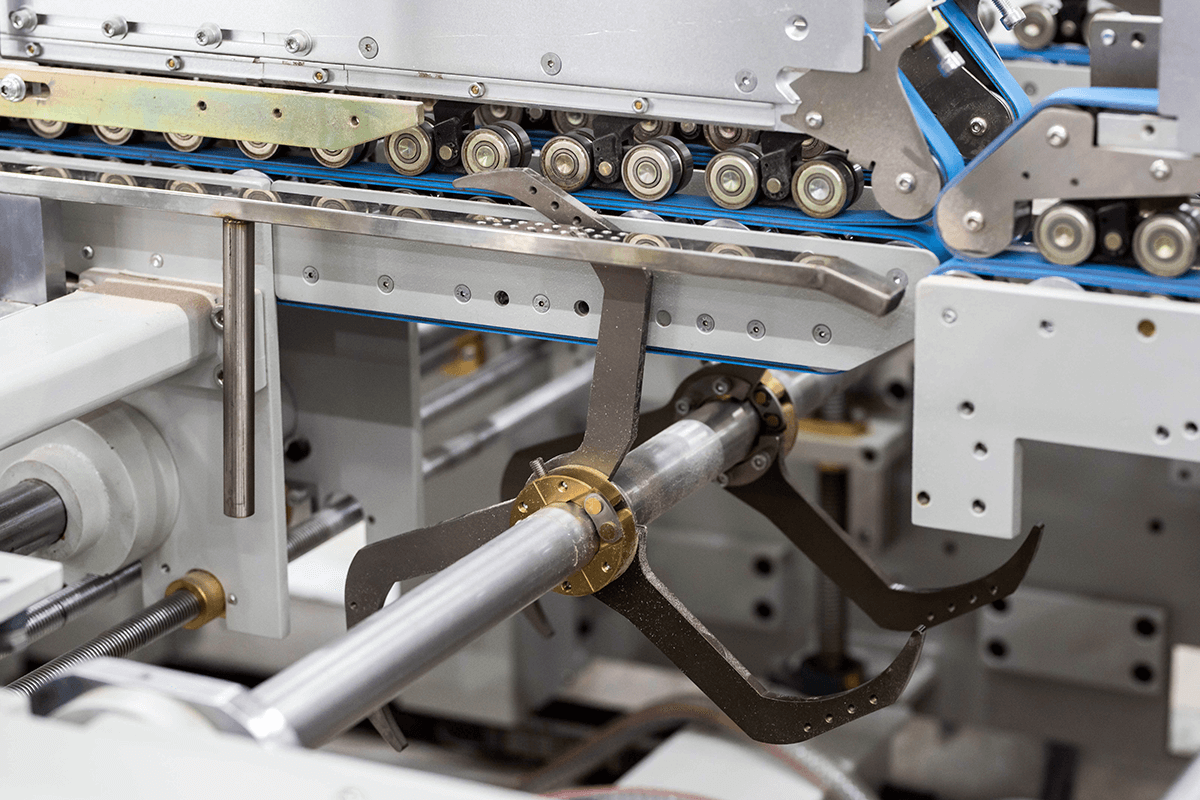

BACK FOLDING SECTION(4/6 CORNER BOX)

▪ Fast set-up of 4/6 corner boxes.

▪ Individually servo-controlled hook shafts with automatic moving up and down.

▪ One hook size adjusting to all flaps sizes, no need to change hooks for various jobs.

▪ No need to remove hooks when back folding system are not used.

▪ Accurate back folding process with max. speed 25,000pcs/h.

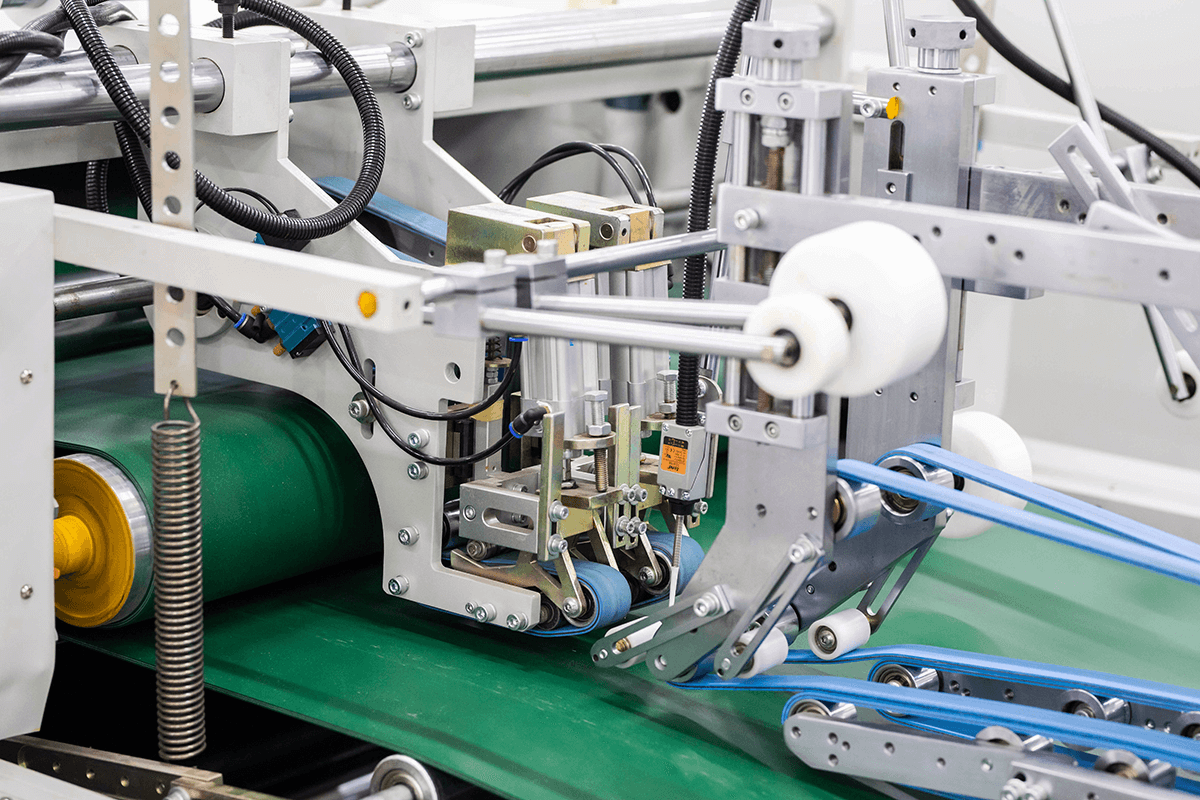

PNEUMATIC SQUARING DEVICE

▪ Pneumatic squaring device at conveyor entry to work out perfect bottom effect, especially for short body and wide lock bottom boxes.

▪ World brand components including:

Cylinder: brand Festo, Germany

Magnetic valve: brand Mac, USA

Pressing belt: brand Nitta, Japan

Linear guide slide: brand THK, Japan
