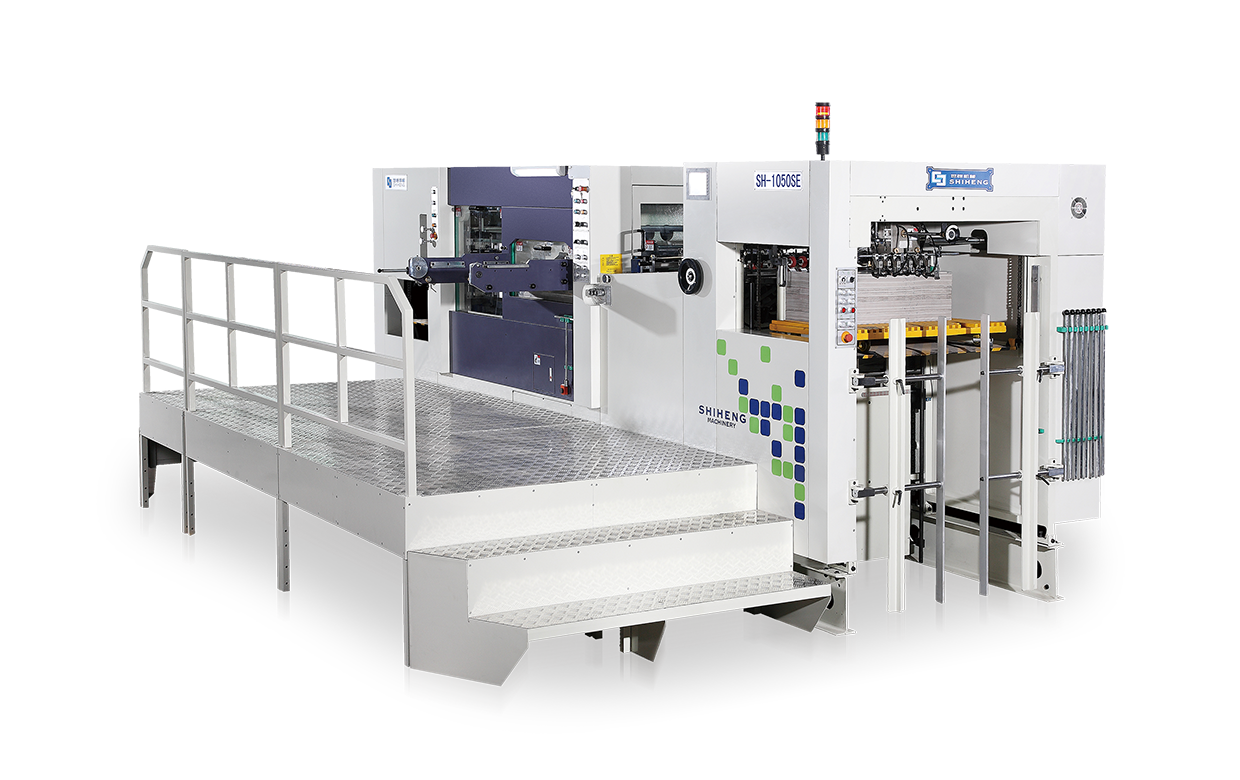

Automatic Die Cutting & Stripping Machine

Non-stop Offset Feeder

▪ Non-stop-feeding with a pre-loading platform for high-speed efficient production.

▪ Intense 4 lifting & 4 forwarding suction heads can feed various substrates smoothly up to B-flute corrugated board.

Feeding Table

▪ Double sheet detector and front lay register device can calibrate the sheet feeding

▪ Push and pull 2-in-1 side lay can handle different stocks.

▪ Driven-type brush wheels with wide Nitta belt for smooth conveying of various substrates, even the curved corrugated board.

Die Cutting Section

▪ The segment gear indexing mechanism provides smooth and accurate sheets running.

State-of-the-art drive mechanism with a heavy-duty structure for steady and high-precision worktable movement.

Cutting pressure can be fast setting and recorded by touch screen, with max. Ability to 300 tons.

Pneumatic chase lock makes operation much more accessible.

Various stock cutting ranges from light paper to B-flute.

Stripping Section

3 chases stripping makes stripping action more proper.

The stripping chase positioning system simplifies the stripping pin and improves working efficiency.

Upper and lower stripping frames can be pulled out for job setup and make-ready.

Either stripping pins or stripping tools are applicable.

Non-stop Delivery

The brush push-down device and jogger device at the delivery section to ensure proper stacking.

The belt table will switch on for non-stop delivery production.

Pneumatic sampling device allows the operator to check the finished product quickly without stop machine from running.

Main Lubrication System

▪ Automatic pump cooling circulation system ensure main die-cutting section with constant lubrication at high-speed running.

▪ Equipped with lubricating oil pressure gauge and alarm device.

Intelligent Electric Control System

▪ All electric components from international brands pass the CE Certificate.

Simple circuit control procedures design, easy maintenance.

The colorful man-machine interface can present the whole machine running situation. The troubleshooting manual provided on the touch screen helps fast solutions for the errors.
01 / 07
Max. Sheet Size
Min. Sheet Size
Max. Cutting Size
Max. Pressure
Paper Thickness
80~2000gsm cardboard, corrugated board≤4mm
Min. Gripper Margin
Max. Die Cutting Speed
Total Power
Total Weight
7100×4200×2400mm(including the pre-loading device)
Stripping Function
Yes, 3 side stripping
Feb 01, 2023
2.2mm greyboard laminated with 250g cardboard
