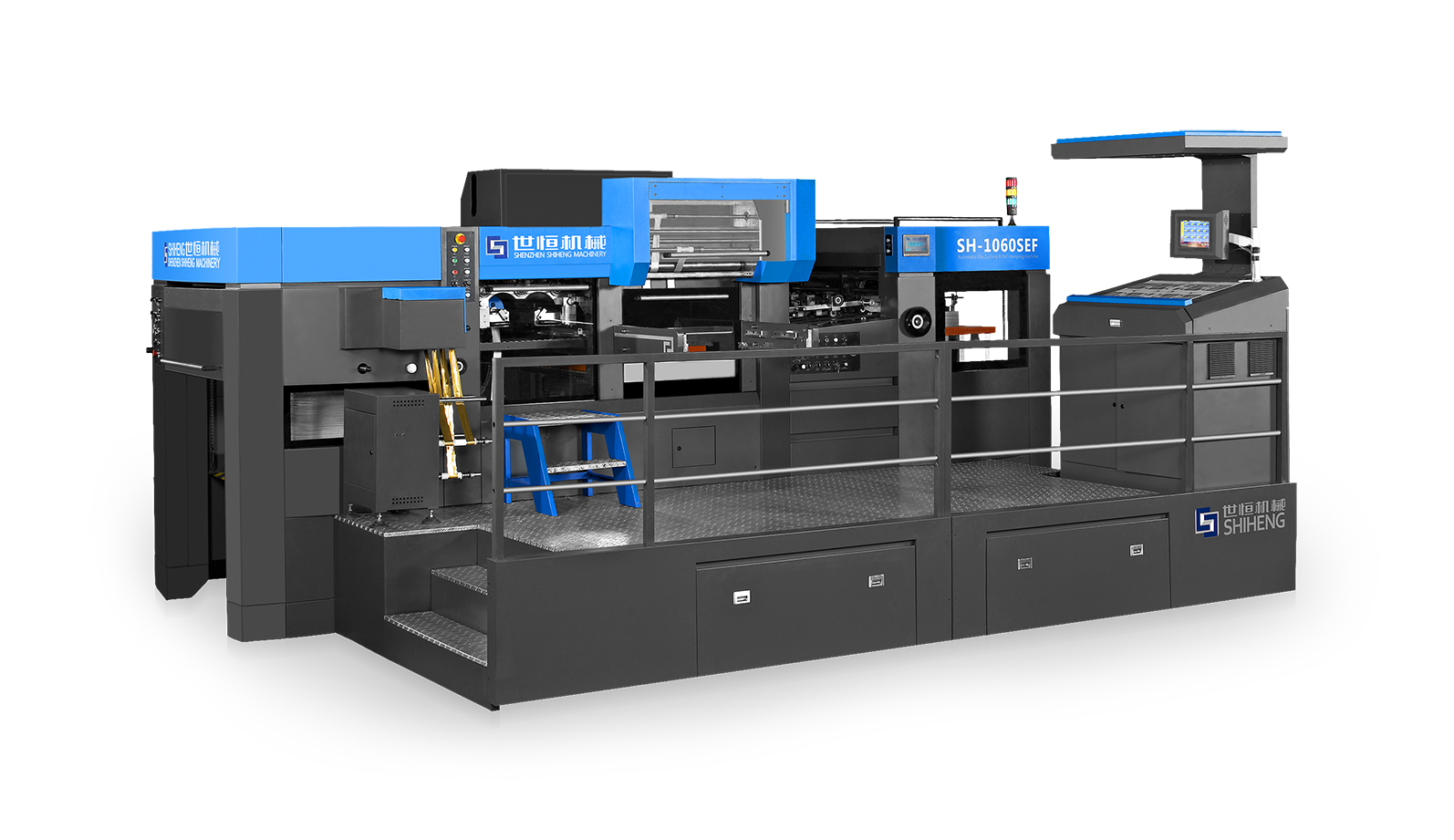

SH-1060SEF
Hot-foil Stamping Machine
Features

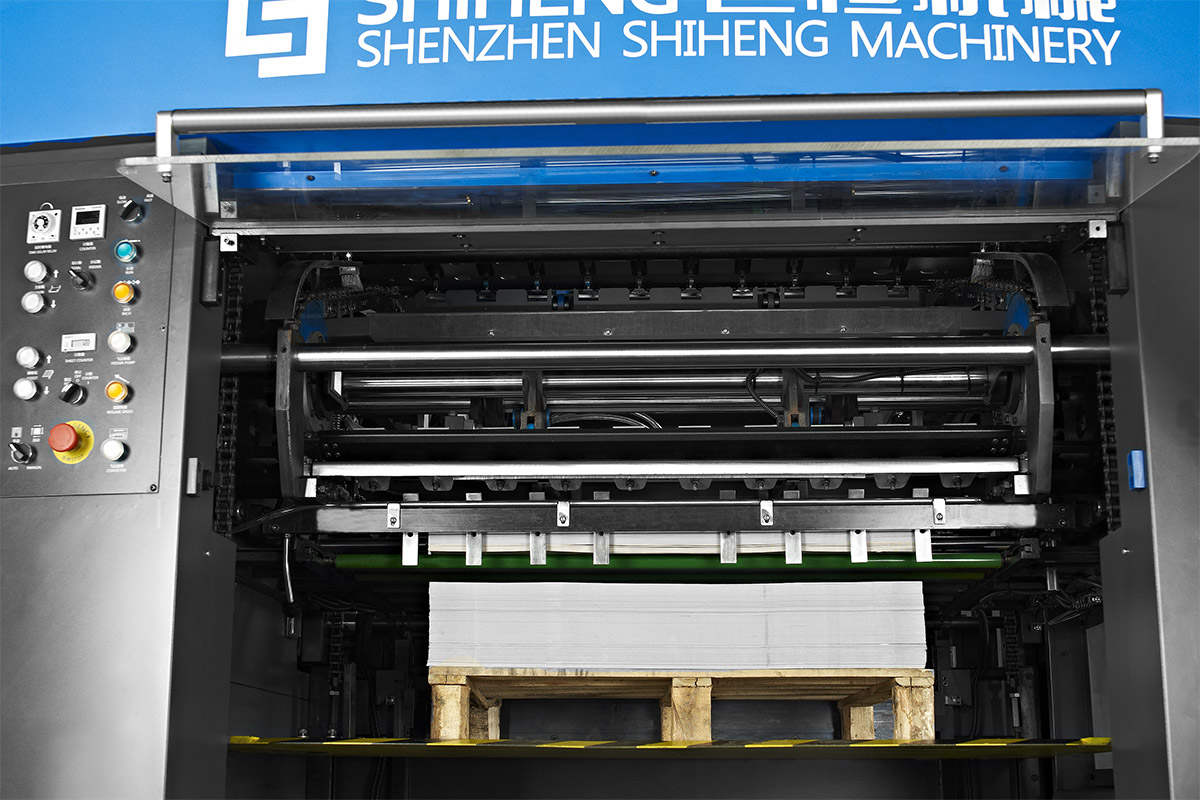

Non-stop Offset Feeder

▪ Non-stop-feeding with a pre-loading platform for high-speed, efficient production.

▪ Intense 4 lifting & 4 forwarding suction heads can feed various substrates smoothly up to B-flute corrugated board.

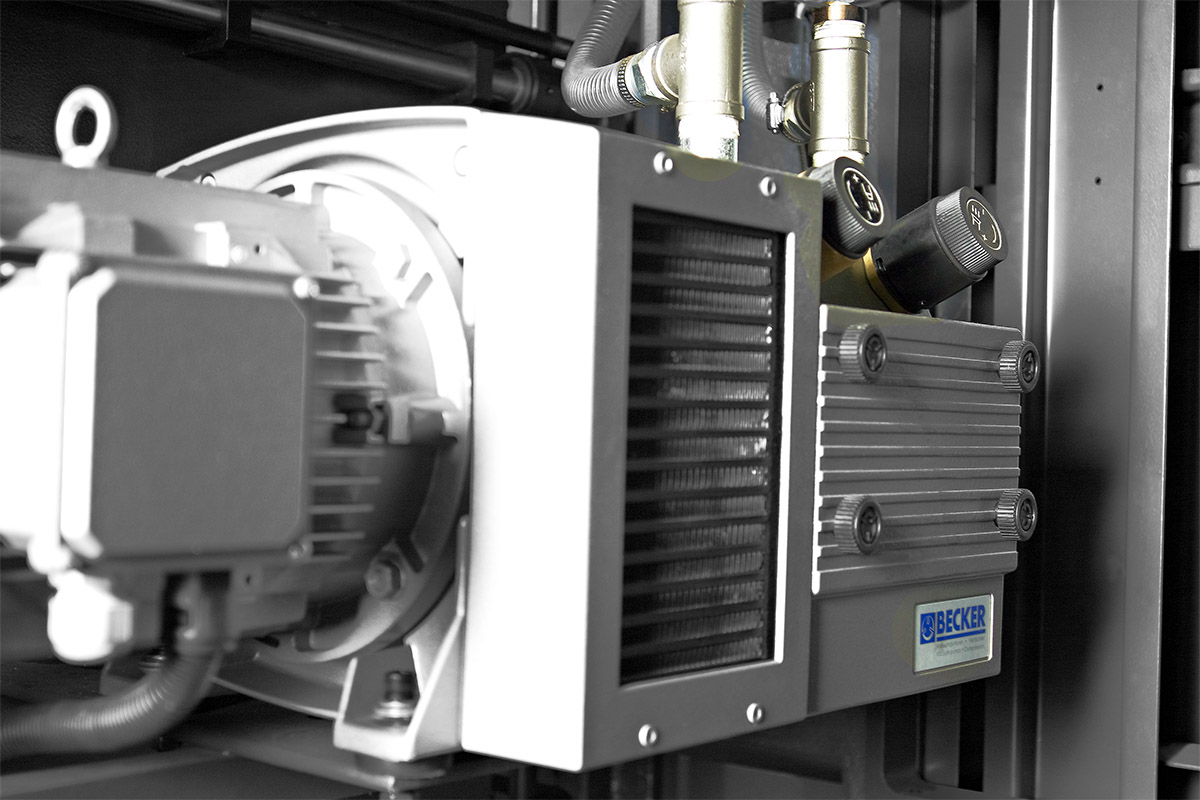

Becker Vacuum Pump

▪ German brand BECKER oil-less vacuum pump delivers quiet, cool operation and long vane life.

Feeding Table

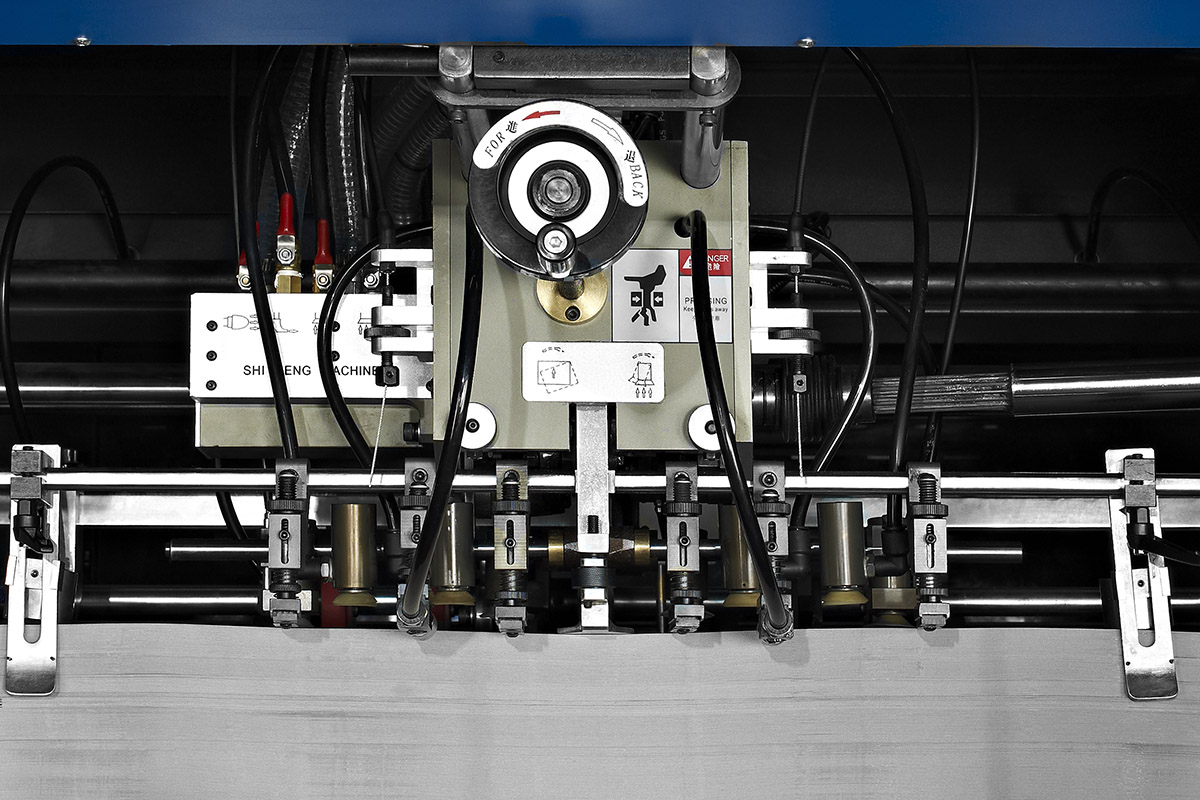

▪ Double sheet detector and front lay register device can calibrate the sheet feeding.

▪ Push and pull 2-in-1 side lay can handle different stocks.

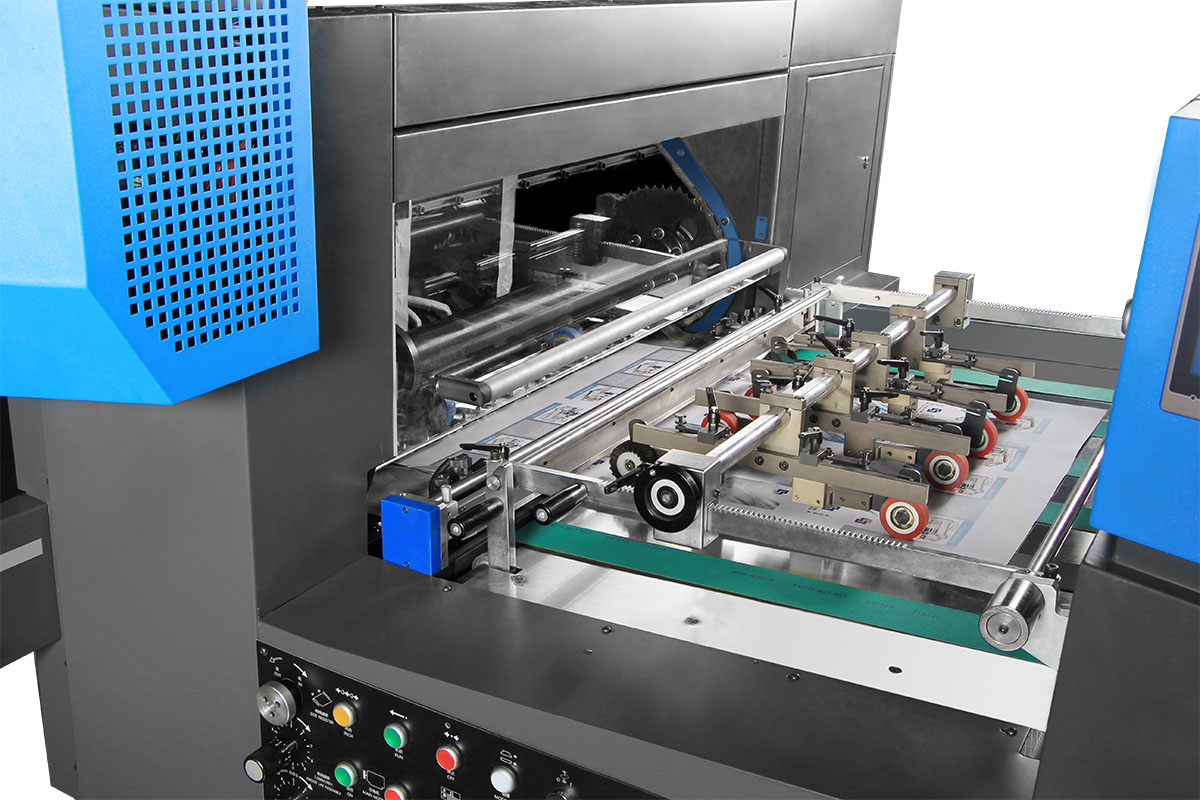

▪ Driven-type brush wheels with wide Nitta belt for smooth conveying of various substrates, even the curved corrugated board.

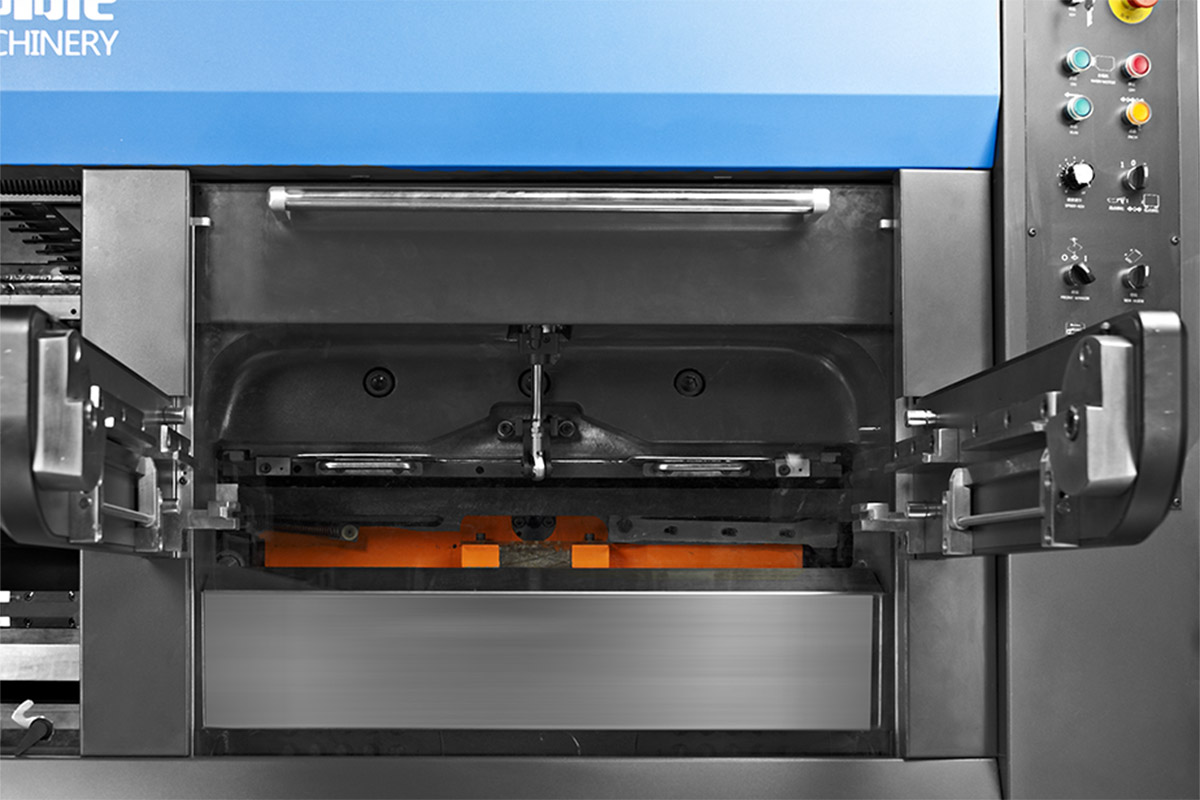

Die Cutting Section

▪ High quality intermittent divider provides smooth and accurate sheets running.

▪ State-of-the-art drive mechanism with a heavy-duty structure for steady and high-precision worktable movement.

▪ Cutting pressure can be fast set and recorded by touch screen, with max. ability to 300 tons.

▪ Pneumatic chase lock makes operation much easier.

▪ Various stock cutting ranges from light paper to B-flute.

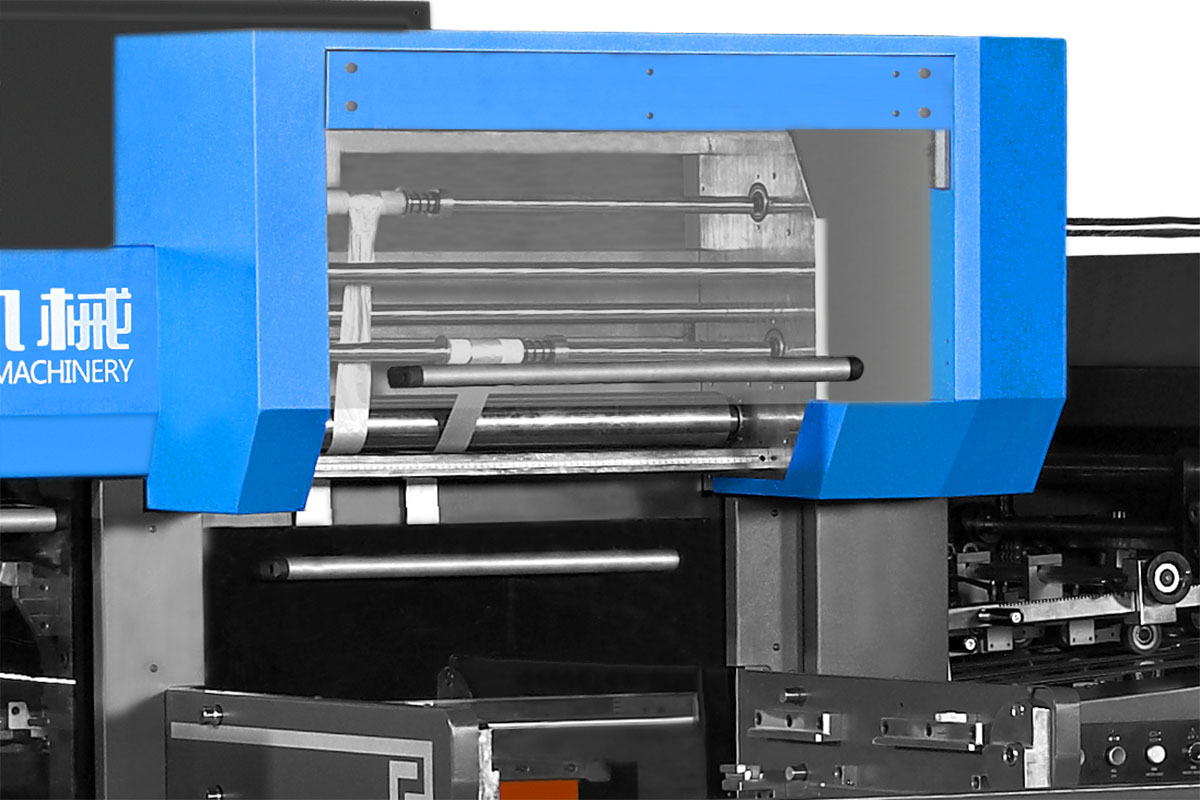

Hot Stamping Section

▪ 16 heating zones with individual temperature control on the touch screen.

▪ Honeycomb plate adopts high heatproof material through specific processing with an optimized hole layout.

▪ Equipped with an air blasting bar to separate foil and sheets, blasting volume and air pressure are adjustable.

Foil Advancing

▪ 3 Longitudinal and 2 Transversal foil feeding shafts are equipped to meet the demand of different products.

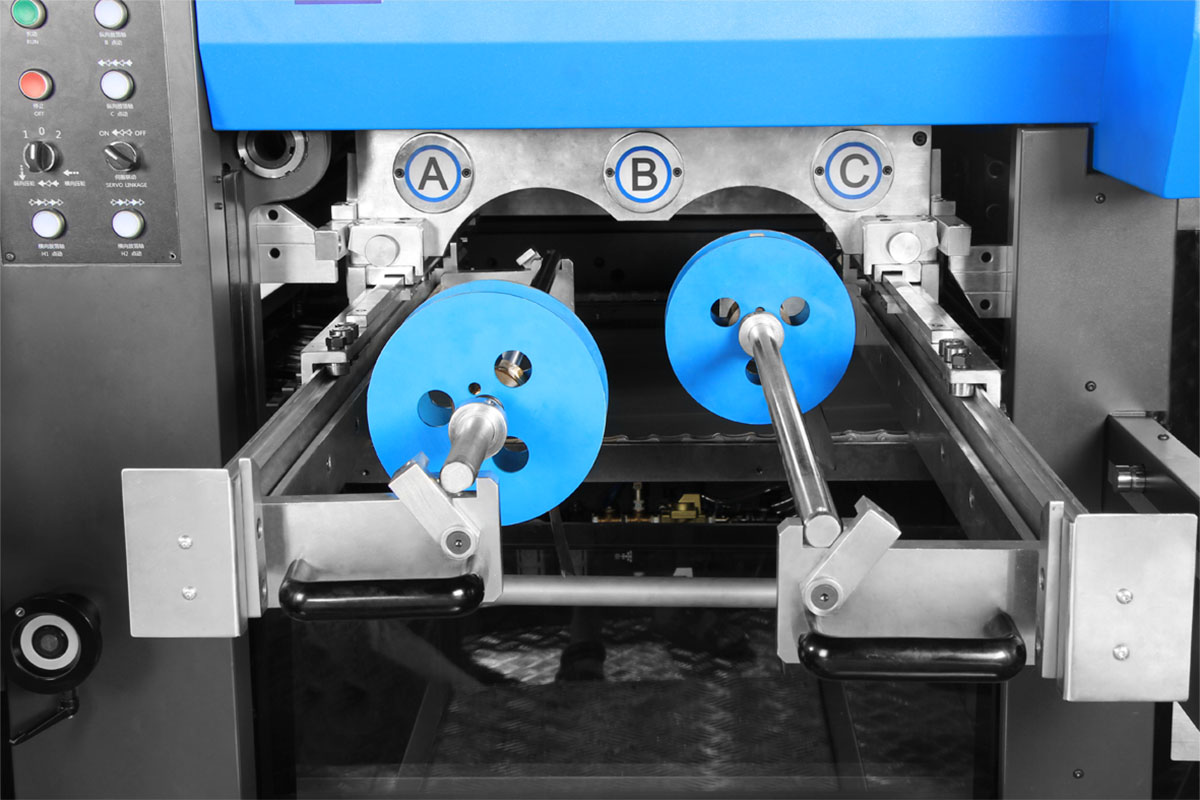

▪ The Longitudinal foil unwinding roller can be pulled out for quick installation of the foil roll.

▪ 45° angle guide bar and foil leading device guide the waste foil to the collection box by the brush wheel.

▪ Foil run-out alarm function, need to replace foil in advance when there is an alarm.

Hot Stamping Control Station

▪ Servo electric control system with super stable performance and anti-interference ability, ensures high-accurate foil advance.

▪ Foil stepping program set by the touch screen.

▪ Foil step is controlled by imported brand servo motor.

▪ Ideal foil advance can be automatically calculated to save foil consumption.

Non-stop Delivery

▪ The brush push-down device and jogger device at the delivery section to ensure proper stacking。

▪ The auxiliary belt table will automatically switch on for non-stop delivery production when the pile reaches a certain height. The main machine speed will slow down for easy operation and recover to its original rate after the new pallet is ready.

▪ Sampling device allows the operator to check the finished product quickly without stopping the machine from running

Pressure & lubrication

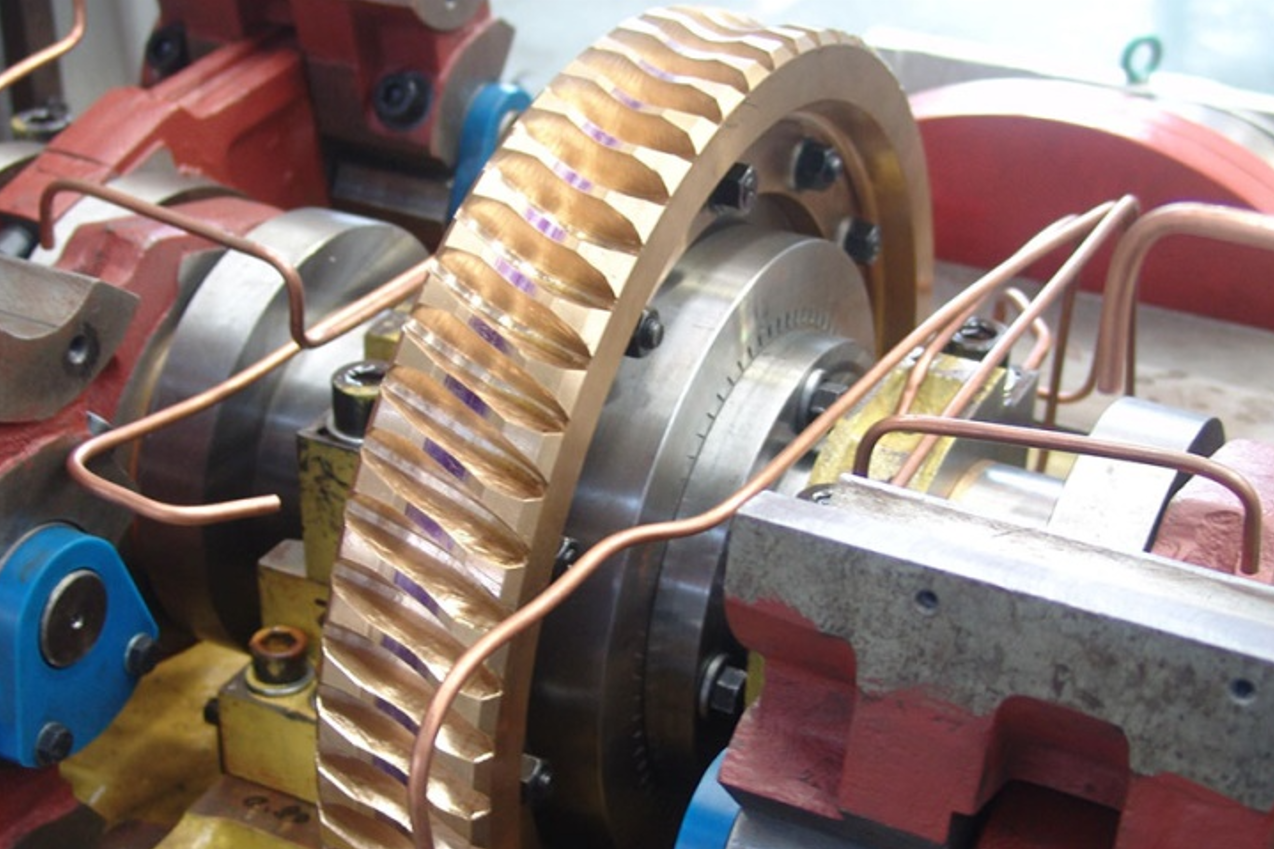

▪ Worm, worm gear, and crankshaft with unique processing significantly improved the life of the core component.

▪ Imported brand single-point clutch makes feeder, and the main machine can be separated or synchronized combined at any time, which simplifies the operation.

▪ Imported brand pneumatic clutch brake system to ensure stable brake and minimum attack on the machine.

▪ Automatic pump cooling circulation system ensures main die-cutting section with constant lubrication at high speed running.

Gripper System

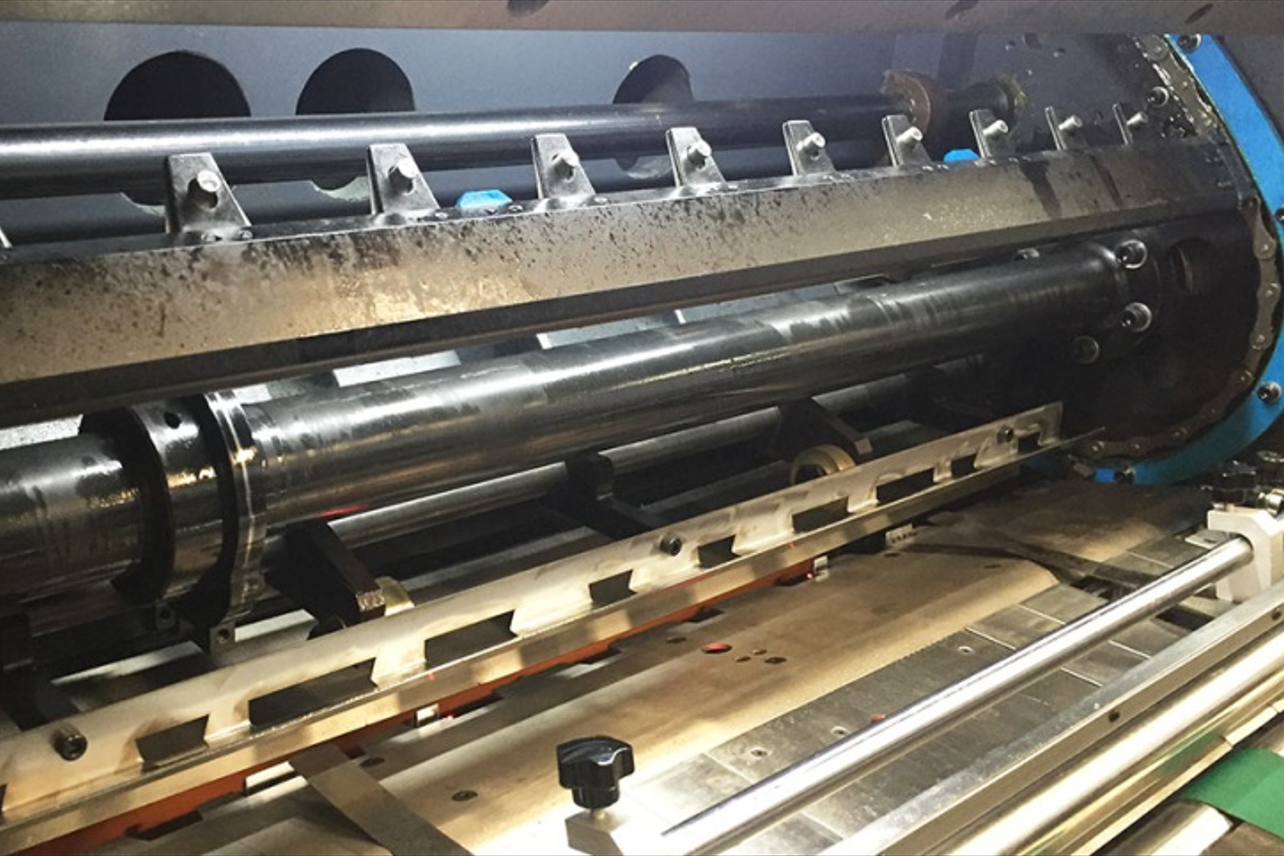

TAN TZU brand precision intermittent divider with gear drive box for precise gripper bar position control.

▪ 7pcs imported gripper bar, 10pcs grippers on each bar.

Single gripper bar can be front and back adjusted to meet the precision request.

▪ All gripper bars are made of light, low inertia, rigid, and super-hard high-quality anodized aluminum alloy profiles.

▪ The transmission chains of the gripper bar are pre-pull treatment to ensure strong durability and no deformation.

Intelligent Electric Control System

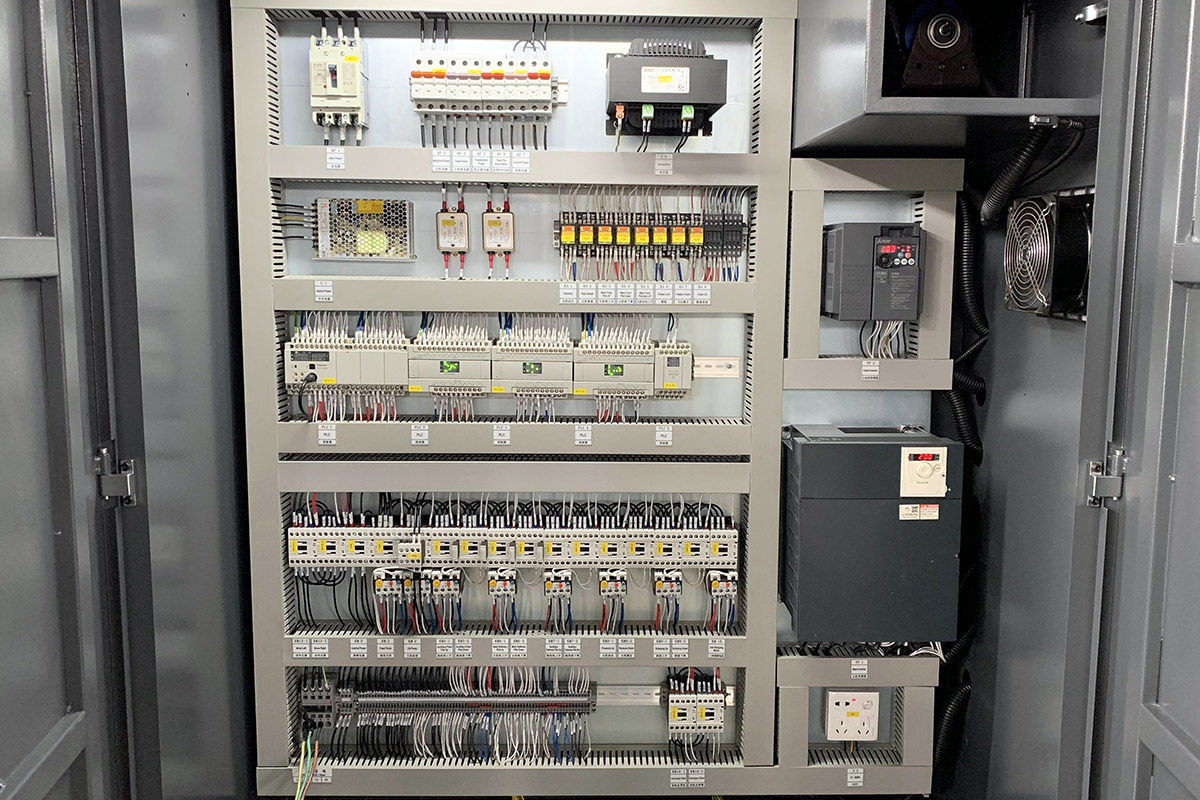

▪ MITSUBISHI and TOSHIBA frequency converter, PANASONIC or MITSUBISHI PLC and sensor, MOELLER(EATON) switch button, circuit-breaker, and contactor.

▪ TECO brand motor for main machine transmission, MAC Electromagnetic valve.

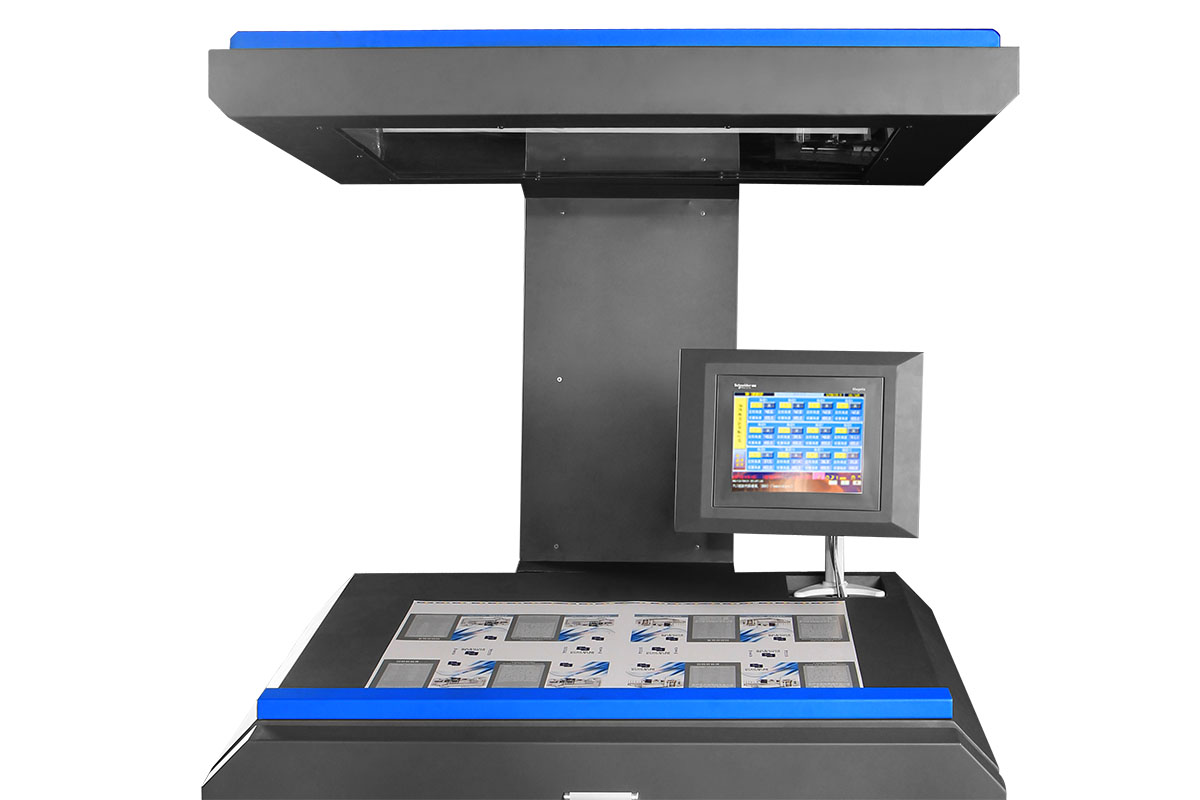

▪ Colorful man-machine interface can present the whole machine running situation. The troubleshooting manual provided in the touch screen helps fast solution for the errors.

01 / 11
Parameters
Max. Sheet Size
1060×750mm
Min. Sheet Size
400×360mm
Max. Hot Stamping Size
1020×730mm
Max. Cutting Size
1050×730mm
Max. Pressure
300ton
Paper Thickness
80~2000gsm cardboard, corrugated board≤4mm
Min. Gripper Margin
8mm
Precision
±0.075mm
Max. Speed
Die Cutting: 8000s/h; Hot Stamping: 6500s/h;
Foil Feeding Shaft
Longitudinal 3shafts; Transversal 2shafts;
Foil Stamping Heating Zone
16 zones
Temperature
0-200℃
Total Power
70kw
Total Weight
18000kgs
Dimension(LxWxH)
7300×4300×2700mm(including the pre-loading device)
