    Home > Solutions > Sheeter > GW1400-1 / GW1700-1

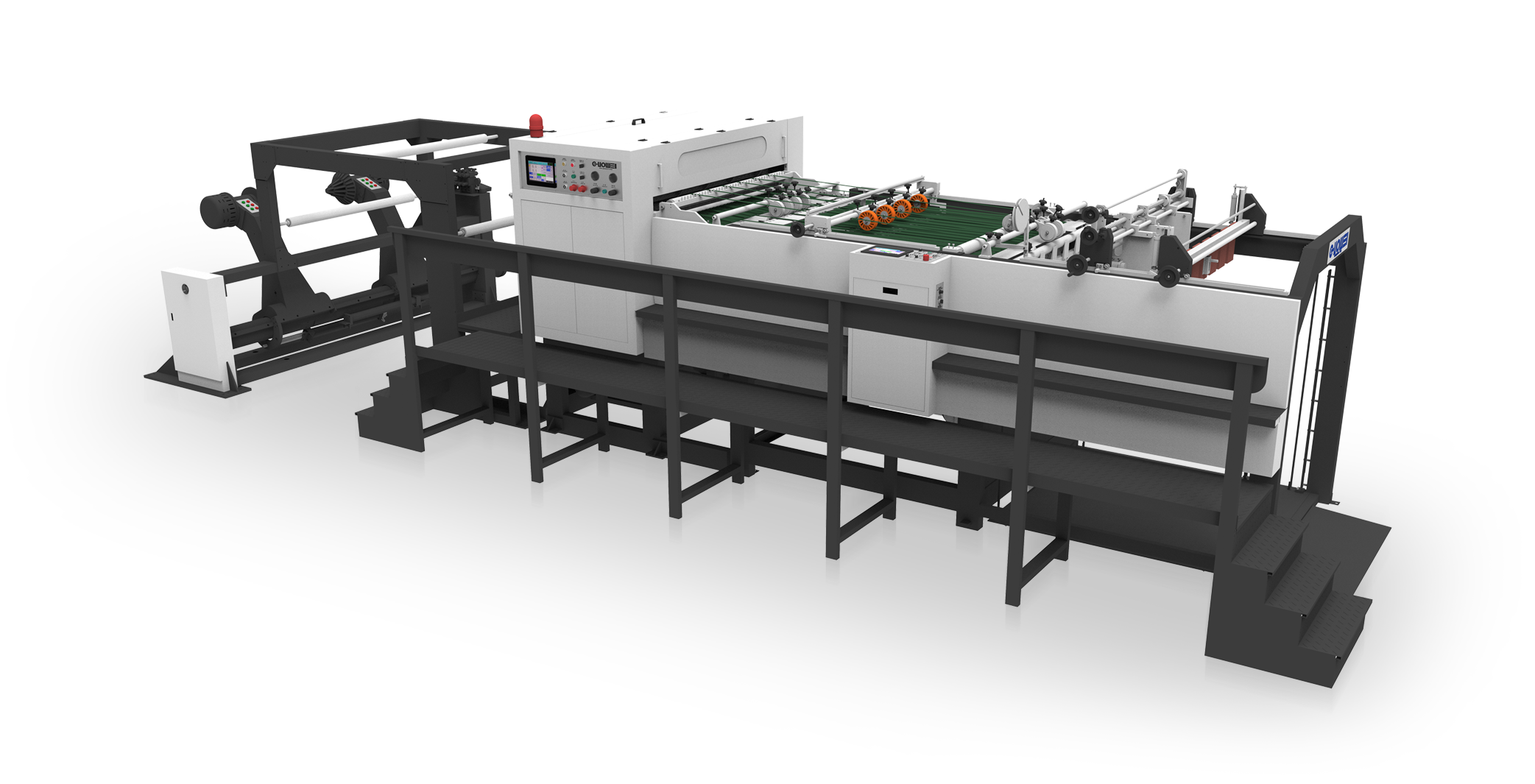

    GW1400-1 / GW1700-1
    Single Rotary Sheeter
    Get Price Brochure
    Parameters
    GW1400-1 GW1700-1
    Sheeting Type
    Single rotary sheeter
    Substrate Range
    45-550gsm
    Max. Paper Roll Diameter
    1800mm
    Max. Paper Cutting Width
    1400mm
    Range of Cutting Length
    450-1450mm
    Unwinding Roll
    1set
    Cutting Precision
    ≤1000mm, 0.5mm
    Max. Cutting Speed
    300cuts/min
    Max. Feeding Speed
    300m/min
    Max. Delivery Pile Height
    1500mm
    Power
    26kw
    Weight
    13800kgs
    Dimension
    12000×3920×2300mm
    Sheeting Type
    Single rotary sheeter
    Substrate Range
    45-550gsm
    Max. Paper Roll Diameter
    1800mm
    Max. Paper Cutting Width
    1700mm
    Range of Cutting Length
    450-1670mm
    Unwinding Roll
    1set
    Cutting Precision
    ≤1000mm, 0.5mm
    Max. Cutting Speed
    300cuts/min
    Max. Feeding Speed
    300m/min
    Max. Delivery Pile Height
    1500mm
    Power
    30kw
    Weight
    15800kgs
    Dimension
    12000×4200×2300mm
