Sheeter
>

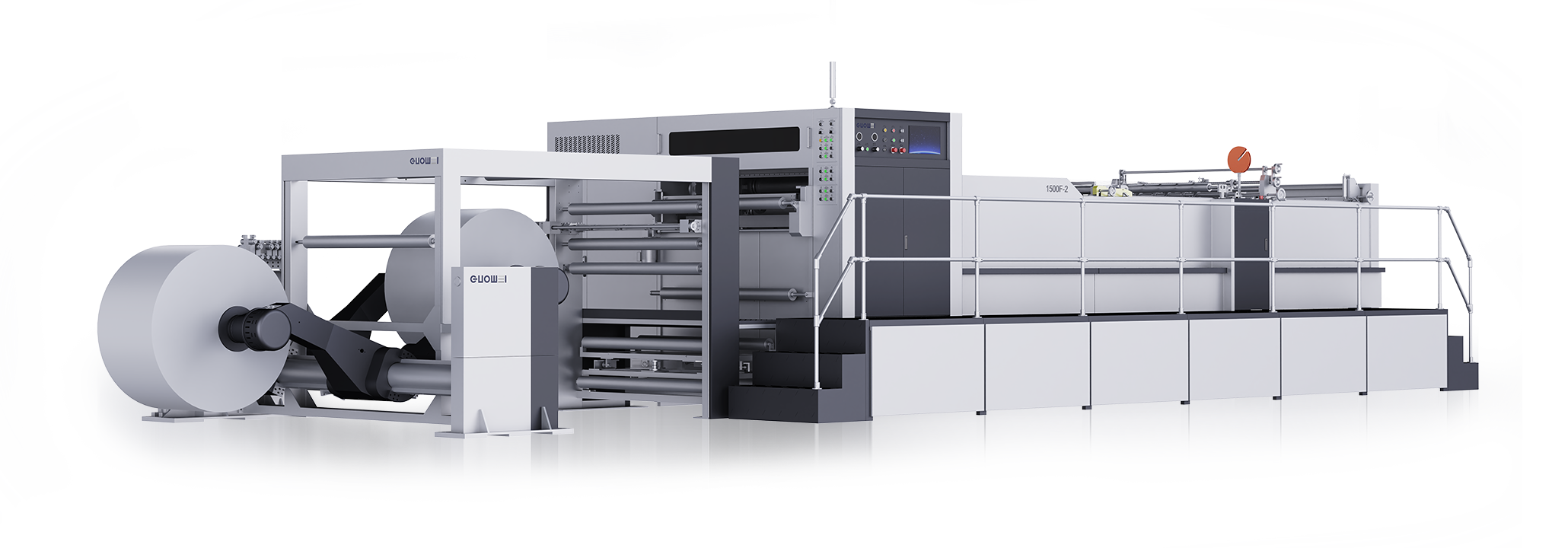

GD1500-2
GD1500-2
Servo Precision High Speed Sheet Cutter
Get Price
Brochure
Parameters
GD1500-2
Sheeting Type
Double rotary sheeter
Substrate Range
60-550gsm
Max. Paper Roll Diameter
1800mm
Max. Paper Cutting Width
1500mm
Range of Cutting Length
450-1650mm
Unwinding Roll
2sets
Cutting Precision
≤1000mm, 0.3mm
Max. Cutting Speed
350cuts/min
Max. Feeding Speed
300m/min
Max. Delivery Pile Height
1600mm
Power
78kw
Weight
18000kgs
Dimension
13850×3980×2465mm
