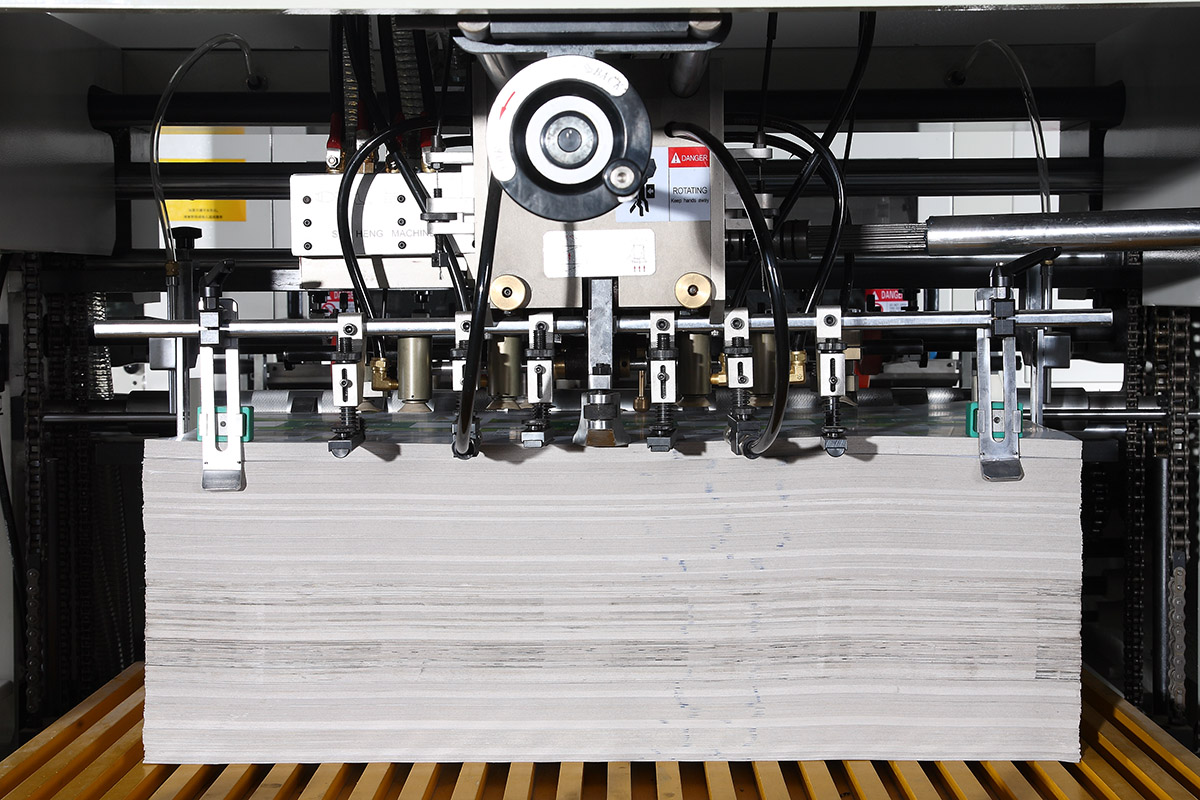

Non-stop Offset Feeder

▪ Non-stop-feeding with a pre-loading platform for high-speed efficient production.

▪ Intense 4 lifting & 4 forwarding suction heads can feed various substrates smoothly up to B-flute corrugated board.

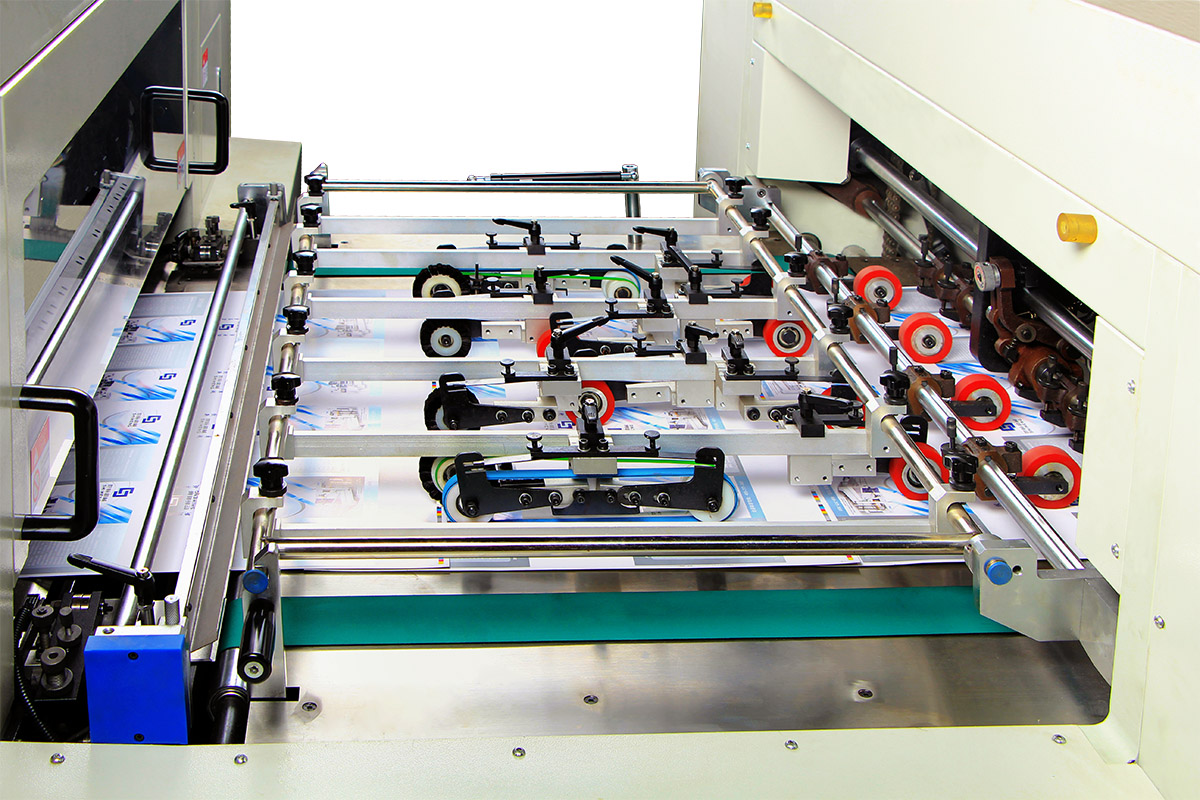

Feeding Table

▪ Double sheet detector and front lay register device can calibrate the sheet feeding

▪ Push and pull 2-in-1 side lay can handle different stocks.

▪ Driven-type brush wheels with wide Nitta belt for smooth conveying of various substrates, even the curved corrugated board.

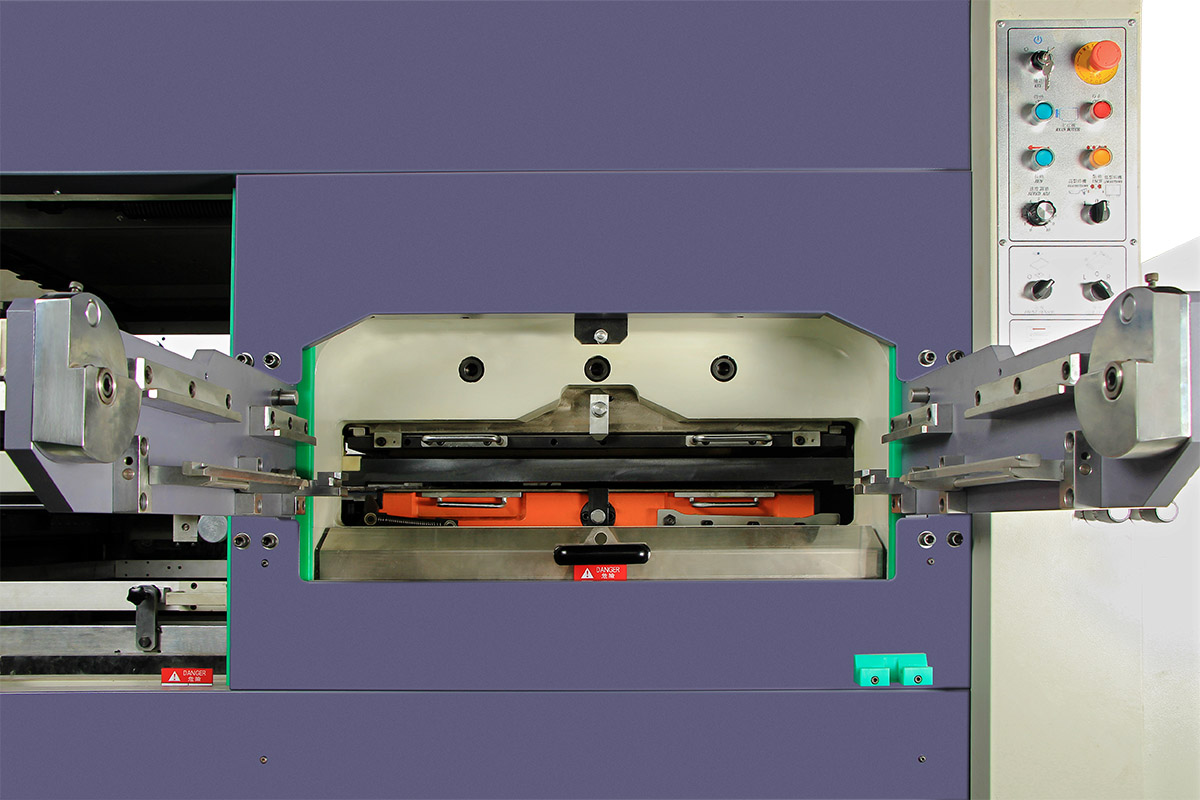

Die Cutting Section

▪ High quality intermittent divider provides smooth and accurate sheets running.

▪ State-of-the-art drive mechanism with a heavy-duty structure for steady and high-precision worktable movement.

▪ Cutting pressure can be fast set and recorded by touch screen, with max. ability to 350 tons.

▪ Pneumatic chase lock makes operation much easier.

▪ Various stock cutting ranges from light paper to B-flute.

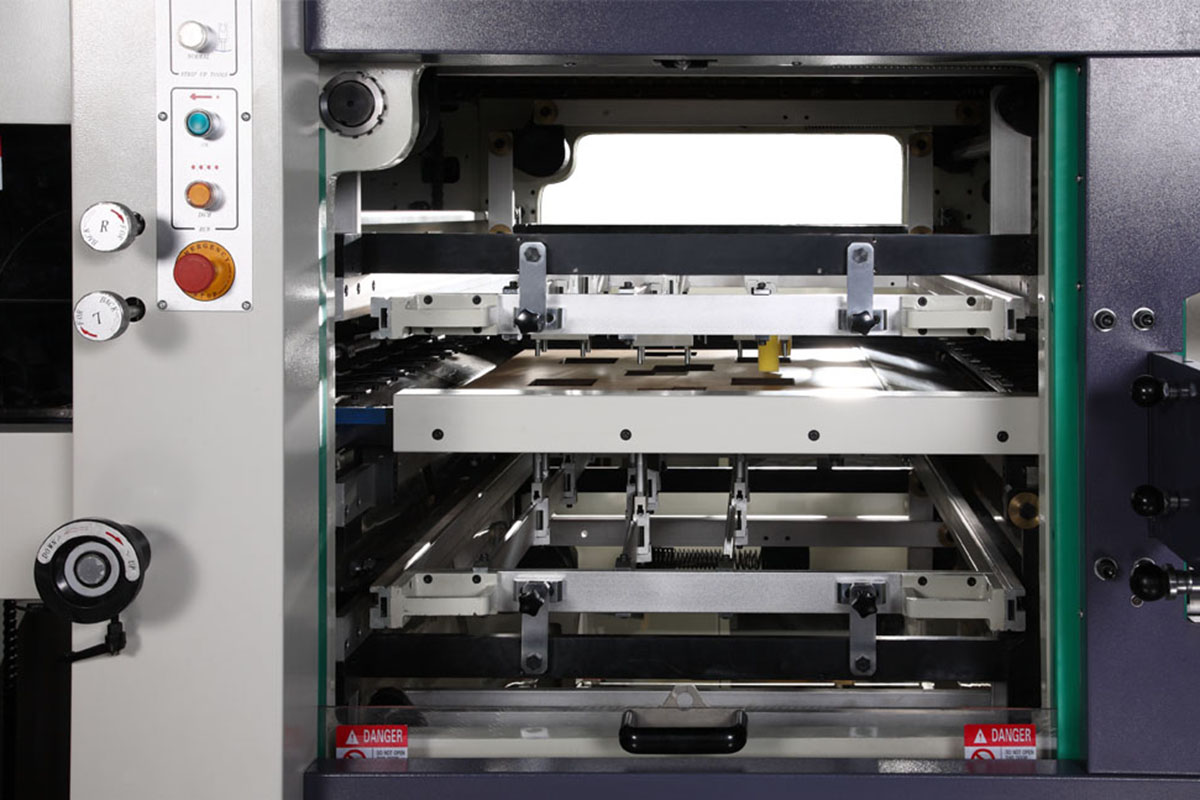

Stripping Section

▪ 3 chases stripping makes stripping action more proper.

▪ The stripping chase positioning system simplifies the stripping pin and improves working efficiency.

▪ Upper and lower stripping frames can be pulled out for job setup and make-ready.

▪ Either stripping pins or stripping tools are applicable.

▪ Equipped with 2nd stripping channel to remove the gripper margin waste.

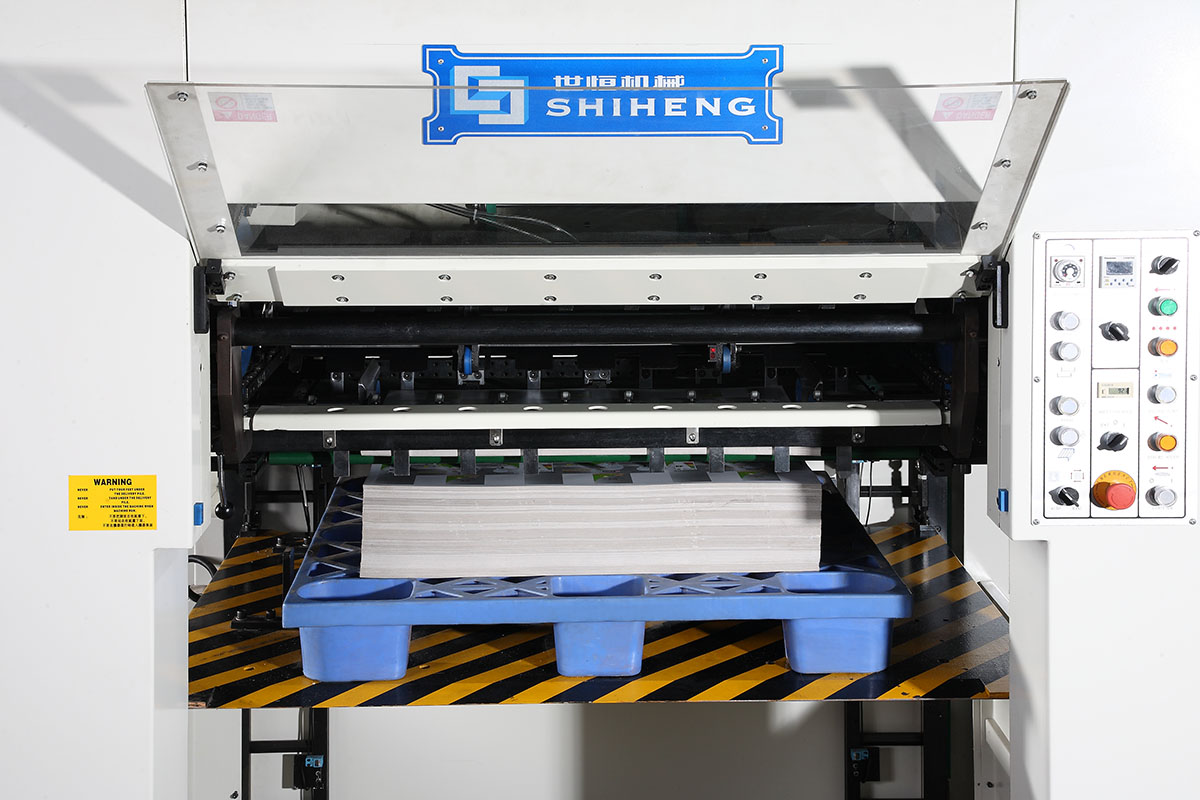

Non-stop Delivery

▪ The auxiliary belt table will automatically switch on for non-stop delivery production when the pile reaches a certain height. The main machine speed will slow down for easy operation and recover to its original rate after the new pallet is ready.

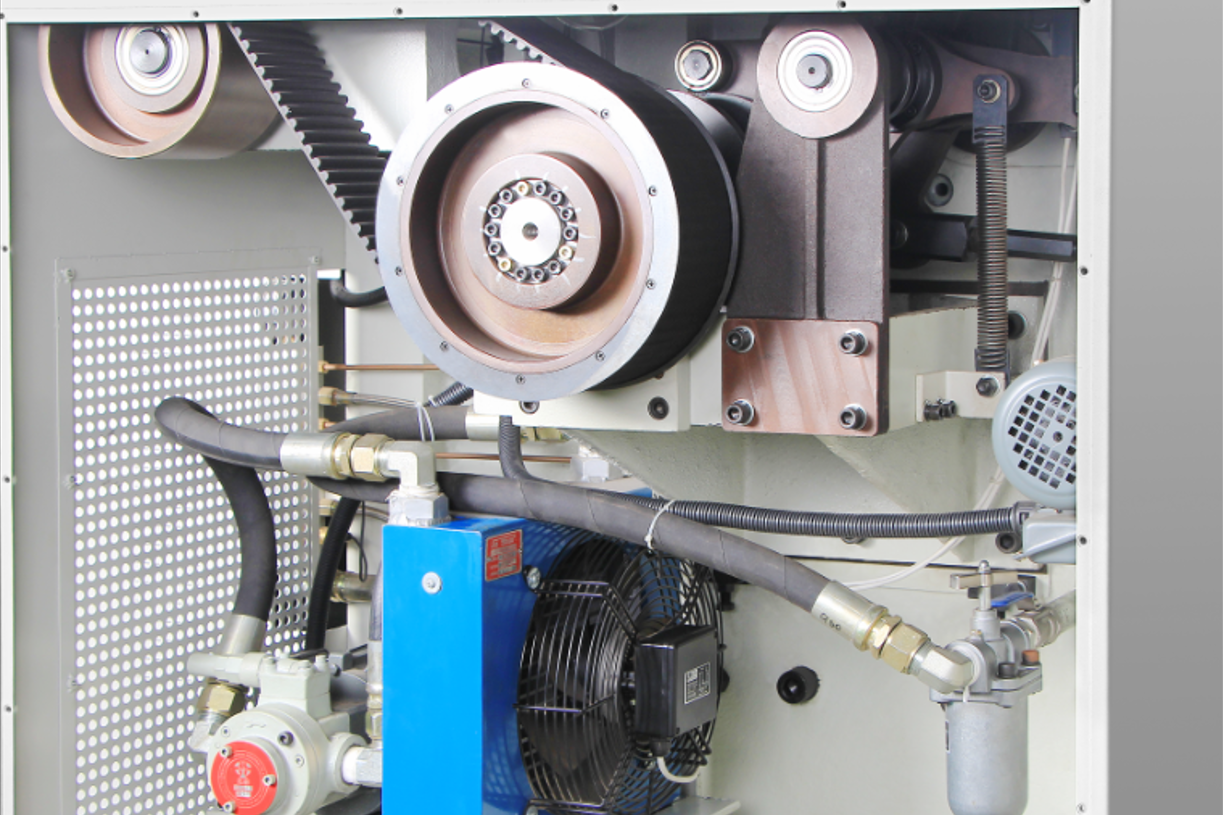

Main Lubrication System

▪ Automatic pump cooling circulation system ensure main die-cutting section with constant lubrication at high-speed running.

▪ Equipped with lubricating oil pressure gauge and alarm device.

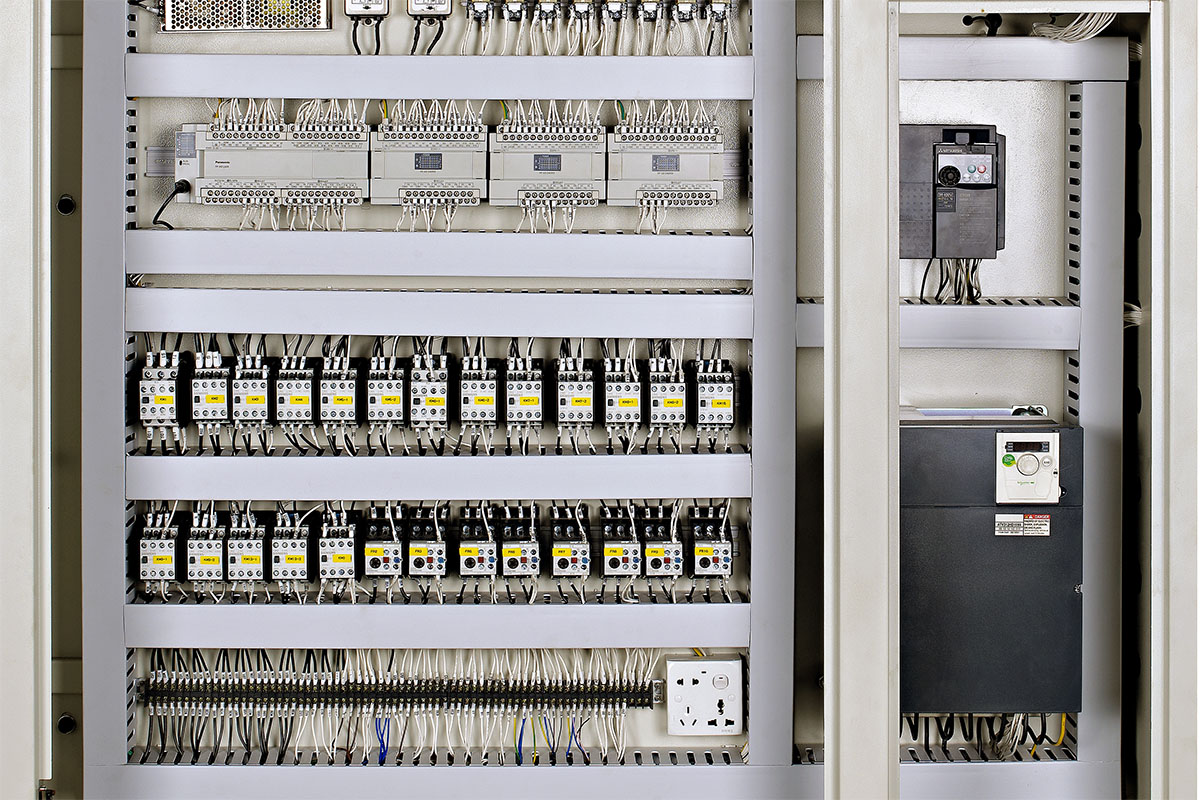

Intelligent Electric Control System

▪ All electric components from international brands pass the CE Certificate.

▪ Simple circuit control procedures design, easy maintenance.
