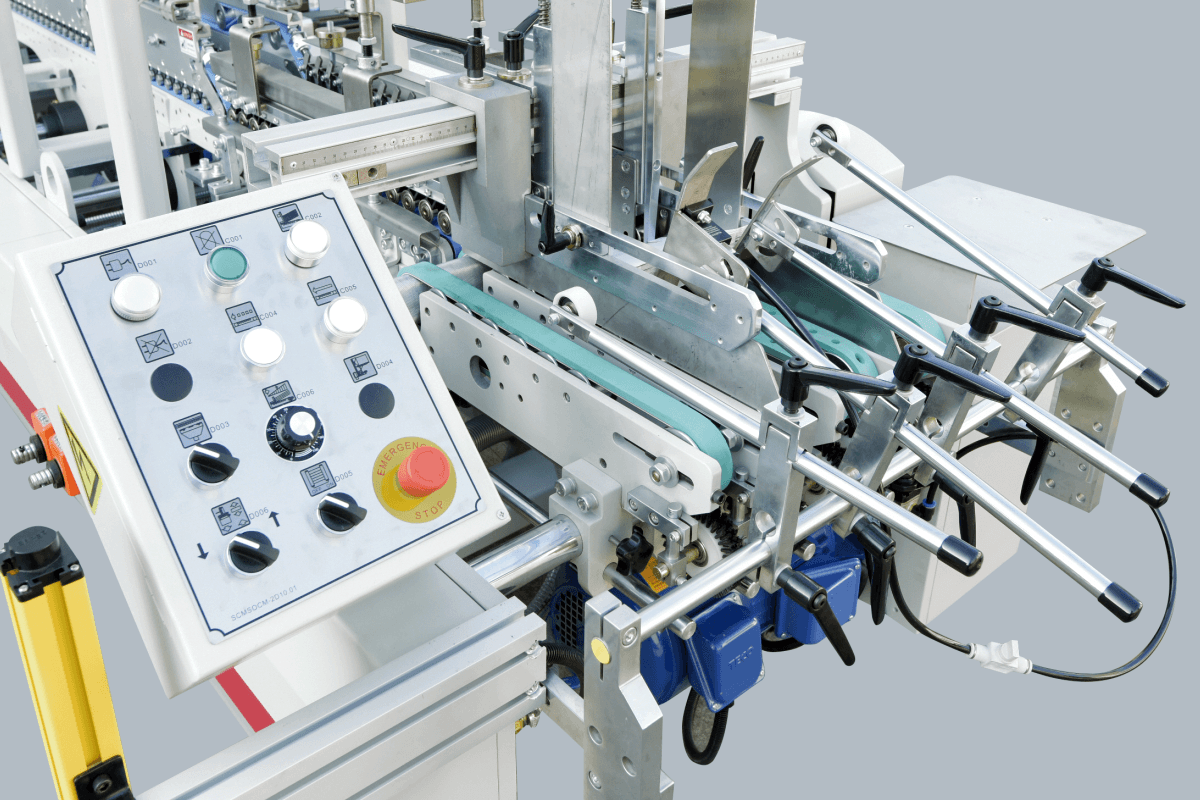

FEEDING SECTION

▪ Independent variable-frequency motor driven.

▪ Total 5pcs feeding belts; 2pcs vacuum-assisted feeding belts in center.

▪ Clean brush for each belt.

▪ Pneumatic vibrating feed pile support.

▪ Pneumatic lift-up side plates and feeding gates.

▪ Monitor TV.

▪ Control panel.

▪ Feeding belt brand: Nitta, Japan.

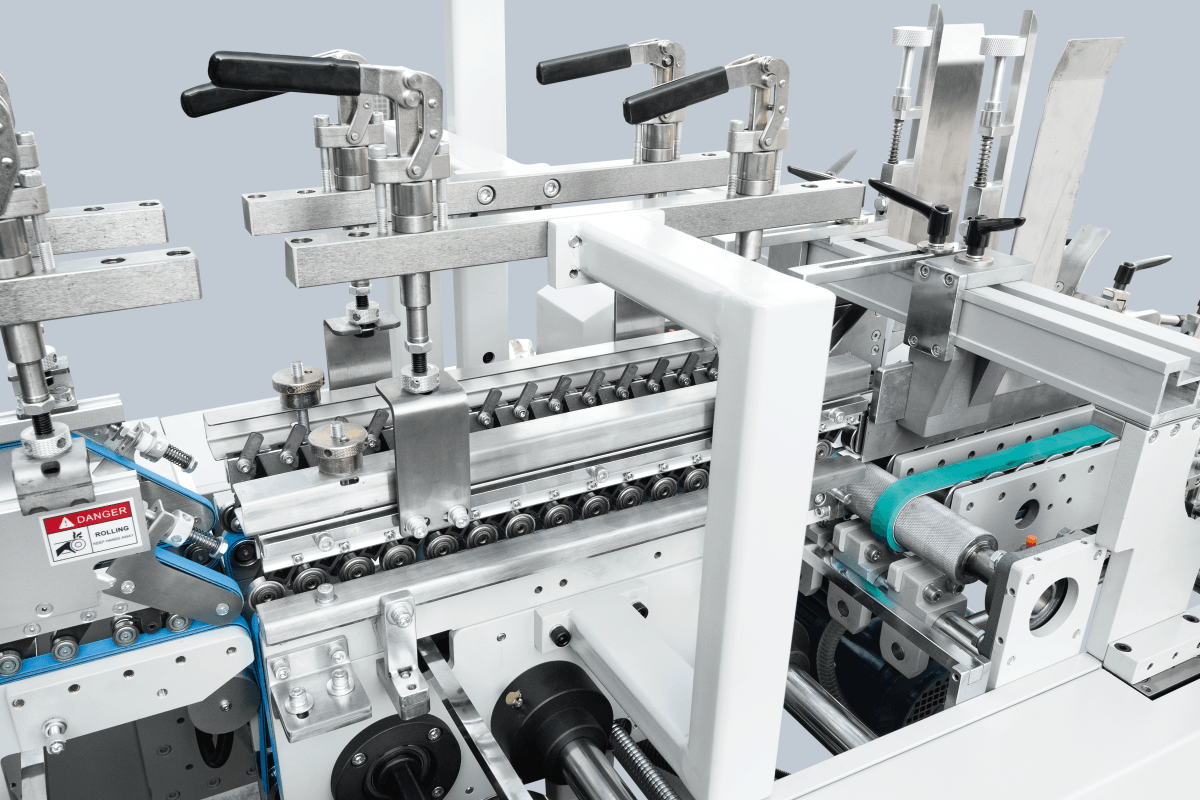

ALIGNMENT SECTION

▪ Two lanes carriers design.

▪ Two alignment carriers.

▪ Carrier position adjustable manually with position indicators.

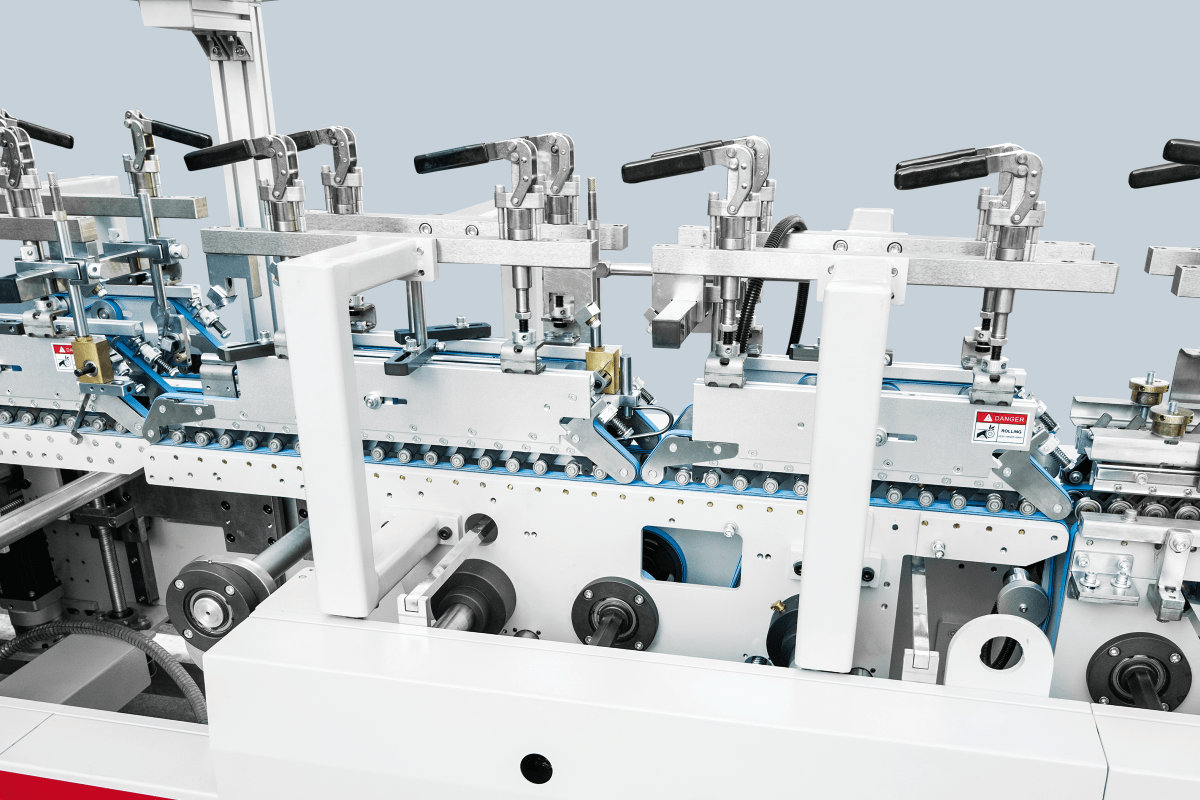

PRE-FOLDING SECTION

▪ Two lanes carriers design.

▪ Two split carriers for each lane.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 15mm; lower belt width: 15mm.

▪ The pre-breaking sword for 1st creasing by 180°.

▪ The belt pre-breaking device for 3rd creasing line by 135°.

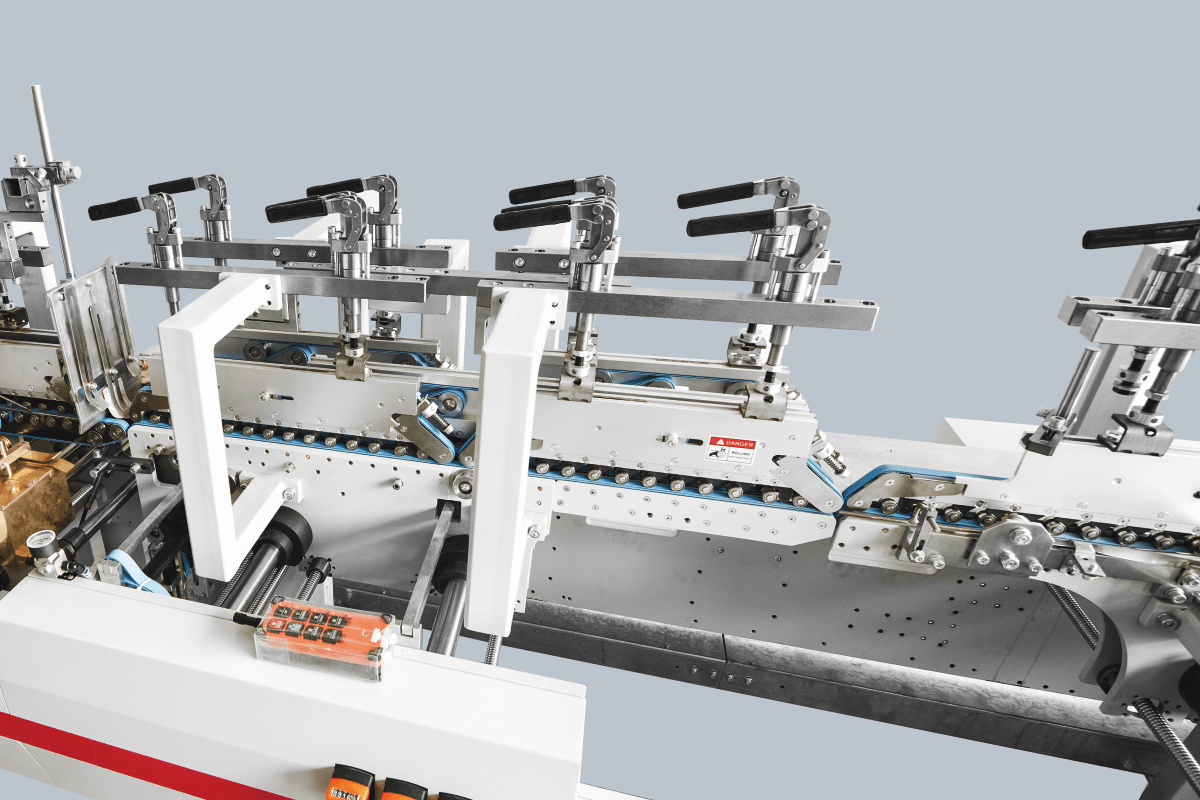

LOCK BOTTOM SECTION

▪ Three lanes carriers design.

▪ Two split carriers for left and right lanes; one complete carrier for center lane.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 15mm; lower belt width: 15mm.

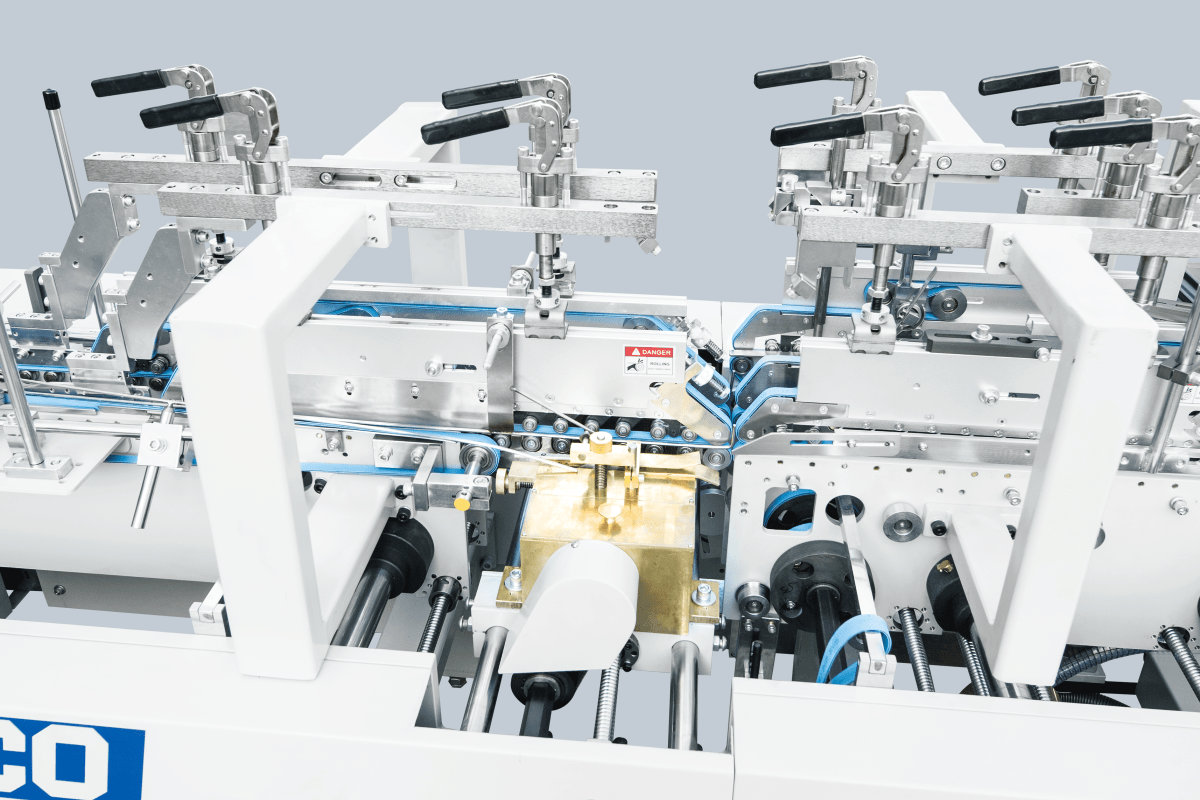

LOWER GLUER

▪ Lower gluer tank in both operation and transmission side (or can be customized 2 sets both in operation side).

▪ Glue disc width: 3.5mm(or can be customized).

▪ Glue tank movement manually.

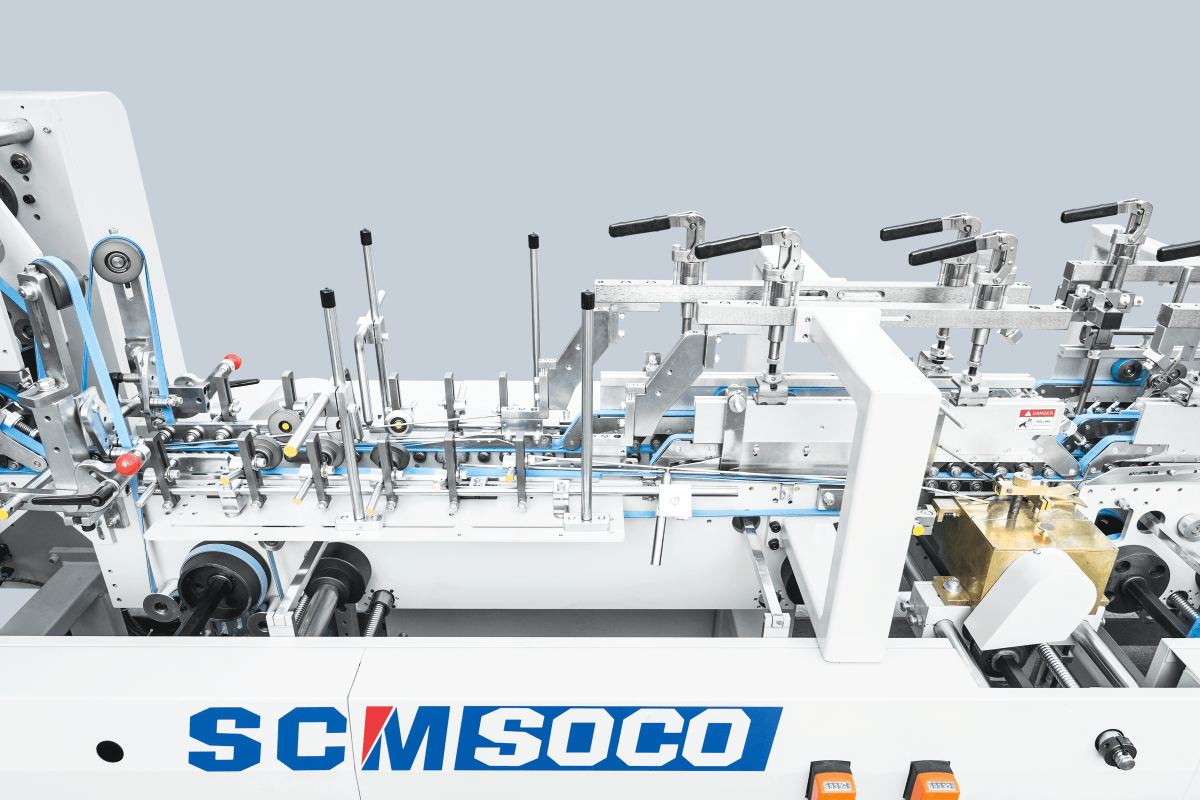

FINAL FOLDING SECTION

▪ Two lanes carriers design.

▪ Speed of left and right folding belts can be adjusted mechanically.

▪ Carrier position adjustable manually with position indicators.

▪ Upper belt width: 15mm; lower belt width: 15mm.

▪ Left and right folding belt width: 15mm.

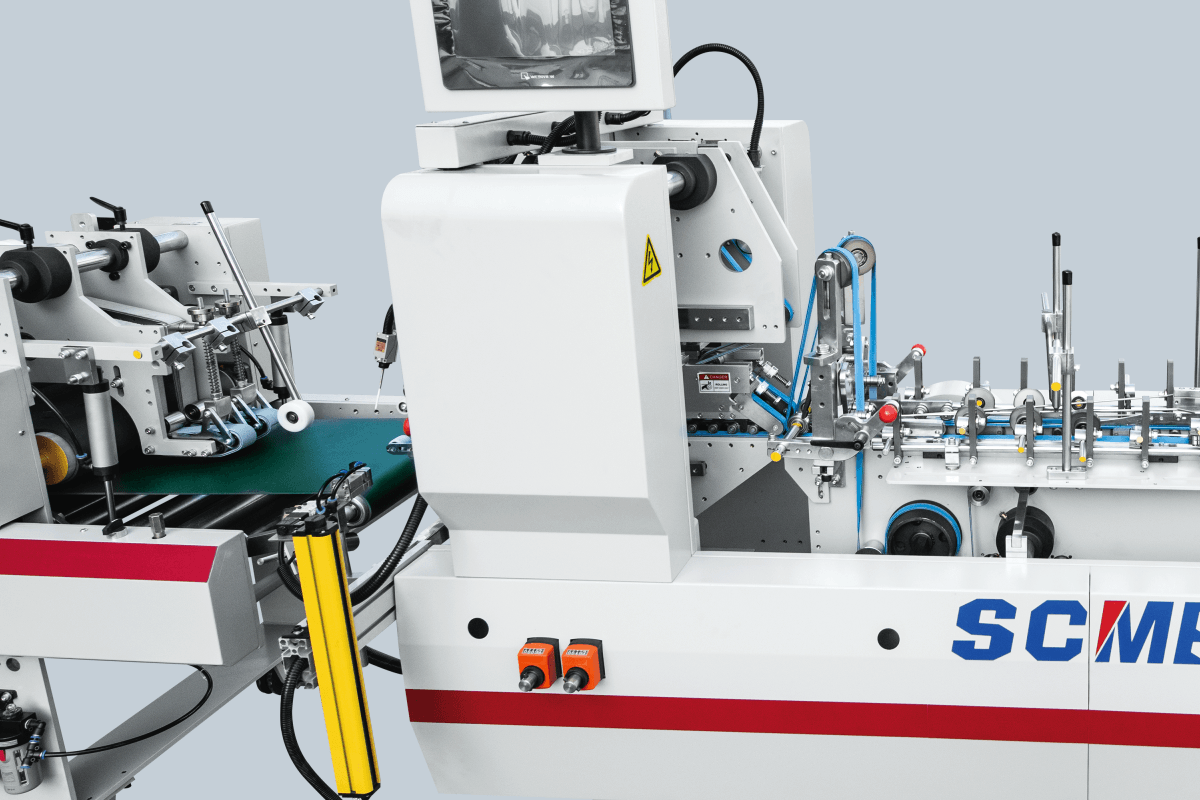

TRANSFER SECTION

▪ Main control panel with touch screen, wireless remote control is standard.

▪ Two lanes carriers design, easy to change from over-lapping to underlapping.

▪ Telescopic upper and lower carriers easily adapt to box formats.

▪ High speed kicker counter and spraying counter.

▪ Camera for live status.

▪ Jam detector.

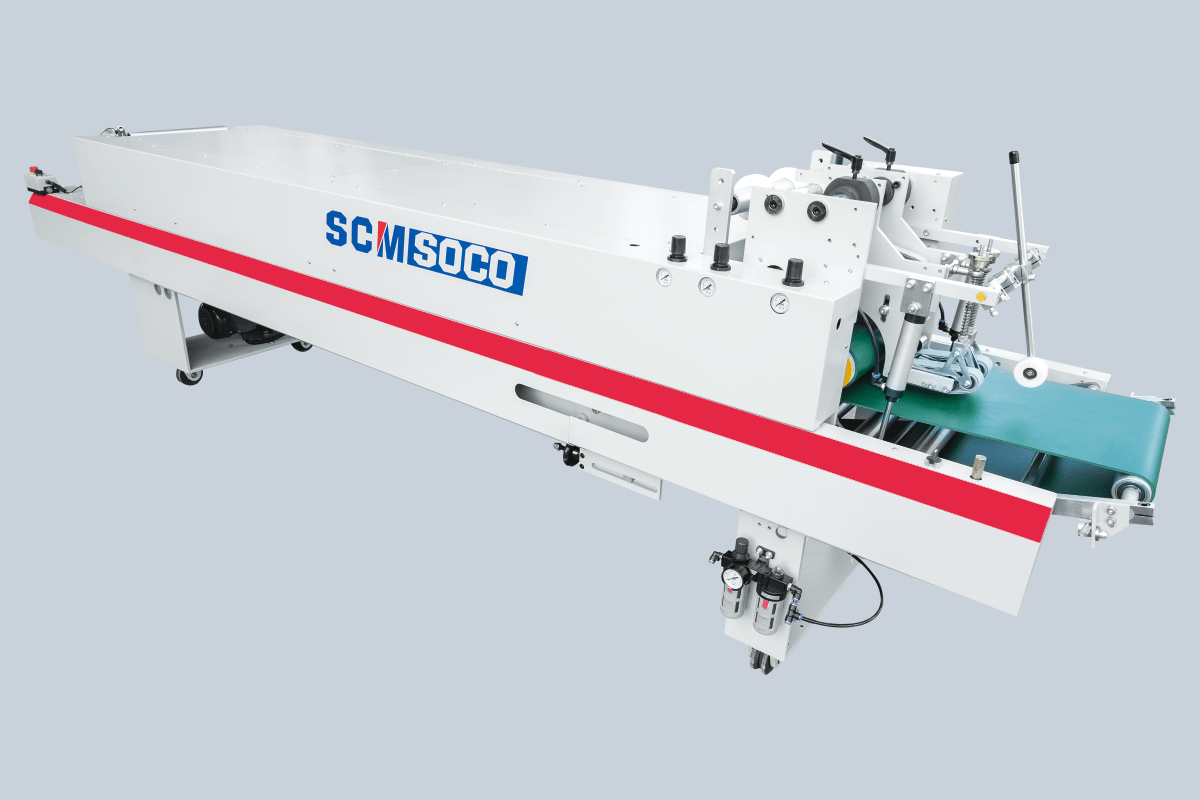

3.15M COMPRESSION CONVEYOR SECTION

▪ 3.15m long compression conveyor. (4m or 5m extended conveyor can be optional).

▪ Effective belt width: 300mm.

▪ One sponge belt.

▪ Height adjustable lower belt at conveyor entry for pressure control.

▪ Motorized forward & backward movement for upper section.

▪ Left and right position movable.

▪ Collection table in the end.
