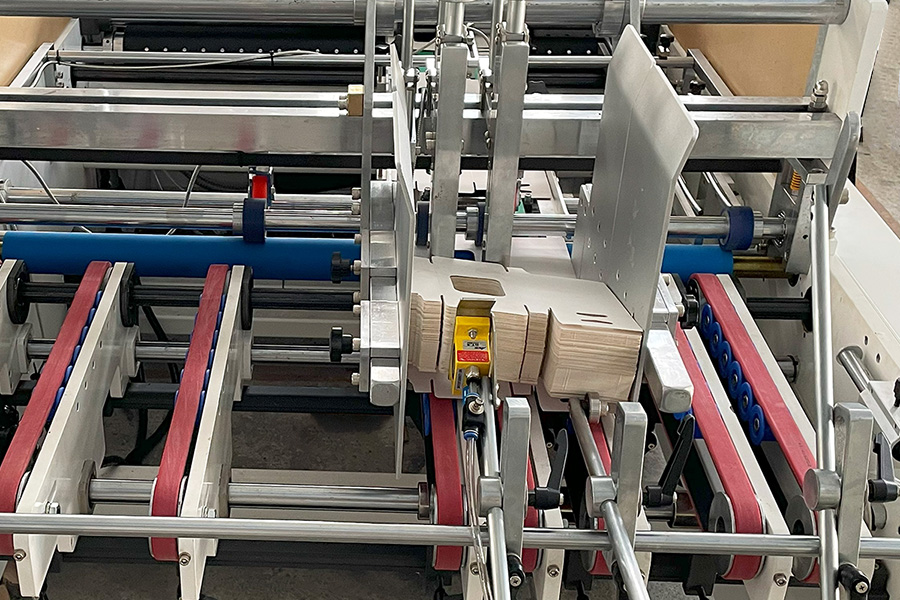

Feeding Section

▪ Servo-driven intermittent belt feeding system with smooth blank out.

▪ Feeding length can be adjusted by touch screen after inputting the blank size.

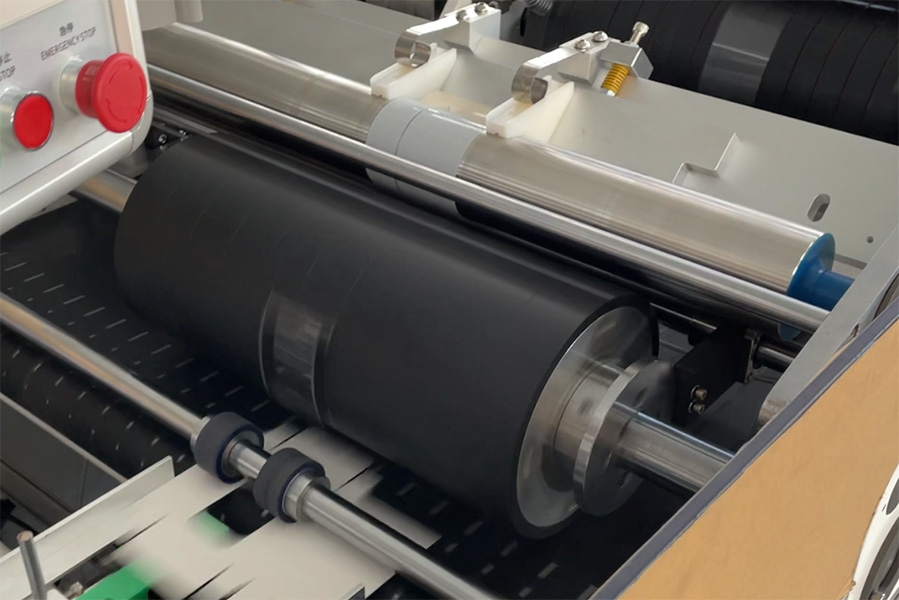

Gluing Section

▪A scraper device is applied with a stainless gluing roller to control the glue volume.

▪The glue fountain width can be easily adjusted.

▪Flexo template mounted onto a plate cylinder can be regulated the position in a circumferential direction during machine running.

▪The plate cylinder will separate automatically when no paper comes to avoid gluing onto the conveying belt.

▪Easy to clean the glue fountain and gluing roller.

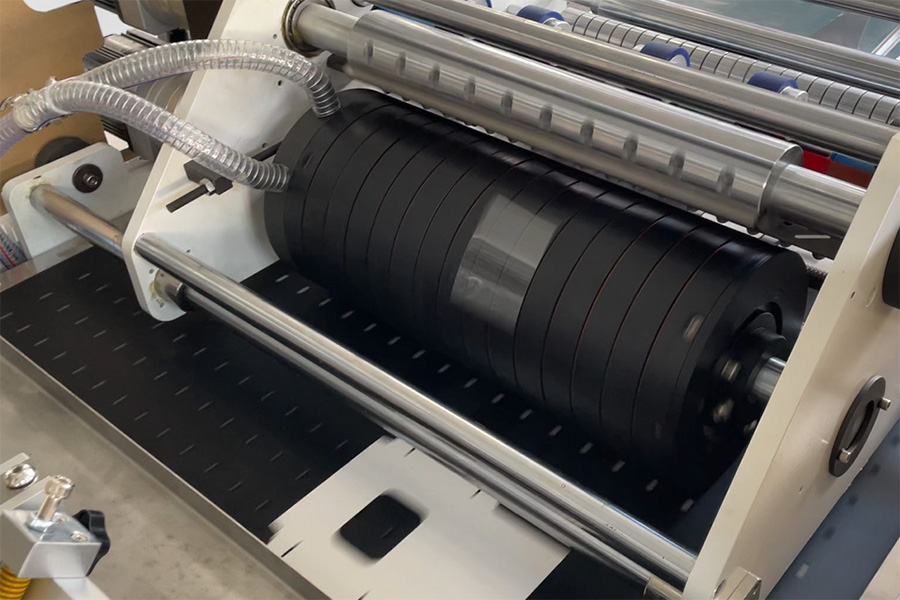

Window Patching Section

▪ The touch screen setting can control the length of sheeting film. The adjustment can be made during machine running.

▪ Air suction during film transfer from cylinder to blank with accuracy.

▪ Film position can be adjusted forward or backward during machine running.

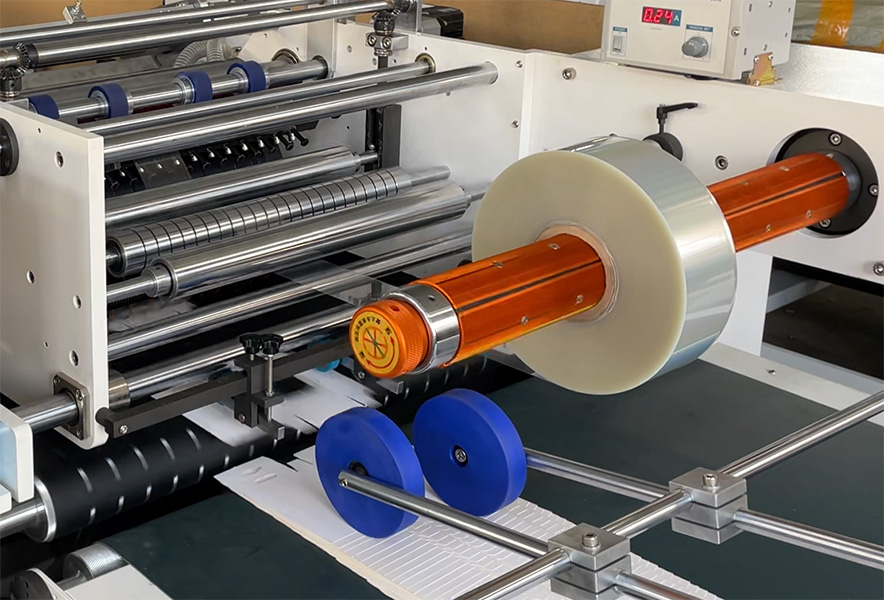

Delivery Section

▪ Mechanical shaft for film loading with automatic tension controller, convenient and durable.

▪ Delivery conveying table collects the finished products at the end.

Rotary die-cut unit

▪ Optional rotary die-cut unit for alien-type die-cut tissue box
