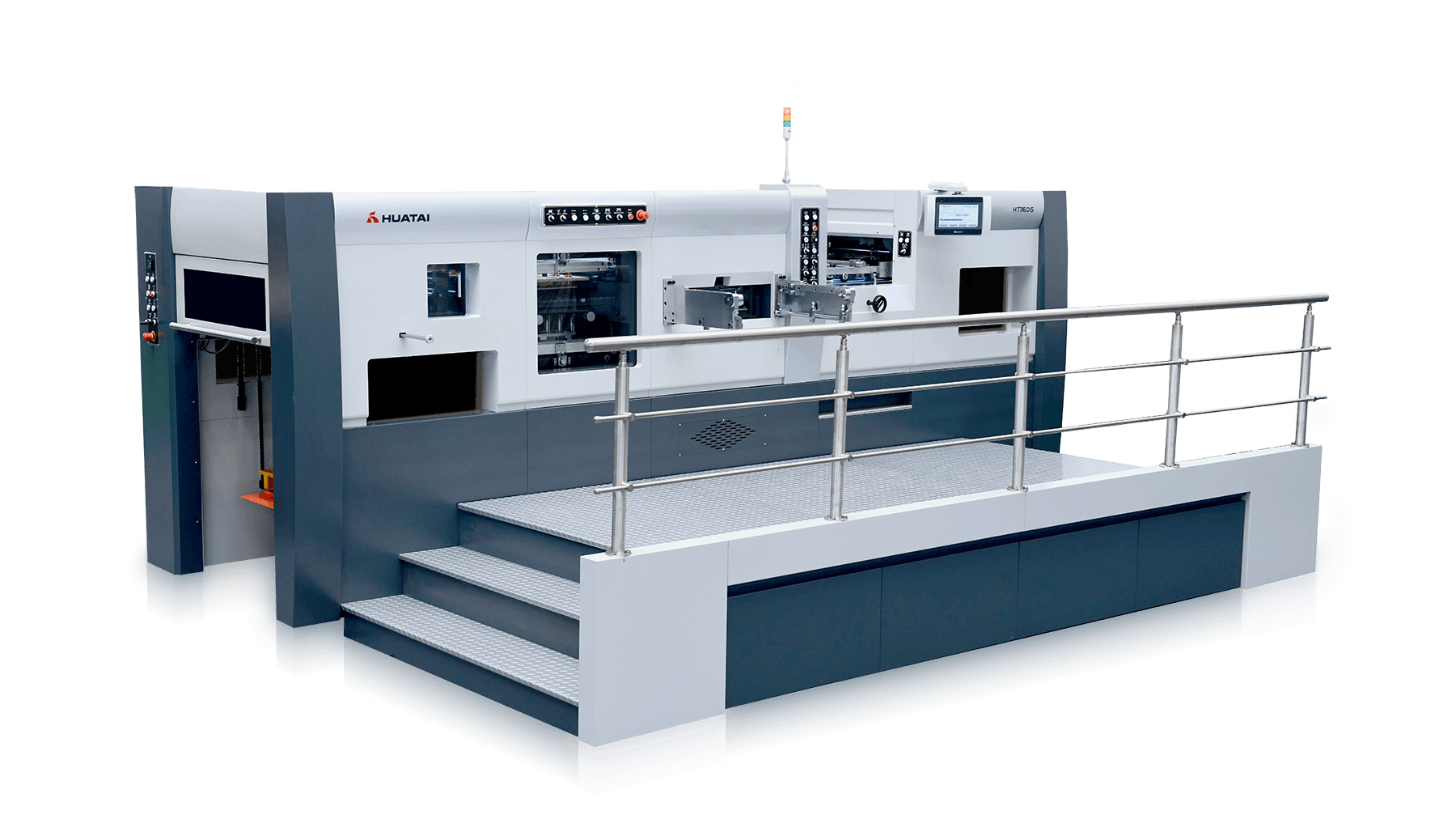

HT760S

Automatic Die Cutting & Stripping Machine

Cena Brošura

Parametri

Max. Sheet Size

760×610mm

Min. Sheet Size

320×260mm

Max. Cutting Size

750×600mm

Max. Die Cutting Speed

9000s/h

Max. Stripping Speed

9000s/h

Max. Pressure

250T

Precision

±0.075mm

Inside Chase Size

765×620mm

Height of Cutting Rules

23.8mm

First Cutting Rule

13mm

Min. Gripper Margin

7mm

Max. Feeding Pile Height (incl. pallet)

1480mm

Max. Delivery Pile Height (incl. pallet)

1360mm

Thickness of Cardboard

80gsm - 2000gsm

Thickness of Corrugated Cardboard

≤4mm

Weight

12.5T

Total Power

15kw

Compressed Air

0.8Mpa

Air Flow

0.6m³/Min
