LS-1246D

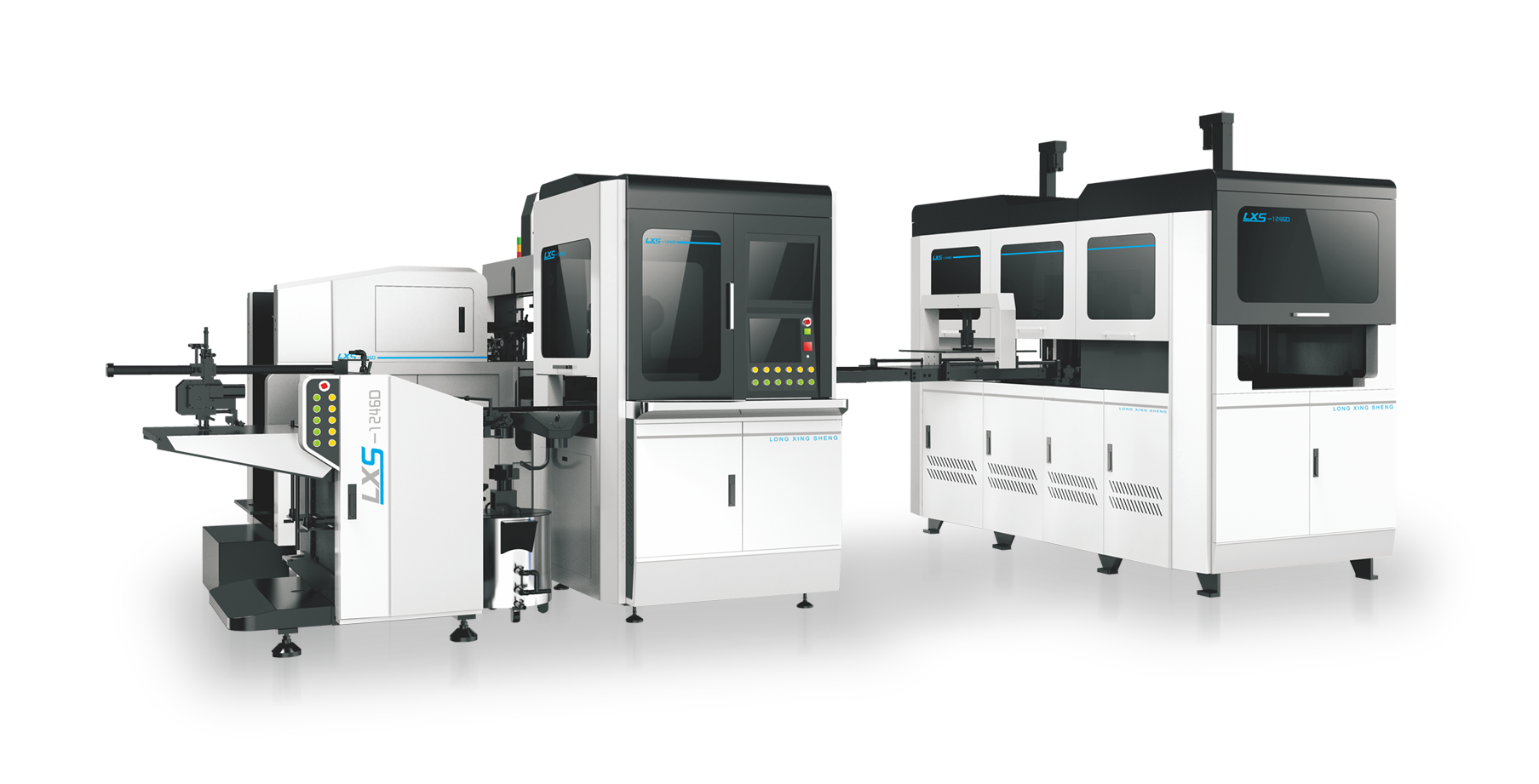

Automatic Smart Rigid Box Making Machine
Features

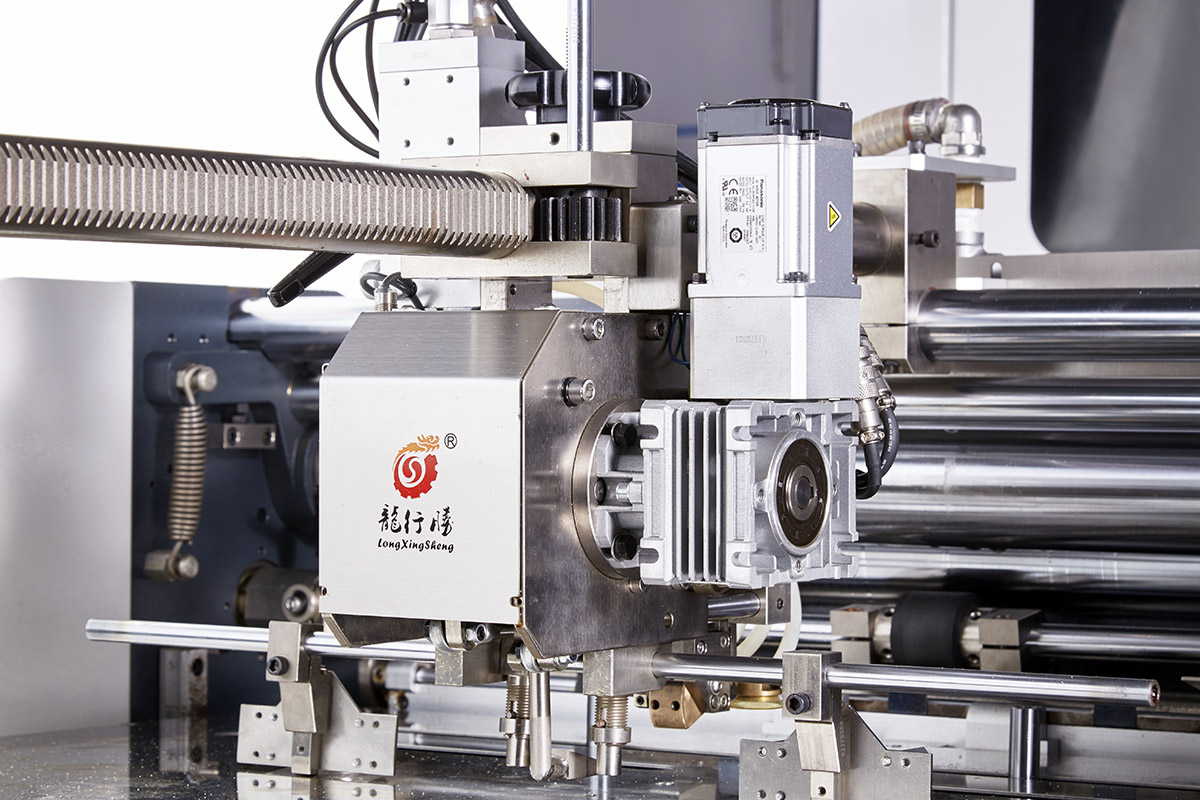

FEEDING SECTION

▪ Servo-motor independent driven feeding head, accurate feeding for various covering materials.

▪ New design avoids double sheets, fast and stable performance.

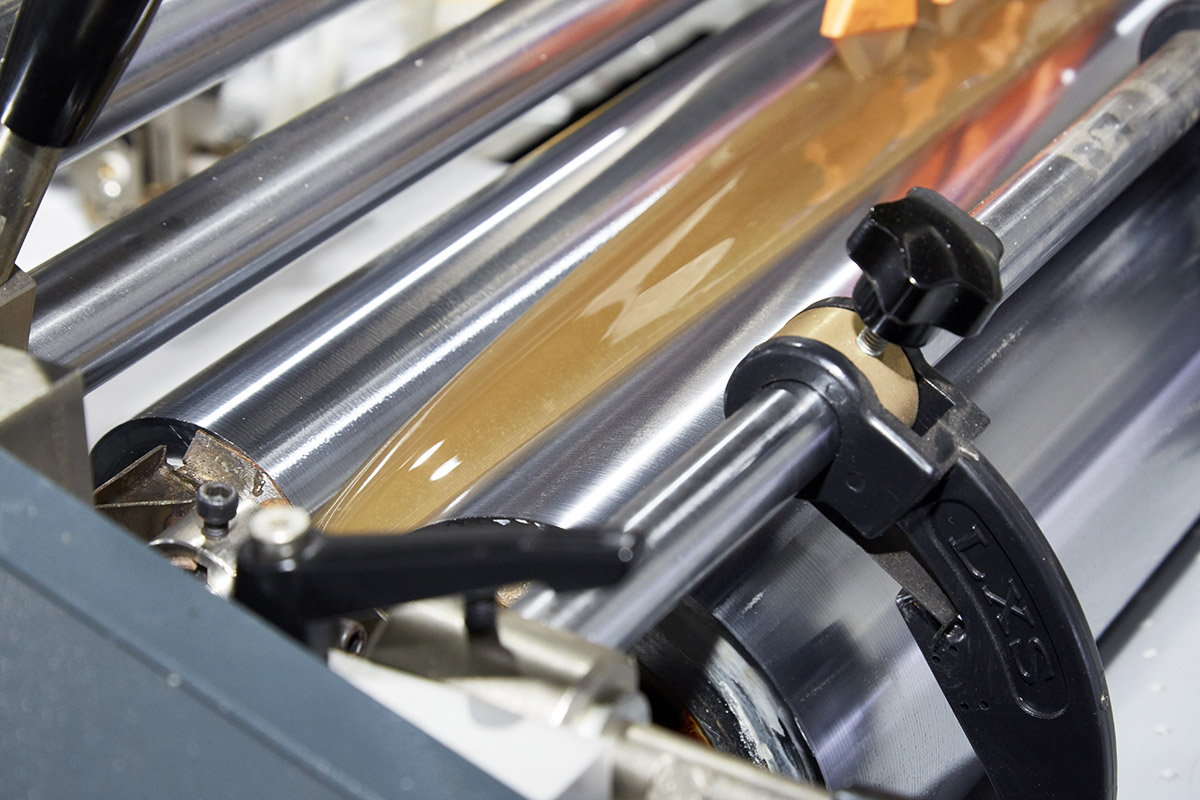

GLUING SECTION

▪ Integrate gluing system with recycling design, easy to clean.

▪ High precision gluing volume adjustment.

▪ Automatic glue viscosity detection and control system equipped as standard.

VISUAL POSITIONING SYSTEM

▪ 2 sets imported 10Mega Pixel cameras

▪ Unique visual positioning system, no need to move cameras for size changing after calibration at beginning.

▪ Easy to operate the software to set up the positioning section within 10 min.

▪ Templates can be saved for repeat jobs.

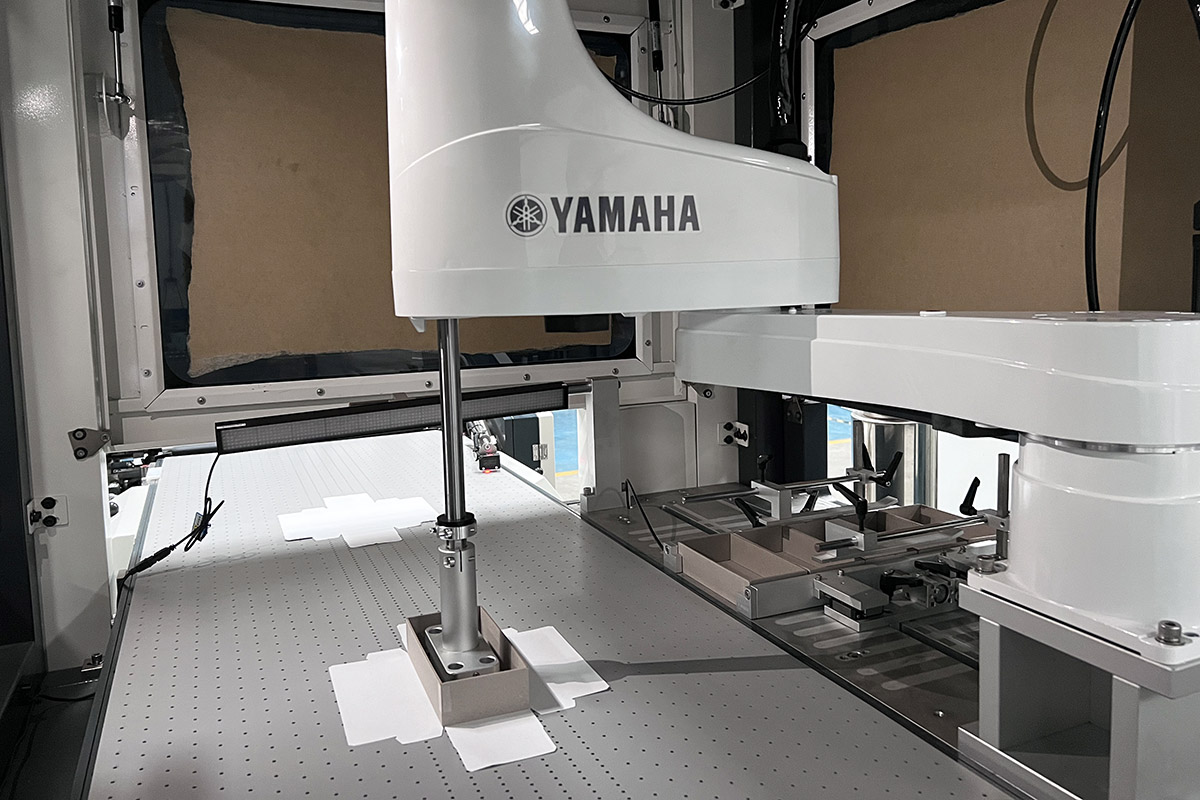

ROBOTIC ARM

▪ YAMAHA brand high precision robotic arm assures the working accuracy ±0.1mm.

▪ Robotic arm action driven by data from software, which is dynamically matching each cover sheet position under cameras.

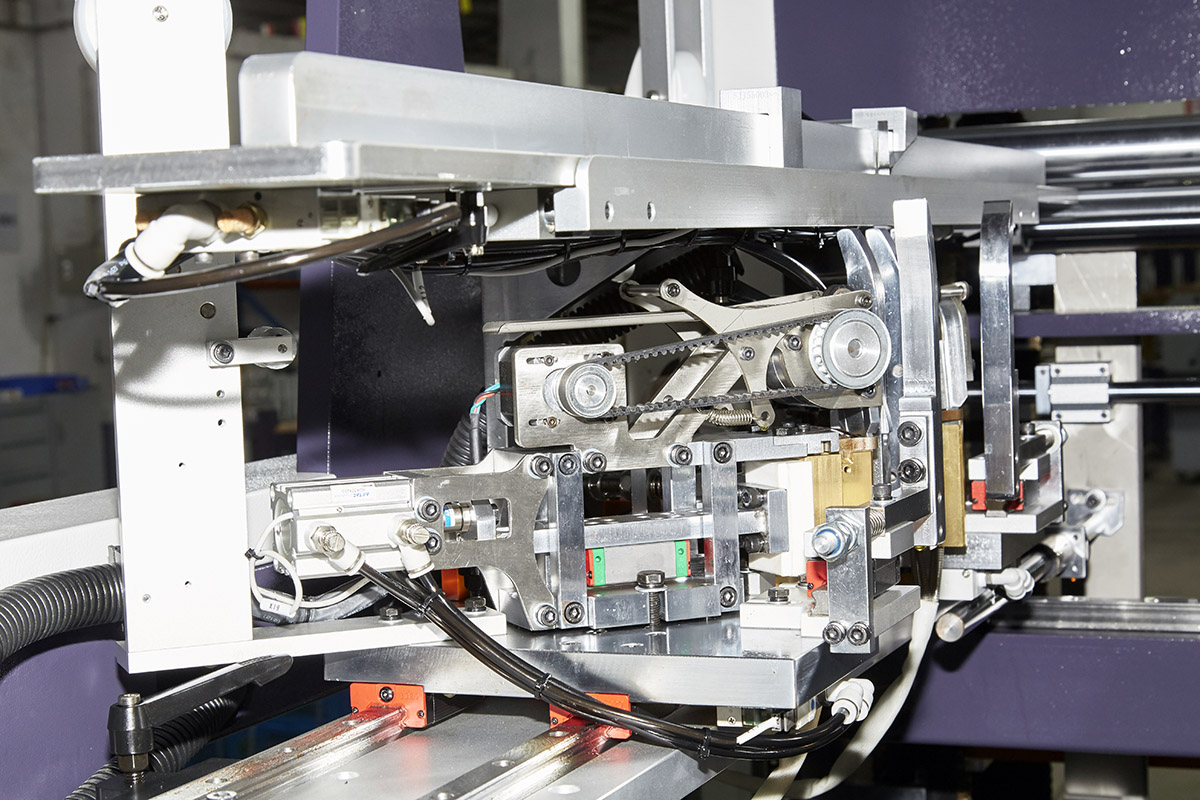

AUTOMATIC CORNER PASTING

▪ Non-stop cardboard feeding from top.

▪ Dural guider rails assure stable running.

▪ Integrate tape feeding device, avoid tape block.

▪ Screwed teeth gears driving the mold at high speed performance up to 60pcs/hour.

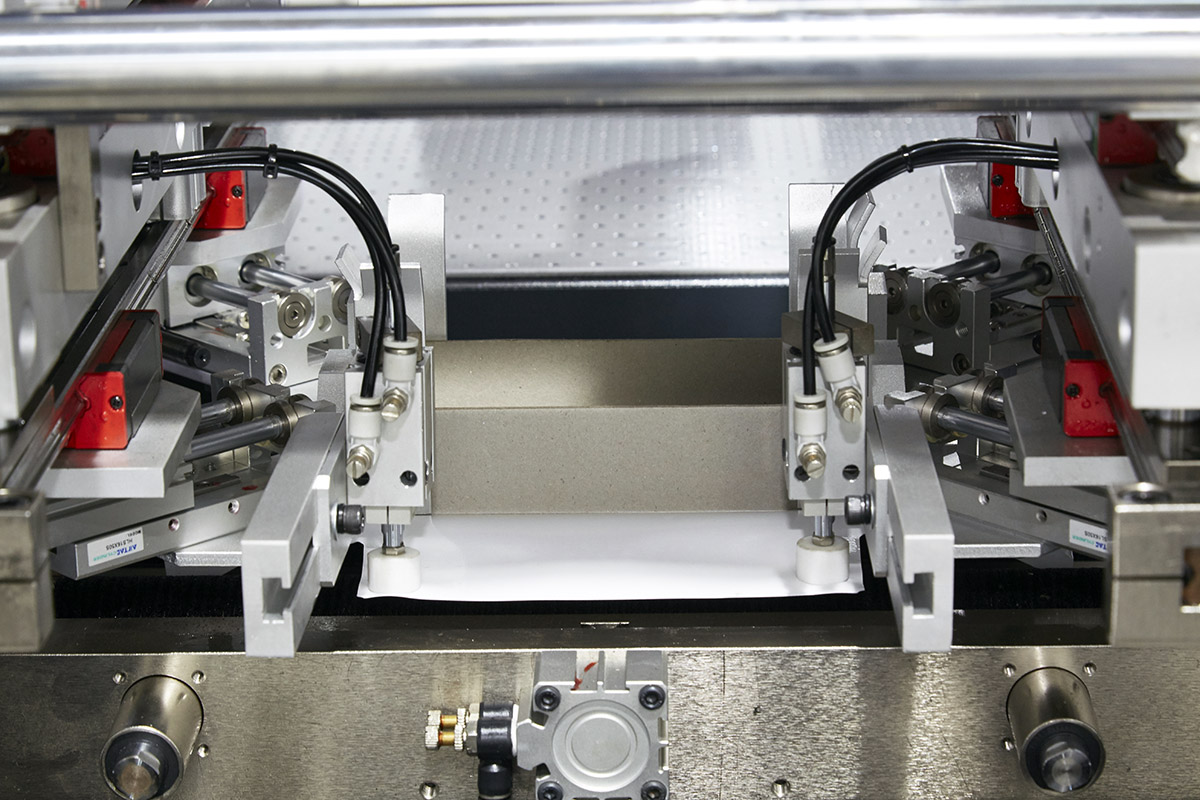

DOUBLE FORMING SECTION

▪ Storage(memory) function for sizes setting.

▪ No need to change air pressing plate.

▪ No need to change tuck in blade.

▪ Working speed: 15-45pcs/min.

01 / 06
Parameters
Max. Paper Size (L*W)
800×600mm
Min. Paper Size (L*W)
135×100mm
Max. Cardboard Size (L*W)
760×560mm
Min. Cardboard Size (L*W)
120×100mm
Finished Box Size (L*W*H)
Max.: 600×400×120mm Min.: 80×65×15mm
Paper Thickness
80-350g/㎡
Cardboard Thickness
0.8-3mm
Turn-in Depth (R)
15-80mm
Edge Folding Size
10-90mm
Working Speed
15-45pcs/min
Motor Power
18kw/380V 3P
Heating Power
8kw
Air Pressure
40L/min 0.8MPa
Total Weight
3800kgs
Dimension(L*W*H)
6600×3800×3000mm (height calculated when forming mold to top position)
Video
Dec 14, 2022
Smart set-up rigid box maker with dual forming & wrapping station
