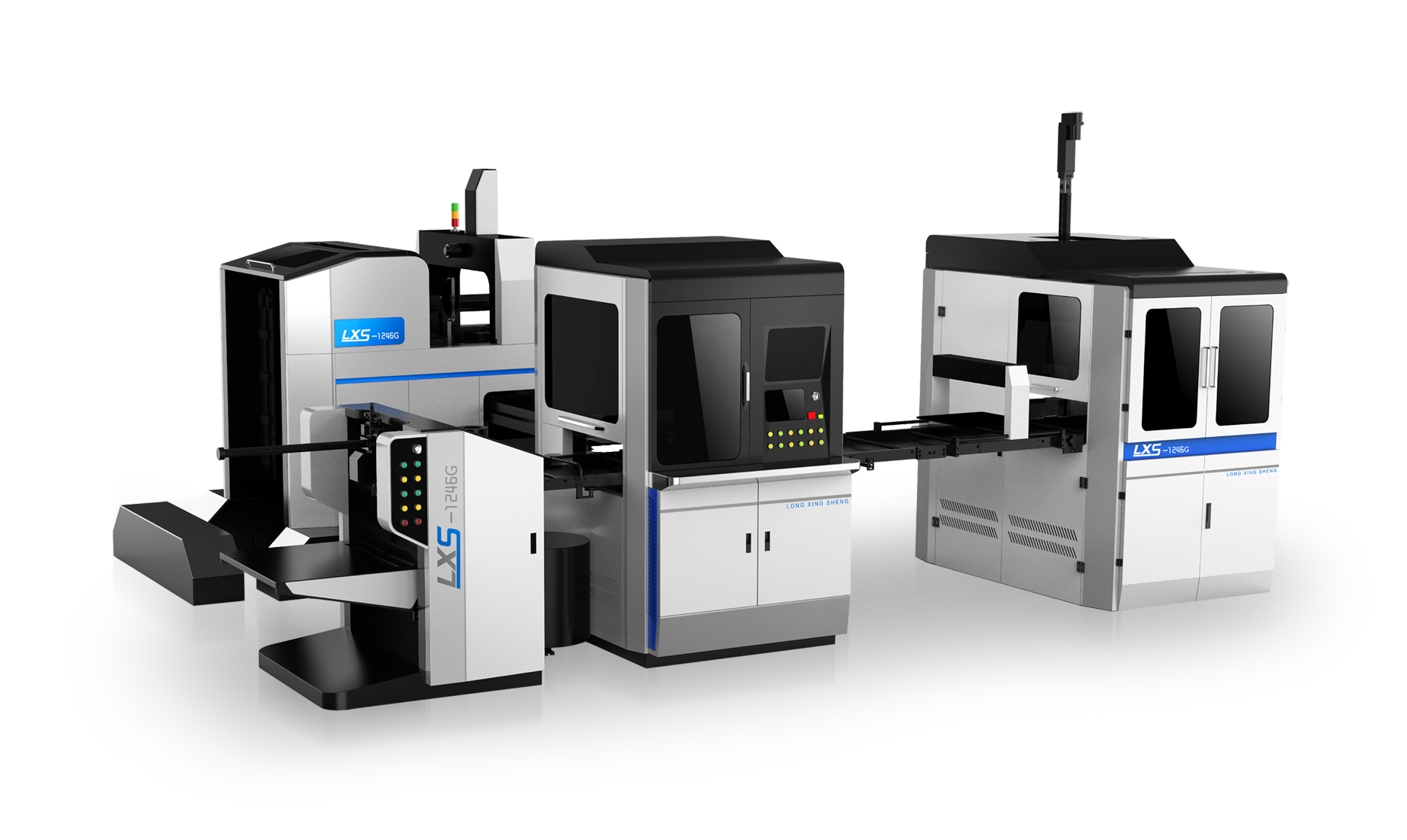

LS-1246G
Automatic Rigid Box Making Machine
Features

GENERAL FEATURES

▪ Automatic cover feeding + Visual positioning system + Corner paster + Forming station.

▪ Manual format set-up for forming system.

▪ Hardcover board feeding and four-side folding sections are available for case making.

▪ Speed up to 25 pcs/min.

▪ Set-up time for the complete line: 60-70 mins.

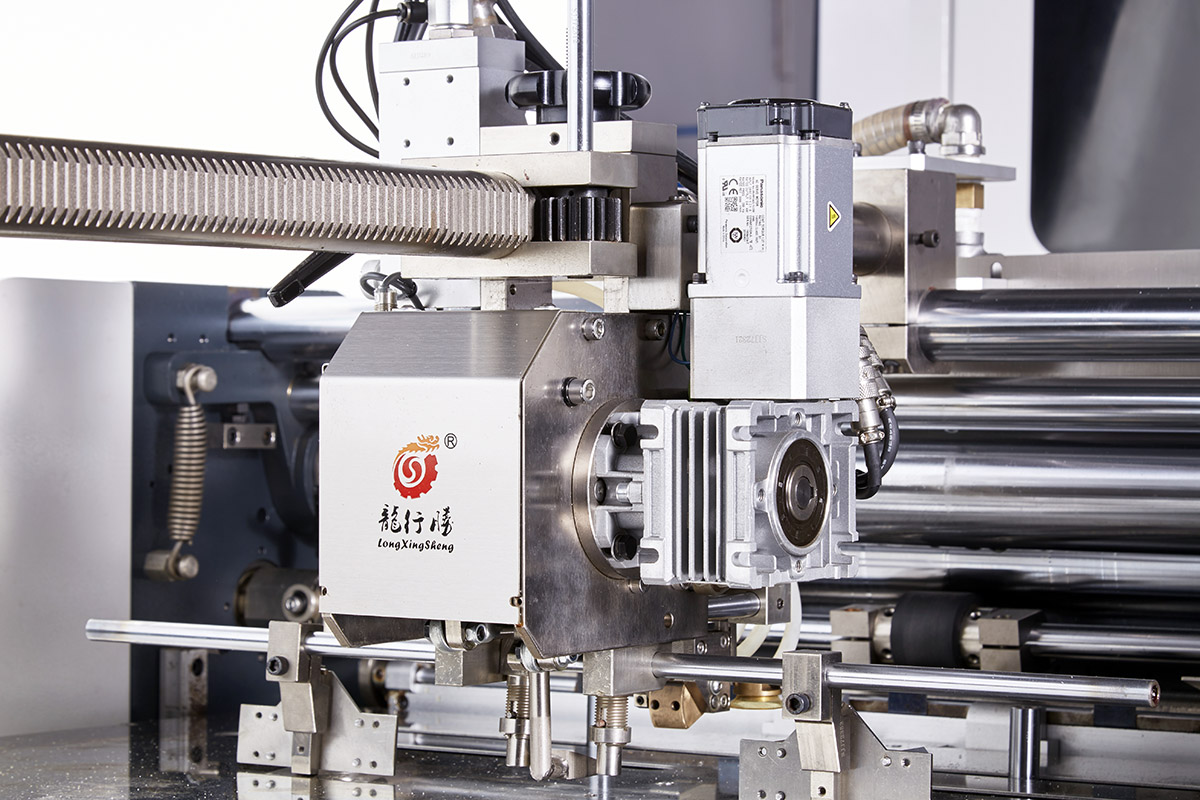

FEEDING SECTION

▪ Servo-motor independent driven feeding head, accurate feeding for various covering materials.

▪ New design avoids double sheets, fast and stable performance.

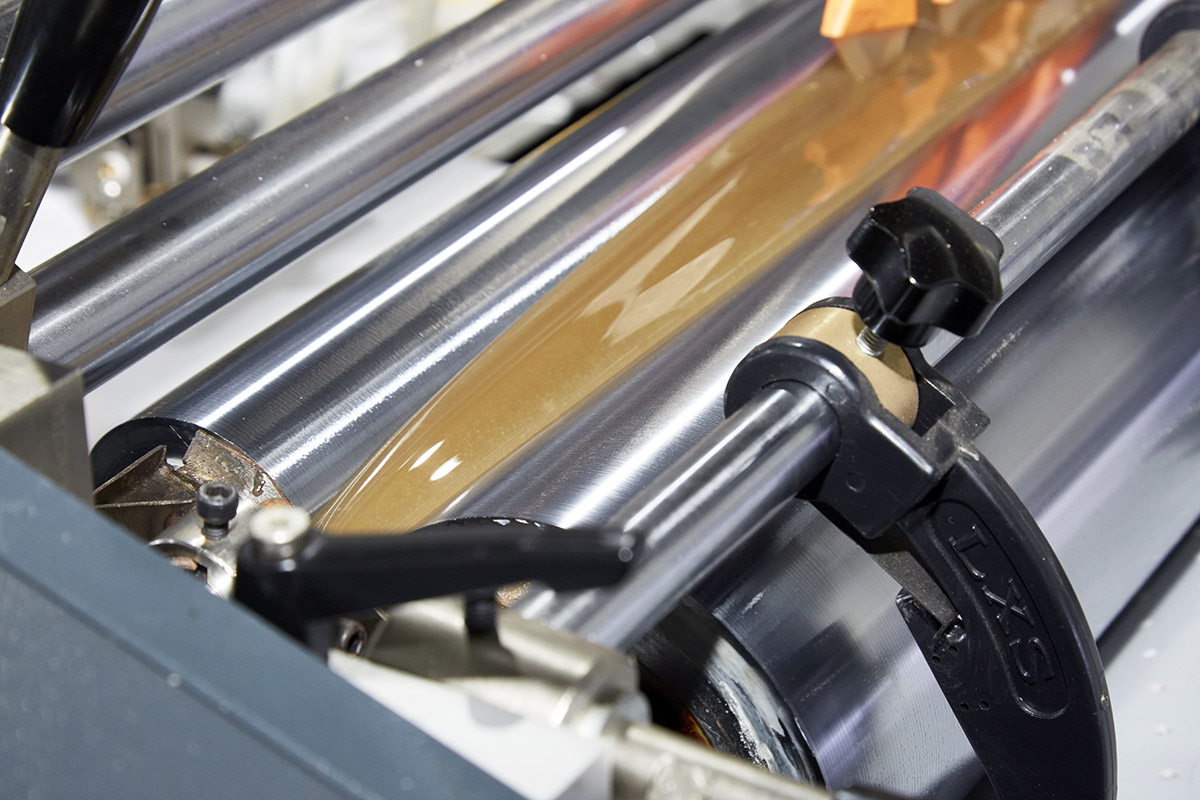

GLUING SECTION

▪ Integrate gluing system with recycling design, easy to clean.

▪ High precision gluing volume adjustment.

▪ Automatic glue viscosity detection and control system is optional.

VISUAL POSITIONING SYSTEM

▪ Imported 10Mega Pixel cameras

▪ Unique visual positioning system, no need to move cameras for size changing after calibration at beginning.

▪ Easy to operate the software to set up the positioning section within 10 min.

▪ Templates can be saved for repeat jobs.

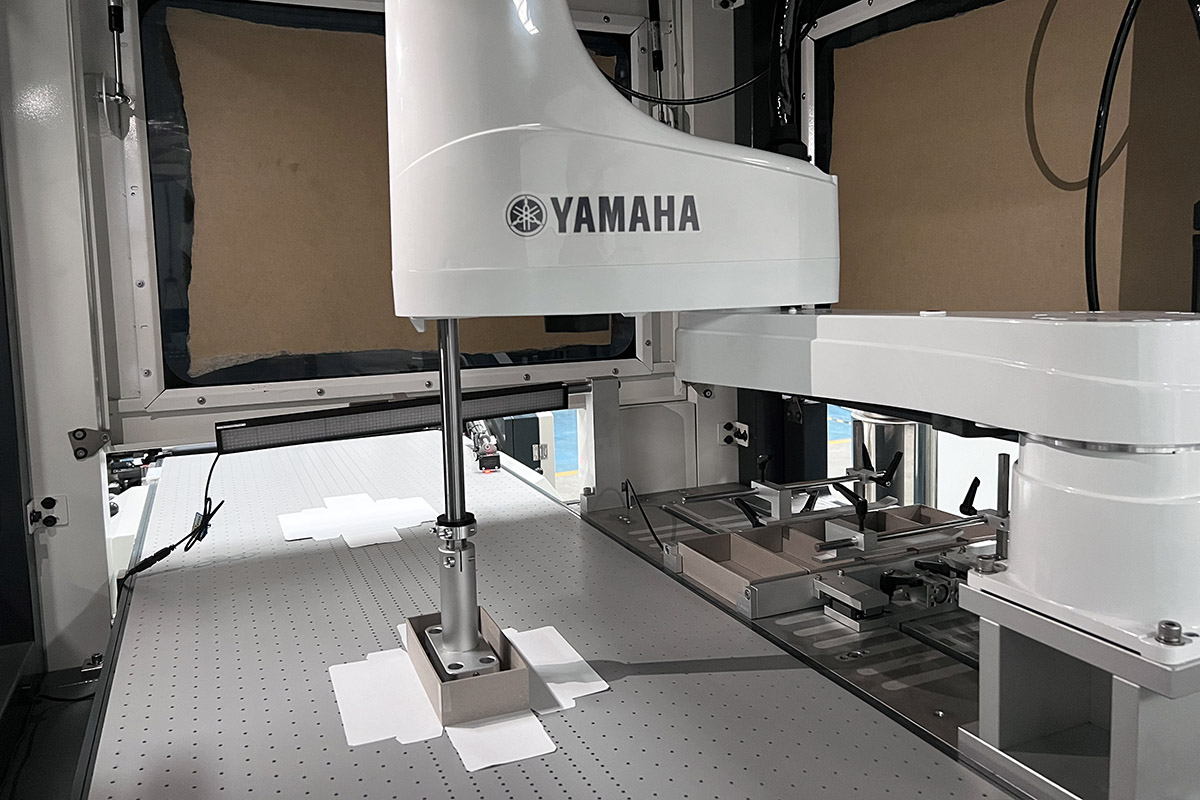

ROBOTIC ARM

▪ YAMAHA brand high precision robotic arm assures the working accuracy ±0.1mm.

▪ Robotic arm action driven by data from software, which is dynamically matching each cover sheet position under cameras.

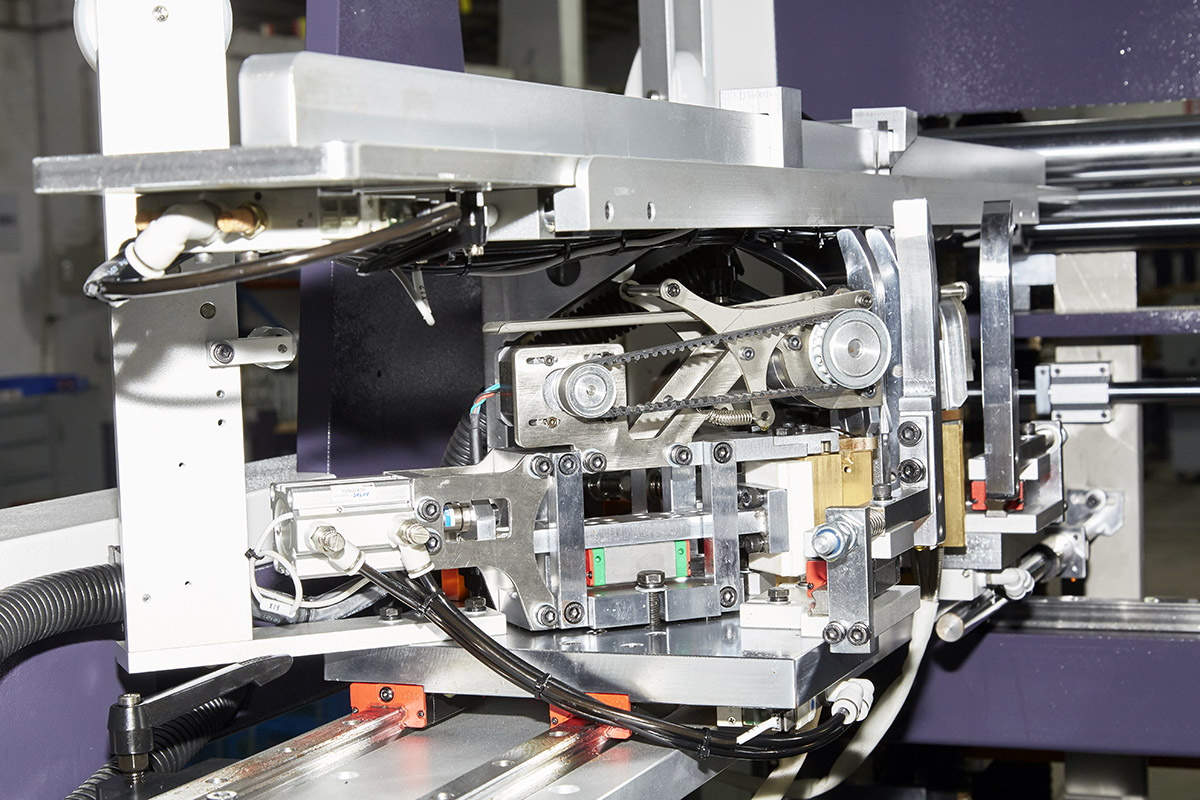

AUTOMATIC CORNER PASTING

▪ Non-stop cardboard feeding: equipped with 2 table plates to load the cardboard.

▪ Dural guider rails assure stable running.

▪ Integrate tape feeding device, avoid tape block.

▪ Available for plastic tape, paper tape and kraft tape.

▪ Screwed teeth gears driving the mold at high speed performance up to 60pcs/hour.

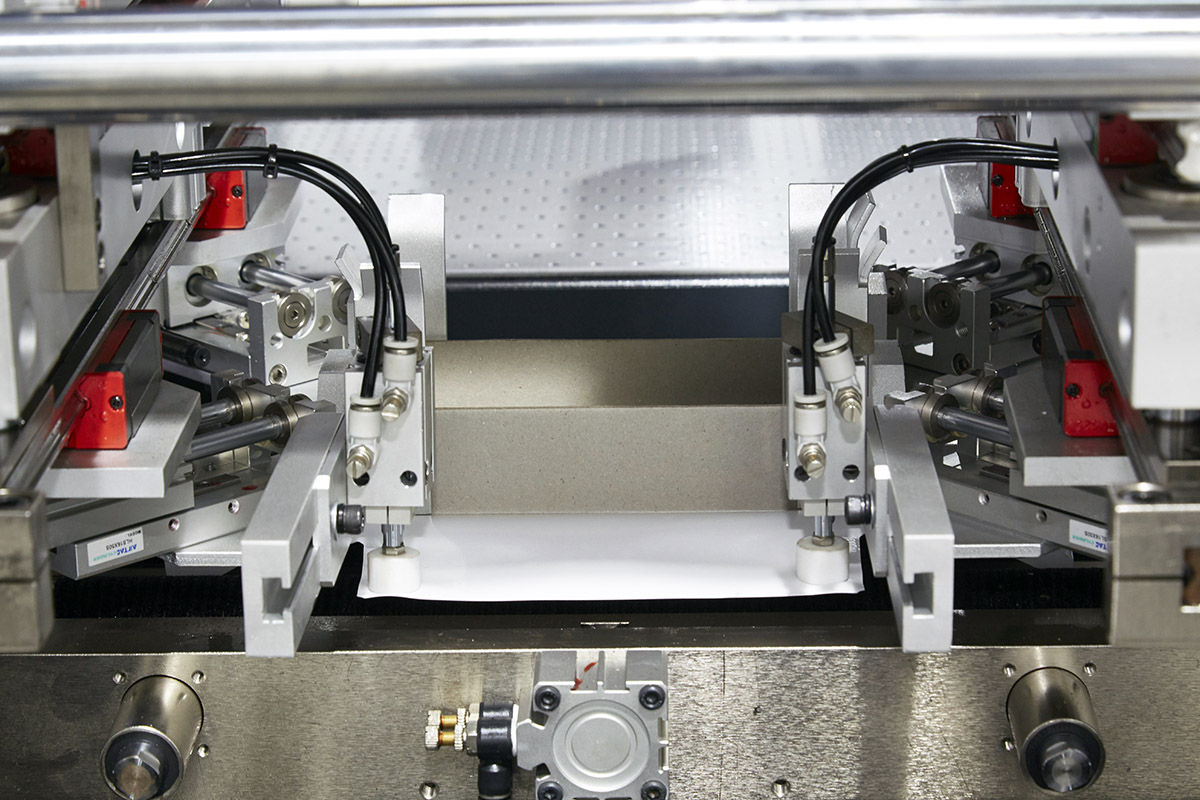

SINGLE FORMING SECTION

▪ No need to change air pressing plate.

▪ No need to change tuck in blade.

▪ Lift-up type box holding mechanism to prevent scratch of box bottom.

▪ Working speed: 15-25pcs/min.

HARDCOVER BOARD FEEDING

Hardcover making is available, dual functions for both rigid box and hardcover making on same machine.

Boards are fed from the bottom by means of pusher or sucker.

Non-stop loading from the top.

01 / 08
Parameters
Max. Paper Size (L*W)
800×600mm
Min. Paper Size (L*W)
135×100mm
Max. Cardboard Size (L*W)
760×560mm
Min. Cardboard Size (L*W)
120×100mm
Finished Box Size (L*W*H)
Max.: 600×400×160mm Min.: 100×65×15mm
Paper Thickness
80-350g/㎡
Cardboard Thickness
0.8-3mm
Turn-in Depth (R)
15-80mm
Edge Folding Size
10-90mm
Working Speed
15-25pcs/min
Motor Power
13kw / 380V 3P
Heating Power
8kw
Air Pressure
40L/min 0.8MPa
Total Weight
3500kgs
Dimension(L*W*H)
6500×3800×3000mm (height calculated when forming mold to top position)
Video
Dec 14, 2022
Slipcase making, up to 165mm in height
