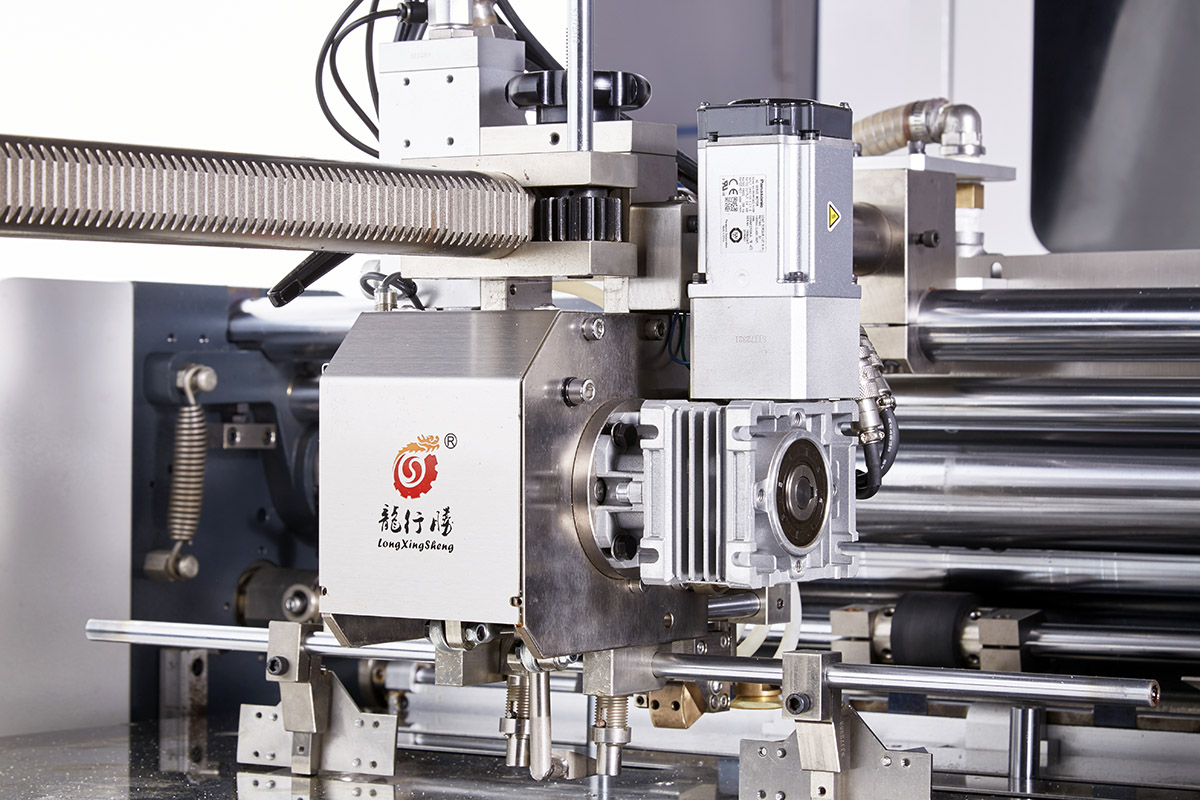

FEEDING SECTION

▪ Servo-motor independent driven feeding head, accurate feeding for various covering materials.

▪ New design avoids double sheets, fast and stable performance.

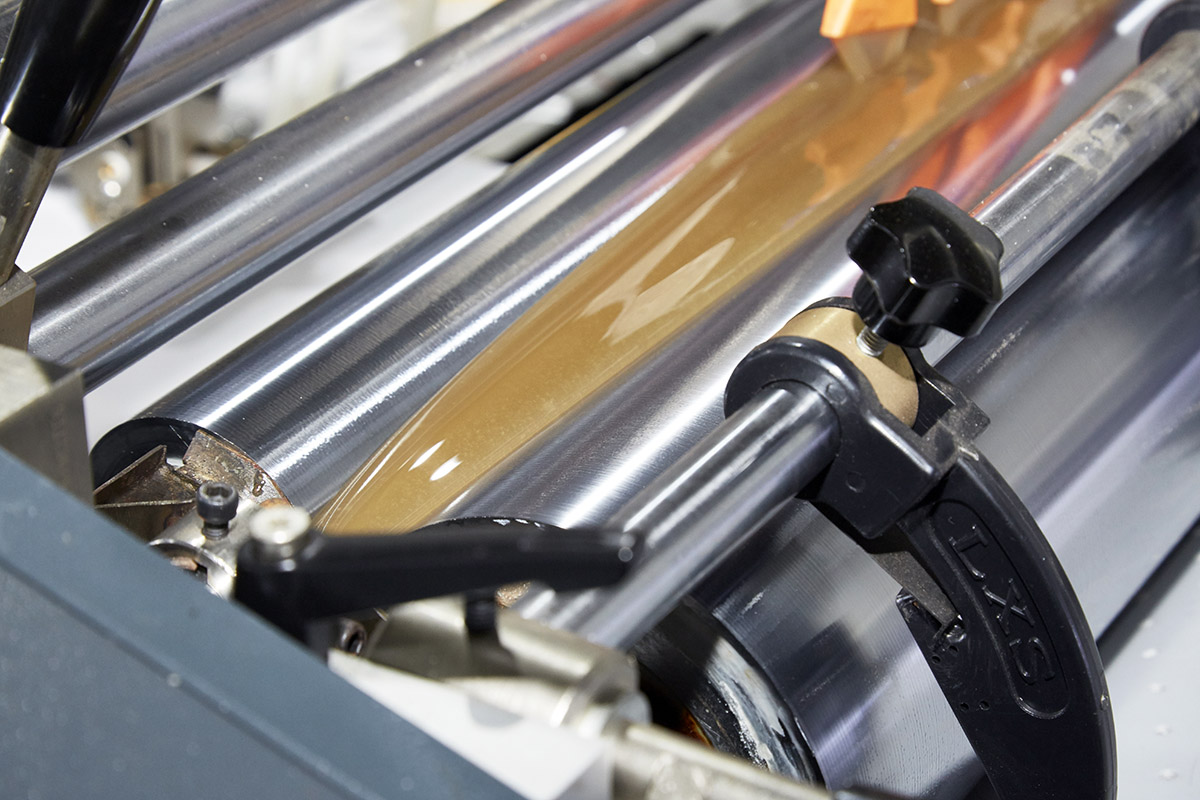

GLUING SECTION

▪ Integrate gluing system with recycling design, easy to clean.

▪ High precision gluing volume adjustment.

▪ Automatic glue viscosity detection and control system equipped as standard.

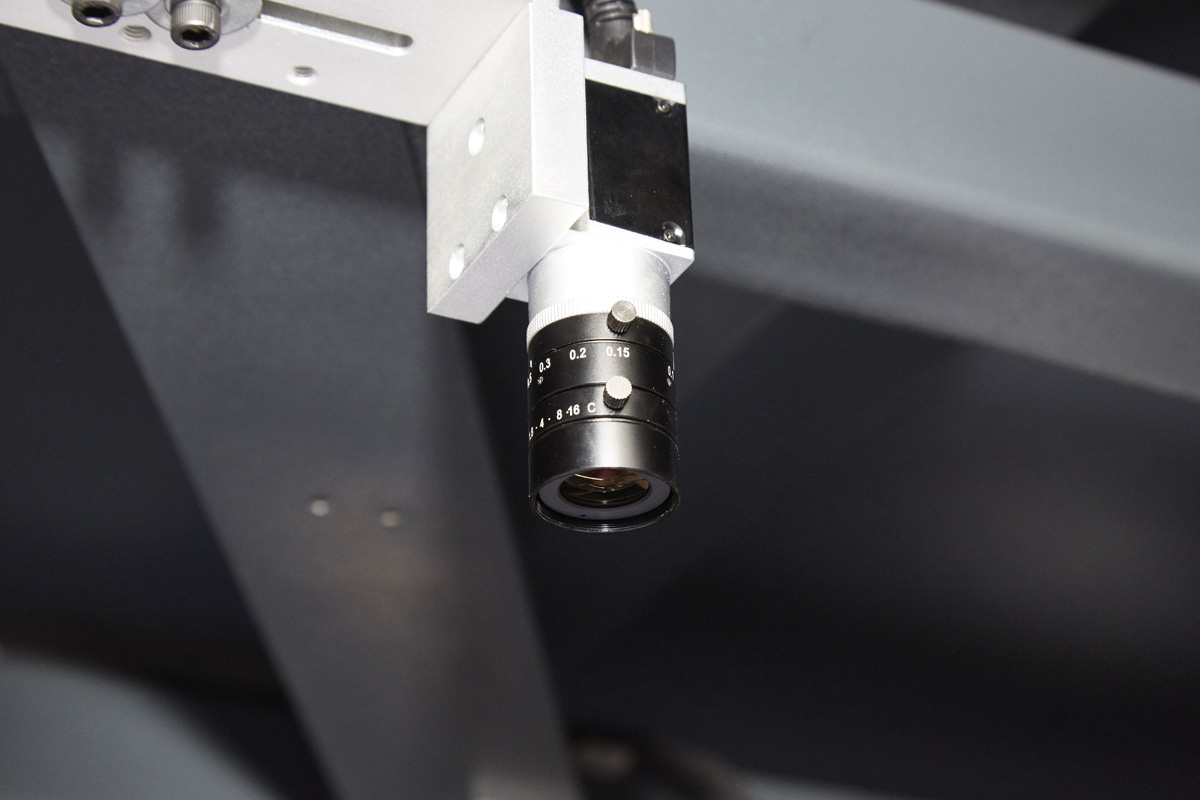

VISUAL POSITIONING SYSTEM

▪ Imported 10Mega Pixel cameras

▪ Unique visual positioning system, no need to move cameras for size changing after calibration at beginning.

▪ Easy to operate the software to set up the positioning section within 10 min.

▪ Templates can be saved for repeat jobs.

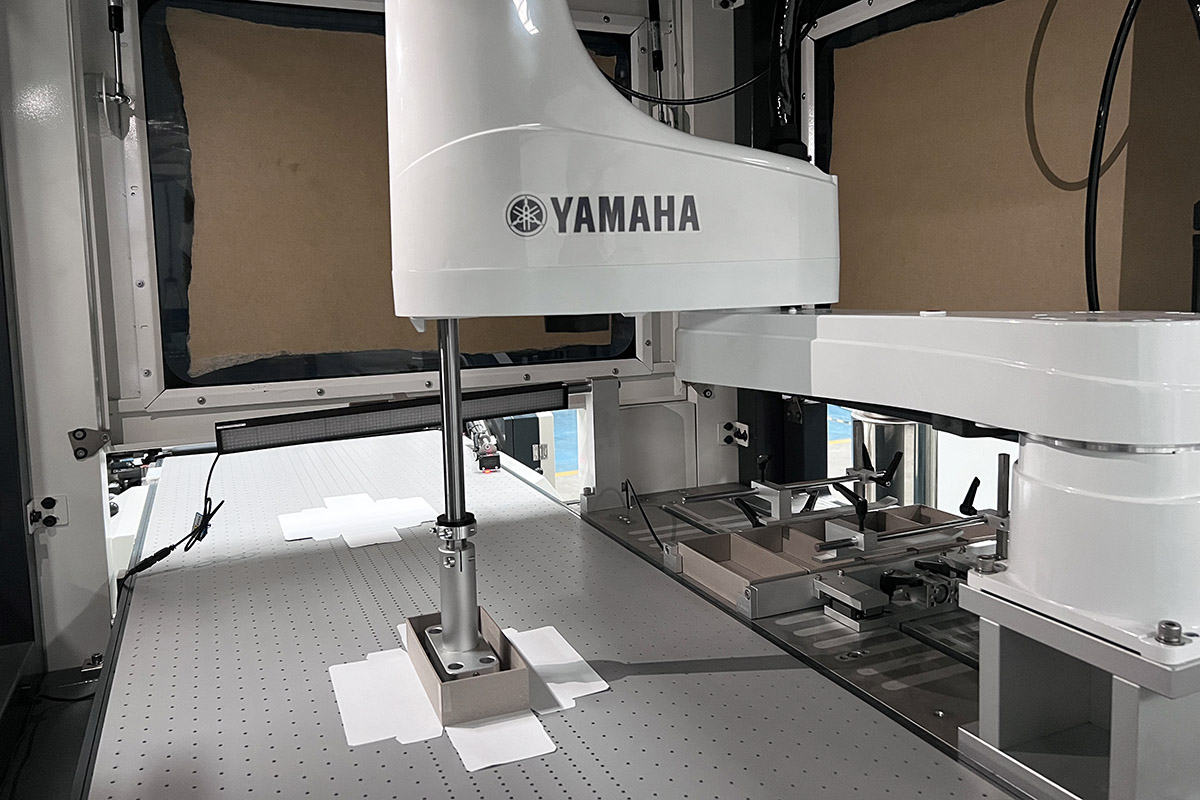

ROBOTIC ARM

▪ YAMAHA brand high precision robotic arm assures the working accuracy ±0.1mm.

▪ Robotic arm action driven by data from software, which is dynamically matching each cover sheet position under cameras.

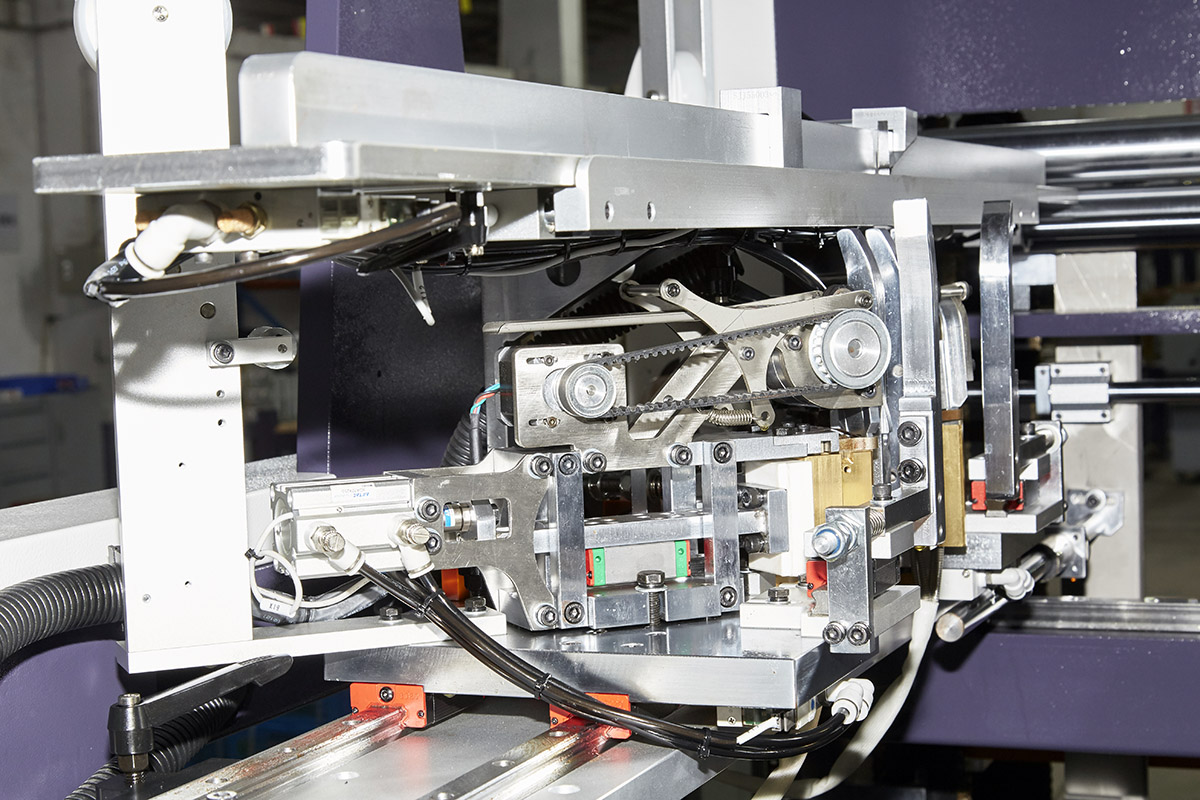

AUTOMATIC CORNER PASTING

▪ Non-stop cardboard feeding: equipped with 2 table plates to load the cardboard.

▪ Dural guider rails assure stable running.

▪ Integrate tape feeding device, avoid tape block.

▪ Available for plastic tape, paper tape and kraft tape.

▪ Screwed teeth gears driving the mold at high speed performance up to 60pcs/hour.

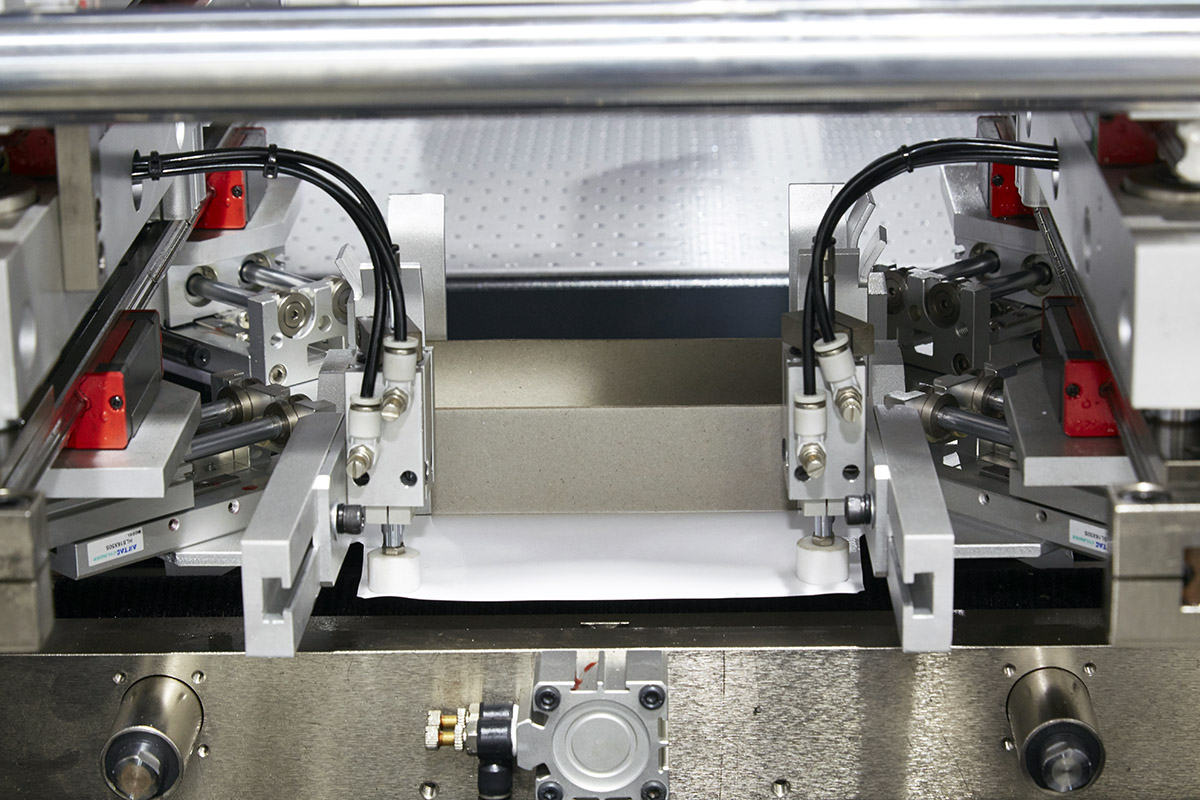

SINGLE FORMING SECTION

▪ Storage(memory) function for sizes setting.

▪ Automated set-up by inputting box dimensions on touch screen.

▪ Lift-up type box holding mechanism to prevent scratch of box bottom.

▪ No need to change tuck-in blade and air pressing plate.

▪ Working speed: 15-25pcs/min.
