General Features

▪ Round-corner hardcover books and notebooks can be made.

▪ Max. 6pcs boards can be applied for the hardcover production.

▪ Automatic paper feeding, gluing, board feeding, positioning and folding.

▪ Optical sensors detect and servo-controlled board positioning ensures high accuracy up to ±0.25 mm.

Feeding Section

▪ Servo-driven automatic cover paper feeding

▪ Double-sheet detector

Gluing Section

▪ Chromed roller gluing with circulating glue pump and premelter, animal glue is used on this machine.

▪ Quick and easy cleaning on the gluing roller.

▪ Automatic glue viscosity detection and control system.

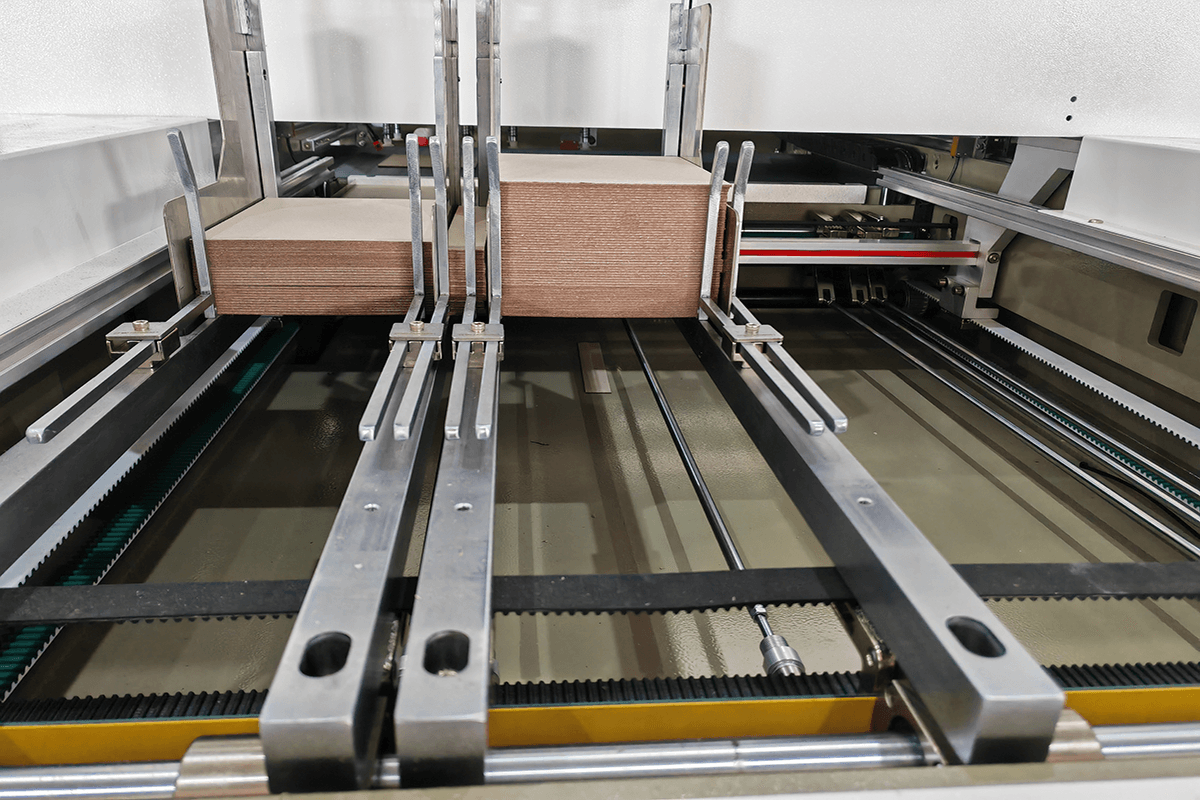

Automatic Board Feeding Section

▪ Boards are fed from the bottom by means of pushers

▪ Non-stop loading from the top.

▪ Max. 6 pieces of board can be performed.

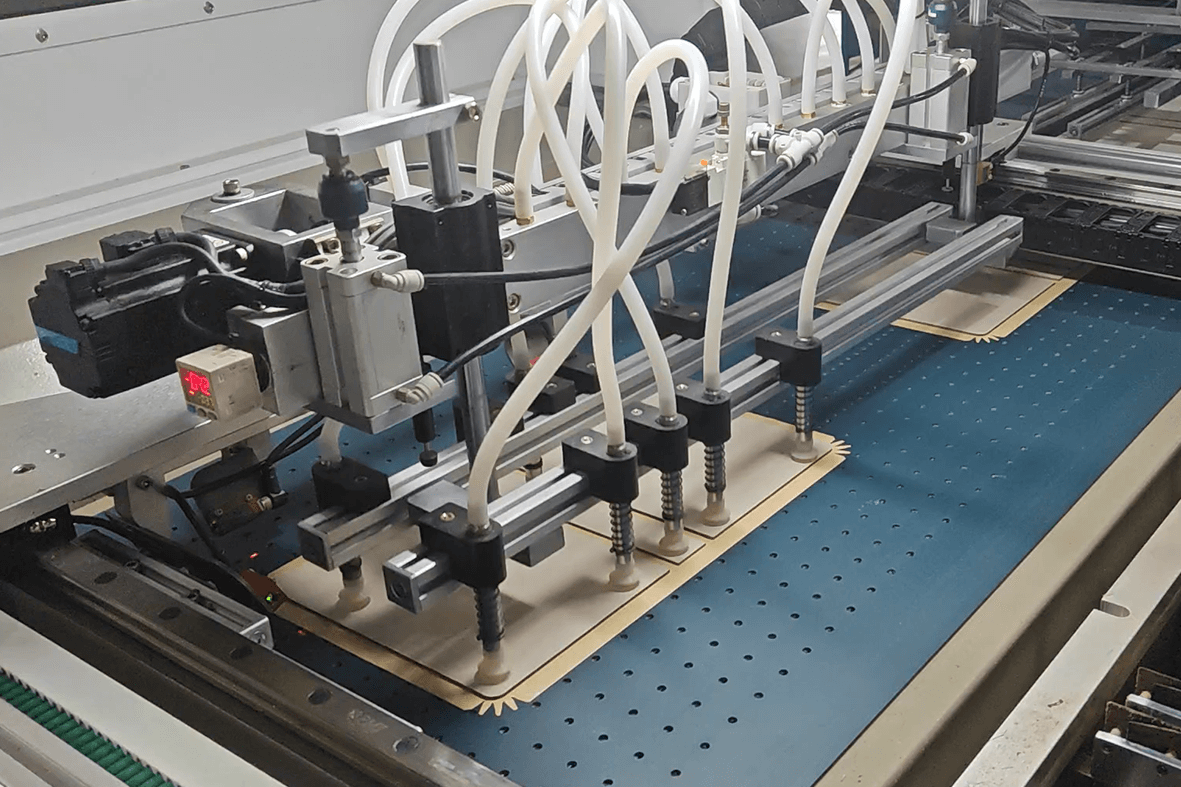

Automatic Positioning Section

▪ Three point sensors reading for precise alignment of board.

▪ Fine correction for board registration by servo-controlled mechanical arms.

▪ Servo-driven suction belt ensures stable transport of paper.

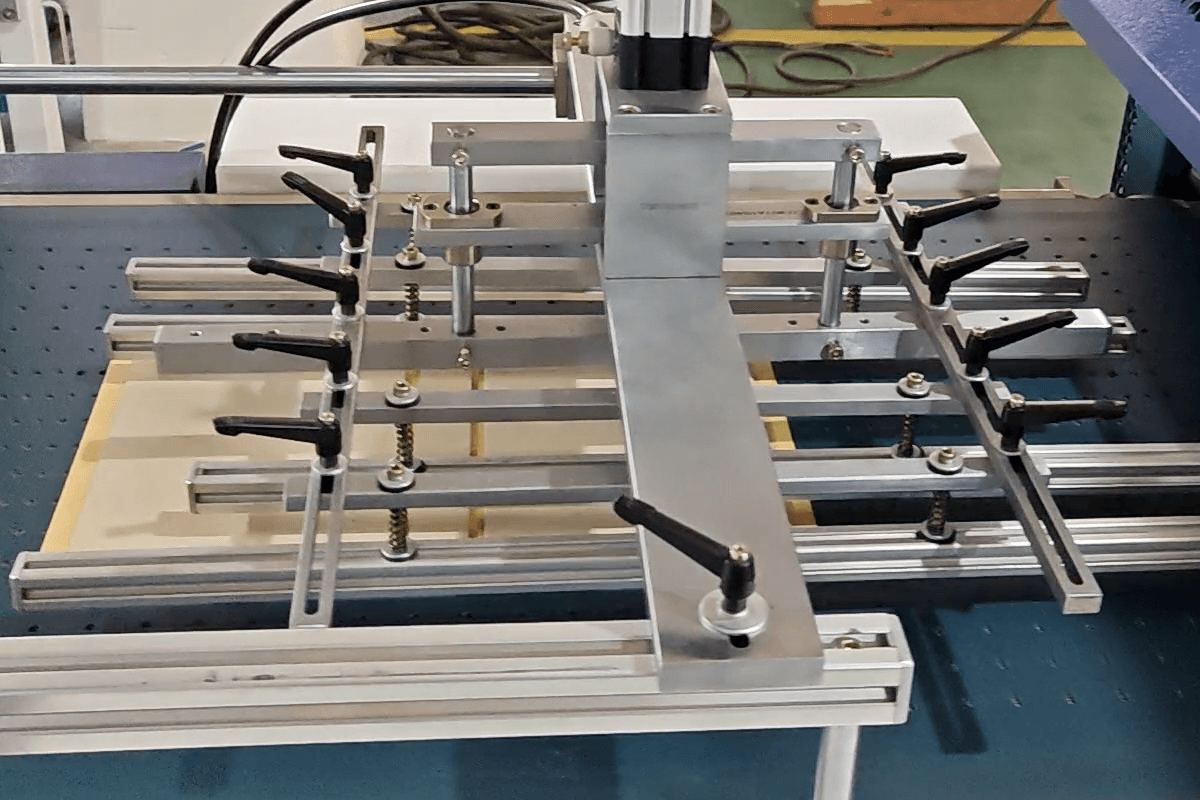

Pneumatic Pressing Section

▪ The case is pressed gently by pressing structure before entering into folding section.
