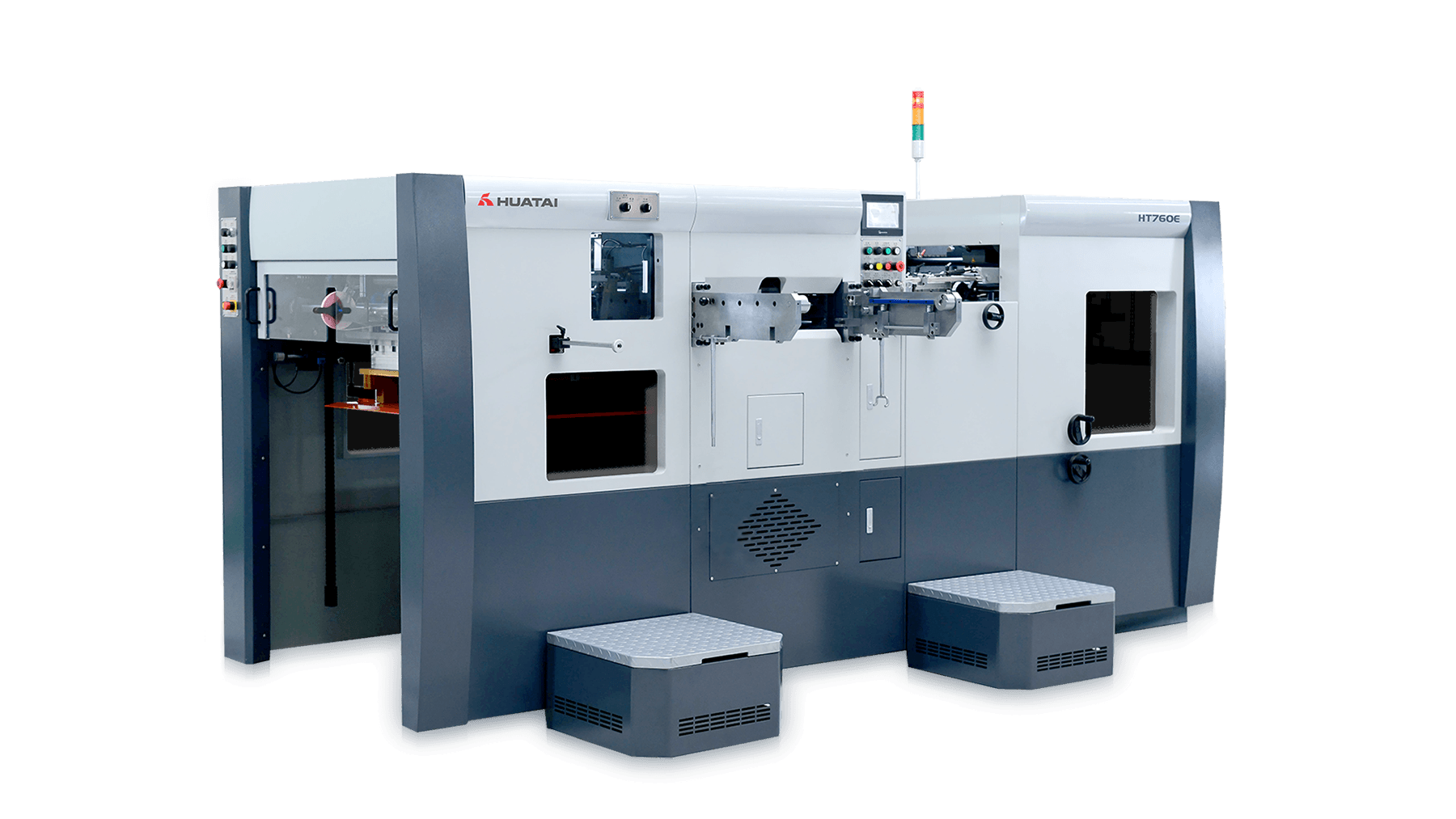

HT760E / 760L
HT760E / 760L
Automatic Die Cutting Machine
Get Price
Brochure
Parameters
HT760E
HT760L
Max. Sheet Size
788×546mm
Min. Sheet Size
320×250mm
Max. Cutting Size
750×510mm
Max. Die Cutting Speed
10000s/h
Max. Pressure
250T
Precision
±0.075mm
Inside Chase Size
765×530mm
Height of Cutting Rules
23.8mm
First Cutting Rule
13mm
Min. Gripper Margin
7mm
Max. Feeding Pile Height (incl. pallet)
1280mm
Max. Delivery Pile Height (incl. pallet)
1160mm
Thickness of Cardboard
80gsm - 2000gsm
Thickness of Corrugated Paper
≤4mm
Weight
8T
Total Power
14kw
Compressed Air
0.8Mpa
Air Flow
0.6m³/Min
Max. Sheet Size
788×610mm
Min. Sheet Size
320×250mm
Max. Cutting Size
750×600mm
Max. Die Cutting Speed
10000s/h
Max. Pressure
250T
Precision
±0.075mm
Inside Chase Size
765×620mm
Height of Cutting Rules
23.8mm
First Cutting Rule
13mm
Min. Gripper Margin
7mm
Max. Feeding Pile Height (incl. pallet)
1280mm
Max. Delivery Pile Height (incl. pallet)
1160mm
Thickness of Cardboard
80gsm - 2000gsm
Thickness of Corrugated Paper
≤4mm
Weight
8T
Total Power
14kw
Compressed Air
0.8Mpa
Air Flow
0.6m³/Min
