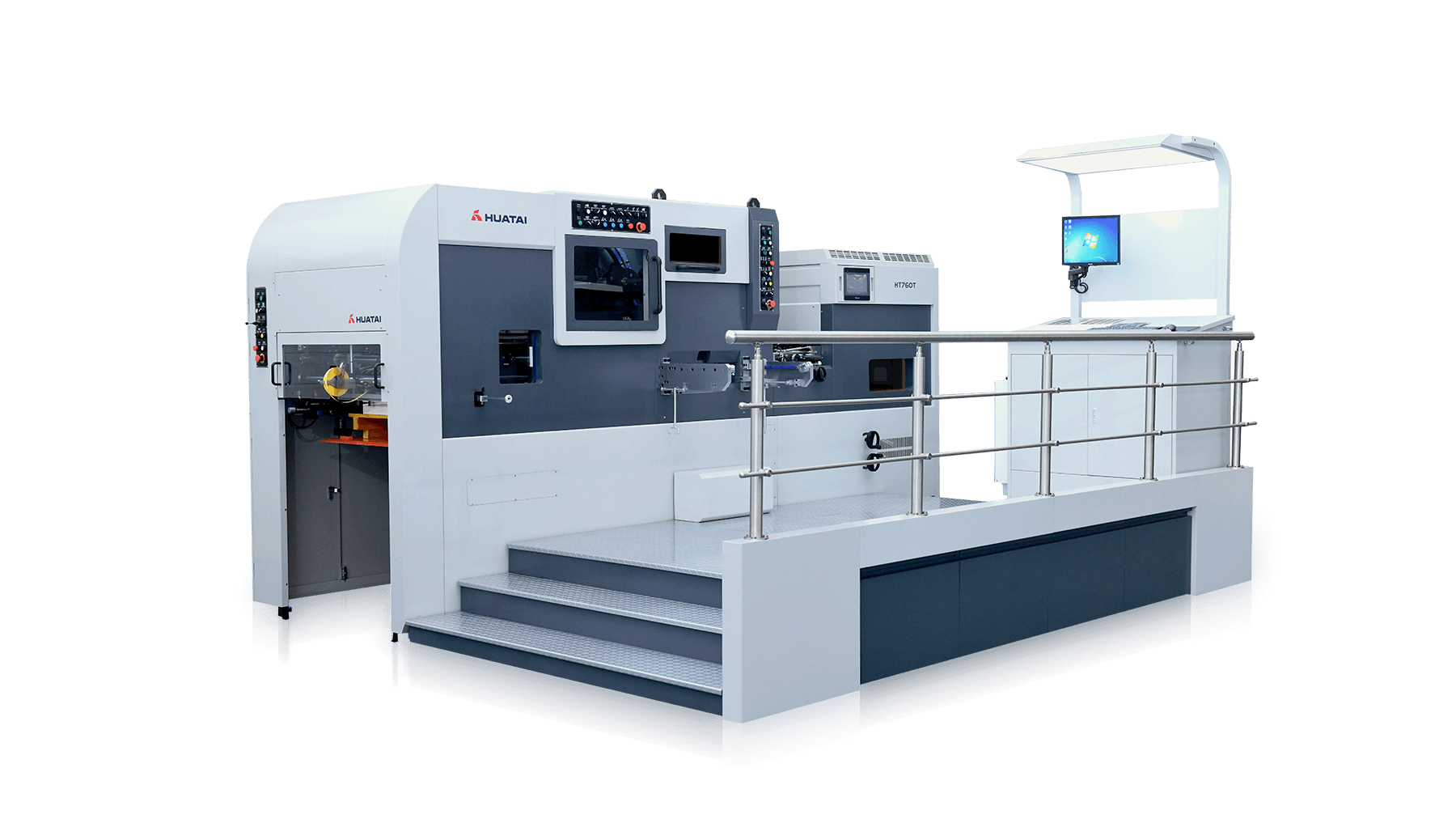

HT760T

Hot-foil Stamping Machine

Get Price Brochure

Parameters

HT760T

Max. Sheet Size

788×546mm

Min. Sheet Size

320×260mm

Max. Cutting Size

750×510mm

Max. Foil Stamping Size

740×500mm

Max. Die Cutting Speed

9000s/h

Max. Foil Stamping Speed

9000s/h

Max. Pressure

250T

Die Cutting Precision

±0.075mm

Inside Chase Size

765×530mm

Height of Cutting Rules

23.8mm

First Cutting Rule

13mm

Min. Gripper Margin

7mm

Heating Zone

8zones

Heating Temperature

0-190℃

Max. Feeding Pile Height (incl. pallet)

1280mm

Max. Delivery Pile Height (incl. pallet)

1160mm

Thickness of Cardboard

80gsm - 2000gsm

Thickness of Corrugated Cardboard

≤4mm

Feeding Shafts

3/6(option)

Weight

11T

Total Power

38kw

Compressed Air

0.8Mpa

Air Flow

0.6m³/Min
