    • Home > Solutions > Die Cutter > HT760S

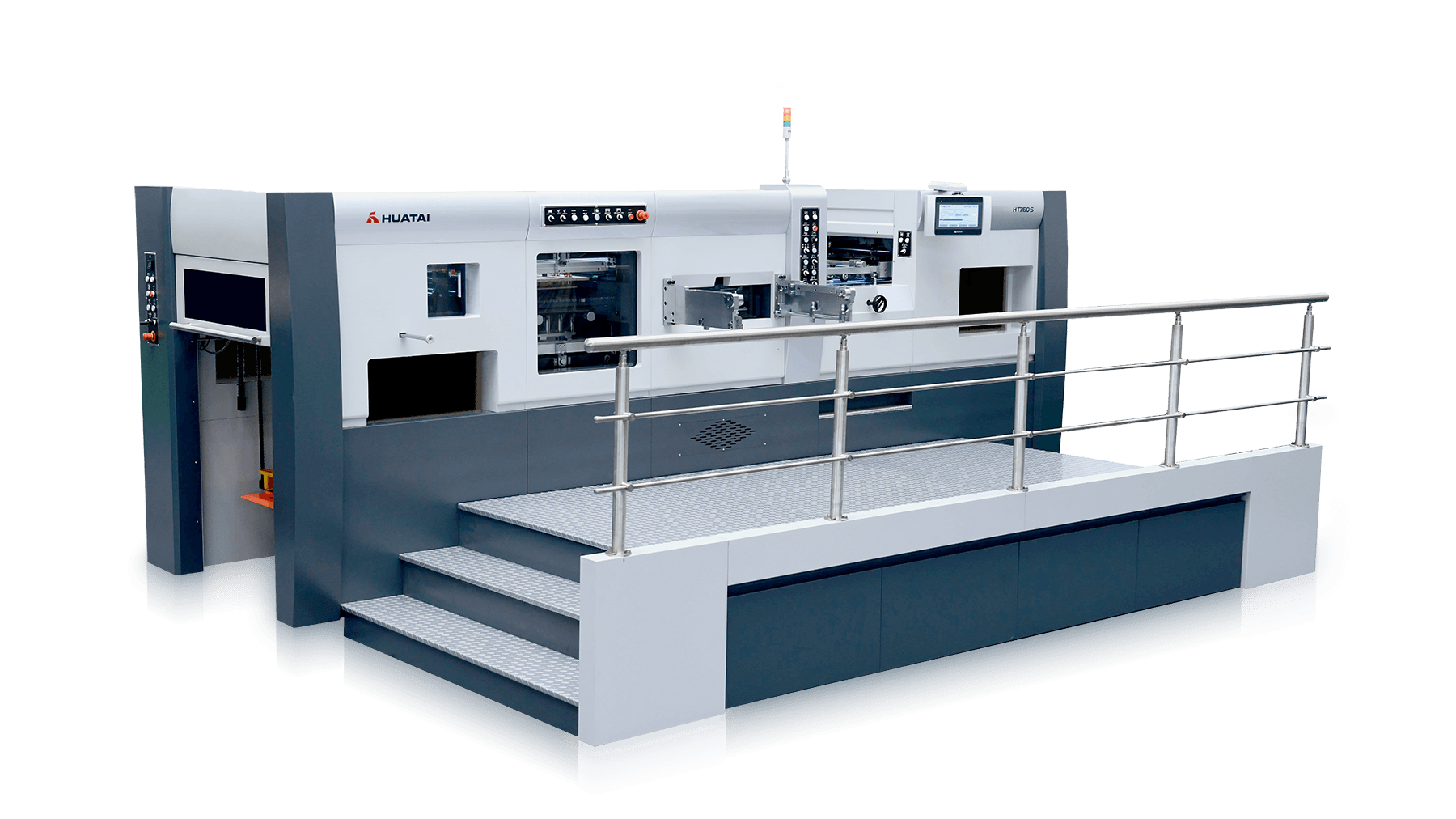

    HT760S
    Automatic Die Cutting & Stripping Machine
    Get Price Brochure
    Parameters
    HT760S
    Max. Sheet Size
    760×610mm
    Min. Sheet Size
    320×260mm
    Max. Cutting Size
    750×600mm
    Max. Die Cutting Speed
    9000s/h
    Max. Stripping Speed
    9000s/h
    Max. Pressure
    250T
    Precision
    ±0.075mm
    Inside Chase Size
    765×620mm
    Height of Cutting Rules
    23.8mm
    First Cutting Rule
    13mm
    Min. Gripper Margin
    7mm
    Max. Feeding Pile Height (incl. pallet)
    1480mm
    Max. Delivery Pile Height (incl. pallet)
    1360mm
    Thickness of Cardboard
    80gsm - 2000gsm
    Thickness of Corrugated Cardboard
    ≤4mm
    Weight
    12.5T
    Total Power
    15kw
    Compressed Air
    0.8Mpa
    Air Flow
    0.6m³/Min
