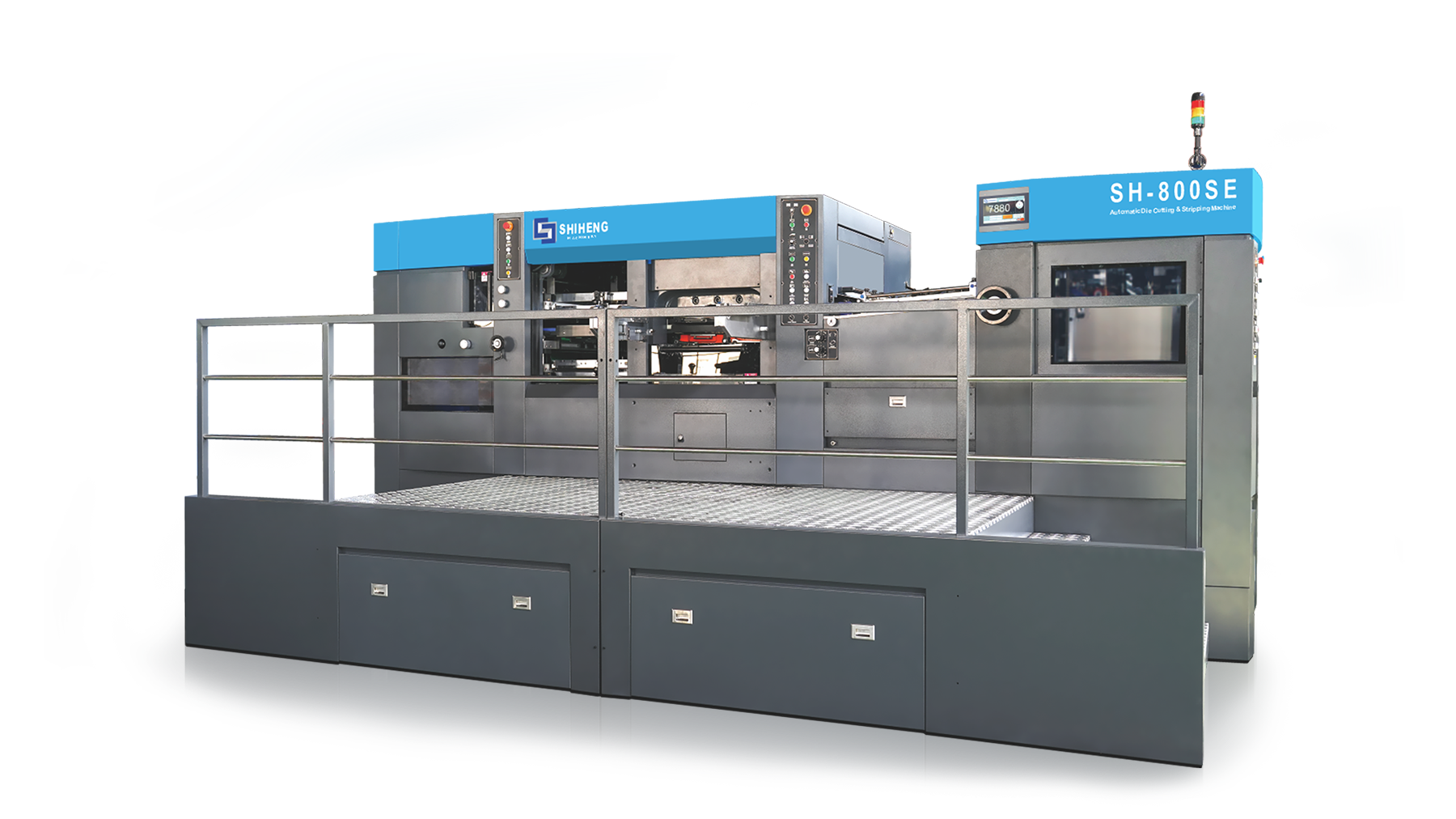

SH-800SE
Automatic Die Cutting & Stripping Machine
Features

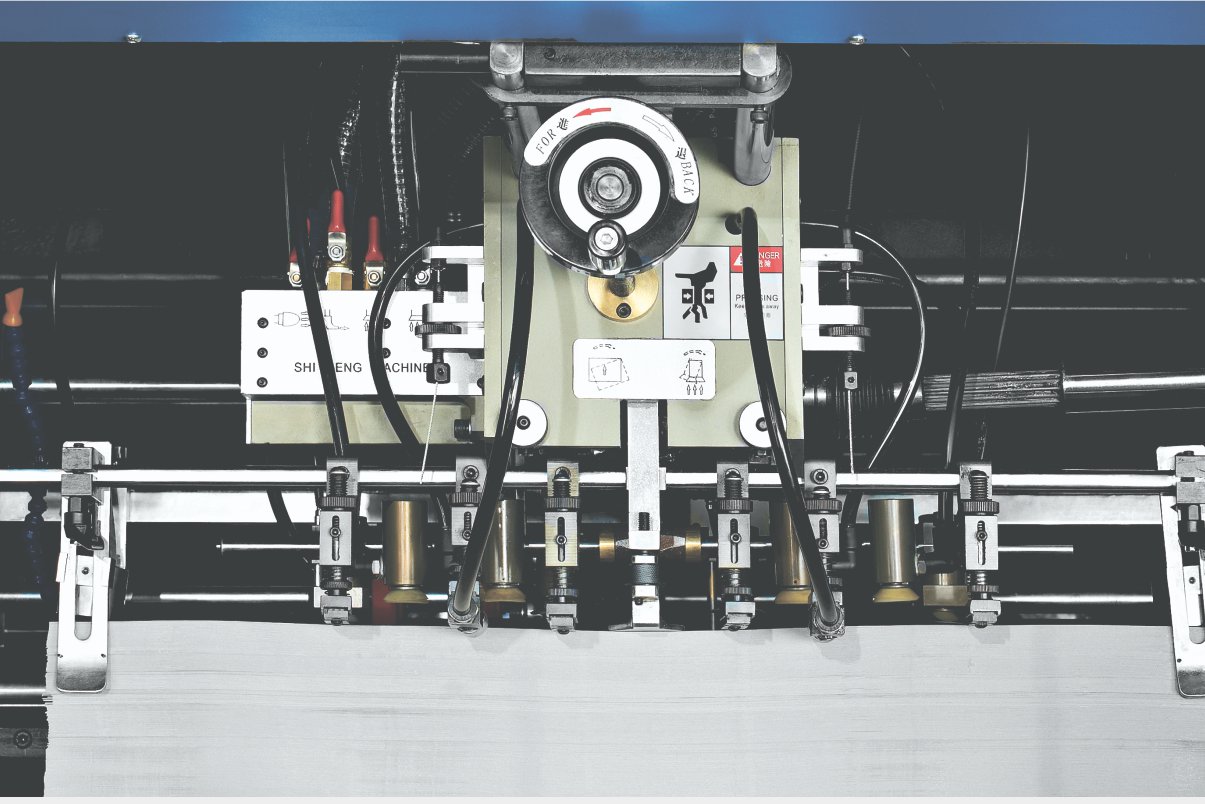

Non-stop Offset Feeder

▪ Non-stop-feeding with a pre-loading platform for high-speed, efficient production.

▪ Intense 4 lifting & 4 forwarding suction heads can feed various substrates smoothly up to B-flute corrugated board.

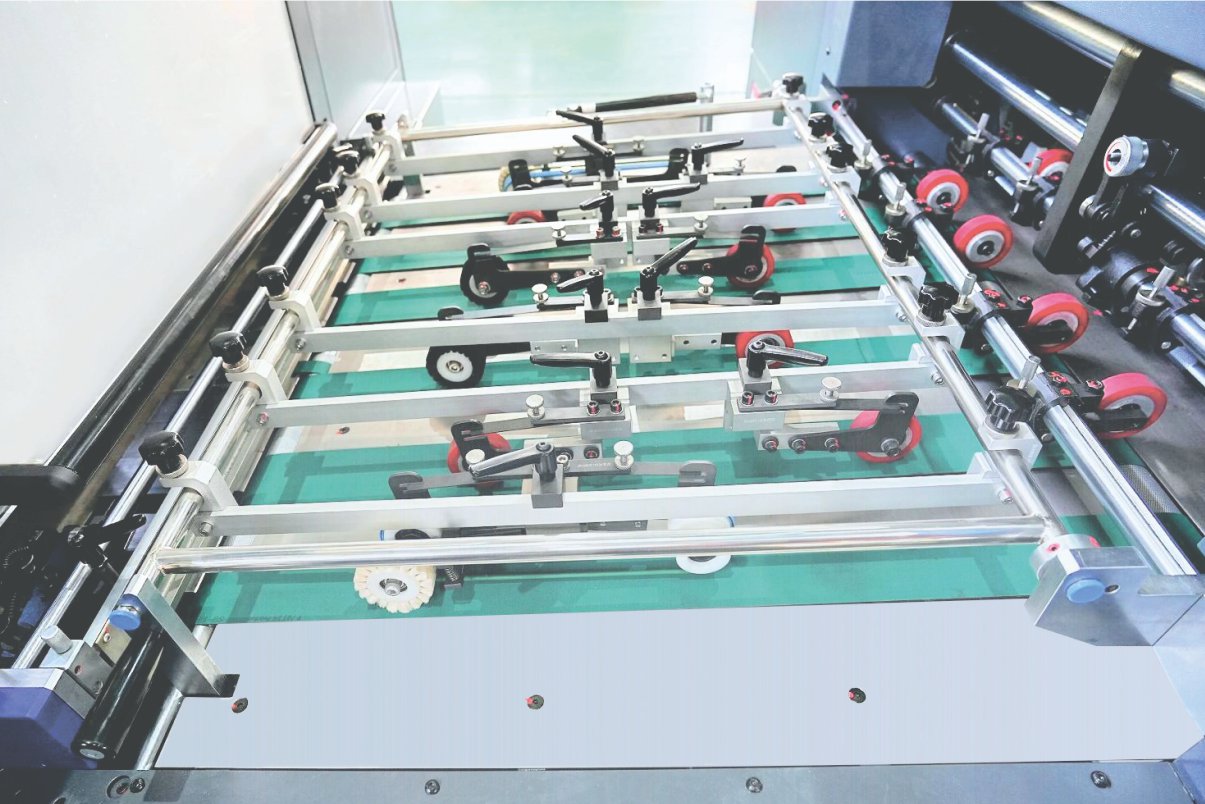

Feeding Table

▪ Double sheet detector and front lay register device can calibrate the sheet feeding.

▪ Push and pull 2-in-1 side lay can handle different stocks.

▪ Driven-type brush wheels with wide Nitta belt for smooth conveying of various substrates, even the curved corrugated board.

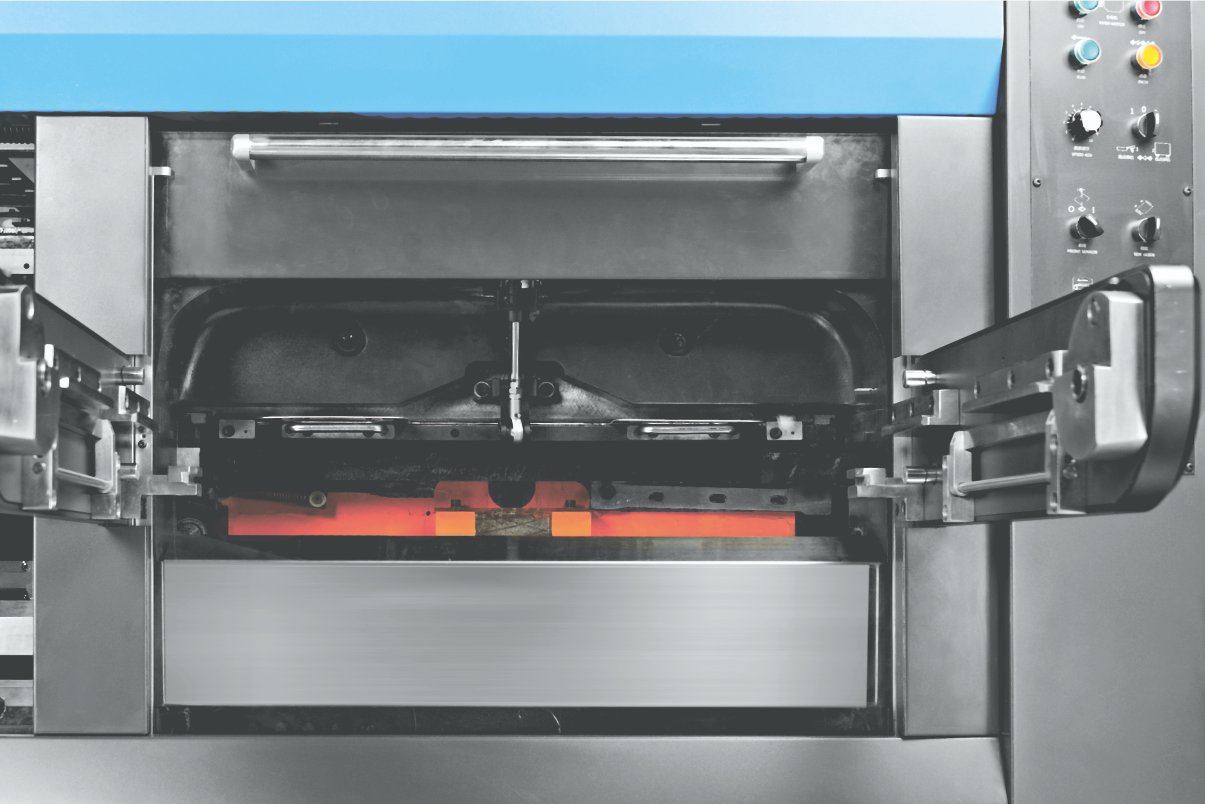

Die Cutting Section

▪ High quality intermittent divider provides smooth and accurate sheets running.

▪ State-of-the-art drive mechanism with a heavy-duty structure for steady and high-precision worktable movement.

▪ Cutting pressure can be fast set and recorded by touch screen, with max. ability to 200 tons.

▪ Pneumatic chase lock makes operation much easier.

▪ Various stock cutting ranges from light paper to B-flute.

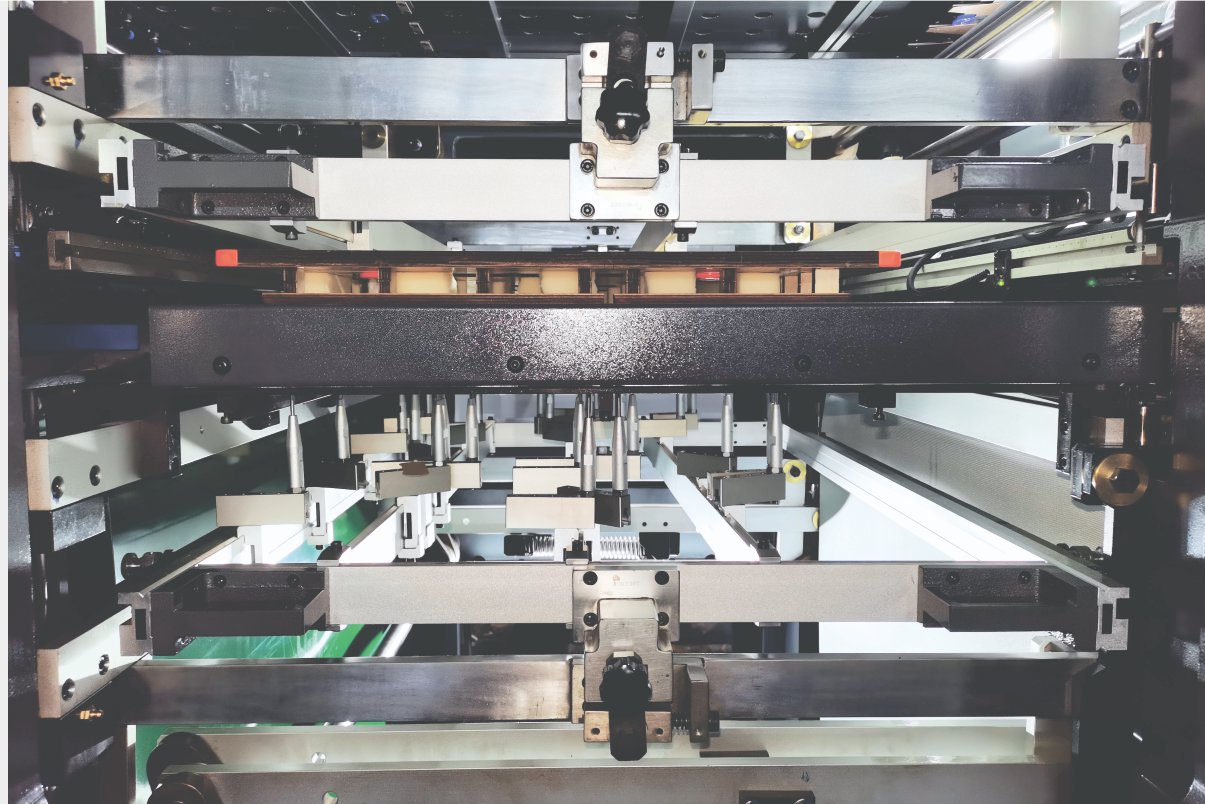

Stripping Section

▪ 3 chases stripping makes stripping action more proper.

▪ Stripping chase positioning system simplifies stripping pin and improves working efficiency.

▪ Upper and lower stripping frames can be pulled out for job setup and makeready.

▪ Either stripping pins or stripping tools are applicable.

▪ Equipped with 2nd stripping channel to remove the gripper margin waste.

▪ Optional quick-lock upper stripping chase.

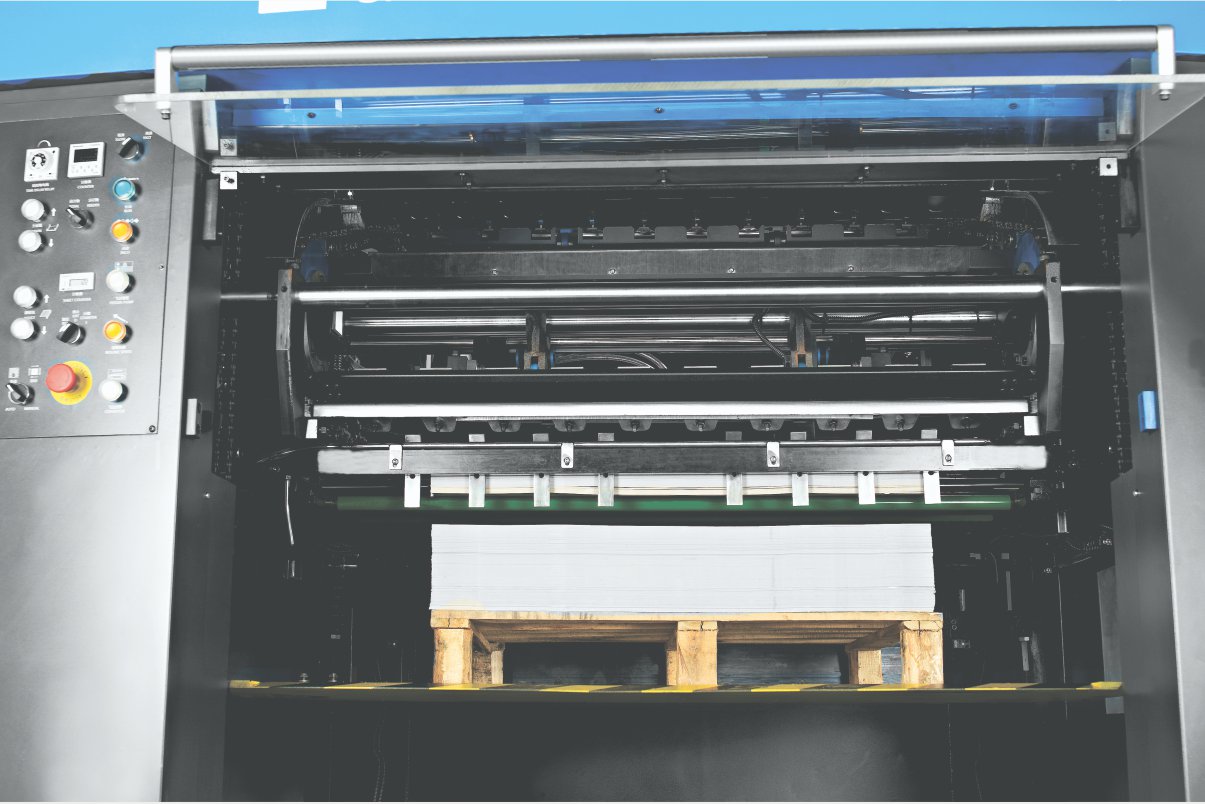

Non-stop Delivery

▪ The brush push-down device and jogger device at the delivery section to ensure proper stacking。

▪ The auxiliary belt table will automatically switch on for non-stop delivery production when the pile reaches a certain height. The main machine speed will slow down for easy operation and recover to its original rate after the new pallet is ready.

▪ Sampling device allows the operator to check the finished product quickly without stopping the machine from running

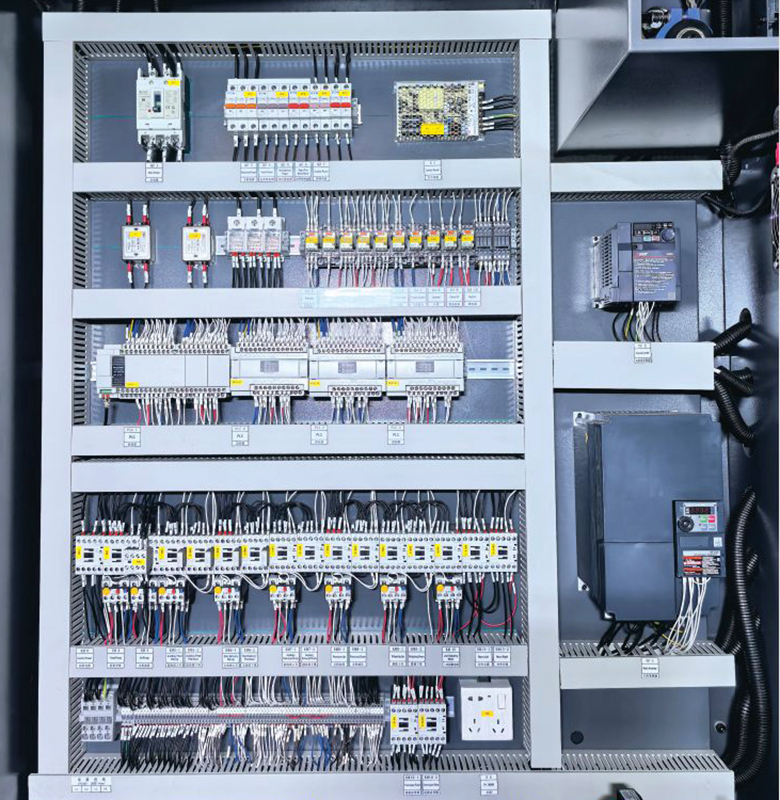

Intelligent Electric Control System

▪ MITSUBISHI and TOSHIBA frequency converter, PANASONIC or MITSUBISHI PLC and sensor, MOELLER(EATON) switch button, circuit-breaker, and contactor.

▪ TECO brand motor for main machine transmission, MAC Electromagnetic valve.

▪ Colorful man-machine interface can present the whole machine running situation. The troubleshooting manual provided in the touch screen helps fast solution for the errors.
01 / 06
Parameters
Max. Sheet Size
800×620mm
Min. Sheet Size
360×290mm
Max. Cutting Size
790×610mm
Max. Feeding Pile Height
1700mm including the pallet
Max. Delivery Pile Height
1500mm including the pallet
Max. Pressure
200ton
Paper Thickness
100~2000gsm cardboard, corrugated board≤4mm
Min. Gripper Margin
8mm
Precision
±0.075mm
Max. Die Cutting Speed
8000s/h
Total Power
17.5kw
Total Weight
15000kgs
Dimension(LxWxH)
6900×3610×2420mm(including the pre-loading device)
Stripping Function
Yes, 4 side stripping, including gripper side waste
